50 Ton PHI Used Press for Sale • PHI ST50/15-5 Press

50

50
Ton
28″
Bed R-L
10″
Stroke
Speed: SPM
New in 1

1

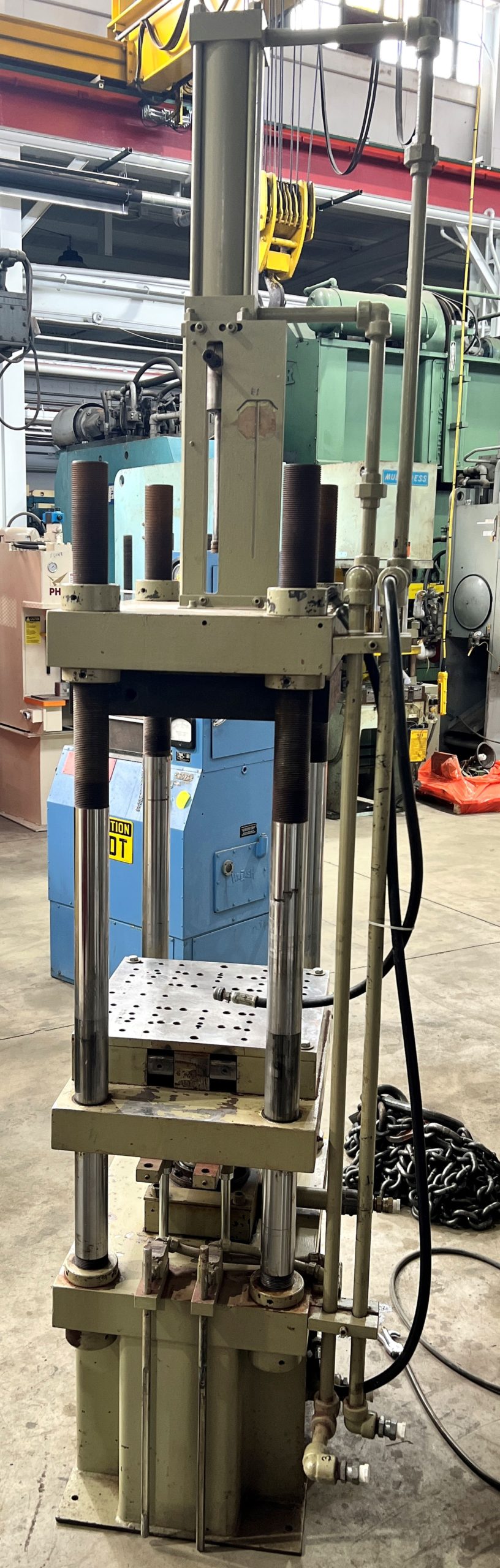

Used Heated Platen Press
Model: PHI ST50/15-5
10″ Stroke, 42″ Daylight, 21.5″ x 19″ Usable Bed, 18.5″ x 18.5″ Heated Platens (Sold As-Is)

Compression Molding Preses for Sale
Used PHI Hydraulic Press
Machine #6291
Jackson, MI Cooper Building
Sale Price: $

Machine Specifications

Used Heated Platen Press for Sale

Manufacturer: PHI
Model: PHI ST50/15-5 Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1969
Machine #: 6291
Buy Now: $





CAPACITY 50 TONS AT APPROX. 4,210 PSI
STROKE 10″
MAX. DAYLIGHT 42″
OVERALL BED & RAM AREA 28″ X 19″ (RL X FB)
DISTANCE BETWEEN POSTS 21.5″ X 11.25″ (RL X FB)
USABLE BED AREA 21.5″ X 19″ (RL X FB)
ELECTRIC HEATED PLATENS 18.5″ X 18.5″ (RL X FB) X 3.75″ HIGH (SOLD AS-IS)
FLOOR TO BED 34″
SPEEDS __
RAM ROD SIZE 4.75″ DIA.
CYLINDER SIZE APPROX. 5.5″ DIA. BORE
4 COLUMN / POSTS SIZE 2.5″ DIA.

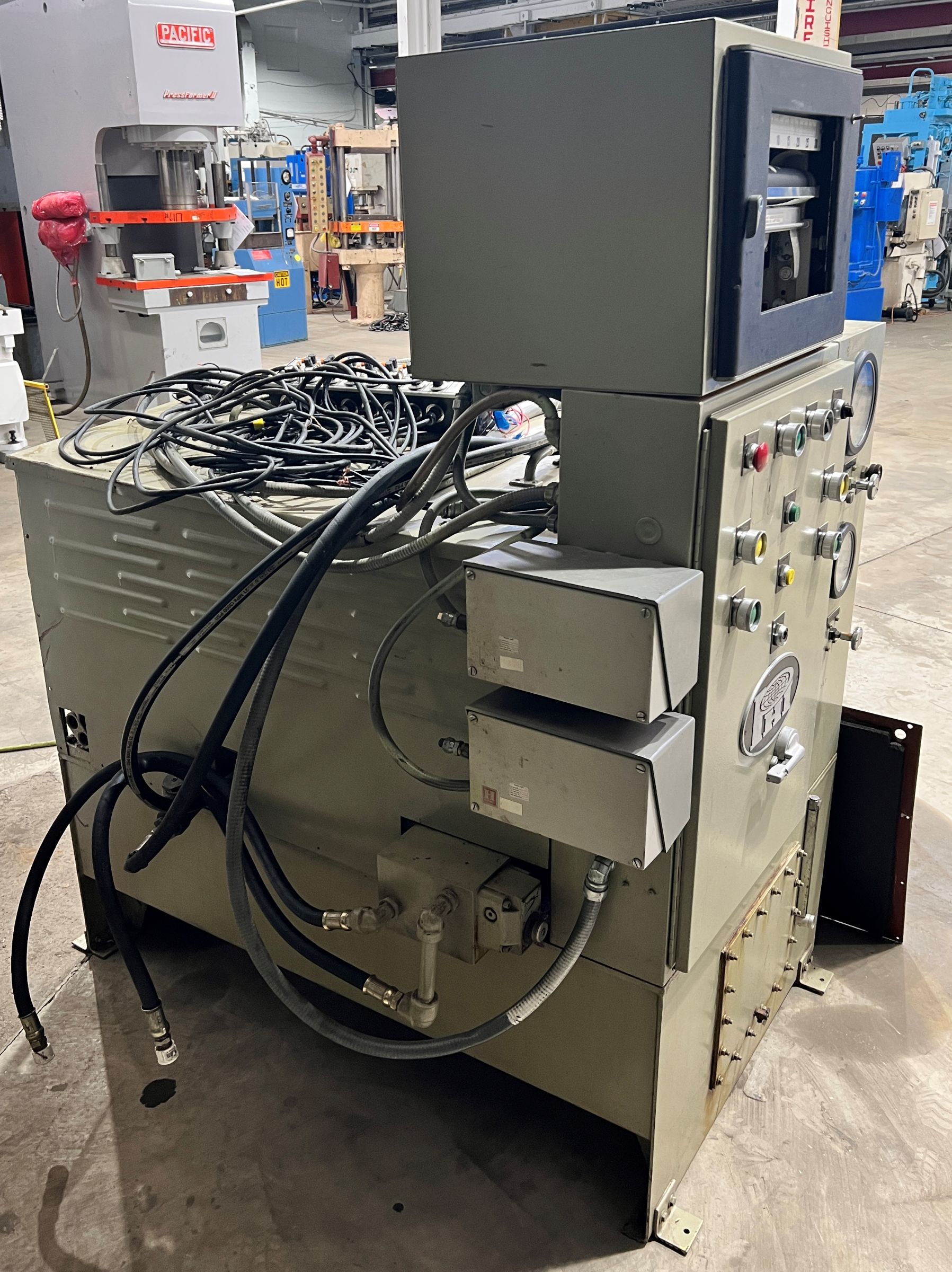

PRESS CONTROLS ALLEN-BRADLEY BULLETIN 700 RELAY LOGIC CONTROLLER

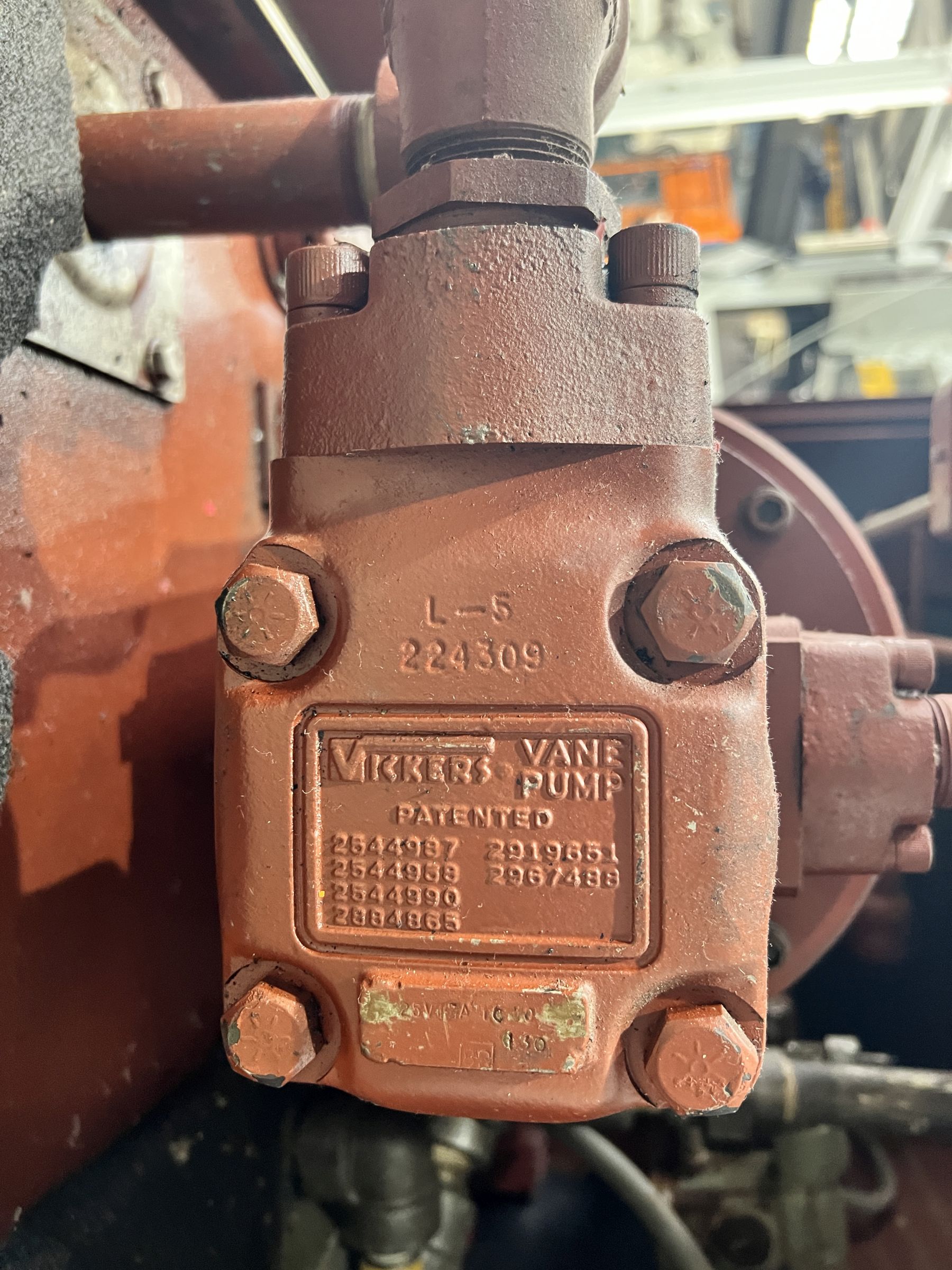

HYDRAULICS VICKERS VANE PUMP 25V13A 4C 10 (APPROX MODEL NUMBER)
ELECTRICAL 7.5 HP 230/460V-3-60 PASADENA HYDRAULICS INC. MOTOR | 22.4/11.2 AMPS
HEATERS ELECTRICAL 460V 1-60 | 54.6 K.W. | 118 AMPS
DIMENSIONS 34″ X 27″ (RL X FB) X 101″ HIGH | APPROX. 40″ X 65″ (RL X FB) X 80″ HIGH HYD. UNIT
WEIGHT __
Equipped With __
Note MAY BE ADDITIONAL COST TO ENSURE HEATED PLATENS ARE FULLY FUNCTIONAL
Location This used press is located in our Jackson, MI Cooper Building
