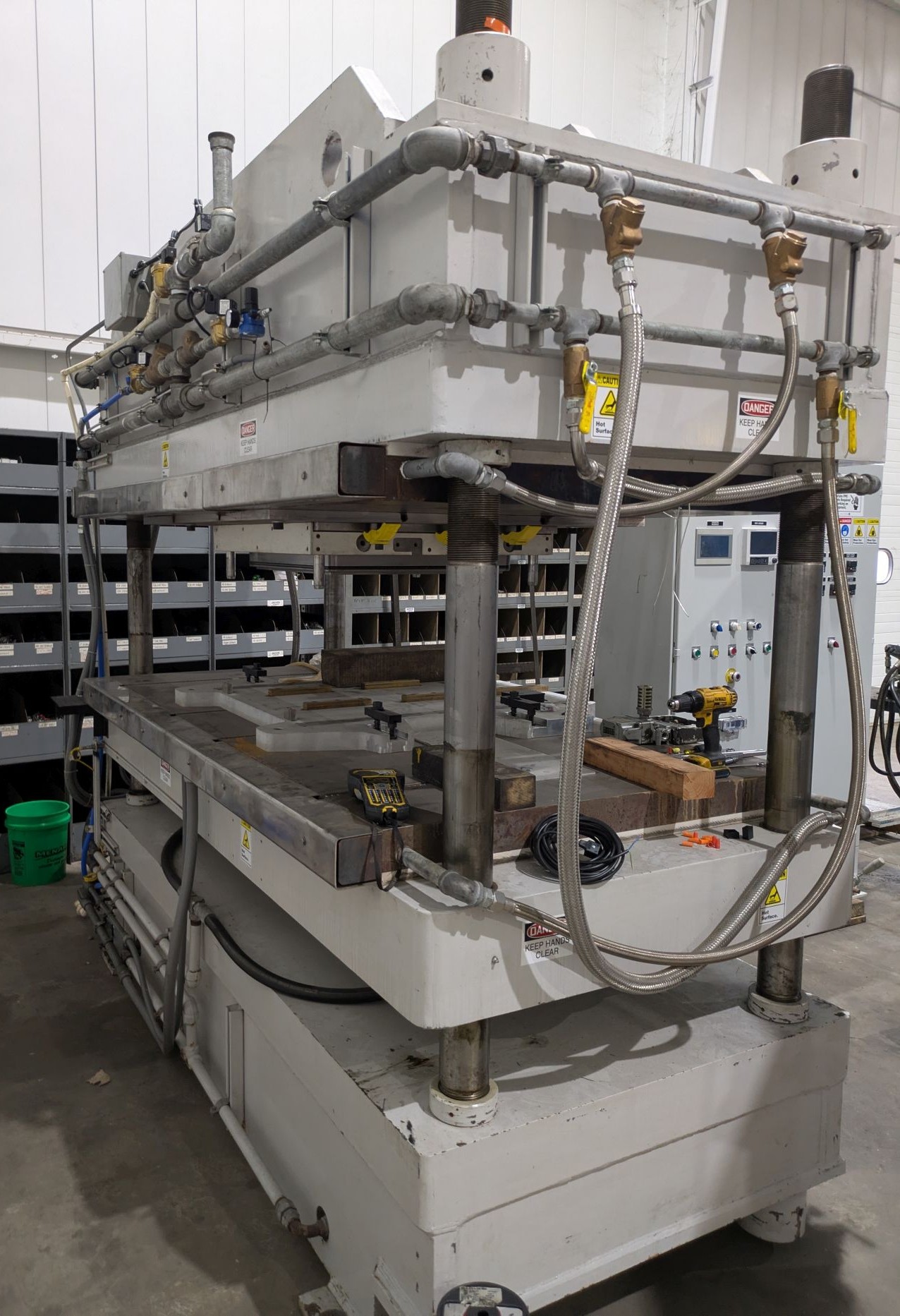

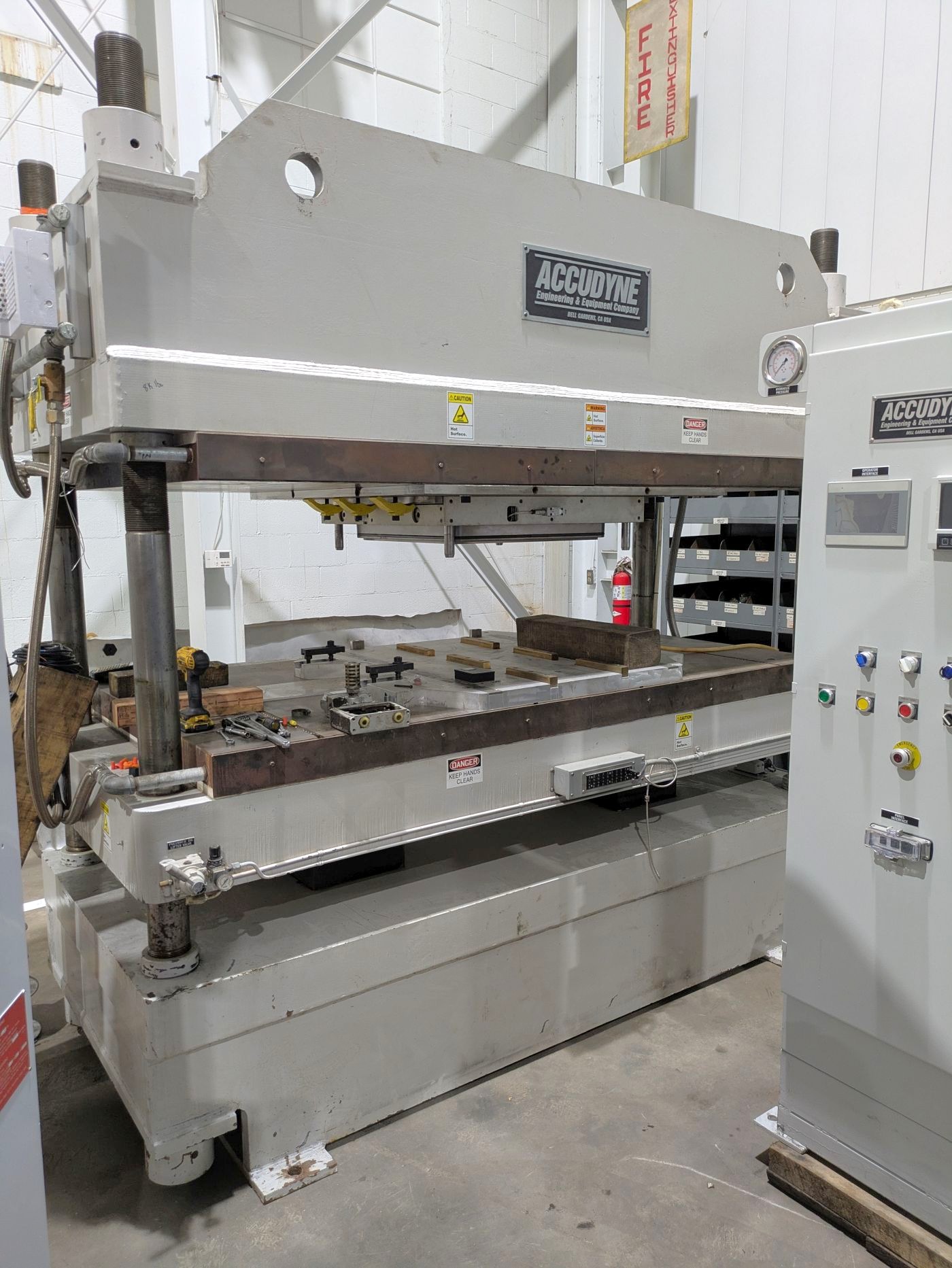

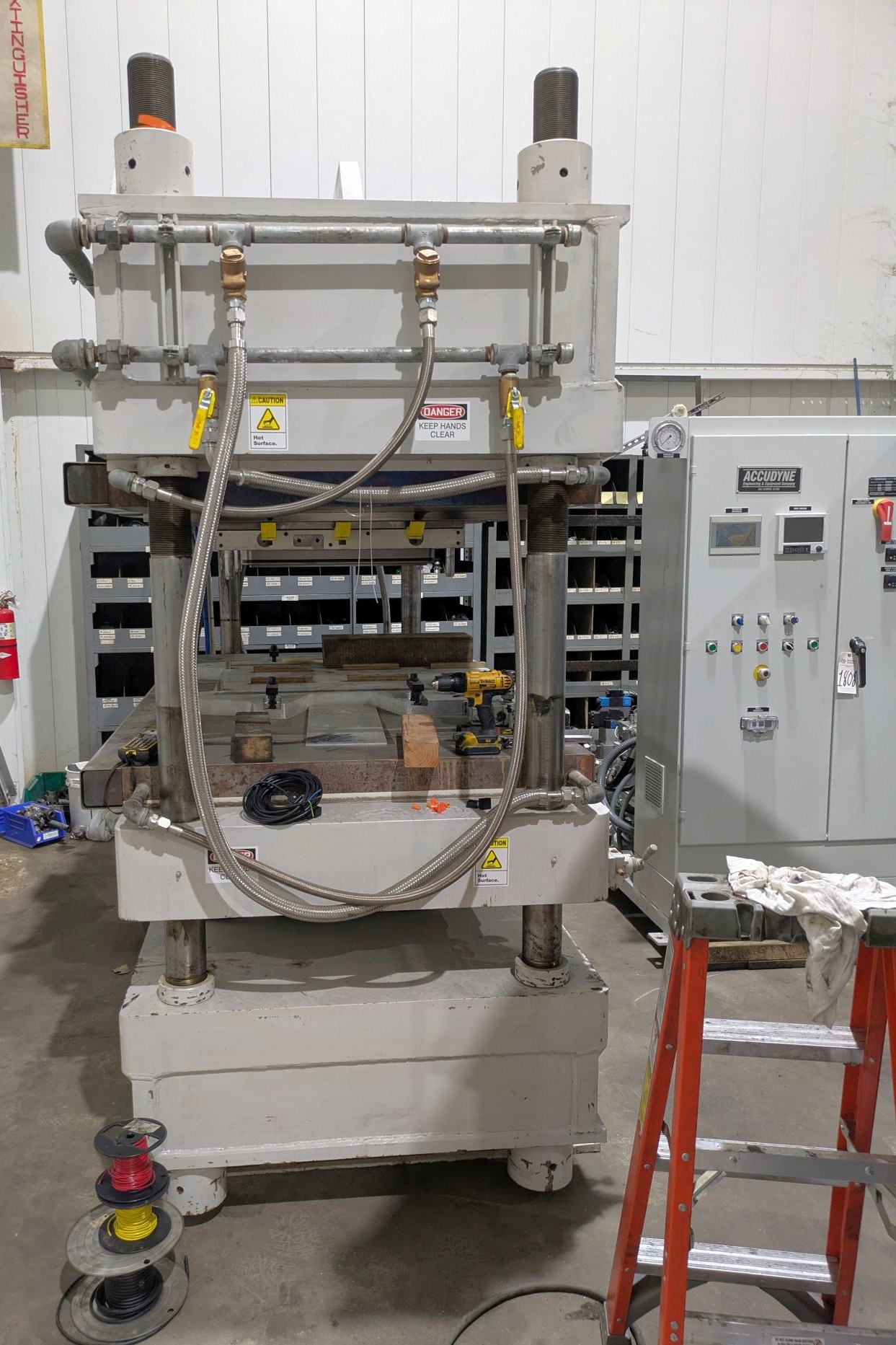

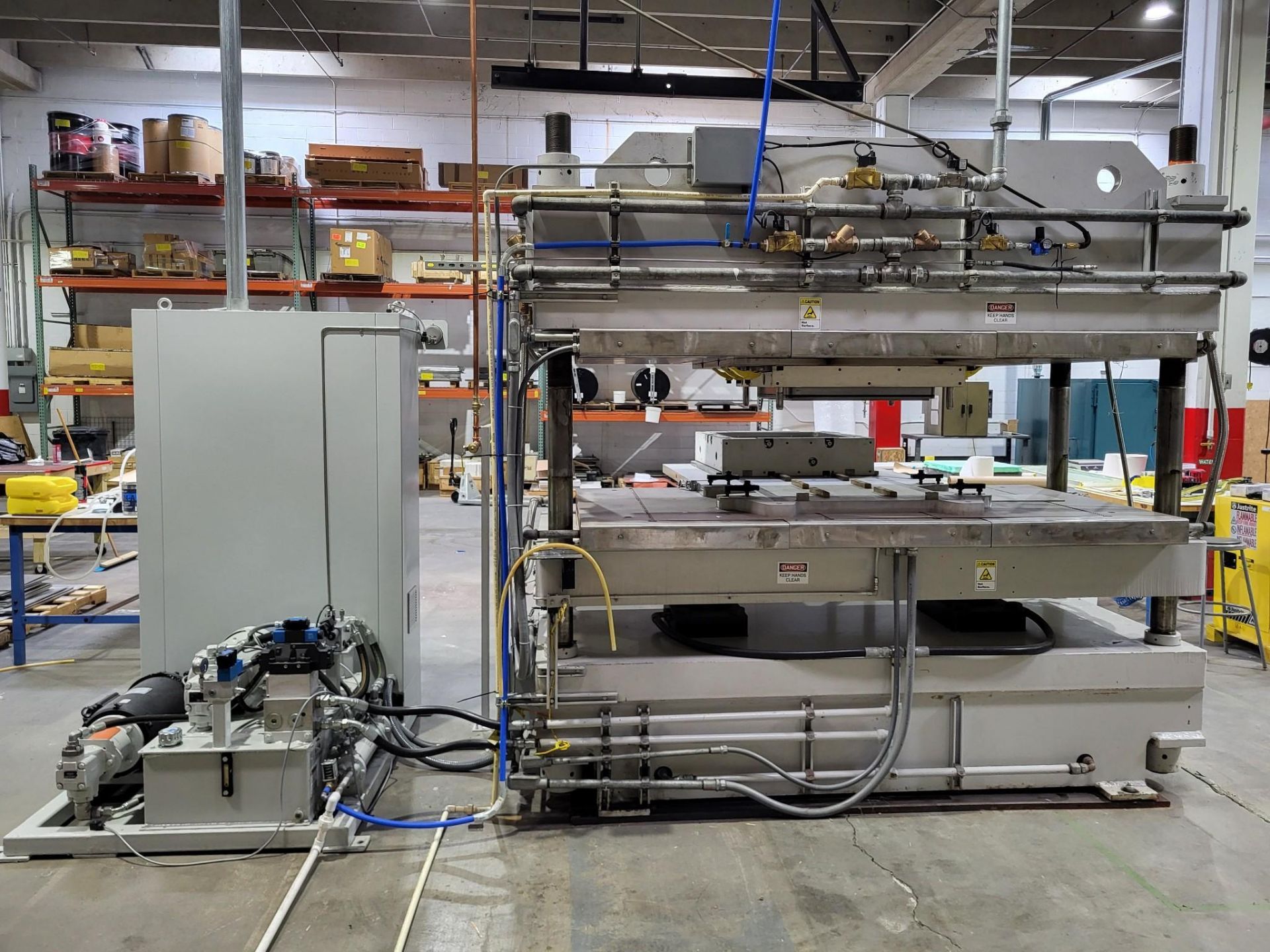

Heated Platen Press • Used 200 Ton Press for Sale
Model: Accudyne Custom Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 2015
Machine #: 8267
Buy Now: $

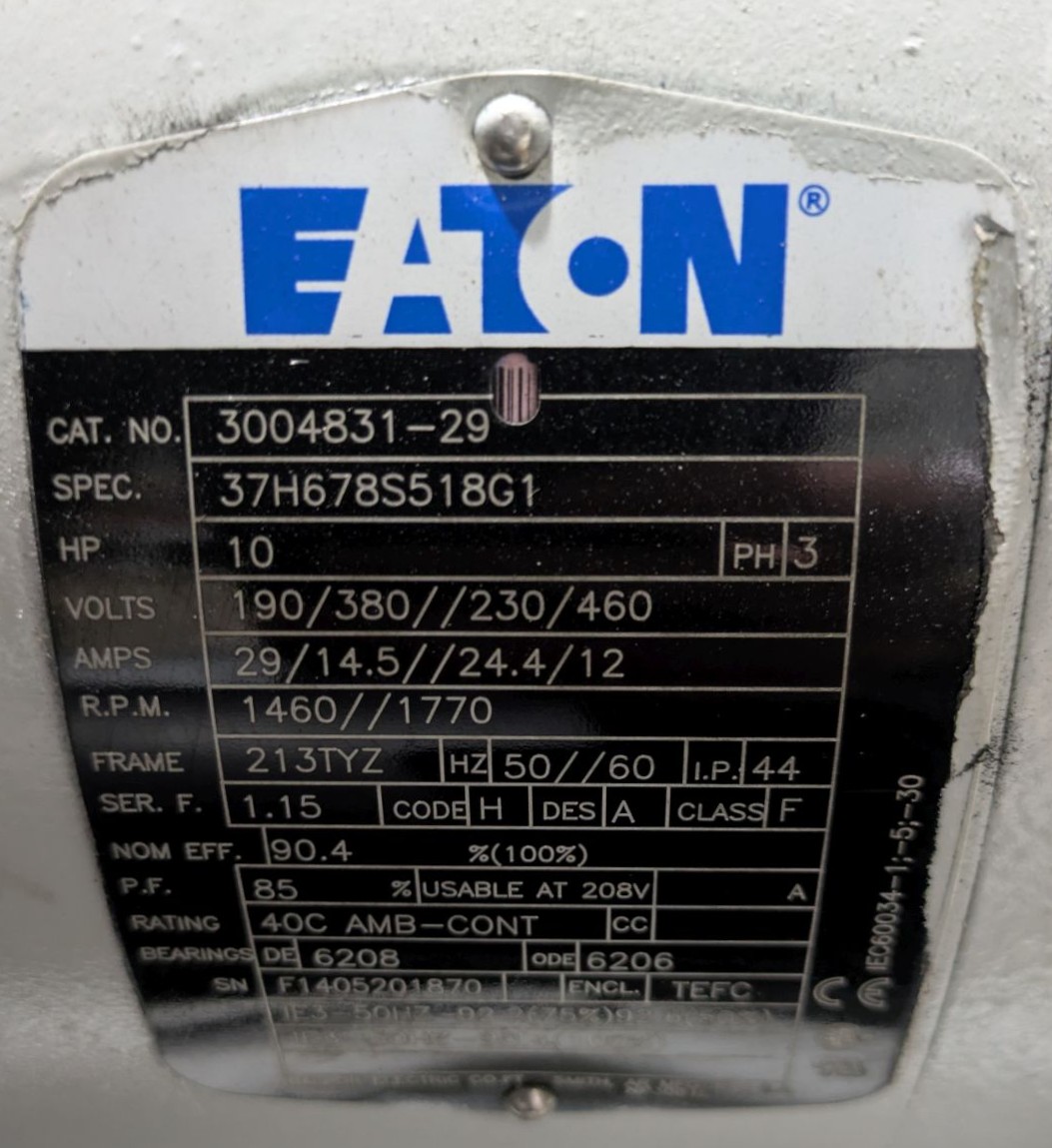

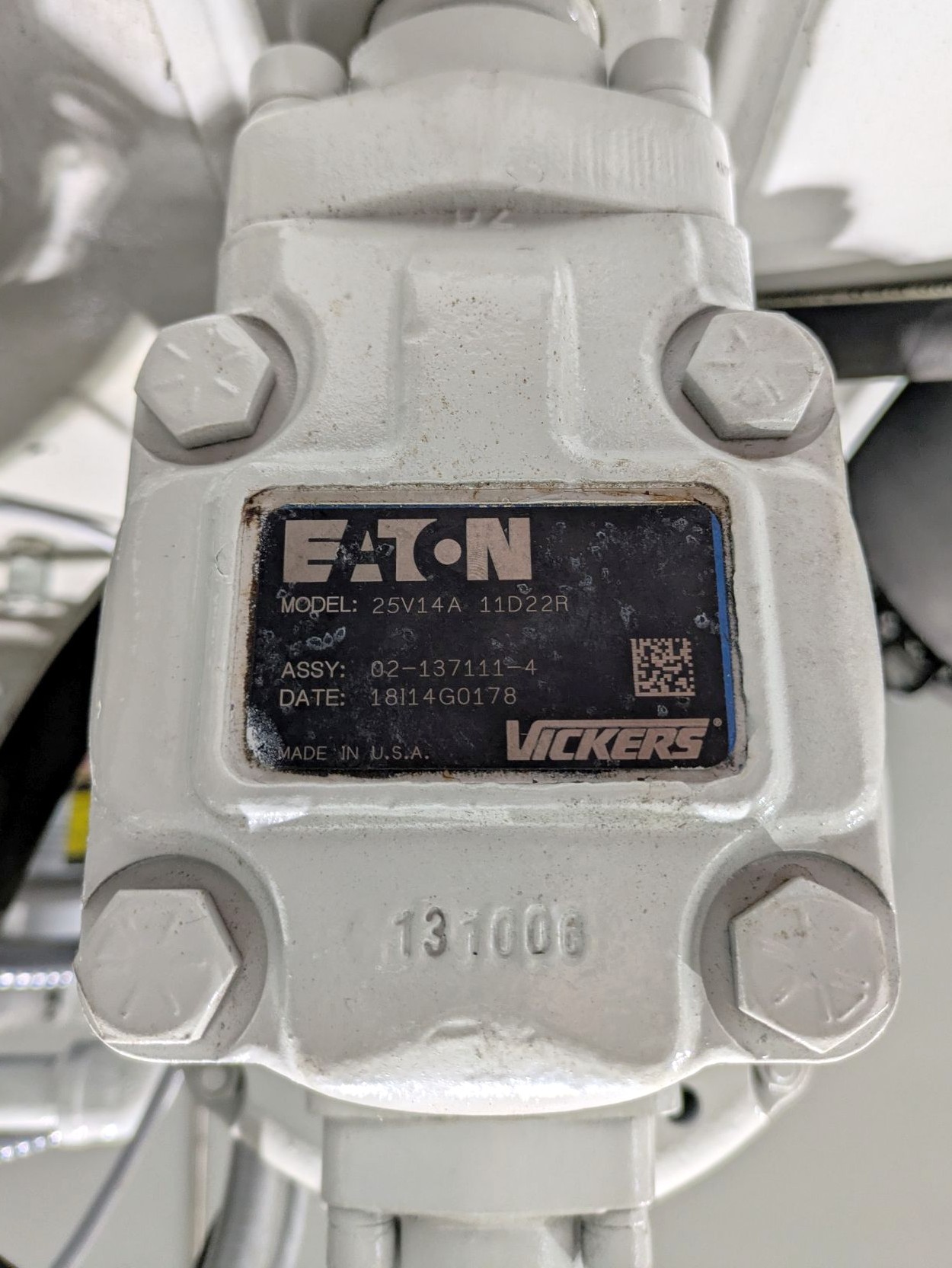

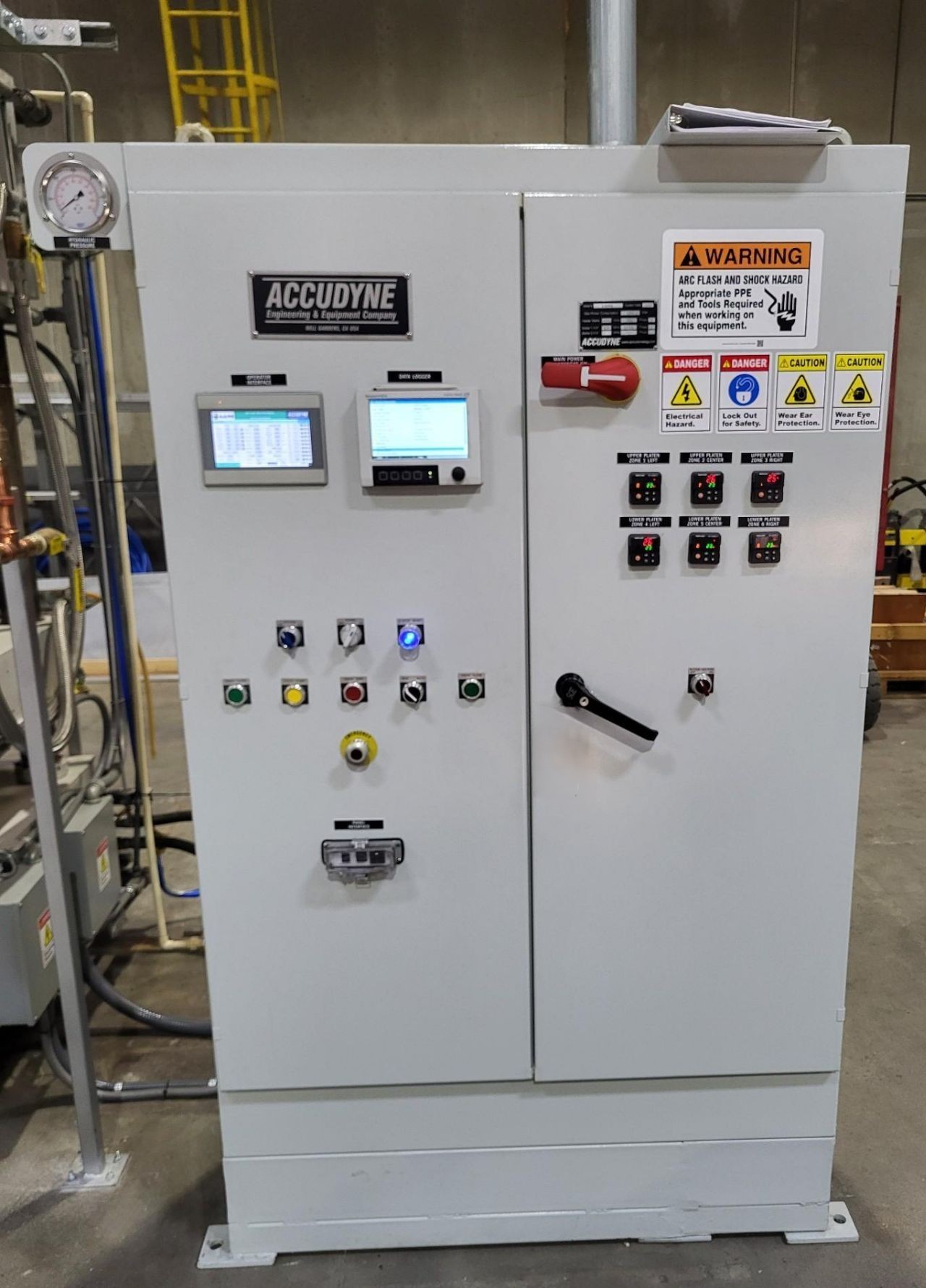

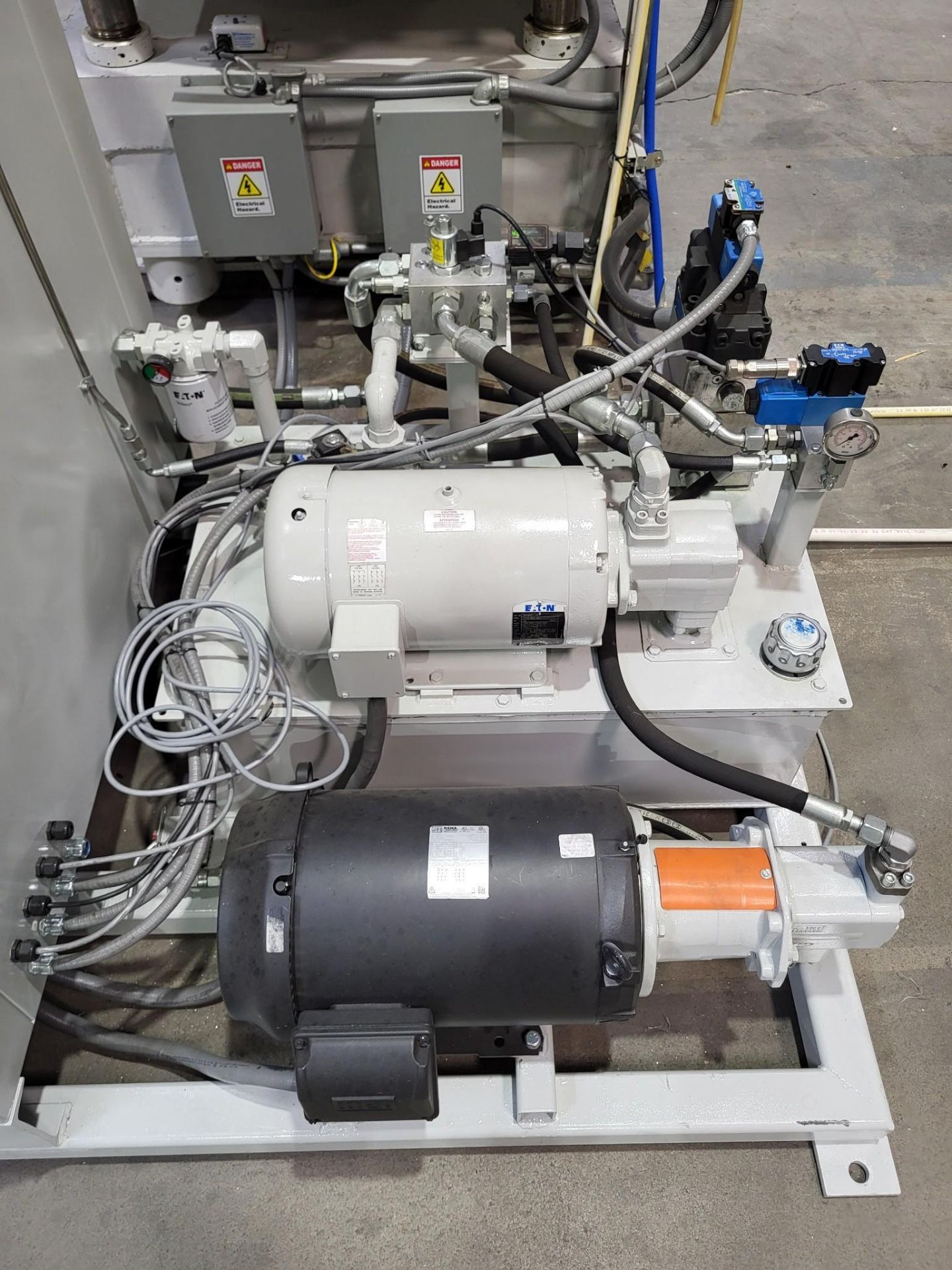

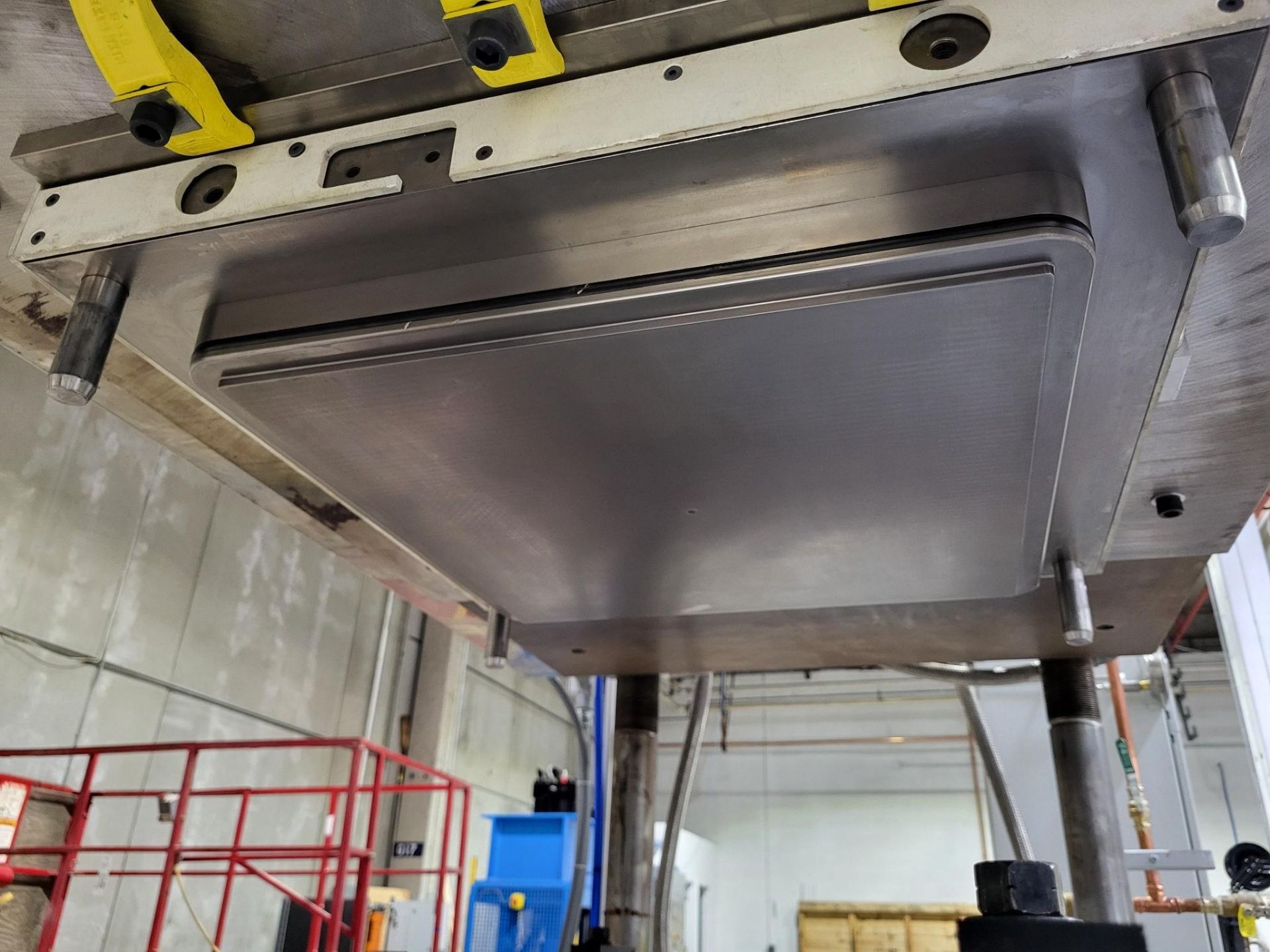

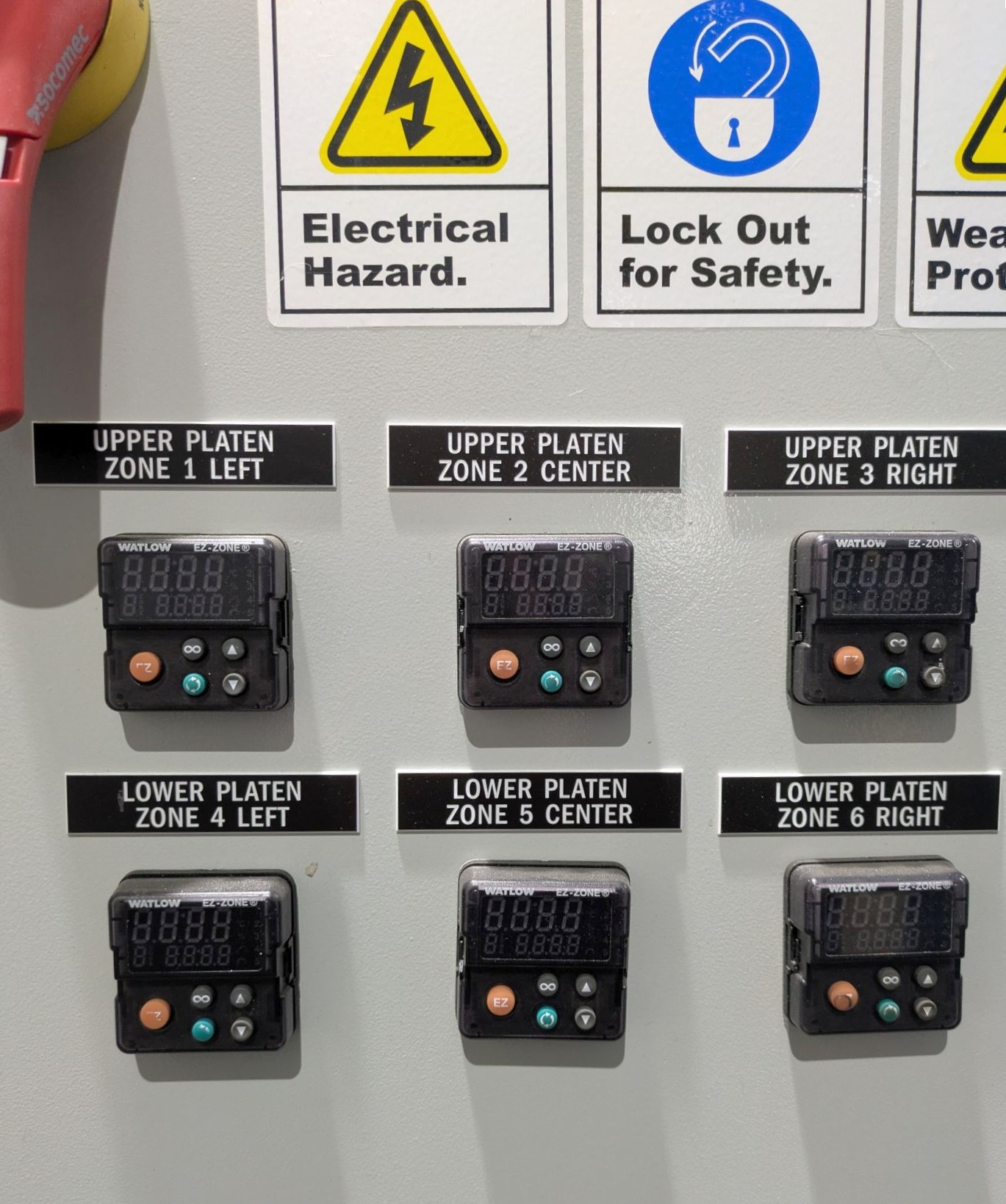

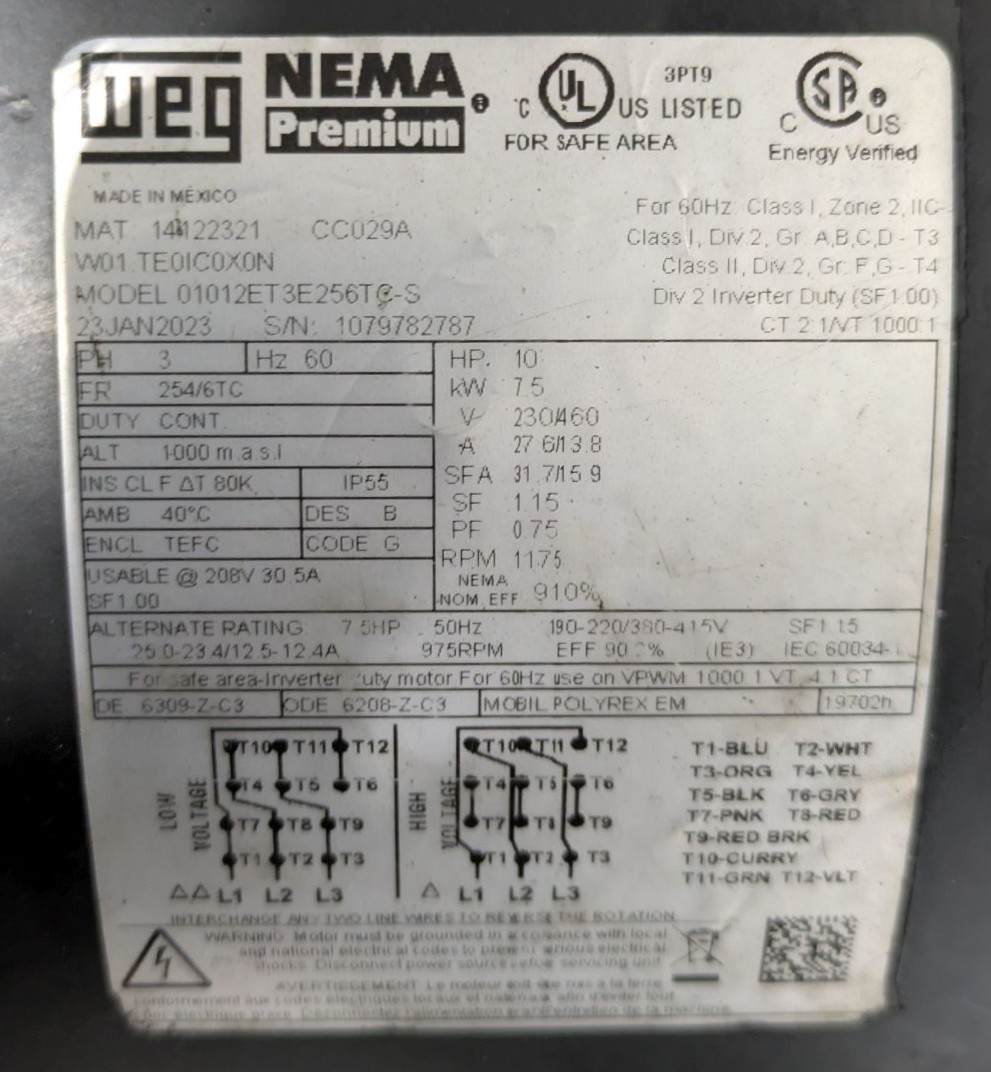

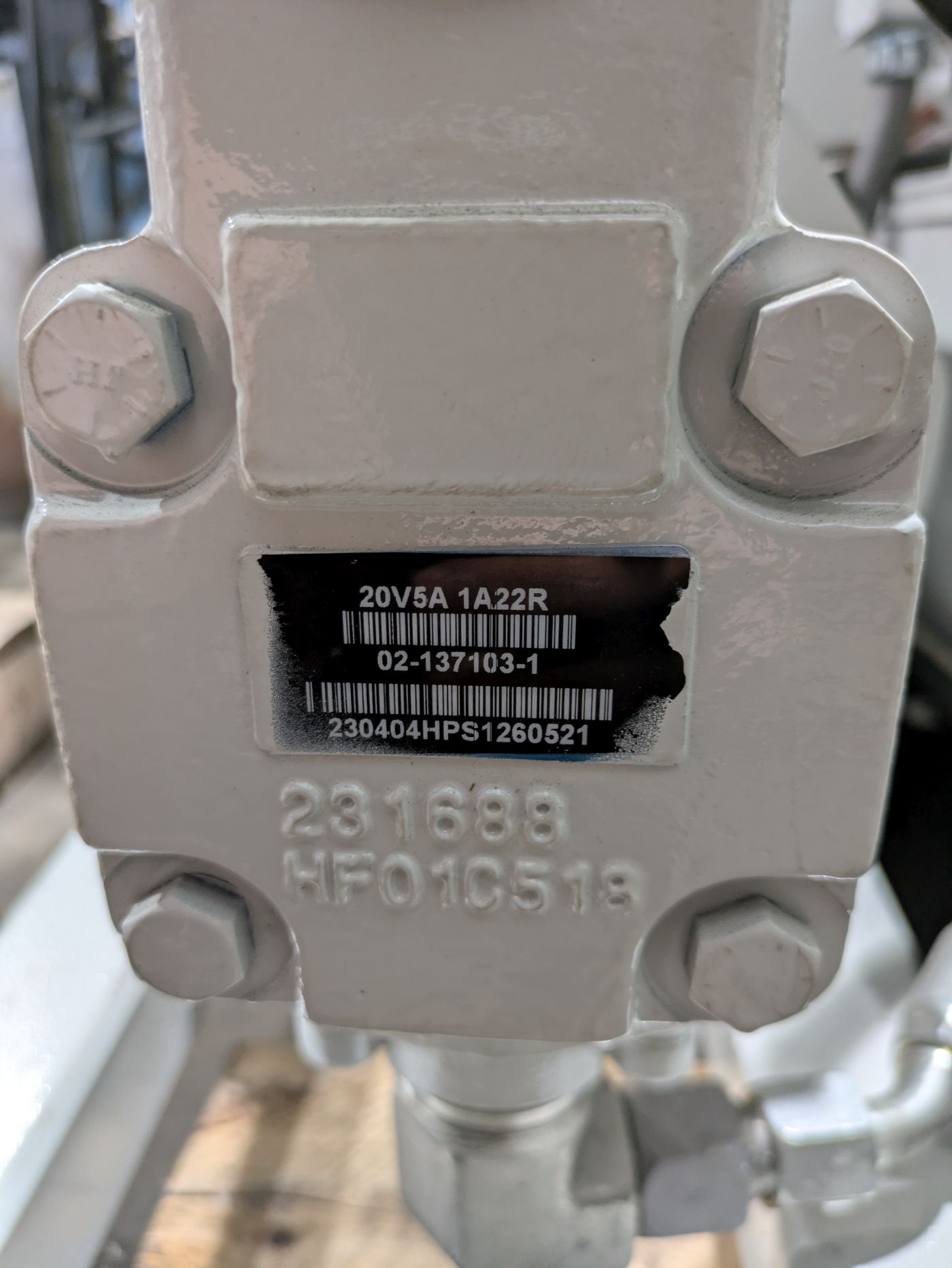

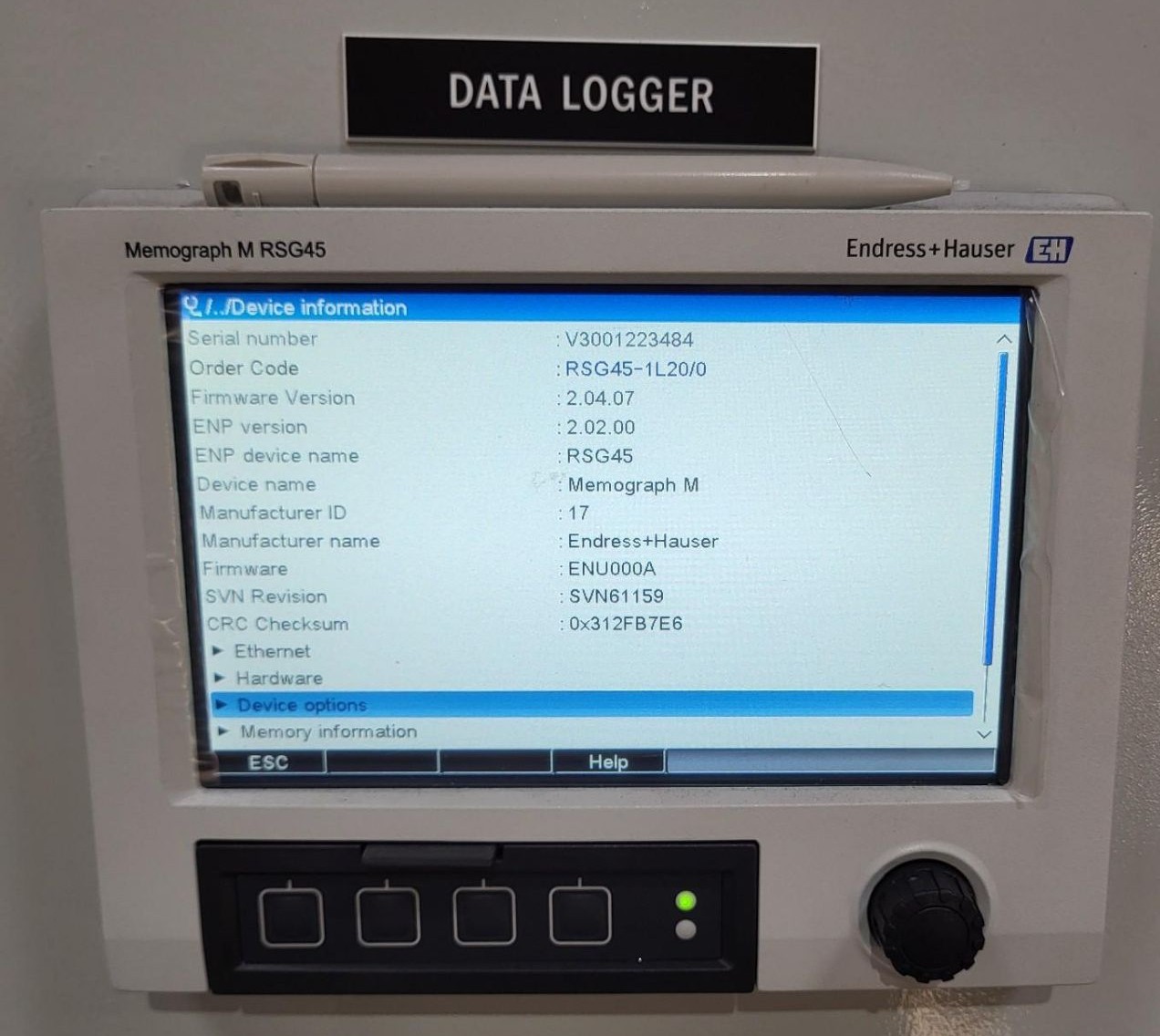

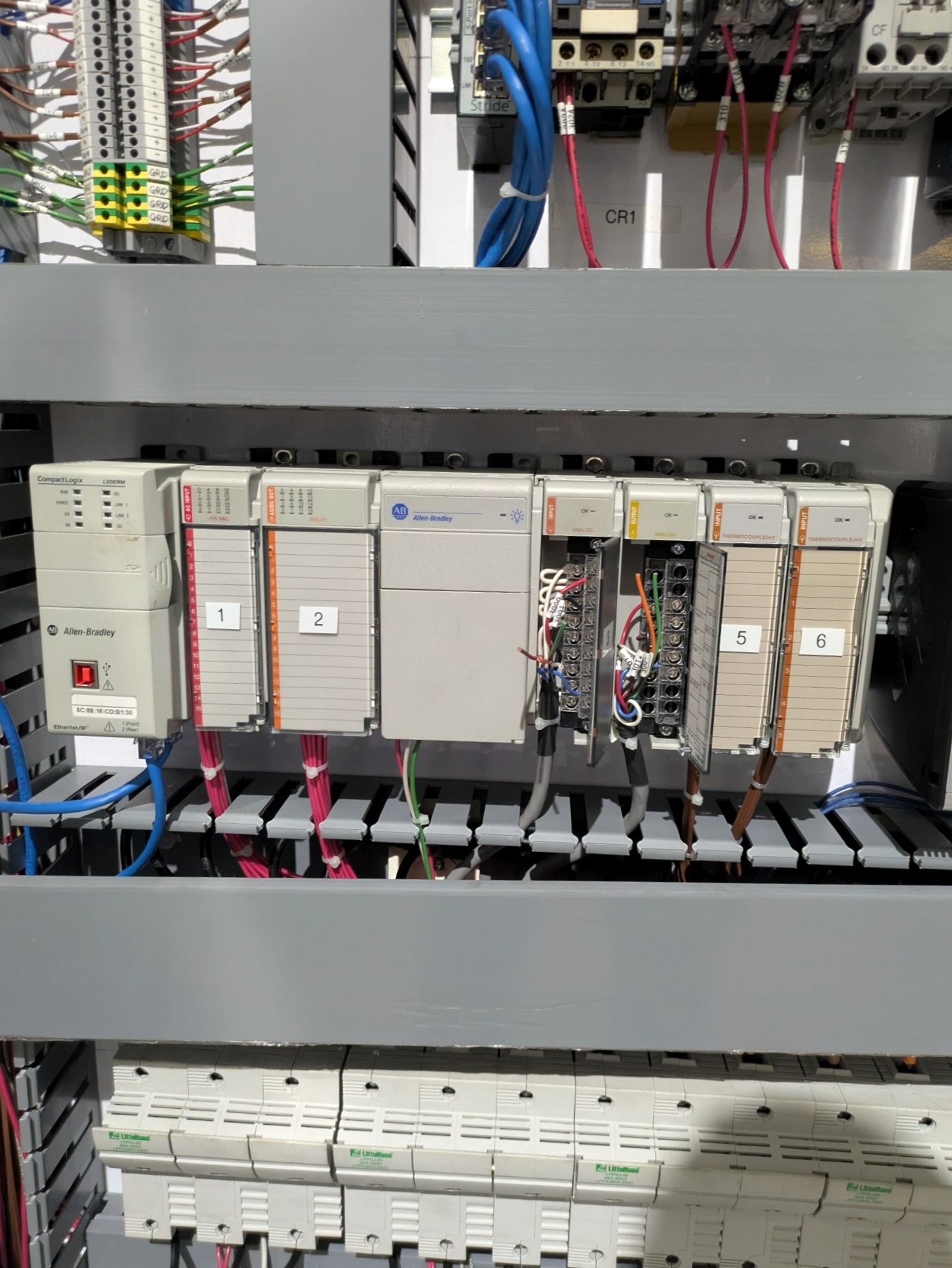

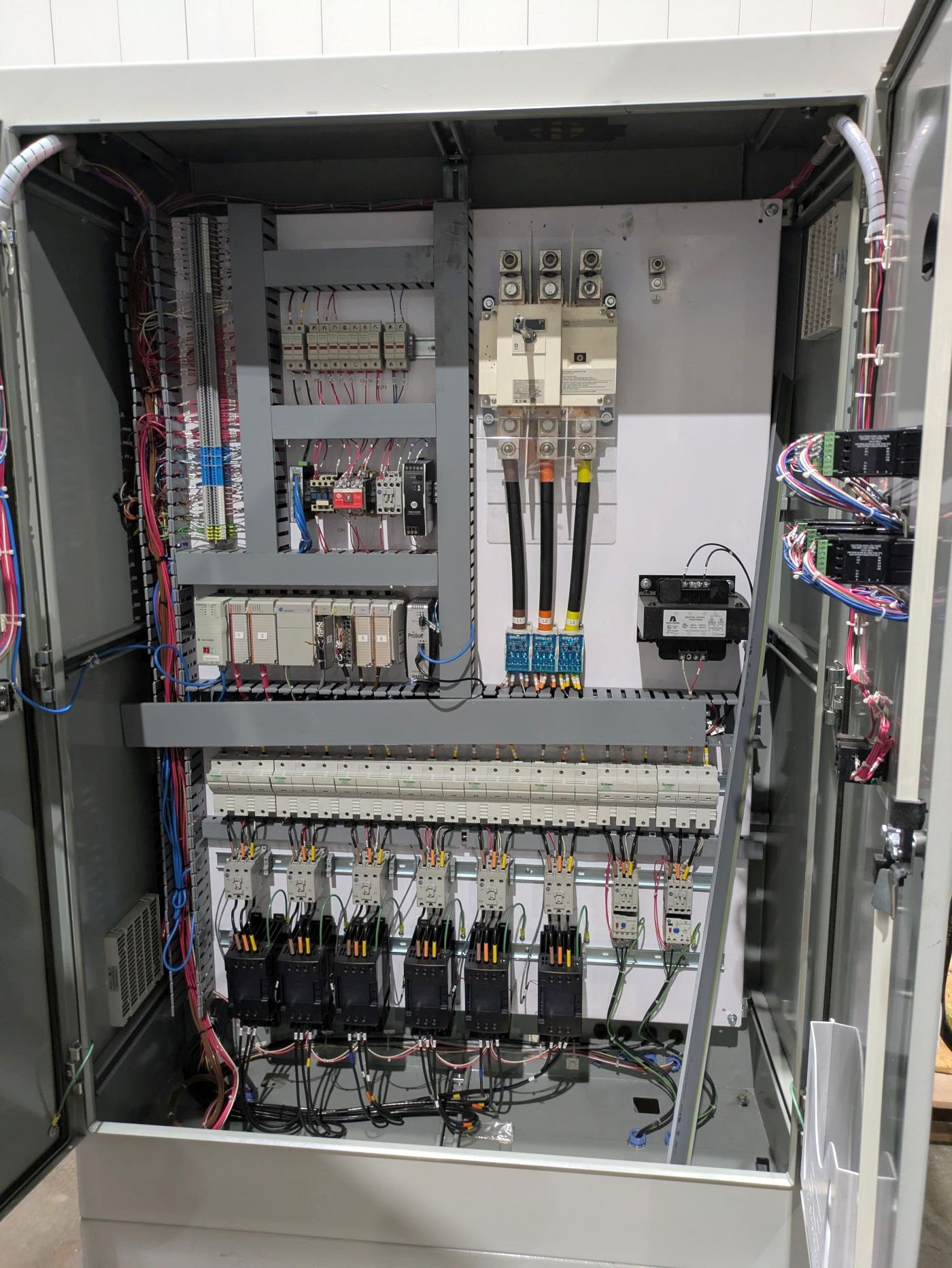

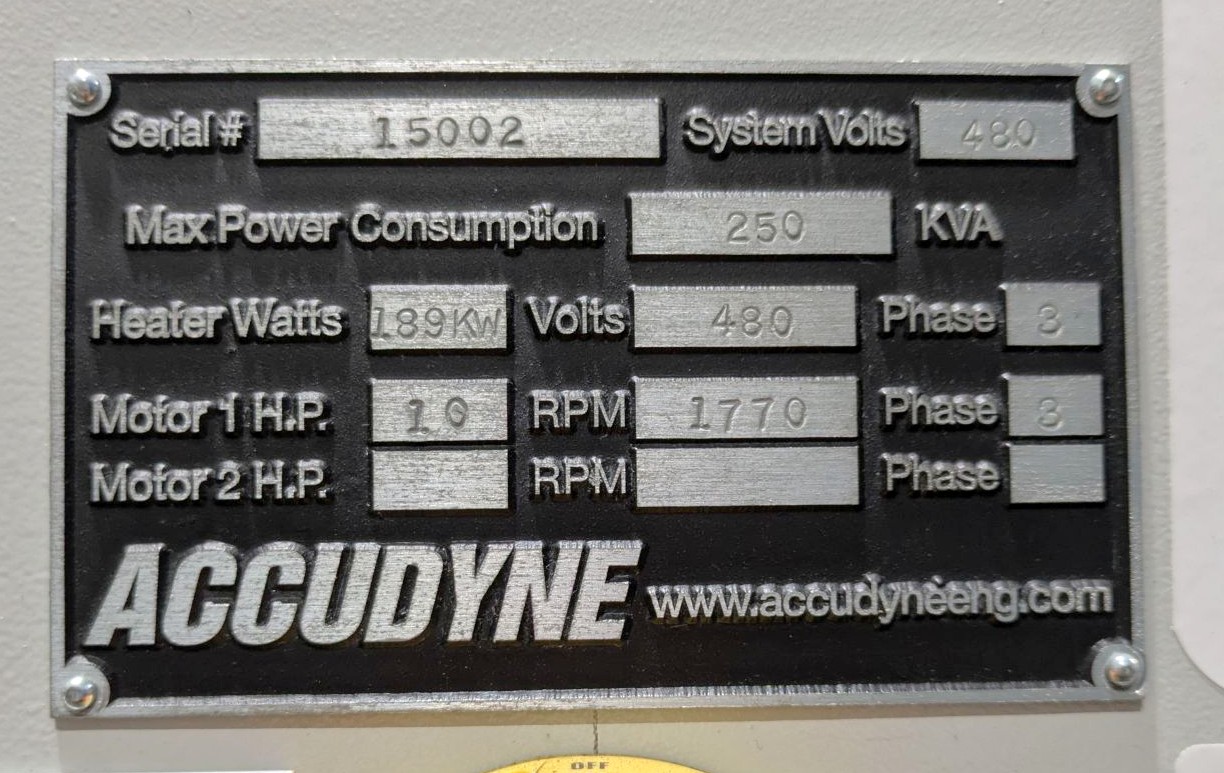

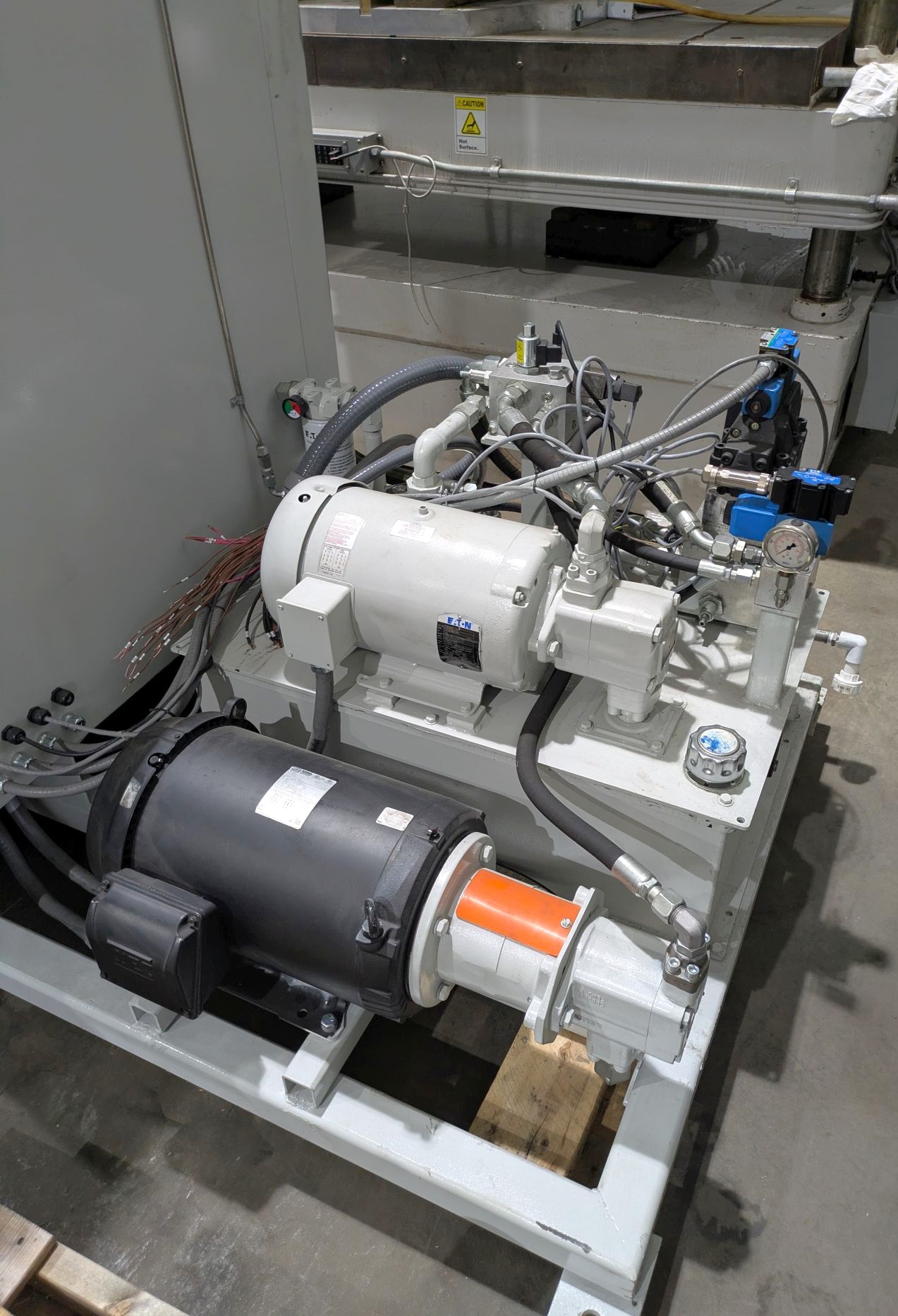

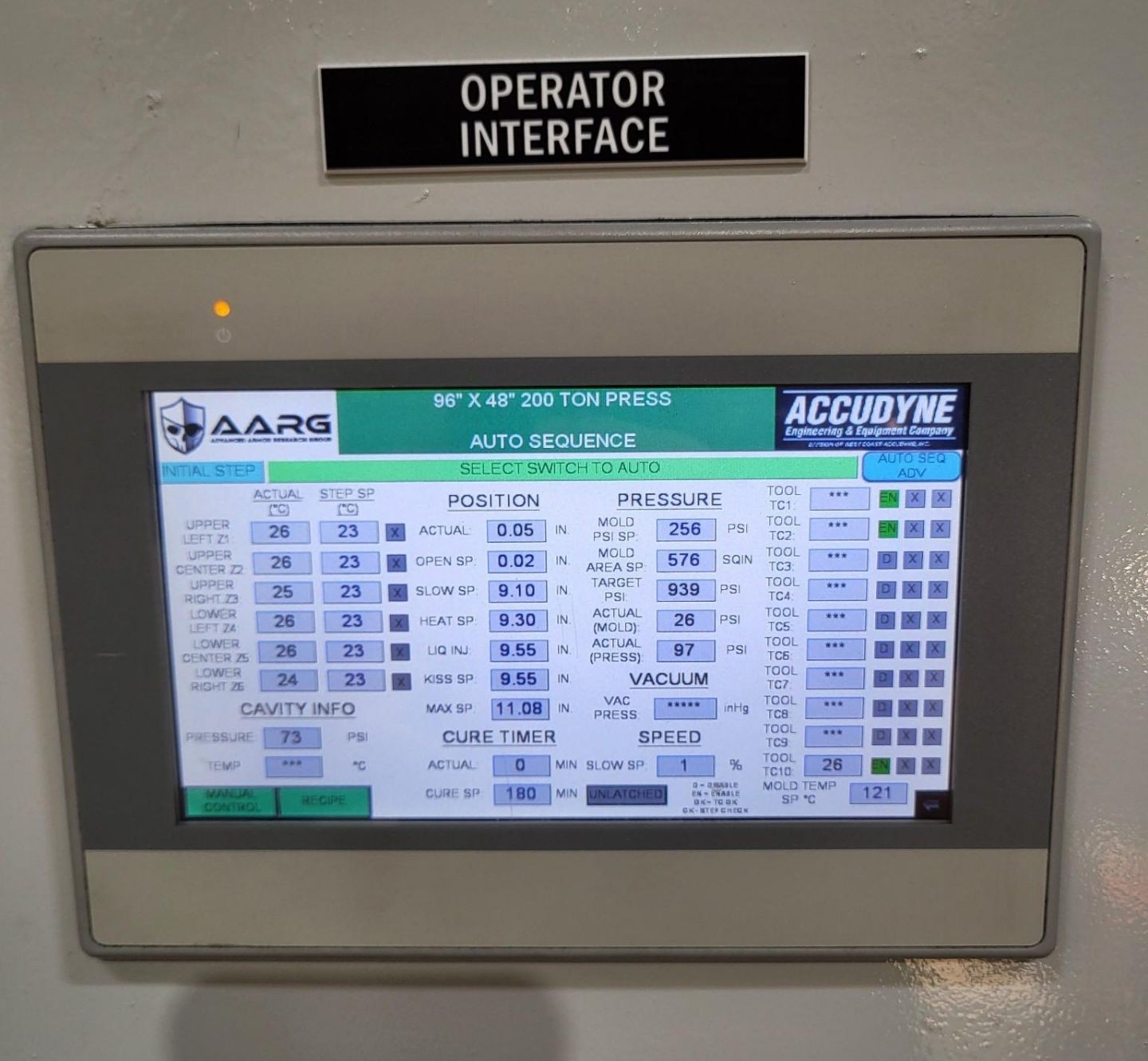

| MAX. CAPACITY | 200 TONS @ 2,546 PSI | MAX. STROKE | 12" | MAX. DAYLIGHT | 32" BETWEEN HEATED PLATENS / 40.5" WITHOUT PLATENS | OVERALL BED & RAM AREA | 110" X 52" (RL X FB) | DISTANCE BETWEEN POSTS | 98" X 32" (RL X FB) | USABLE BED AREA | 98" X 52" (RL X FB) | HEATED PLATENS, WATER COOLED | 96" X 48" (RL X FB) X 4.25" THICK (6 zones - 189kw) MAX. 200 DEG C | CYLINDER SIZE | (2) 10" bore cylinders | RAM ROD SIZE | (2) 6.5" DIA. EACH | 4 COLUMN / POSTS SIZE | 4" DIA. | FLOOR TO BED HEIGHT | 46" : 41.75" PLUS 4.25" PLATEN | SPEEDS | 30 IPM CLOSING / 5 IPM PRESSING / 30 IPM OPENING | PRESS CONTROLS | UPGRADED ALLEN-BRADLEY CompactLogix L30ERM CONTROLLER | DATA MANAGER / DATA LOGGER | ENDRESS+HAUSER MEMOGRAPH M RSG45 DATA MANAGER | HYDRAULICS | 20 GPM PUMP, FLOOR STANDING | ELECTRIC MOTOR | 10 HP 190/230/380/460V-3-60 EATON MOTOR | 29 / 24.4 / 14.5 / 12 AMPS - 1460 / 1770 RPM | APPROX. DIMENSIONS | 123" X 59" (RL X FB) X 112" PRESS - 46" X 67" (RL X FB) X 88" HIGH HYDRAULIC UNIT | APPROX. WEIGHT | 54,000 LBS. | Equipped With | ELECTRIC HEATED AND WATER / AIR COOLED PLATENS, DATA LOGGER (INTERNAL MEMORY, SD CARD, USB FLASH DRIVE), DIGITAL TONNAGE CONTROL, CURE TIMER, SPEED CONTROL, TEMPERATURE CONTROL ALL IN ONE SYSTEM, HEAT EXCHANGER | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
