Description

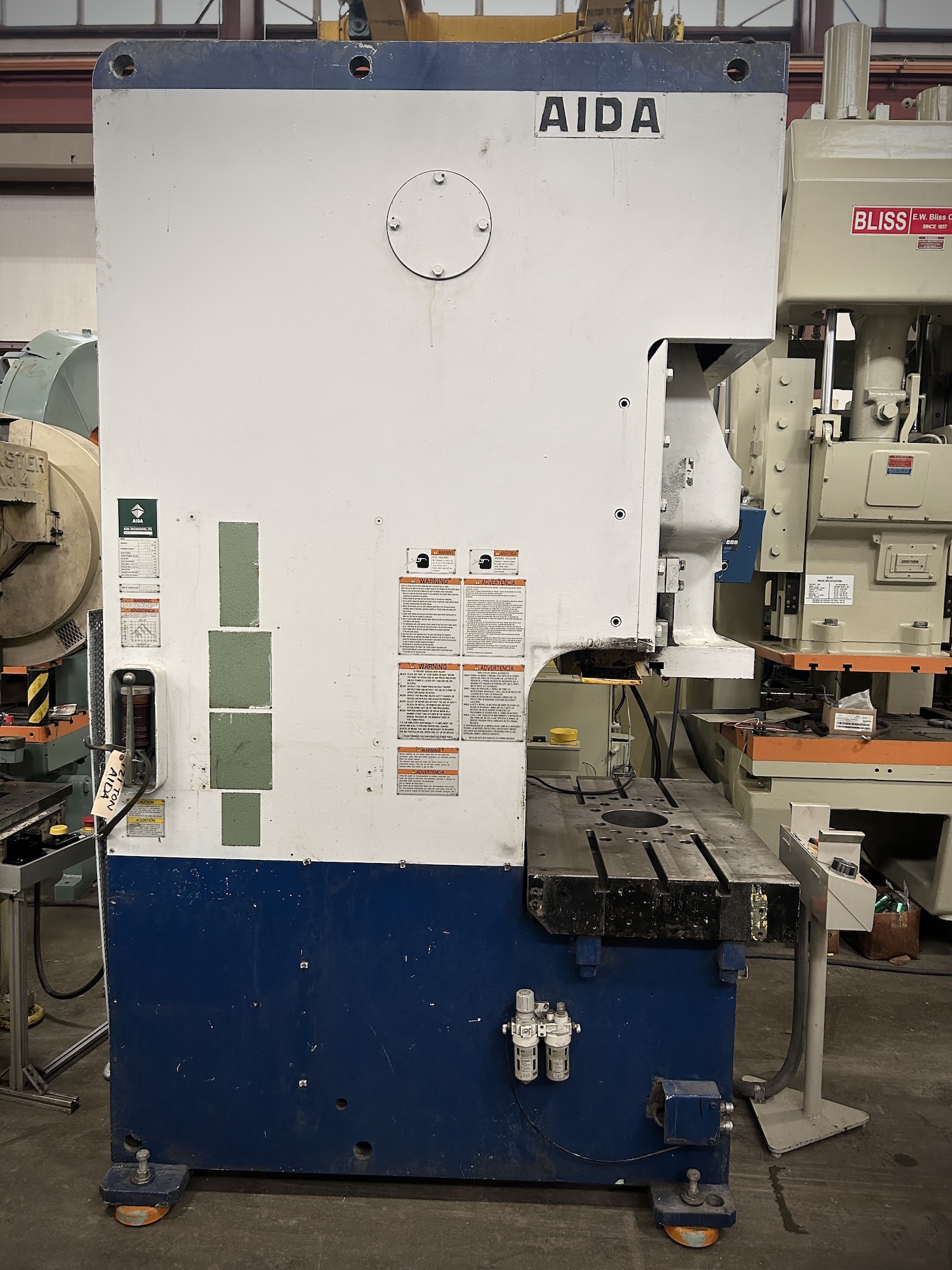

C Frame Press • Used 121 Ton Press for Sale
- Machine #
- 8292
- Condition
- Very Good
- Location
- Columbia, TN Warehouse
- Year
- 1983
- Model
- Aida NC1-11(2)B
Buy Now: $
| CAPACITY | 121 US TON |
|---|---|
| BLANKING CAPACITY | 97 US TON |
| STROKE | 7.1" |
| MAX DIE HEIGHT | 13.8" sdau over 6.1" bolster |
| BED AREA | 42.1" x 26.8" (rl x FB) |
| SPEED | 35 - 70 SPM |
| SLIDE ADJUSTMENT | 3.5" MOTORIZED |
| SLIDE AREA | 24.8" X 20.5" (rl x FB) (T-SLOTTED) |

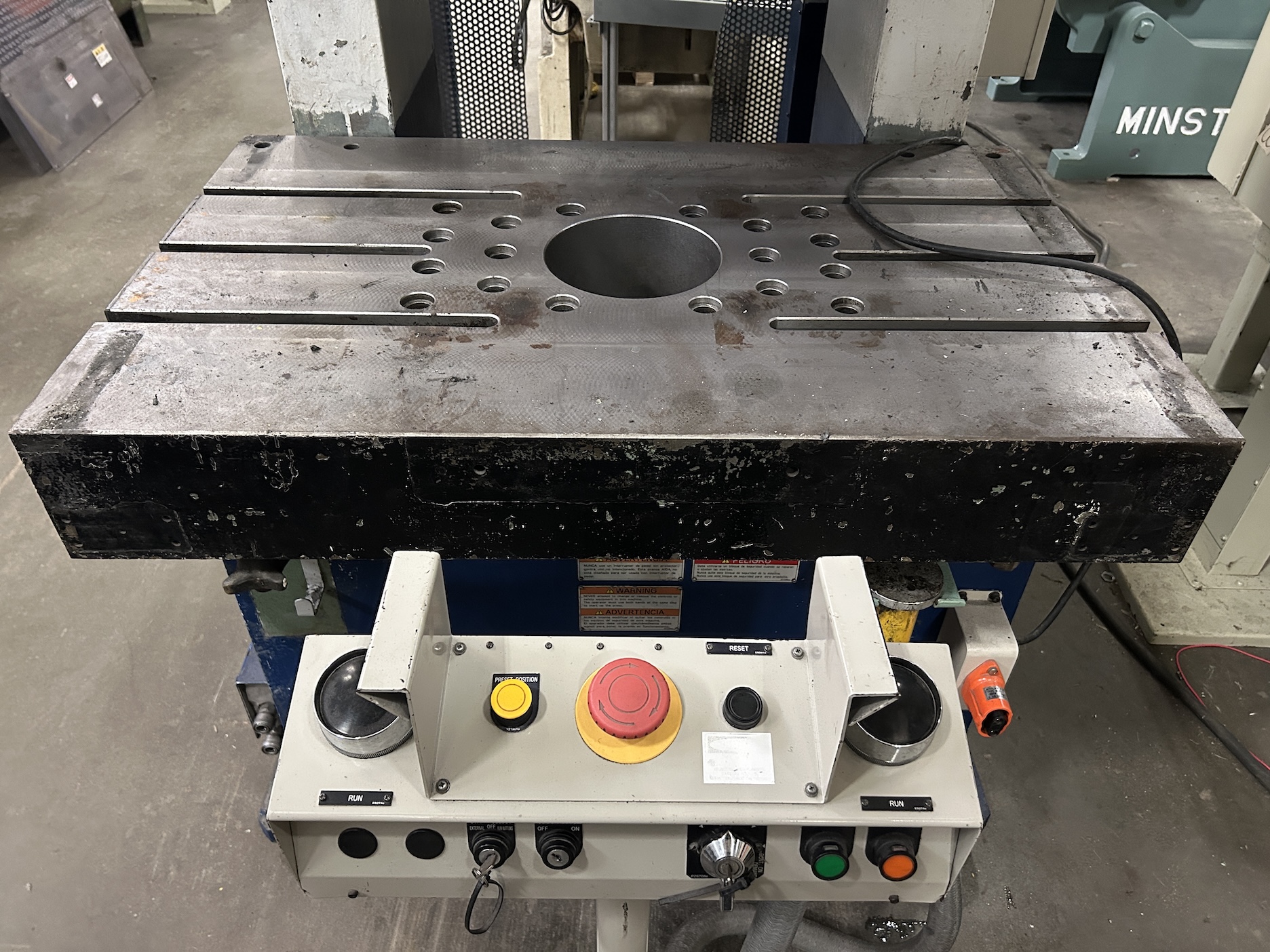

| BOLSTER PLATE | 6.1" H X 42.1" RL X 26.8" FB (T-SLOTTED) |
| DISTANCE BETWEEN UPRIGHTS | 26.2" |
| FLOOR TO BED | 29" |
| CLUTCH | AIDA AIR CLUTCH / BRAKE COMBINATION |
| ELECTRICS | 10 HP 1750 RPM 480V-3-60 MOTOR & AIDA PRESS CONTROL |
| APPROX. DIMENSIONS | 117" H (INCLUDING ISOLATORS) X 60" RL X 84" FB |
| APPROX WEIGHT | 22,000 LBS. |
| Equipped With | FLOOR STANDING, AIR COUNTERBALANCES, HIGHLY RIGID FRAME TO MINIMIZE DEFLECTION, BALL & SOCKET CONNECTIONS, HYDRAULIC OVERLOAD PROTECTION SYSTEM, HARDENED & GROUND PINION & GROUND MAIN GEAR, QUILL MOUNTED FLYWHEEL |
| Note | __ |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
