Machine Specifications

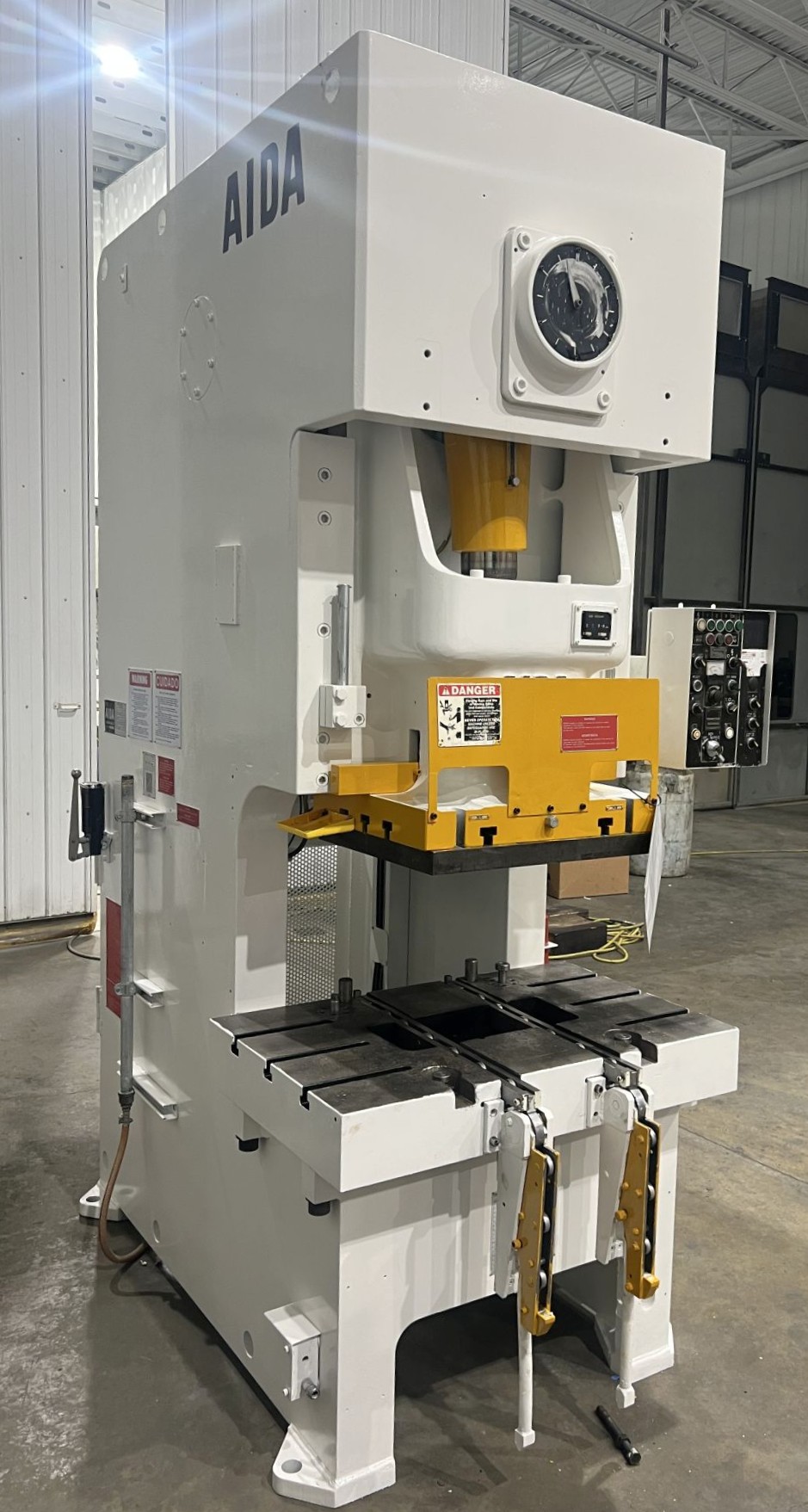

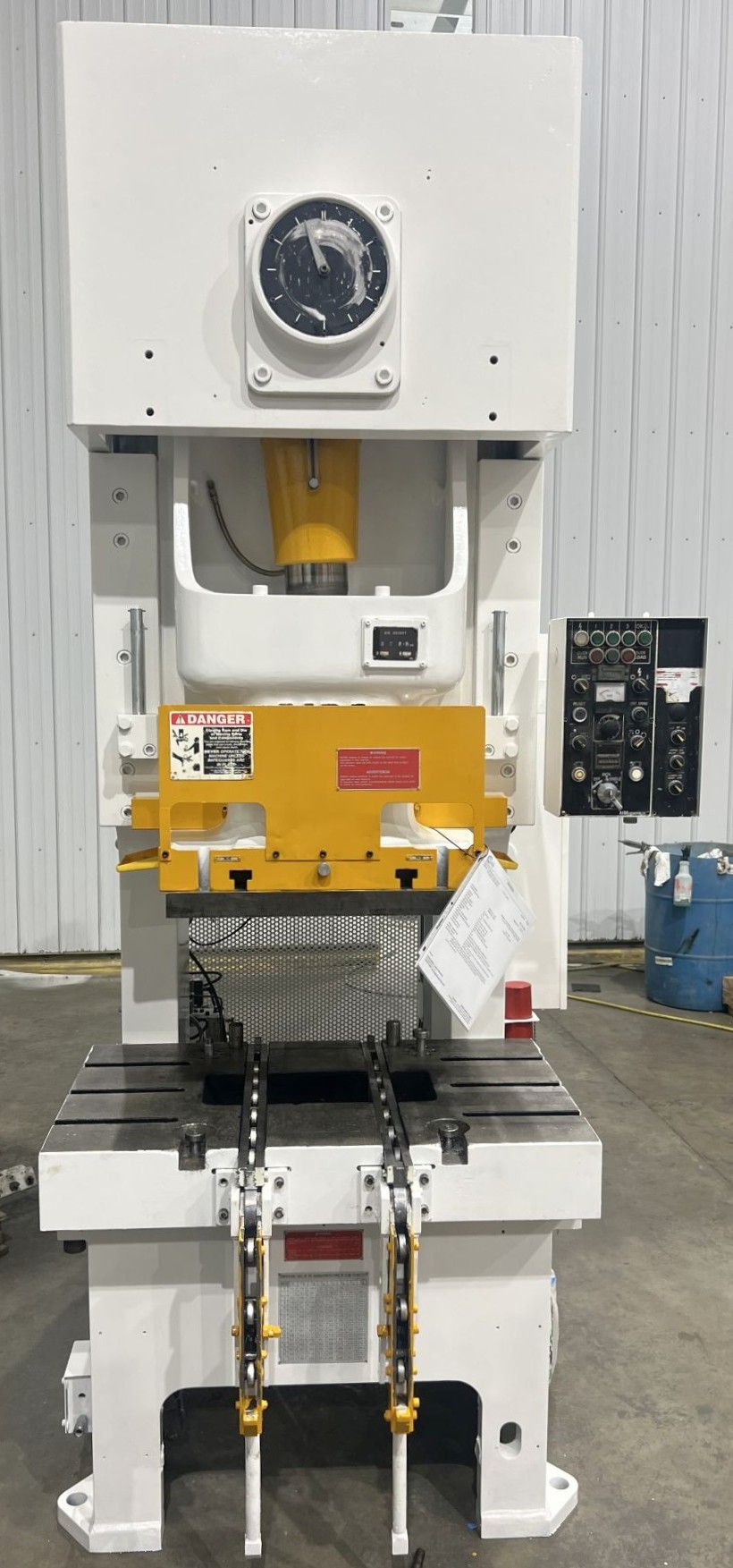

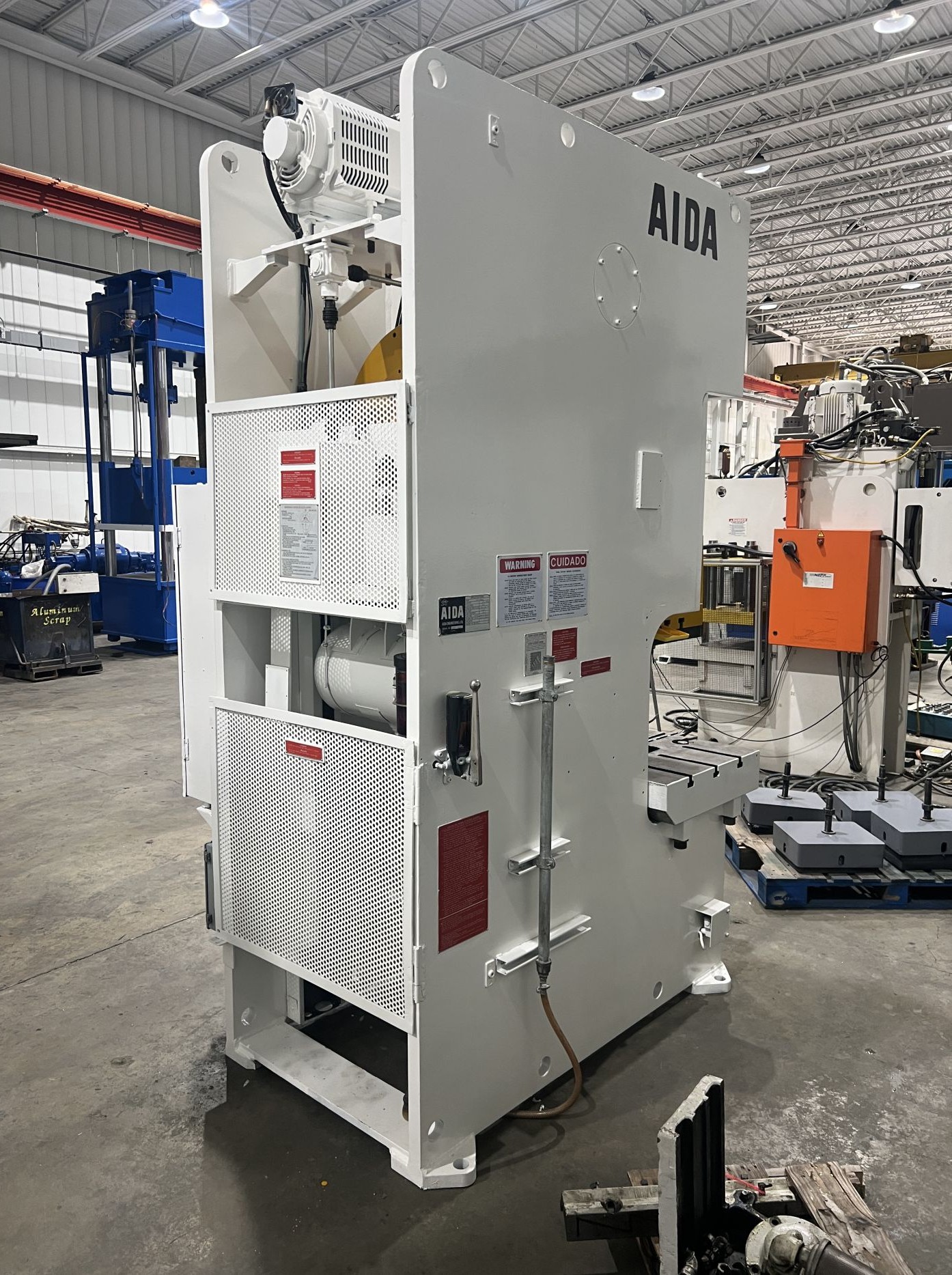

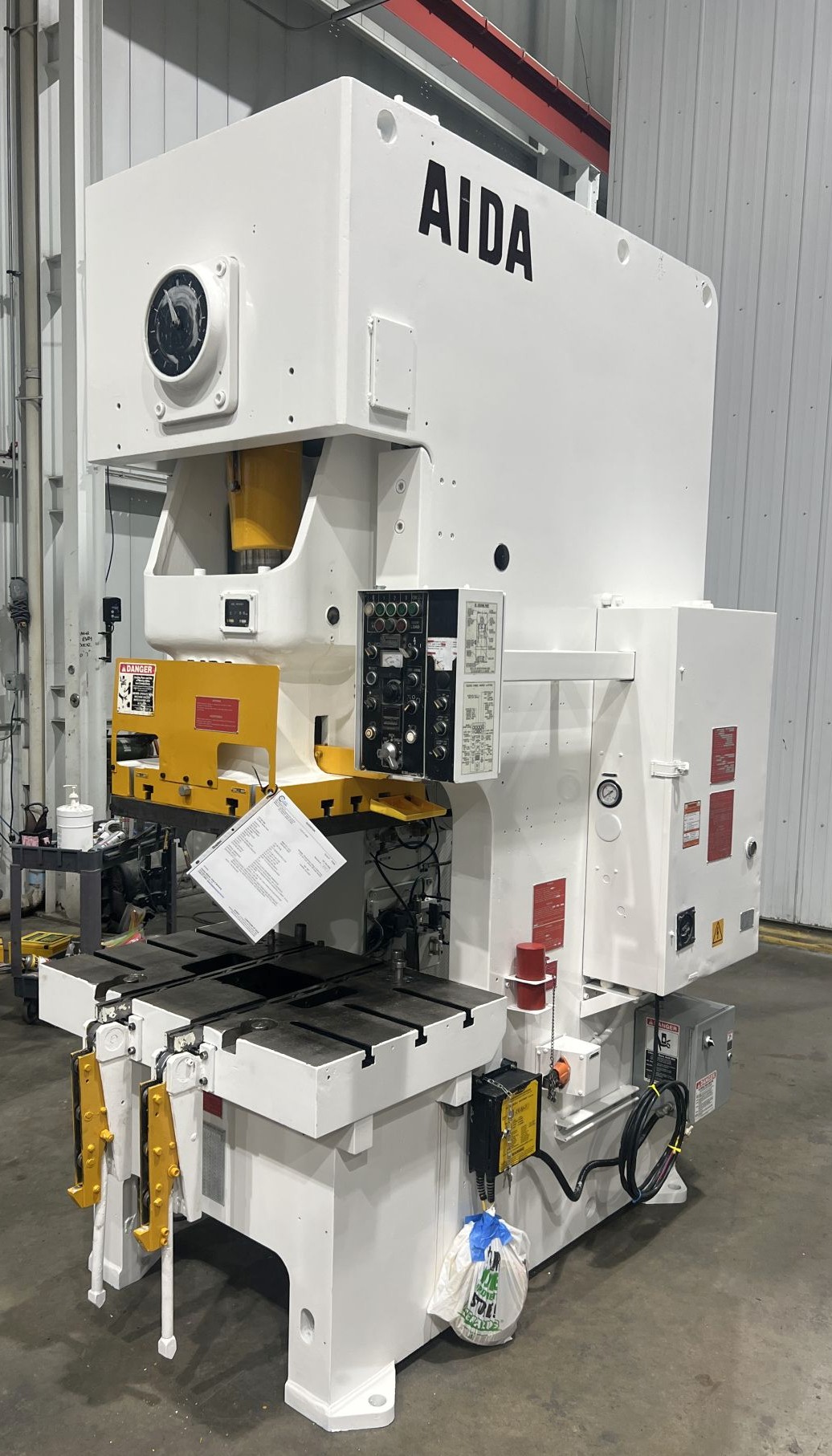

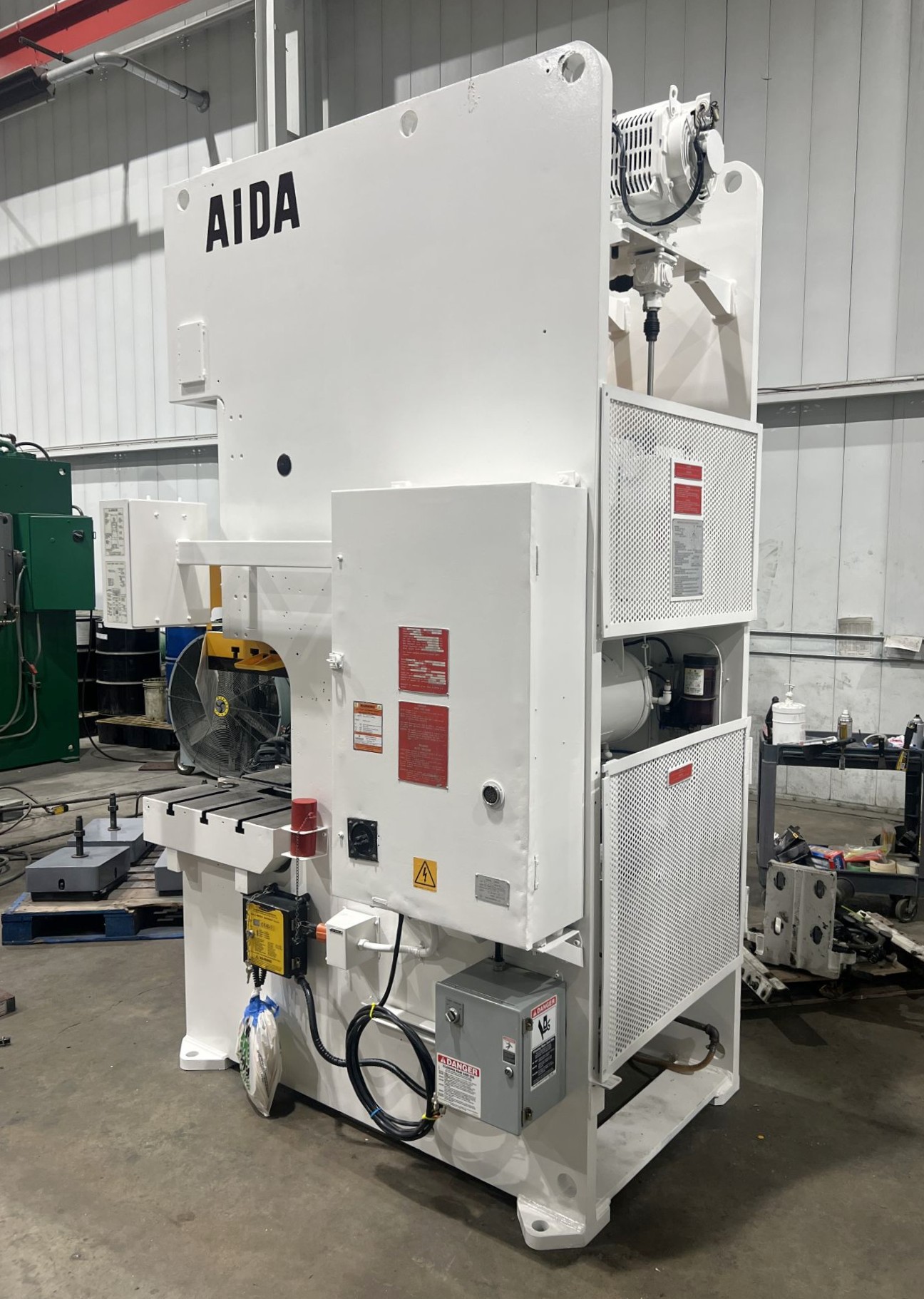

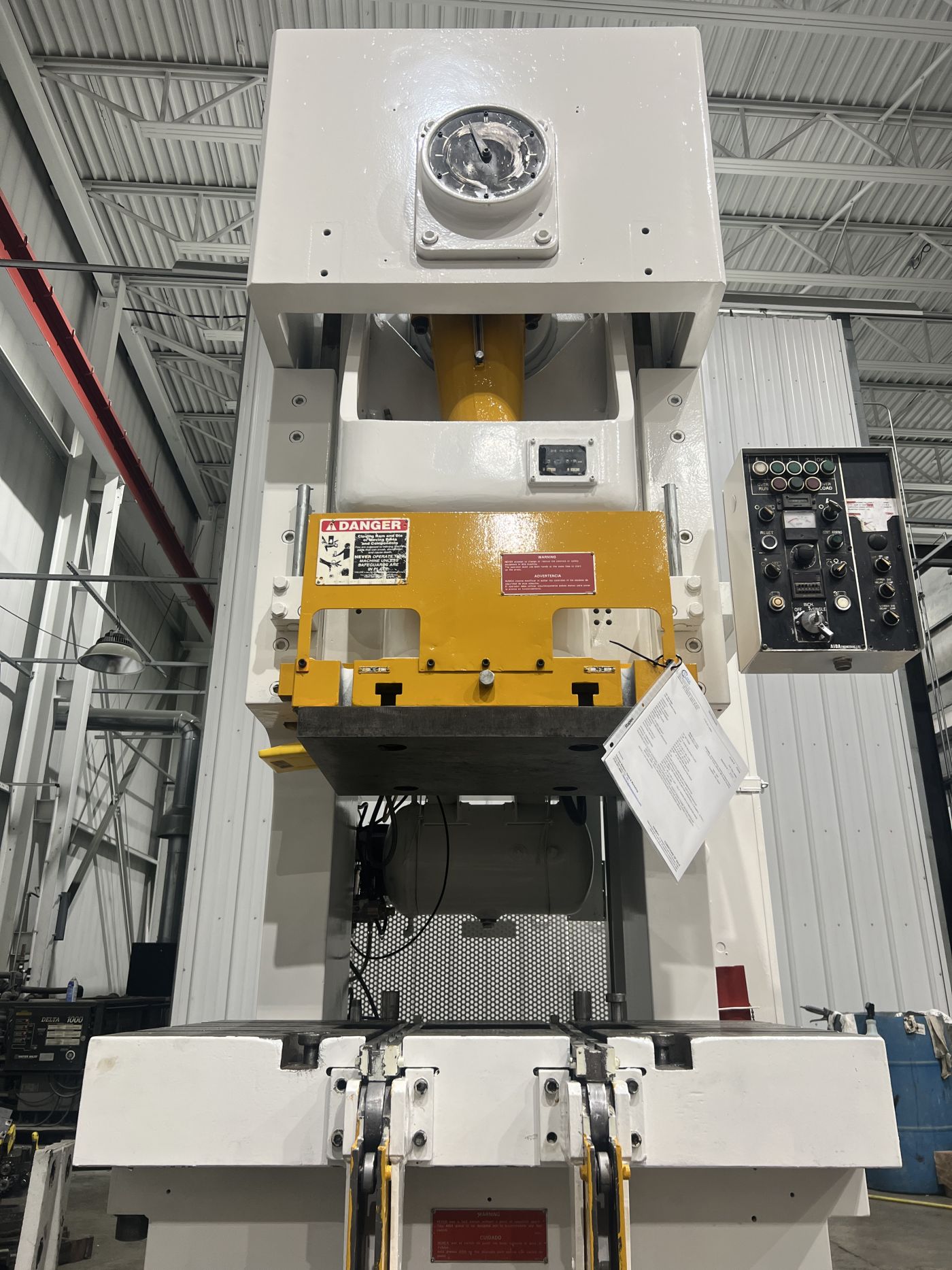

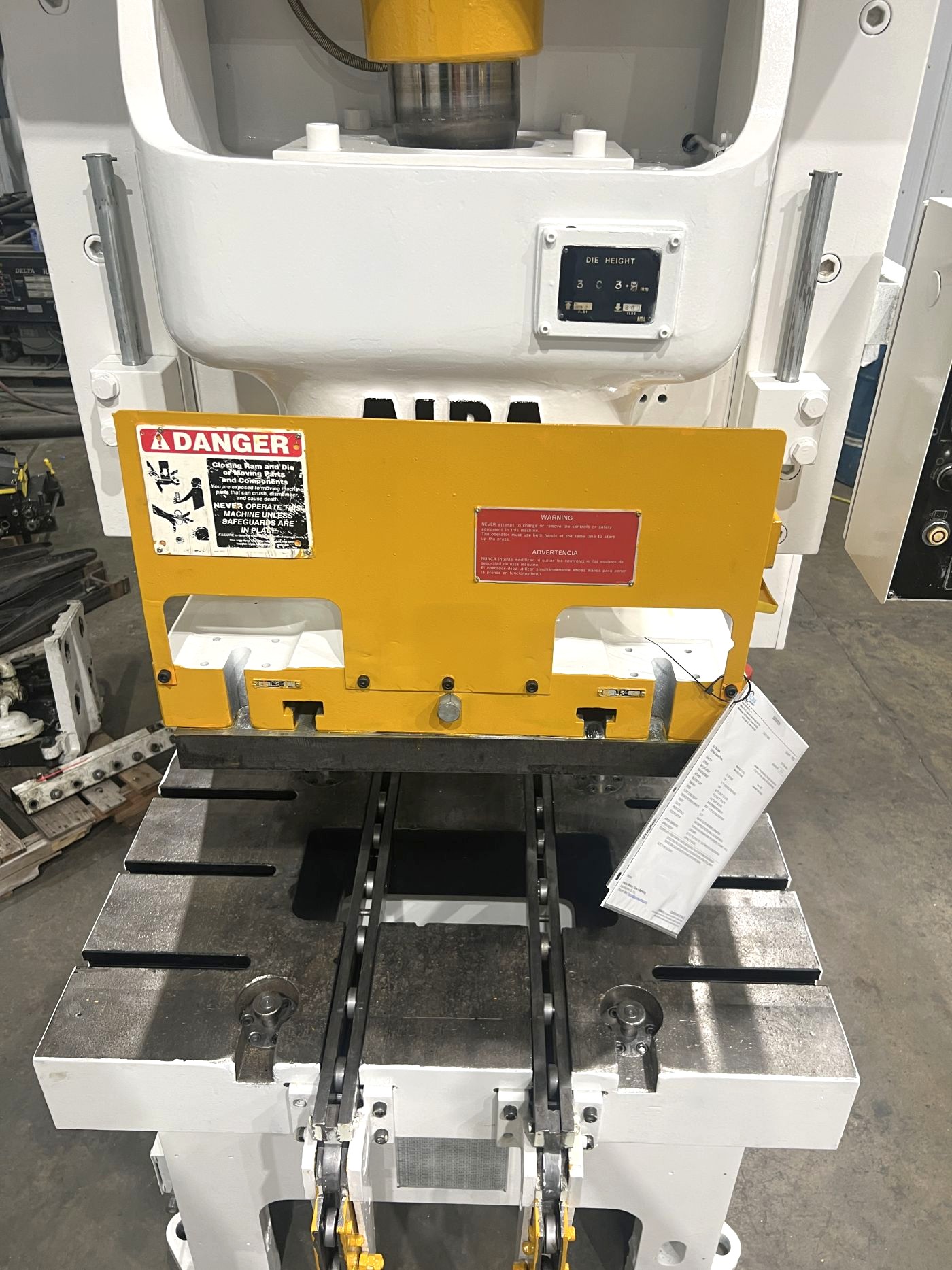

Gap Frame Press • Used 121 Ton Press for Sale

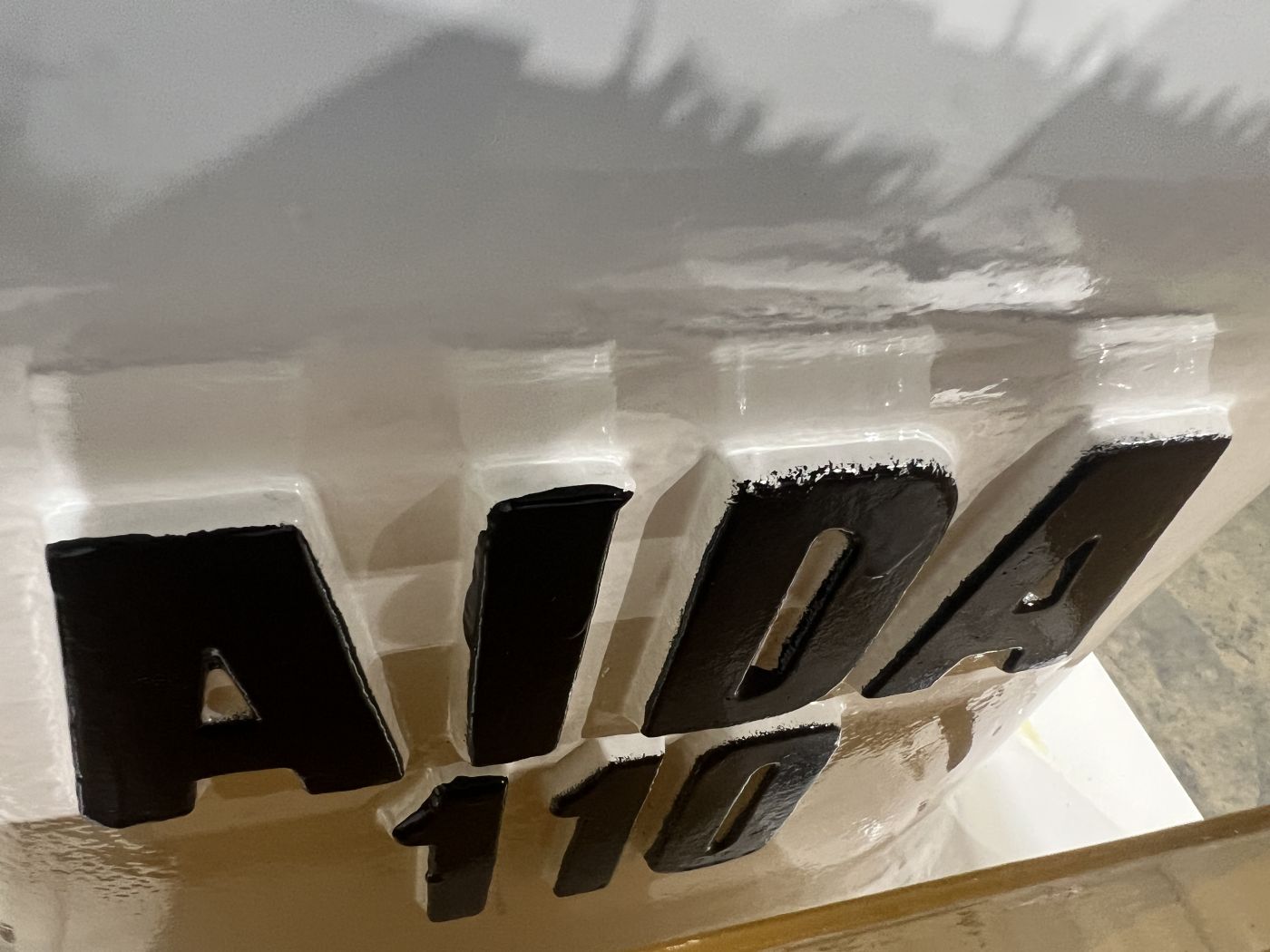

Manufacturer: Aida
Model: Aida NC1-110(2) Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1987
Machine #: 8131
Buy Now: $

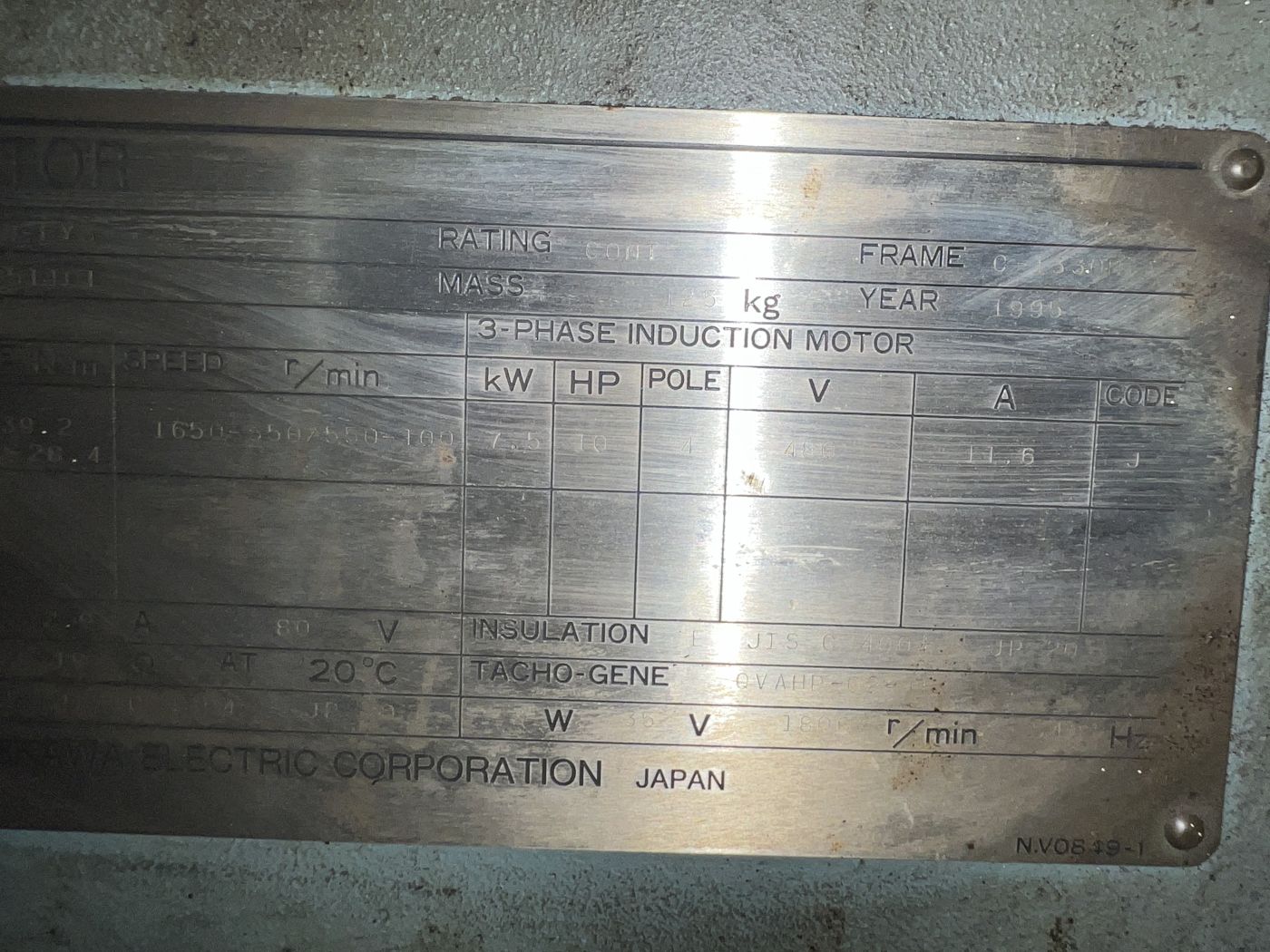

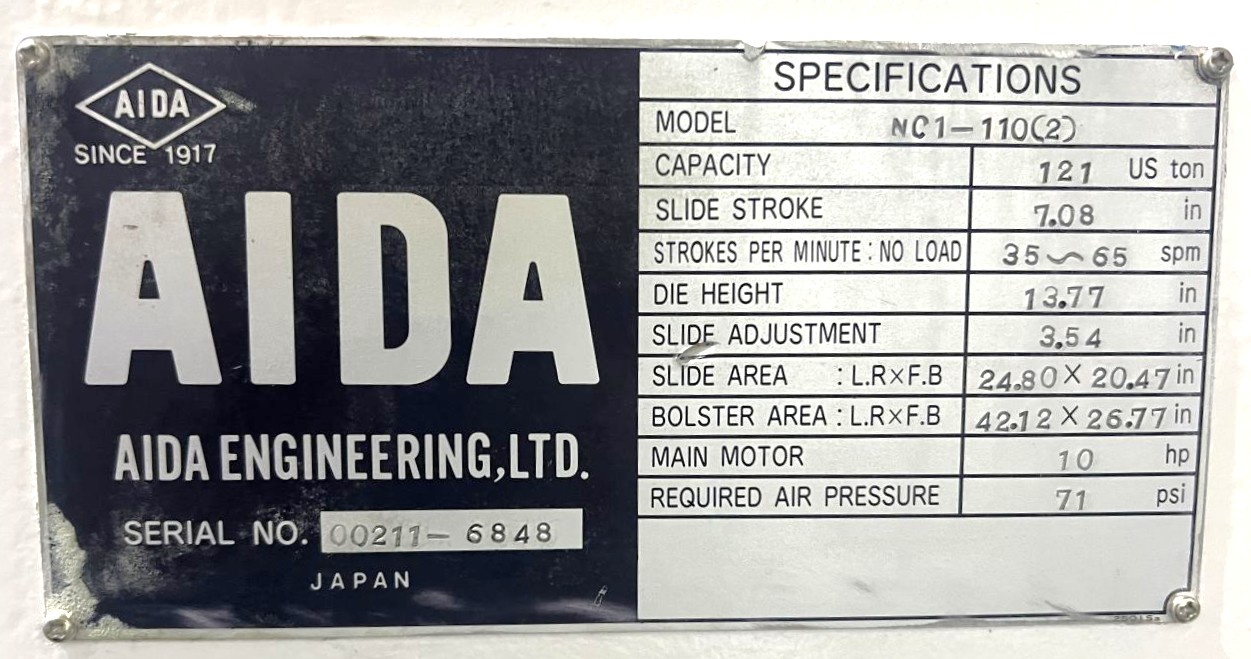

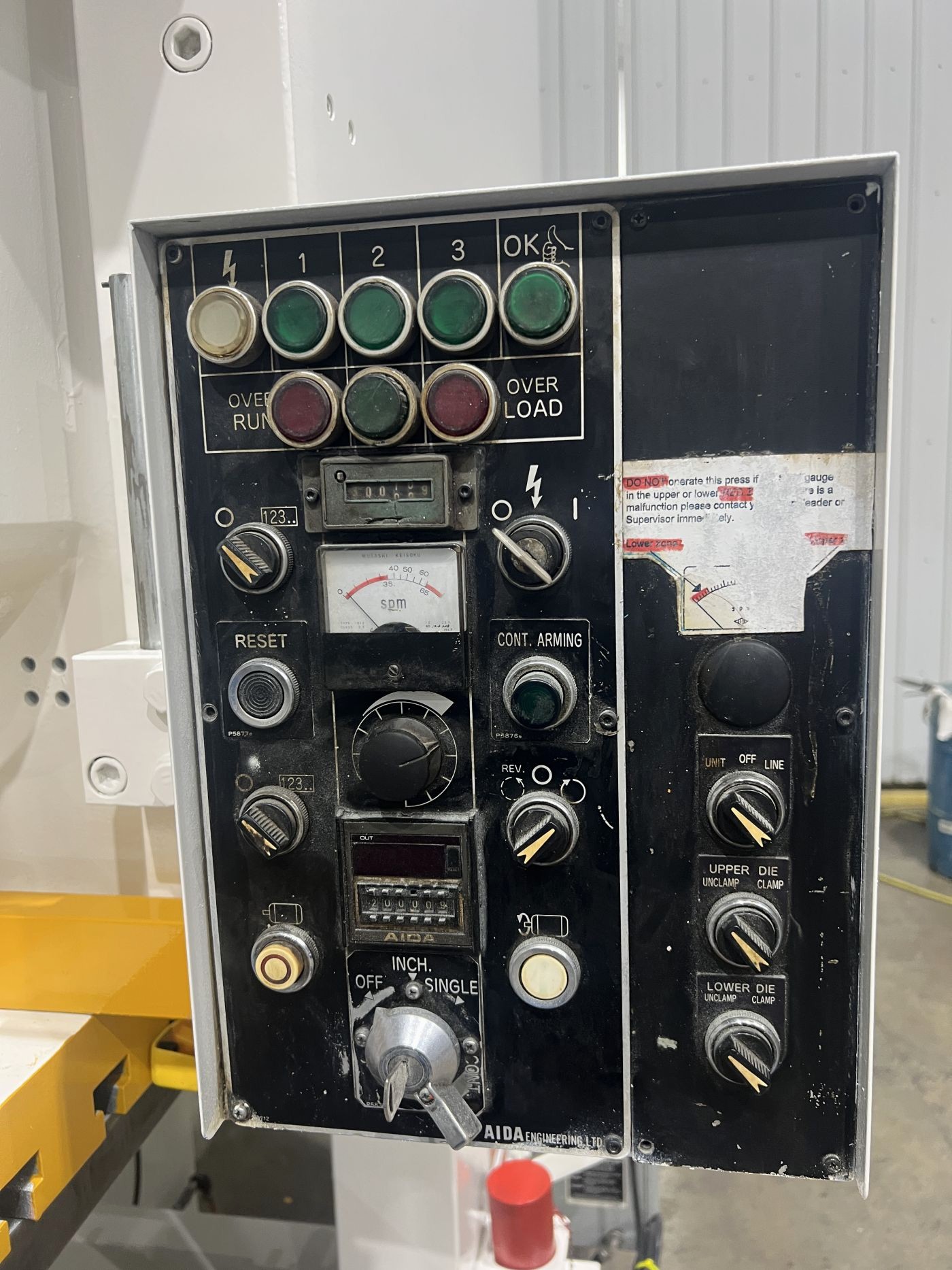

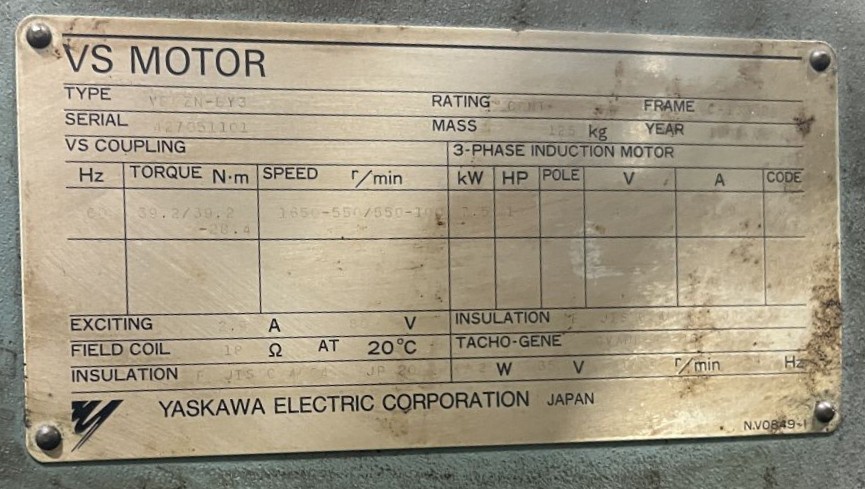

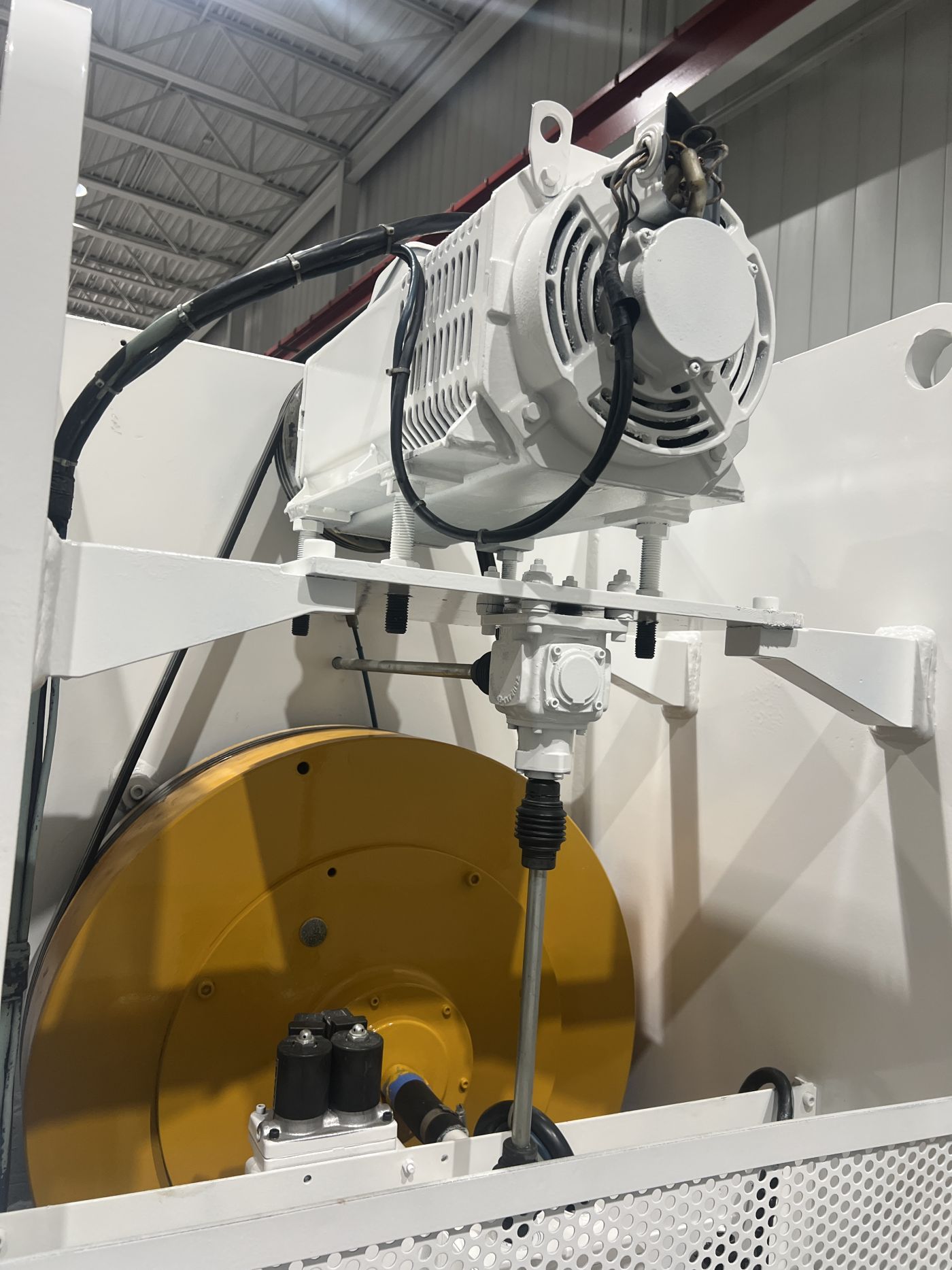

| CAPACITY | 121 US TONS | STROKE | 7.08″ | max die height | 13.77″ OVER BOLSTER PLATE | RAM ADJUSTMENT | 3.54″ | BED AREA | 42.12″ X 26.77″ (RL X FB) | BOLSTER PLATE | 42.12″ X 26.77″ (RL X FB) | RAM AREA | 24.8″ X 20.47″ (RL X FB) | SPEED | 35-65 STROKES PER MINUTE | FLOOR TO BED HEIGHT | 35.65″ – 41.15″ WITH ISOLATOR PADS | DISTANCE BETWEEN UPRIGHTS | 25″ | THROAT | 13.75″ | CLUTCH | AIDA AIR CLUTCH AND BRAKE COMBINATION | PRESS CONTROLS | AIDA CONTROLS TESTED IN INCH, JOG & CONTINUOUS | ELECTRIC MOTOR | 10 HP 460V-3-60 YASKAWA VS MOTOR (UPDATED) | 11.6 AMPS – 14 FULL LOAD AMPS | APPROX. DIMENSIONS | 59″ X 81″ (RL X FB) X 120″ – 125.5″ WHEN ON 5.5 ISOLATOR PADS | APPROX. WEIGHT | APPROX. 21,340 LBS. | Equipped With | FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE | Note | 71 PSI REQUIRED |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
