Description

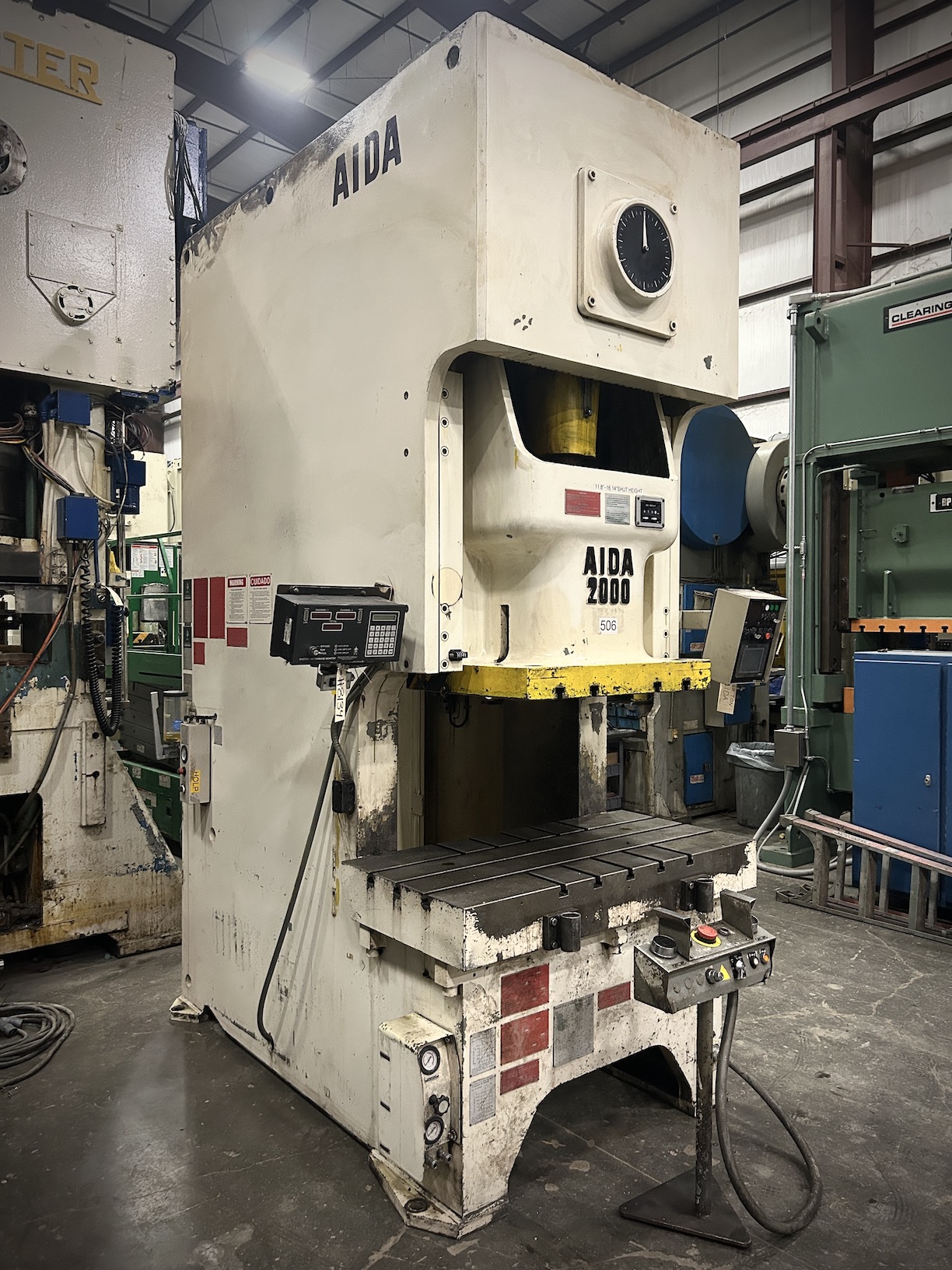

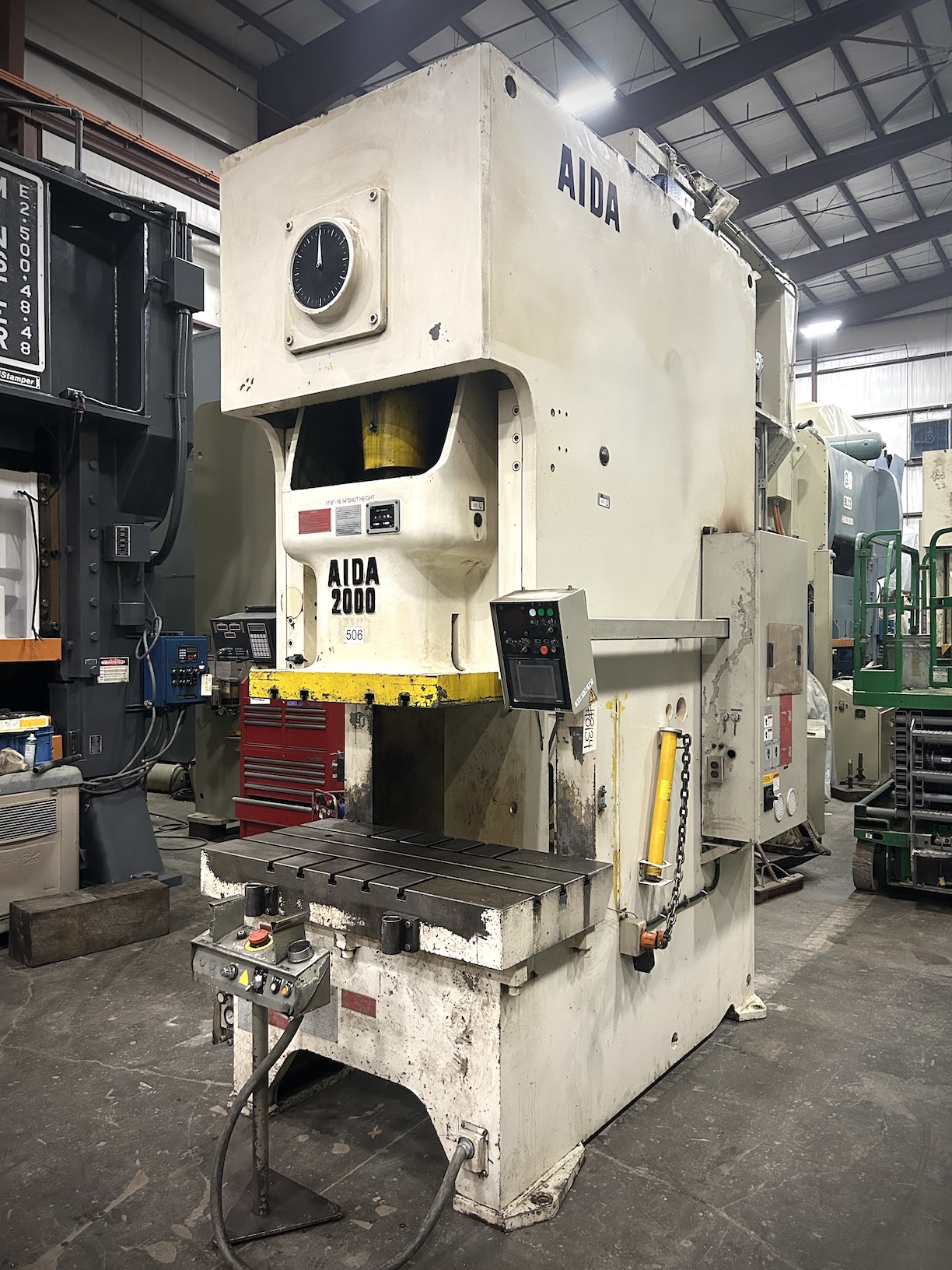

Gap Frame Press • Used 220 Ton Press for Sale
- Machine #
- 8134
- Condition
- Very Good
- Location
- Columbia, TN Warehouse
- Year
- 2010
- Model
- Aida NC1-2000(1)E
Buy Now: $
| CAPACITY | 220 US TONS / 176 US TON BLANKING CAPACITY |
|---|---|
| STROKE | 6.3" |
| max die height | 16.1" sdau over bolster plate |
| RAM ADJUSTMENT | 4.3" motorized |
| BED AREA | 54.7" X 26.7" (RL X FB) |
| BOLSTER PLATE | 54.7" X 26.7" (RL X FB) |
| RAM AREA | 34.6" X 25.5" (RL X FB) |
| SPEED | 35 - 70 STROKES PER MINUTE |
| FLOOR TO BED HEIGHT | approx. 33" |
| DISTANCE BETWEEN UPRIGHTS | 35.7" |
| THROAT | 13.8" |
| CLUTCH | AIDA AIR CLUTCH AND BRAKE COMBINATION |
| PRESS CONTROLS | AIDA CONTROLS TESTED IN INCH, JOG & CONTINUOUS |
| ELECTRICAL | 20 HP 460V-3-60 MOTOR |
| APPROX. DIMENSIONS | 13' h x 6' w x 8.5' fb |
| APPROX. WEIGHT | 52,000 lbs |
| Equipped With | FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, BRAKE STOP-TIME MONITOR, AUTOMATIC LUBRICATION SYSTEM FOR GIBS & CRANKSHAFT BEARINGS, AIDA SAFETY CONTROLLER, & QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE |
| Note | WE HAVE 2 IN STOCK (8132), MAX. UPPER DIE WEIGHT 2,205 LBS. |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
