220 Ton Seyi Used Press for Sale • Seyi SNS1-200 Press

220

220
Ton
49″
Bed R-L
5.91″
Stroke
Speed: 35-80 SPM
New in 2007

1
Straight Side Single Crank Press
Model: Seyi SNS1-200
5.9″ Stroke, 15.7″ Die Height, 49″ x 27″ Bed, 35-80 SPM, 4.3″ Ram Adjustment, New in 2007

High Speed Presses for Sale
Used Seyi Stamping Press (Mechanical)
Machine #5419
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Single Crank Press for Sale

Manufacturer: Seyi
Model: Seyi SNS1-200 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2007
Machine #: 5419
Buy Now: $





CAPACITY 220 US TONS
STROKE 5.9″
MAX DIE HEIGHT 15.7″ OVER BOLSTER
BED AREA 49.2″ RL X 26.8″ FB
SPEED 35 – 80 SPM
RAM ADJUSTMENT 4.3″ MOTORIZED
RAM AREA 39.4″ RL X 25.6″ FB
BOLSTER PLATE 7″ H X 49.2″ RL X 26.8″ FB
DIST UPRIGHTS / FLOOR TO BED 40″ / 39.4″
WINDOW SIZE 20.5″ W X 13.8″ H
CLUTCH SEYI AIR CLUTCH / BRAKE COMBINATION
ELECTRICS 25 HP 1800 RPM 240/480V-3-60 MOTOR & CONTROL
APPROX DIMENSIONS 147″ H X 81″ RL X 76″ FB
APPROX WEIGHT 47,000 LBS

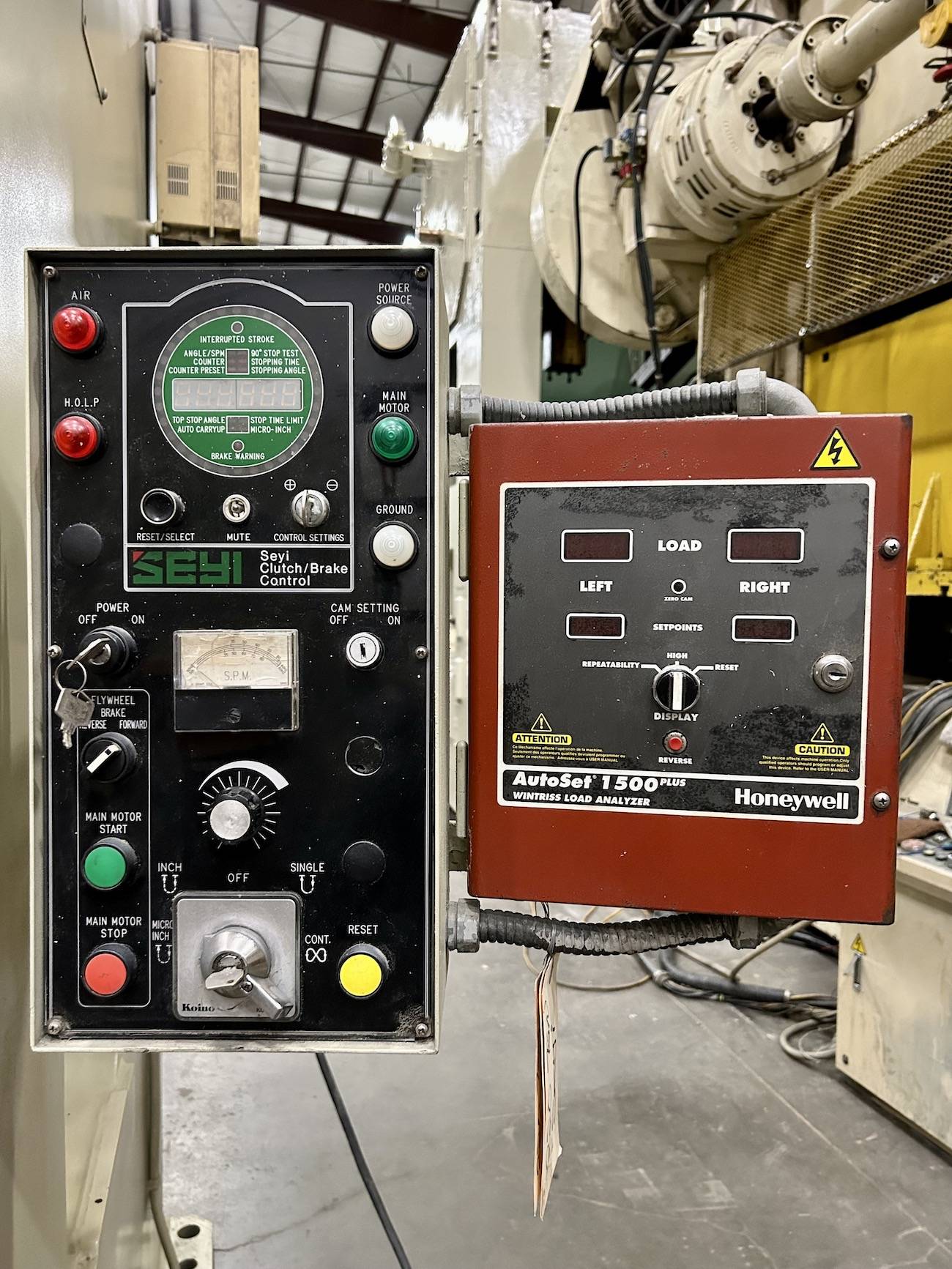

Equipped With WINTRISS DRO AUTO SET 1500 LOAD ANALYZER nEW IN 2007
Note __
Location This used press is located in our Columbia, TN Warehouse
