Description

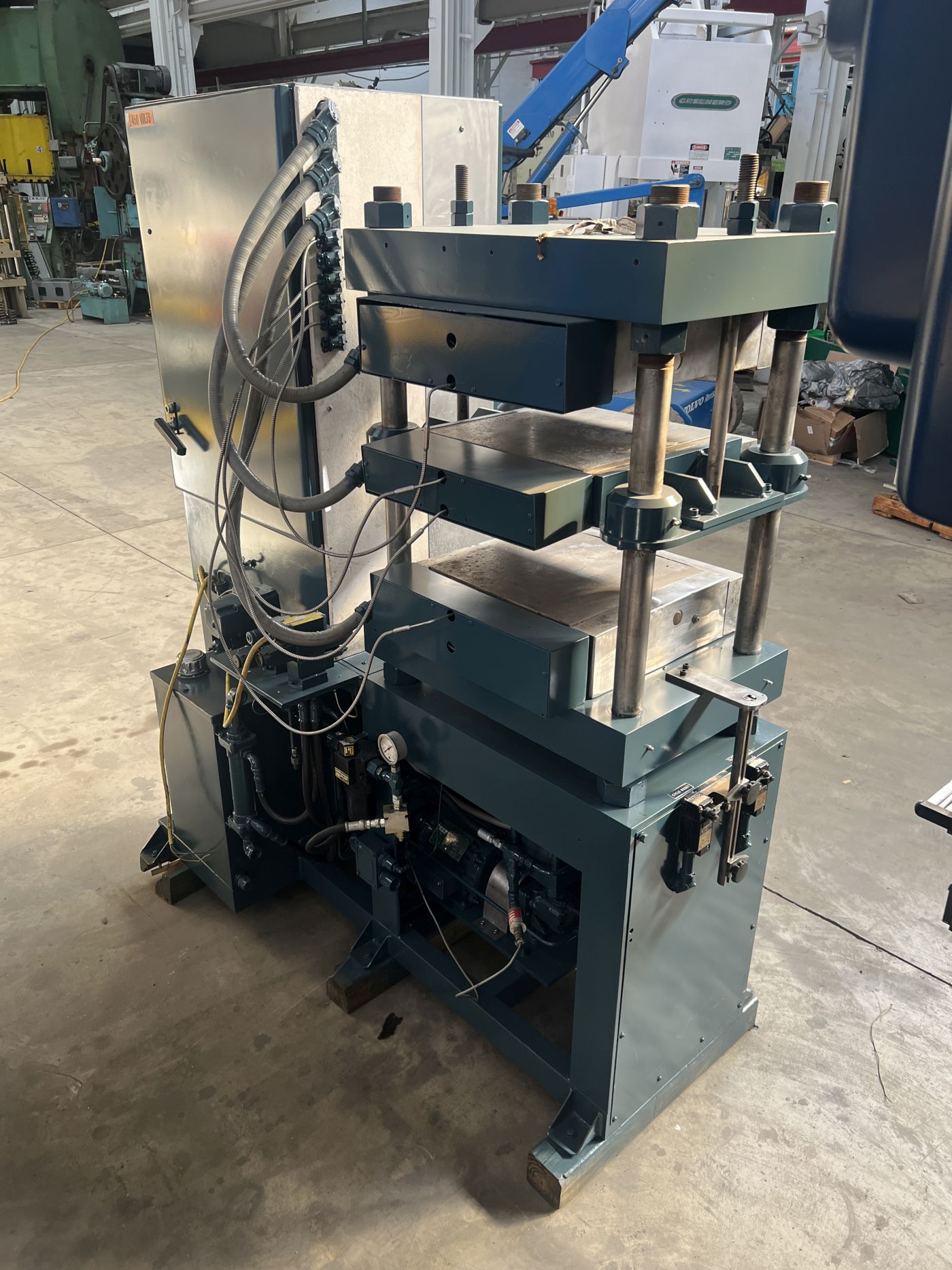

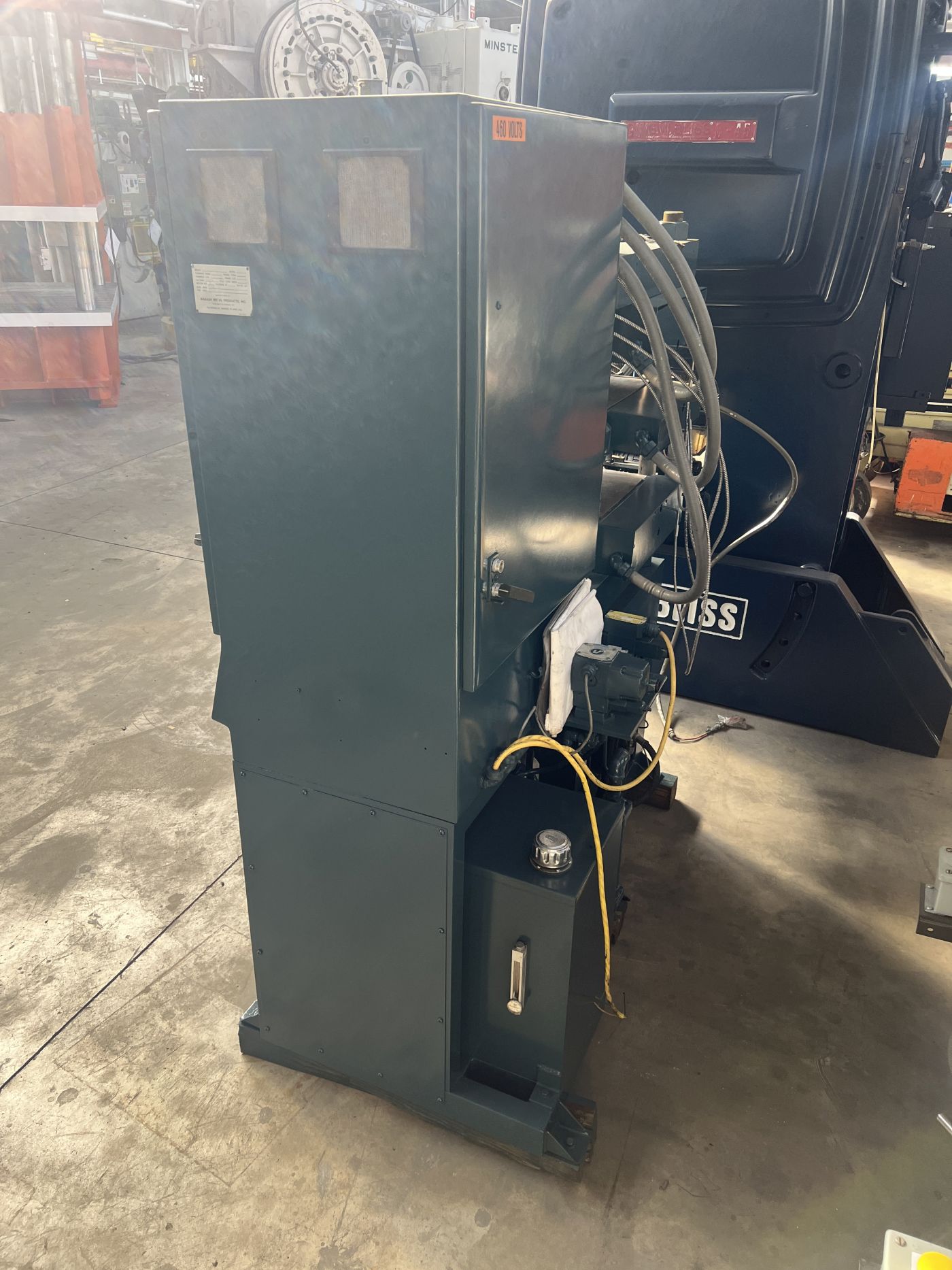

Heated Platen Transfer Press • Used 30 Ton Press for Sale
Model: Wabash 30-1515-3CTMX Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: Year Unknown
Machine #: 8308
Buy Now: $

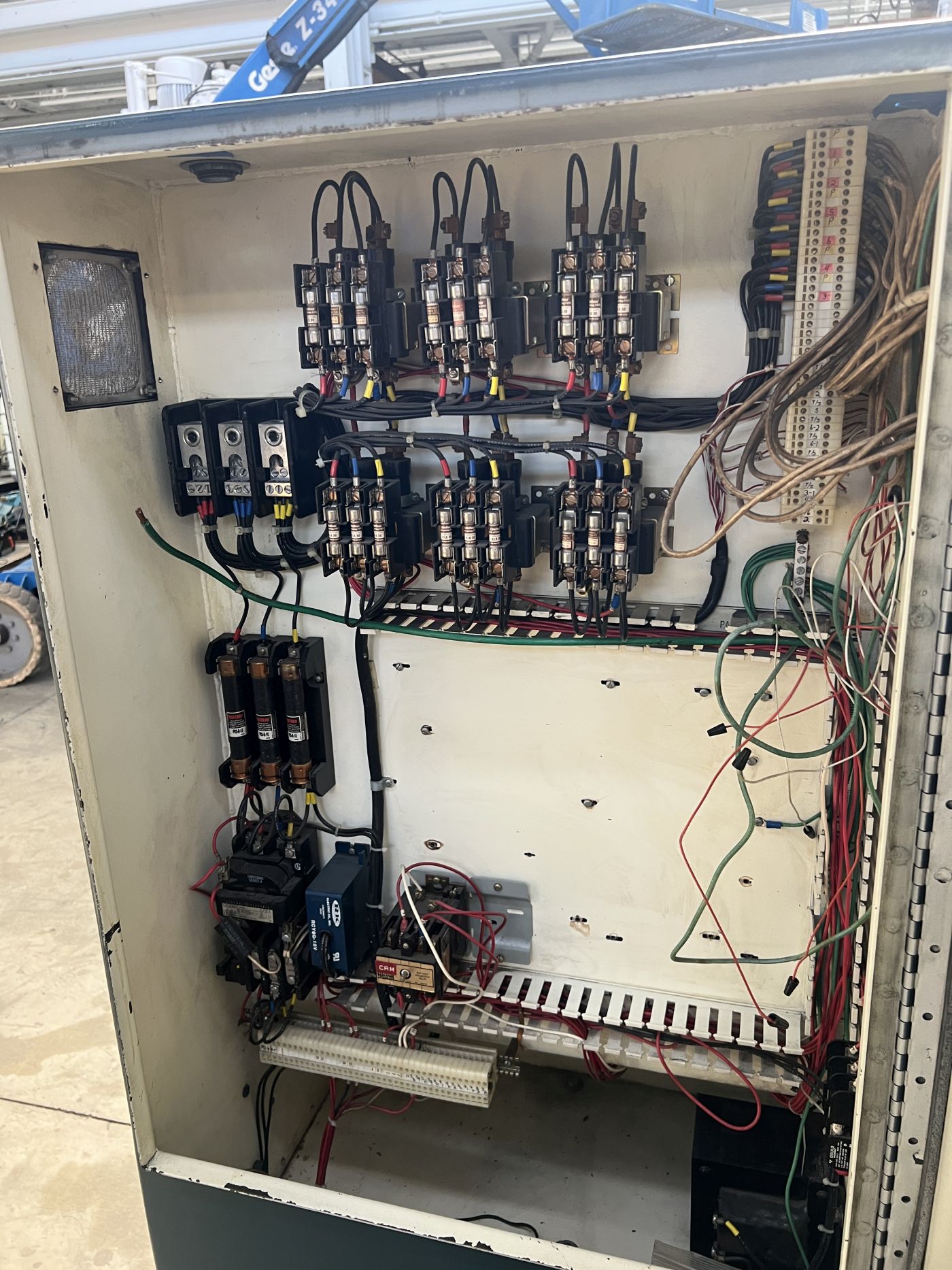

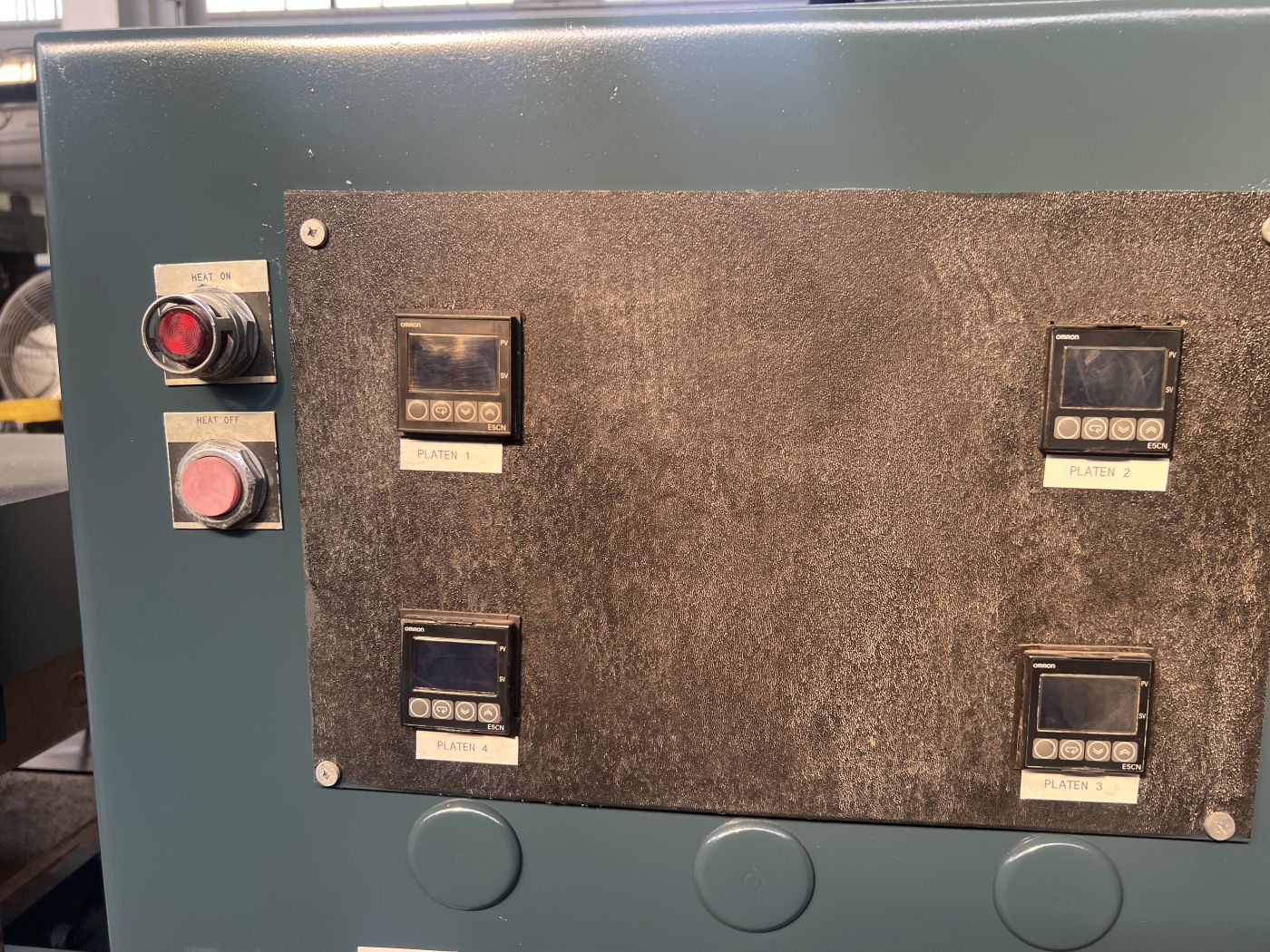

| MAX. CAPACITY | 30 TONS AT 3,100 PSI | MAX. STROKE | 6" | MAX. DAYLIGHT TO BED | 25" TOTAL - 7" BETWEEN BOTTOM PLATENS / 5" BETWEEN TOP PLATENS | OVERALL BED / RAM AREA | 28" X 19" (RL X FB) | DISTANCE BETWEEN POSTS | 22" X 12" (RL X FB) | USABLE BED AREA | 22" X 19" (RL X FB) | ELECTRIC HEATED PLATENS | 15" X 15" (RL X FB) - 4.75" THICK TOP/BOTTOM, 3.25" THICK CENTER - 8,000 WATTS EACH | CYLINDER SIZE | __ | RAM ROD SIZE | 2" DIA. | POSTS / 4 COLUMNS SIZE | 2" DIA. | FLOOR TO BED HEIGHT | 36.25" | PRESS CONTROLS | 54 FULL LOAD AMPS | HYDRAULIC SYSTEM | __ | ELECTRIC MOTOR | 2 HP 230/460V-3-60 LINCOLN A.C. MOTOR | 6.2 / 3.1 AMPS | APPROX. DIMENSIONS | 66" X 37" (RL X FB) X 76" HIGH | APPROX. WEIGHT | __ | Equipped With | DYNISCO PT190 TRANSDUCER, B-401-A4-0 HEAT EXCHANGER - 350 TEMP | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
