Description
Straight Side Press • Used 300 Ton Press for Sale

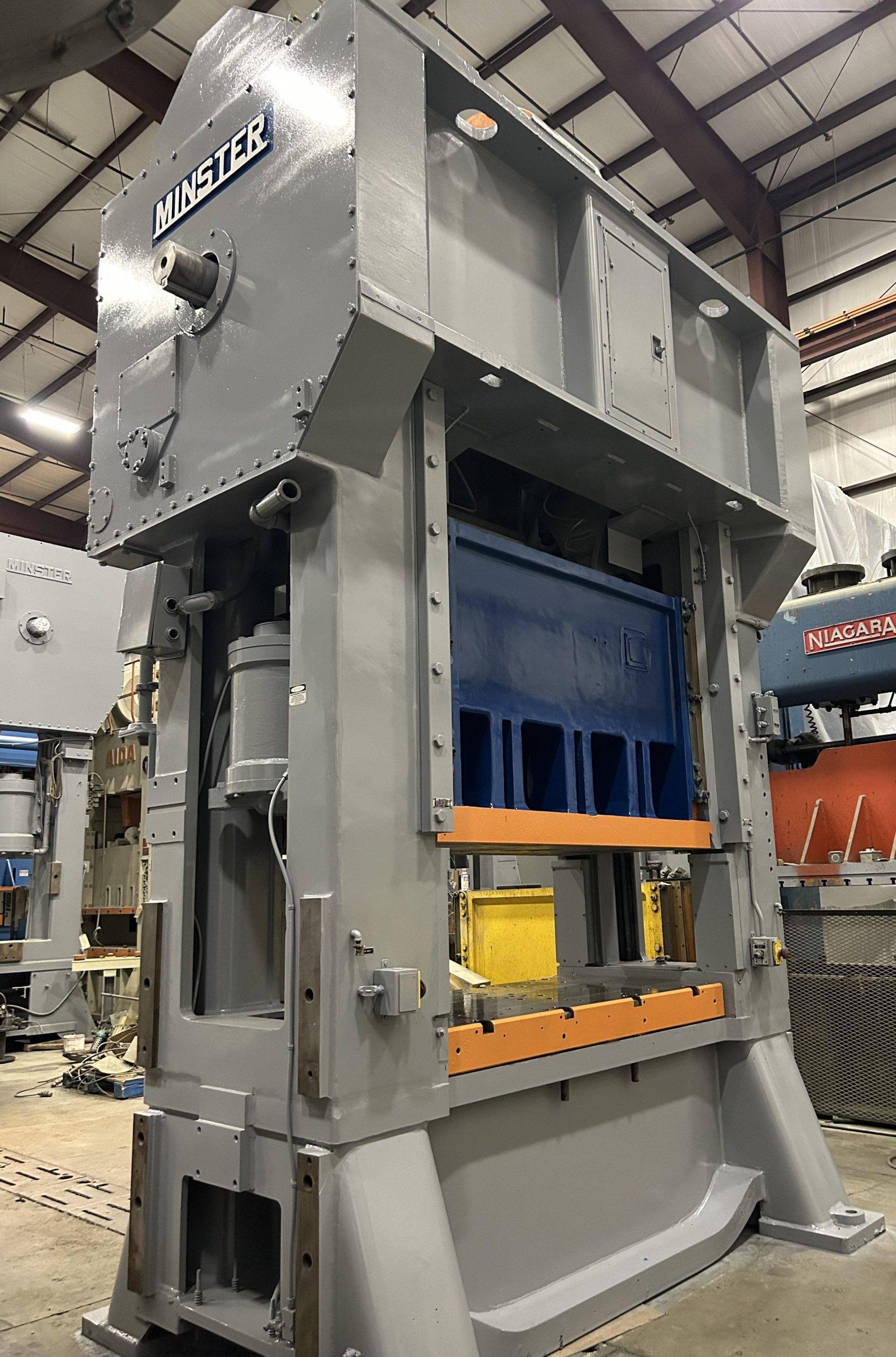

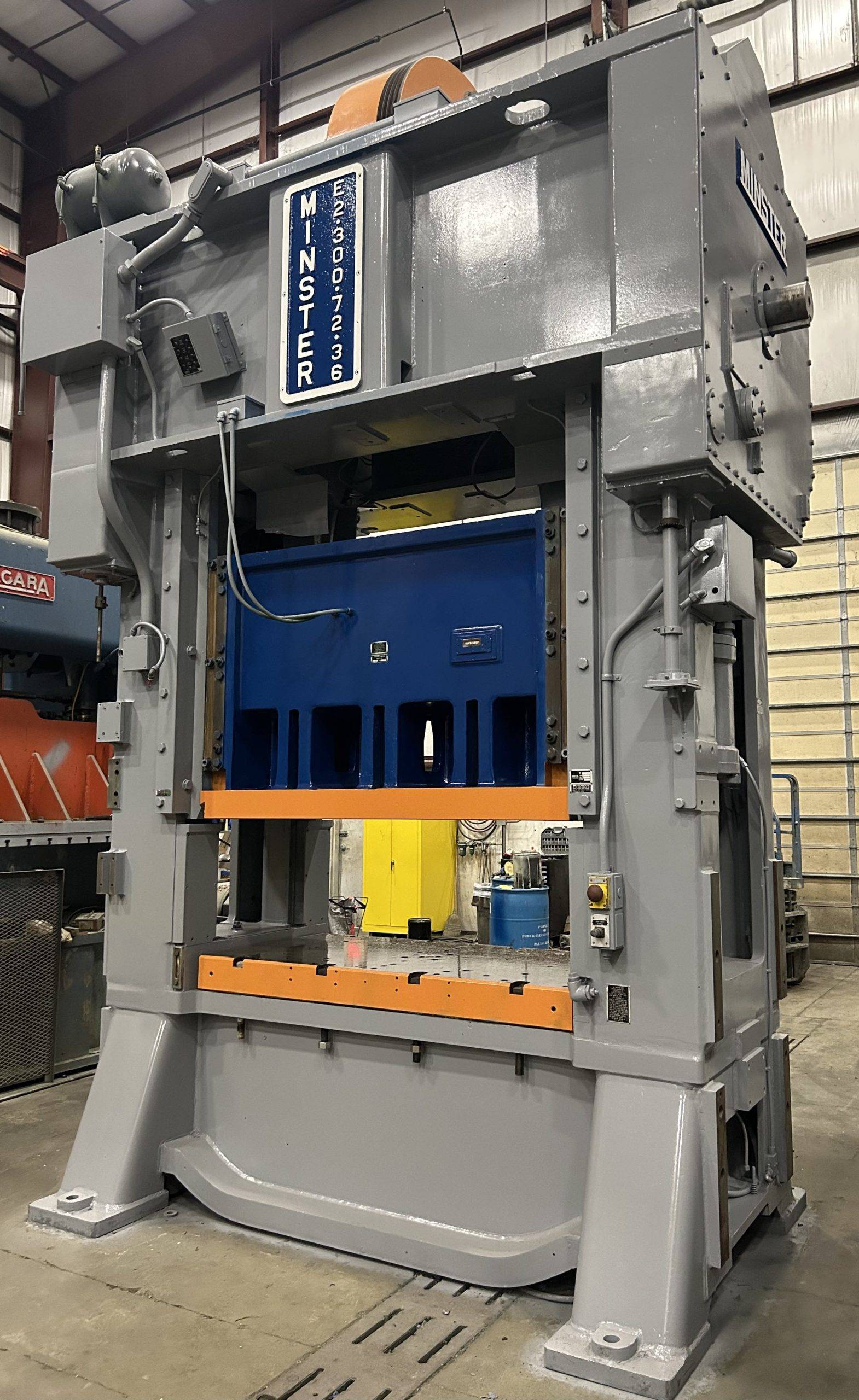

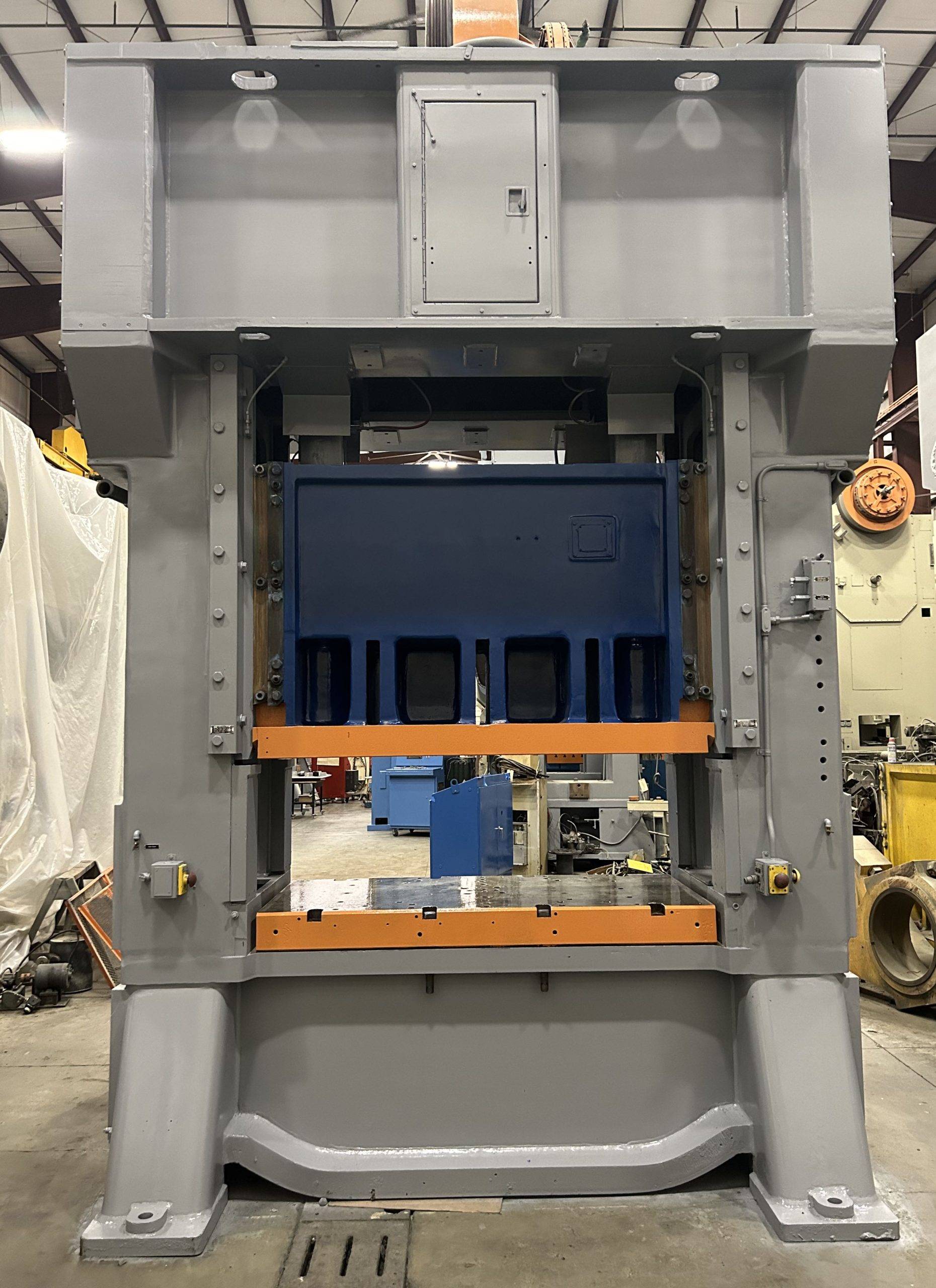

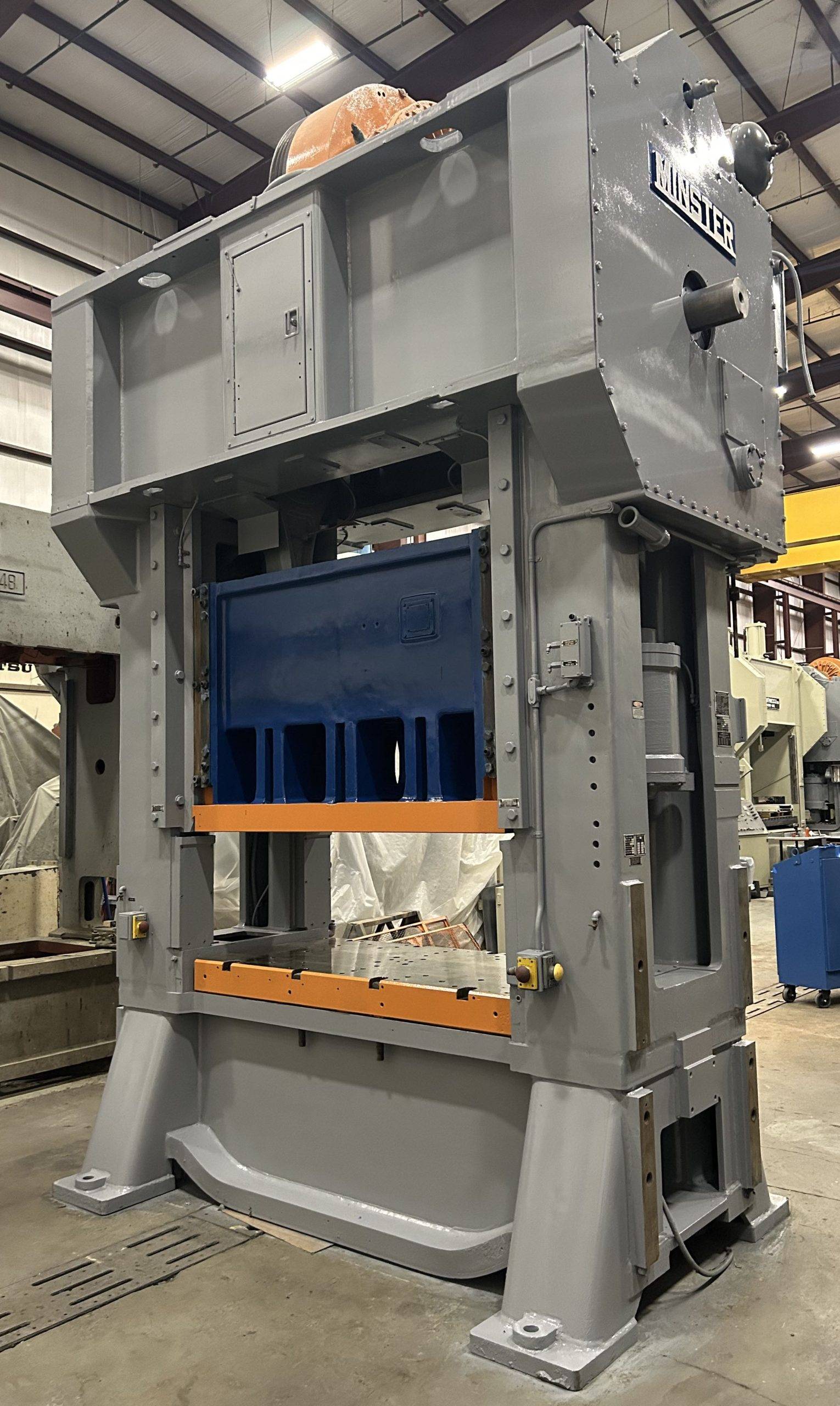

Model: Minster E2-300-72-36 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1981
Machine #: 6599
Buy Now: $
| CAPACITY | 300 TON | STROKE | 8" | SHUT HEIGHT TO BED | 36" (SDAU) | BED SIZE | 72" X 36" (rl x FB) | SPEED | 30-60 SPM VARIABLE SPEED | slide adjustment | 6" (MOTORIZED) | slide area | 72" RL X 36" FB | bolster & slide plate | 8" X 72" RL X 36" FB (T-SLOTTED), 4" X 72" RL X 36" FB (T-SLOTTED | WINDOW SIZE | 28.25" WIDE X 16" HIGH | DISTANCE BETWEEN UPRIGHTS | 73.5" | FLOOR TO BED HEIGHT | 37" | CLUTCH | AIR CLUTCH & BRAKE | PRESS CONTROLS | New cieco press control included for reconditioned price | ELECTRIC MOTOR | 40 HP 1750 RPM 208-240/480V-3-60 motor with new 480v vARIABLE FREQUENCY DRIVE | APPROX. DIMENSIONS | 137" X 84" (RL X FB) X 204" HIGH | APPROX. WEIGHT | 85,000 LBS. | Equipped With | STEEL FRAME CONSTRUCTION RECIRCULATING AUTOMATIC OIL LUBRICATION SYSTEM AIR COUNTERBALANCED RAM FLOOR STANDING BASE | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
