Description

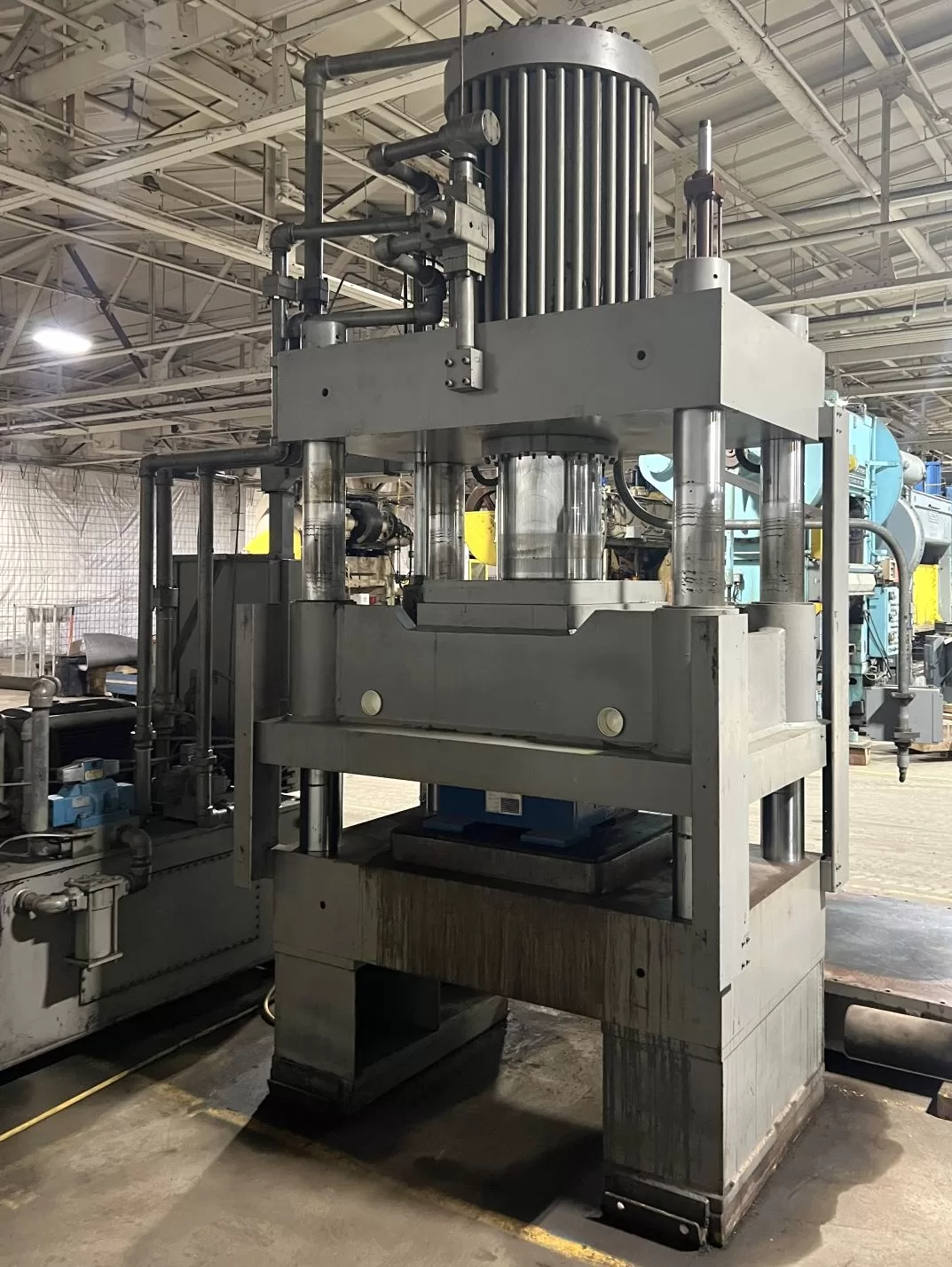

Heavy Duty 4-Post Used Hydraulic Press • Used 500 Ton Press for Sale
Model: Greenerd 4D-500-60R38 Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year: 1981
Machine #: 6222
Buy Now: $

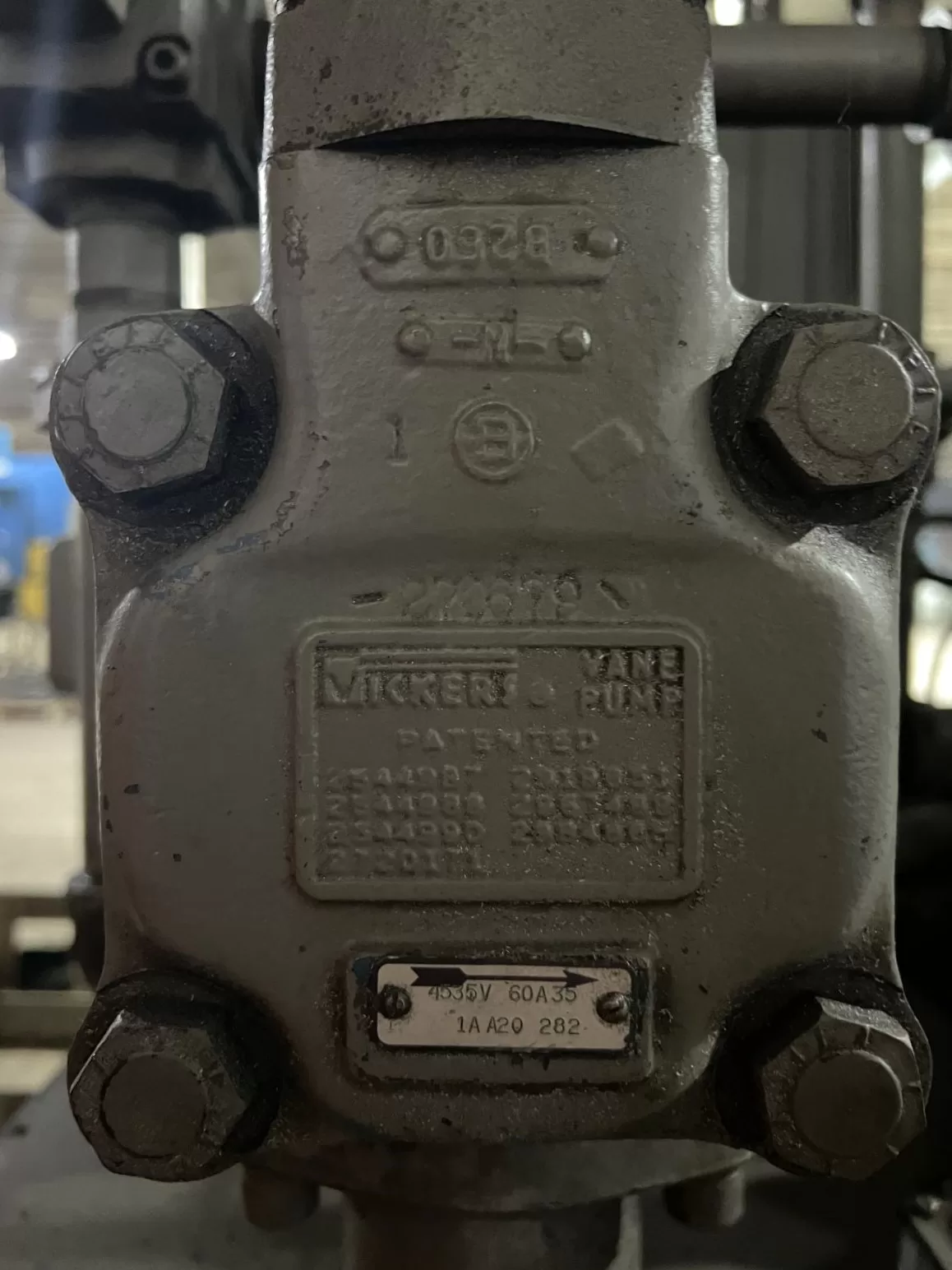

| CAPACITY | 500 TONS AT 2,406 PSI | STROKE | 20" | DAYLIGHT | 30" | BED AREA | 72" X 42" (RL X FB) | BETWEEN POSTS | 56" X 25" (RL X FB) | USABLE BED AREA | 56" X 42" (RL X FB) | BOLSTER PLATE | 36" X 32" (RL X FB) X 3.75" HIGH | RISER ON RAM | 48" X 42" (RL X FB) X 12" HIGH (52" WIDE AT TOP OF RISER) | ram rod size | 16" DIA. | CYLINDER SIZE | 23" DIA. BORE | SPEEDS (INCHES PER MINUTE) | 112 CLOSE / 18 PRESSING / 105 OPEN | POST / 4 COLUMN SIZE | 6.5" DIA. | FLOOR TO BED HEIGHT | 37.25" | PRESS CONTROLS | __ | ELECTRICAL | 75 HP MOTOR | HYDRAULICS | VICKERS 4535V60A35-1AA20-282 PUMP | 300 GALLON HYDRAULIC RESERVOIR | APPROX. DIMENSIONS | 87" X 69" (RL X FB) X 160" HIGH | APPROX. WEIGHT | 53,000 LBS. | Equipped With | DWELL TIMER ADJUSTABLE UP TO 5 SECONDS | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
