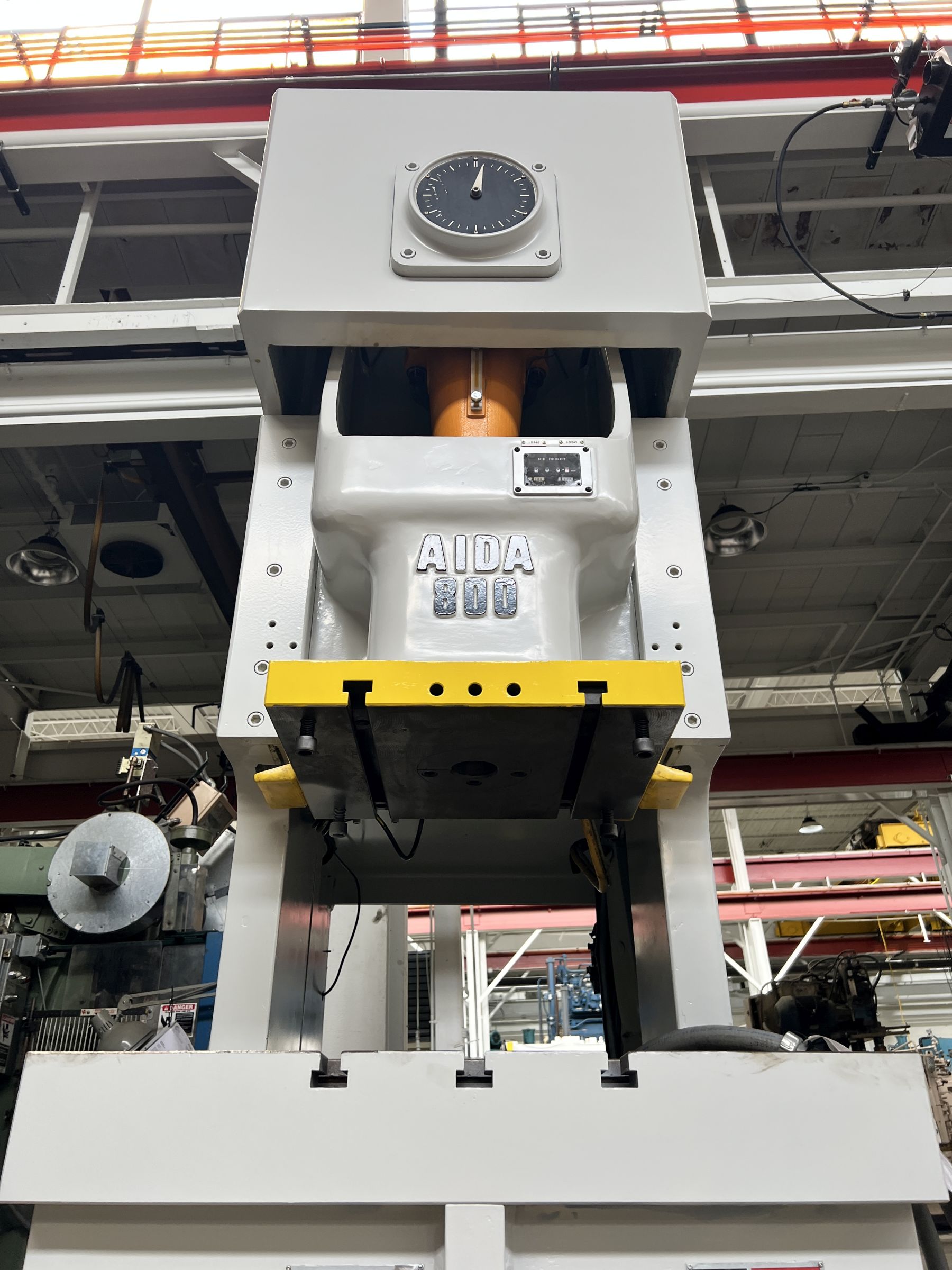

88 Ton Aida Used Press for Sale • Aida NC1-800 Press

88

88
Ton
37.4″
Bed R-L
3.94″
Stroke
Speed: 55-110 SPM
New in 2005

Aida America Controls, PressPro Genesis Programmable Limit Switch, Hydraulic Overload Protection
OBI Press
Model: Aida NC1-800
3.94″ Stroke, 11.81″ Shut Height, 55-110 Strokes per Minute

Gap Frame Presses for Sale
Used Aida Punch Press (Mechanical)
Machine #6072
Jackson, MI Cooper Building
Sale Price: $

Machine Specifications

OBI Press for Sale

Manufacturer: Aida
Model: Aida NC1-800(1) Press
Condition: Excellent
Location: Jackson, MI Cooper Building
Year: 2005
Machine #: 6072
Buy Now: $





CAPACITY 88 us TON
STROKE 3.94″
MAX. SHUT HEIGHT TO BOLSTER 11.81″
BED AREA 37.4″ X 18.1″ (RL X FB)
RAM AREA 21.3″ X 18.1″ (RL X FB)
RAM ADJUSTMENT 3.15″
SPEED 55 TO 110 STROKES PER MINUTE
BOLSTER PLATE 37.4″ X 18.1″ (RL X FB)
DISTANCE BETWEEN UPRIGHTS 24.5″
FLOOR TO BOLSTER 35.43″
CLUTCH AIDA AIR CLUTCH AND BRAKE
PRESS CONTROLS AIDA AMERICA CONTROLS WITH PANELMATE TOUCHSCREEN
ELECTRICAL 10 HP 460V-3-60 MOTOR | 18 TOTAL FULL LOAD AMPS
APPROX. DIMENSIONS 50″ X 68″ (RL X FB) X 108″ HIGH
APPROX. WEIGHT APPROX. 14,000 LBS.
Equipped With PRESSPRO GENESIS (AMCI) PROGRAMMABLE LIMIT SWITCH, HYDRAULIC OVERLOAD PROTECTION, AIDA WET CLUTCH AND BRAKE, QUILL MOUNTED FLYWHEEL, COUNTERBALANCE LUBE PUMP
Note 1,433 MAXIMUM UPPER DIE WEIGHT CAPACITY
Location This used press is located in our Jackson, MI Cooper Building
