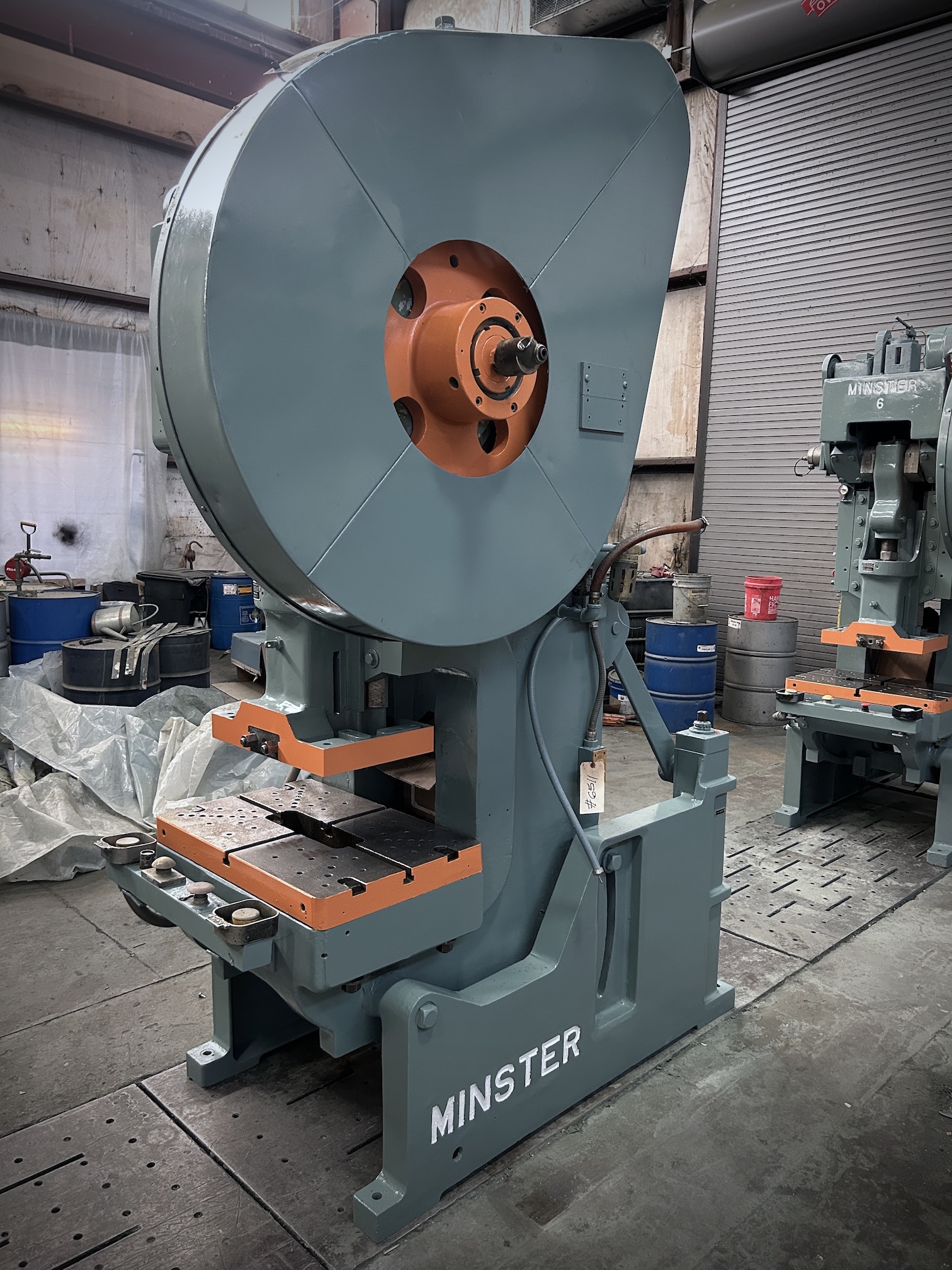

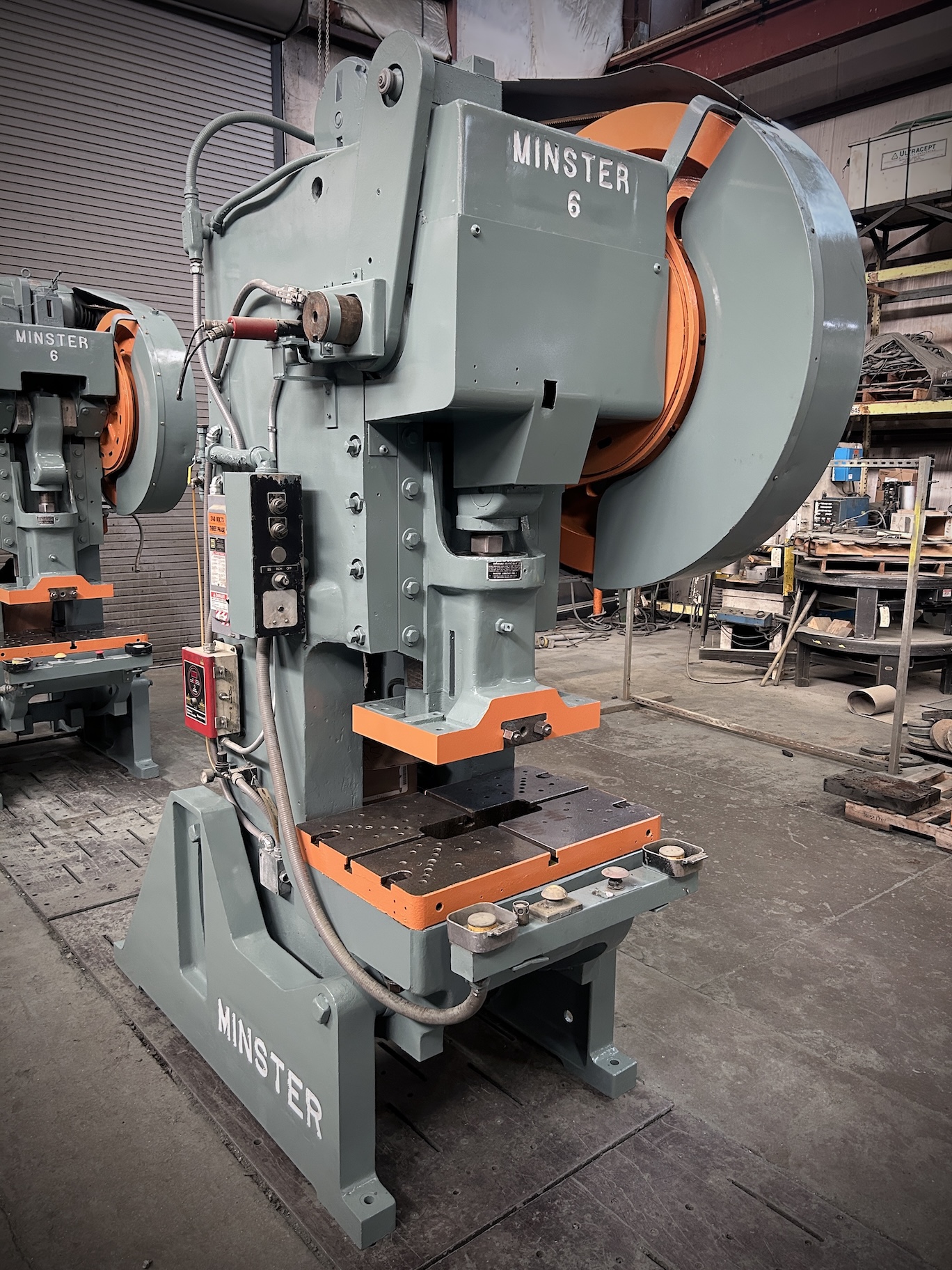

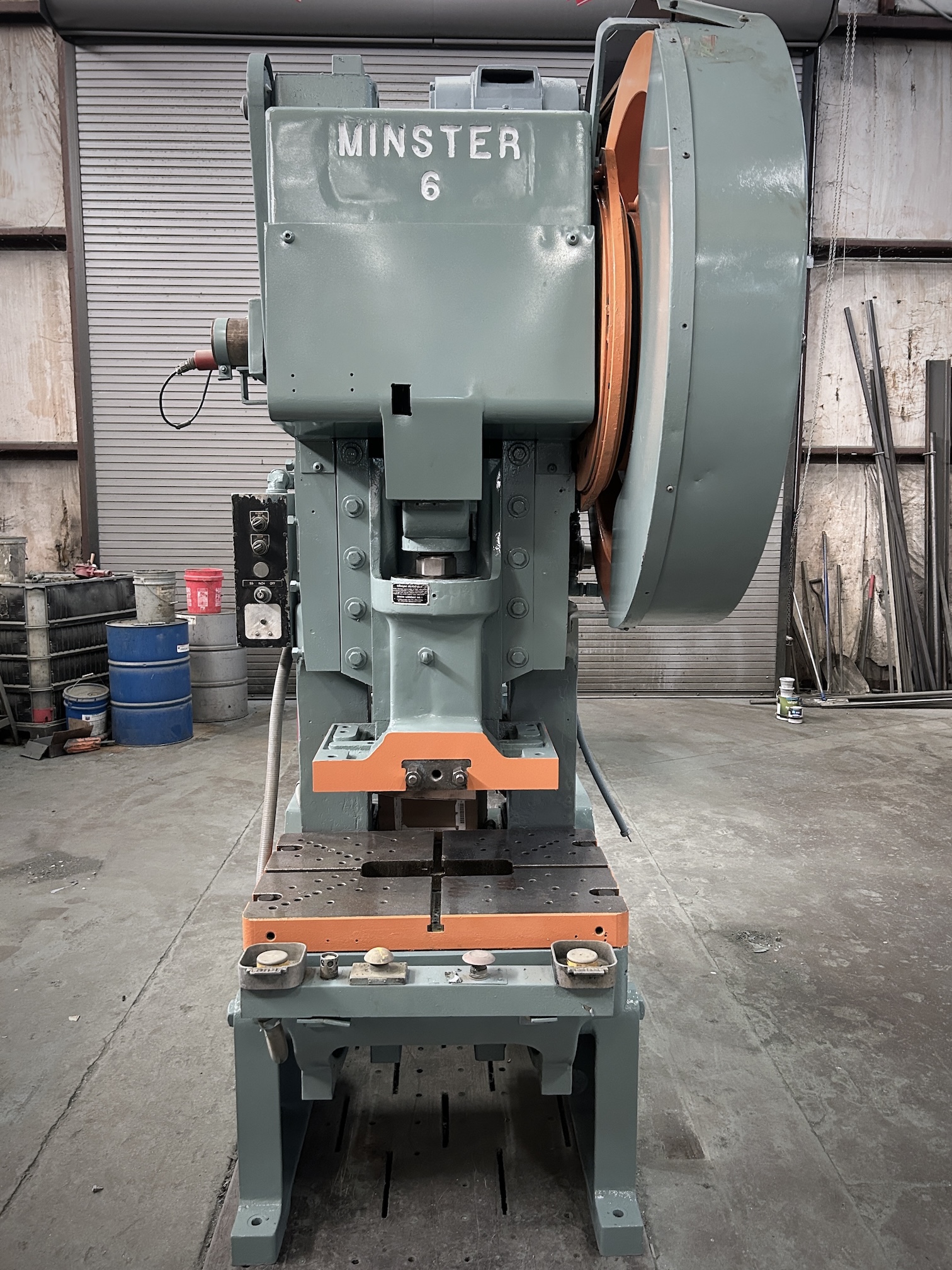

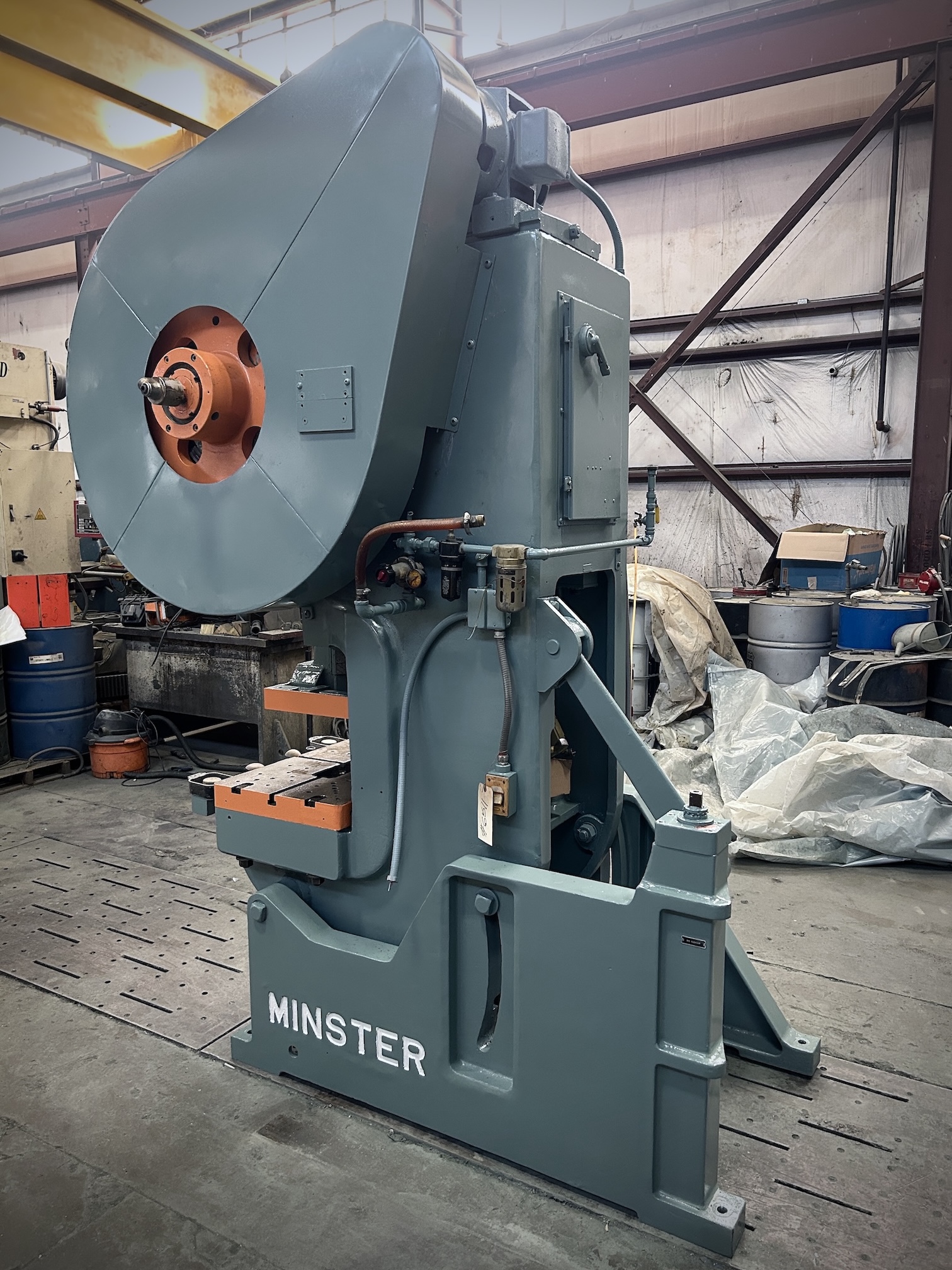

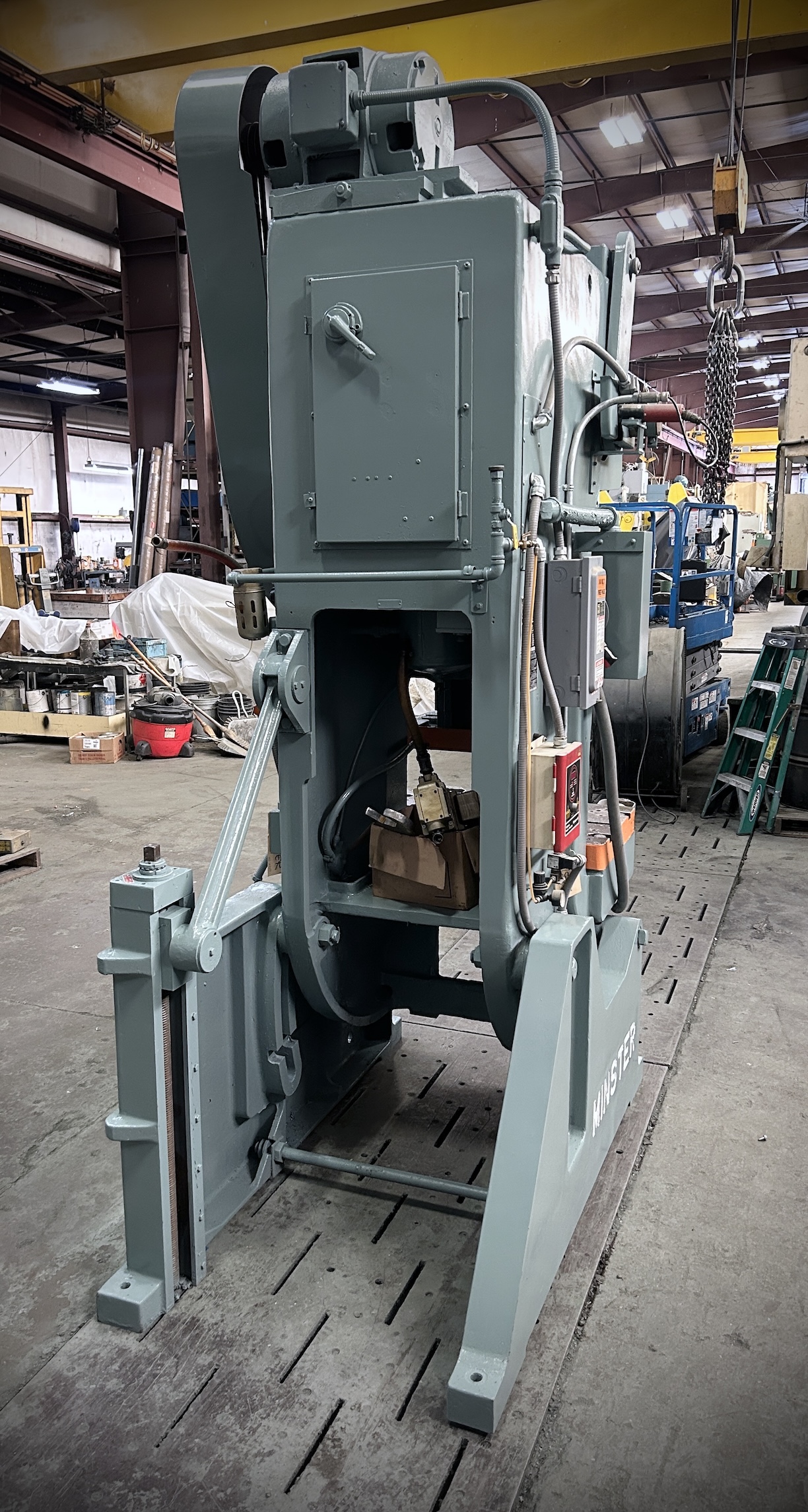

60 Ton Minster Press • Used Minster #6 Press

60

60
Ton
32″
Bed R-L
4″
Stroke
Speed: 90 SPM
New in 1

1
60 Ton Used Press – OBI Press
Model: Minster #6
4″ STR, 12.5″ SH, 32X21 BED, 90 SPM, 3″ ADJ

Gap Frame Presses for Sale
Used Minster Punch Press (Mechanical)
Machine #6511
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

OBI Press for Sale

Manufacturer: Minster
Model: Minster 6 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1970
Machine #: 6511
Buy Now: $





CAPACITY 60 TON
STROKE 4″
MAX SHUT HEIGHT TO BED 12.5″
BED AREA 32″ rl x 21″ fb
SPEED 90 spm
SLIDE ADJUSTMENT 3″ manual
SLIDE AREA 21″ rl x 14″ fb

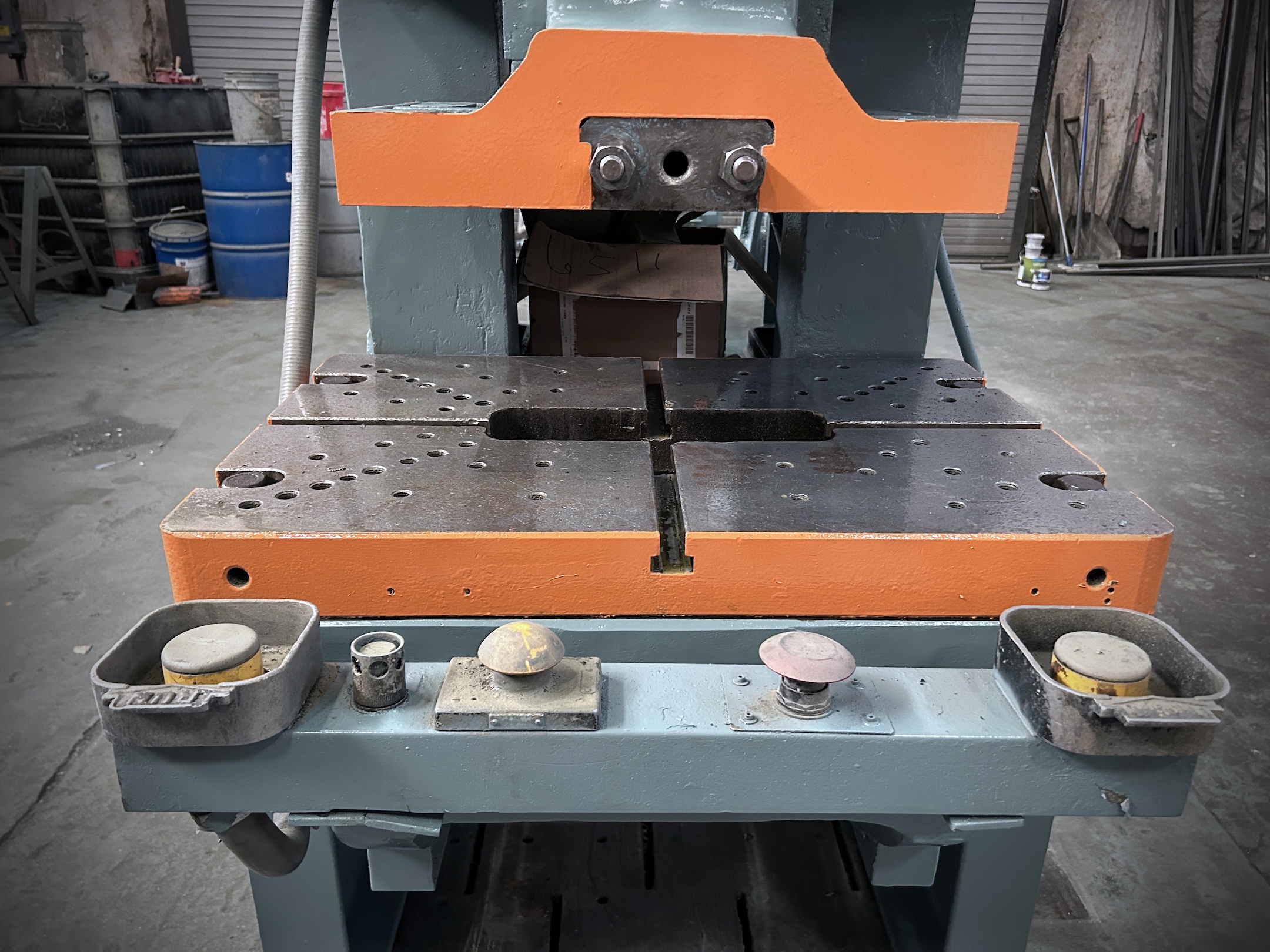

BOLSTER PLATE 3″ h x 32″ rl x 21″ fb (t-slotted)
DISTANCE BETWEEN UPRIGHTS / FLOOR TO BED 14.5″ / 32″
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION

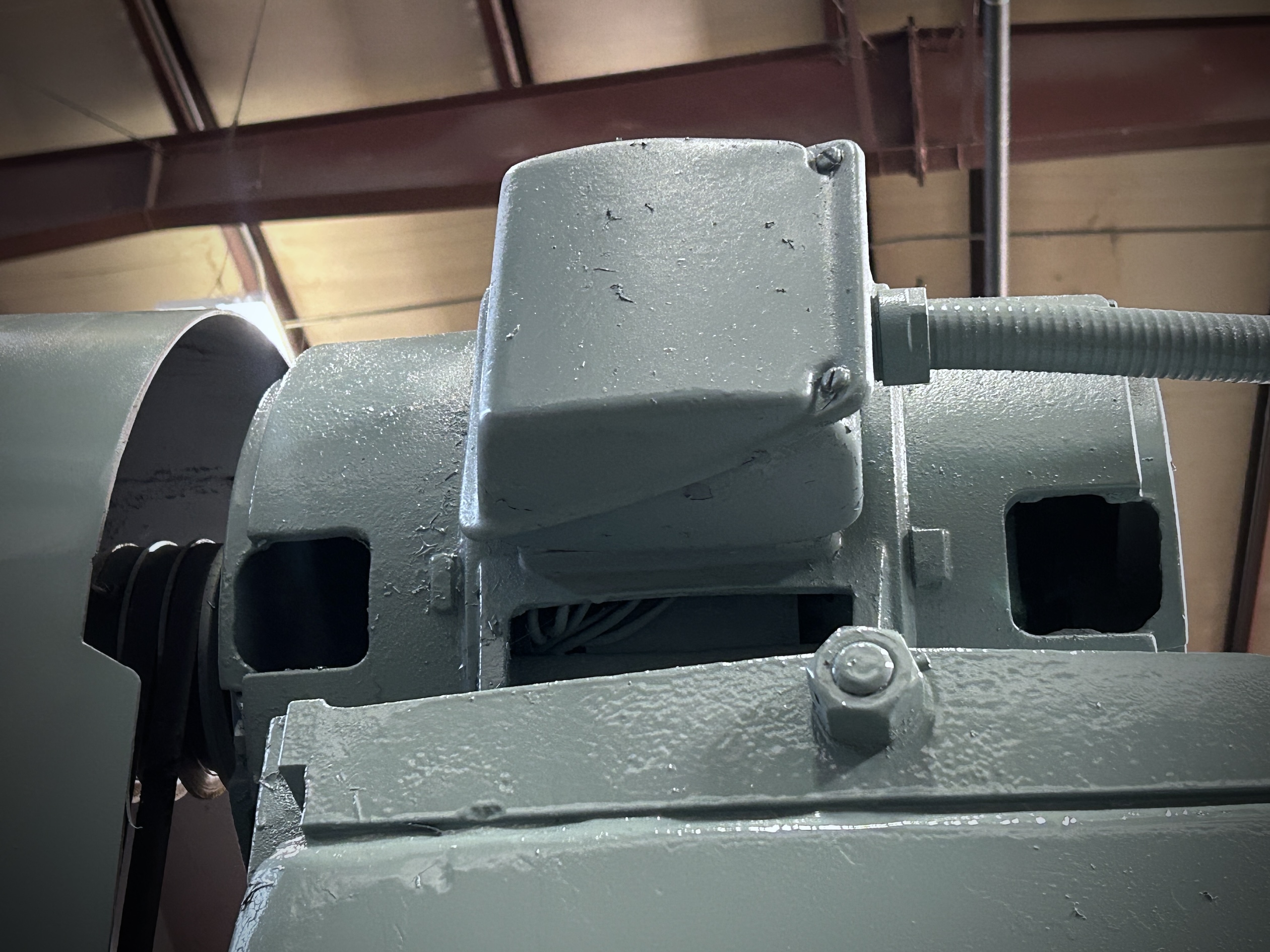

ELECTRICS 5 hp 1100 rpm 240/480v-3-60 motor & minster relay control with wintriss brake monitor
APPROX DIMENSIONS 114″ h x 48″ rl X 72″ fb
APPROX WEIGHT 8500 LBS
Equipped With MINSTER RECIRCULATING LUBRICATION PUMP, FLOOR STANDING, CAST IRON FRAME
Note __
Location This used press is located in our Columbia, TN Warehouse
