Description

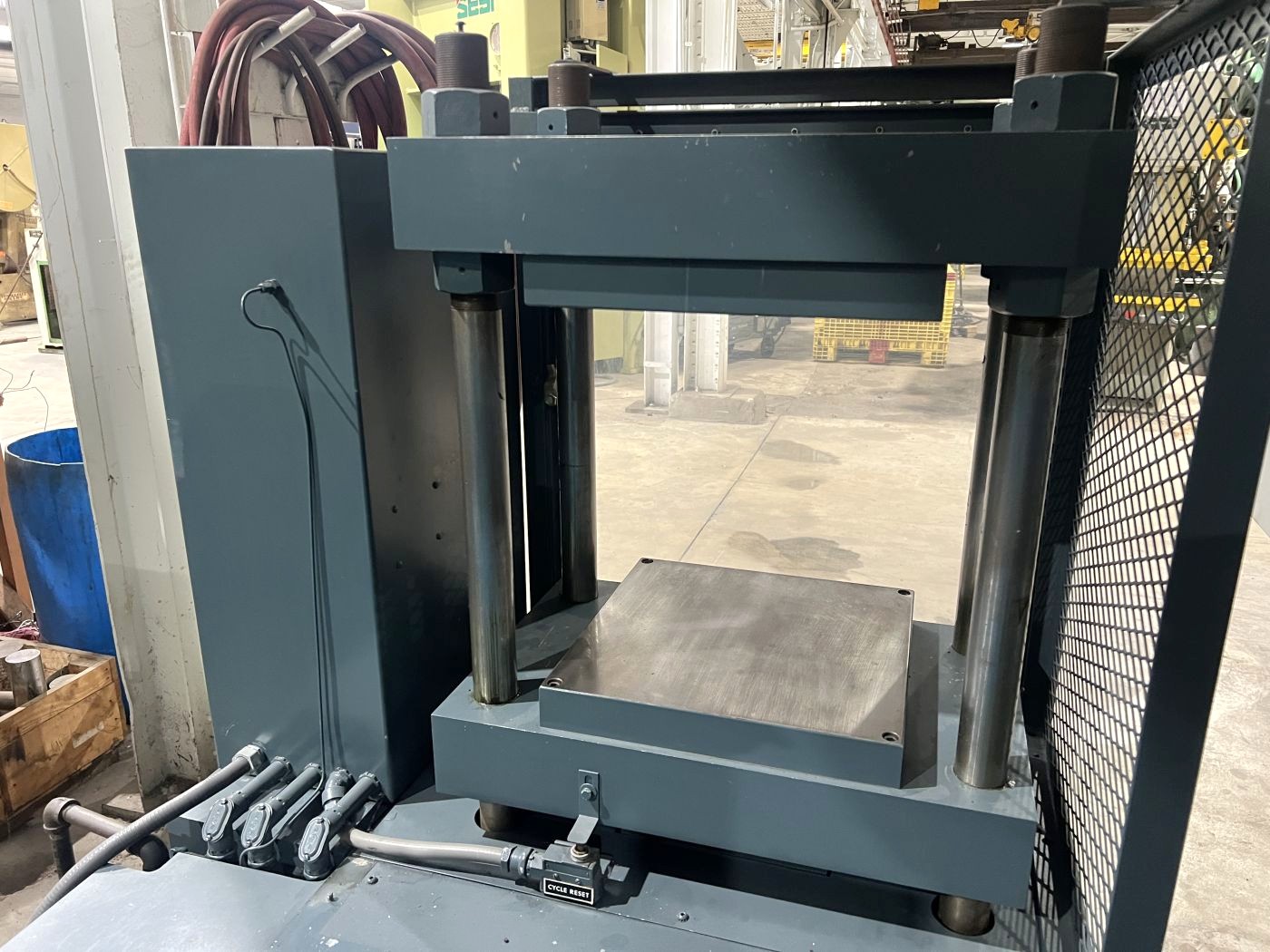

Heated Platen Press • Used 75 Ton Press for Sale
Model: Wabash 75-1515-SM Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year:
Machine #: 8265
Buy Now: $

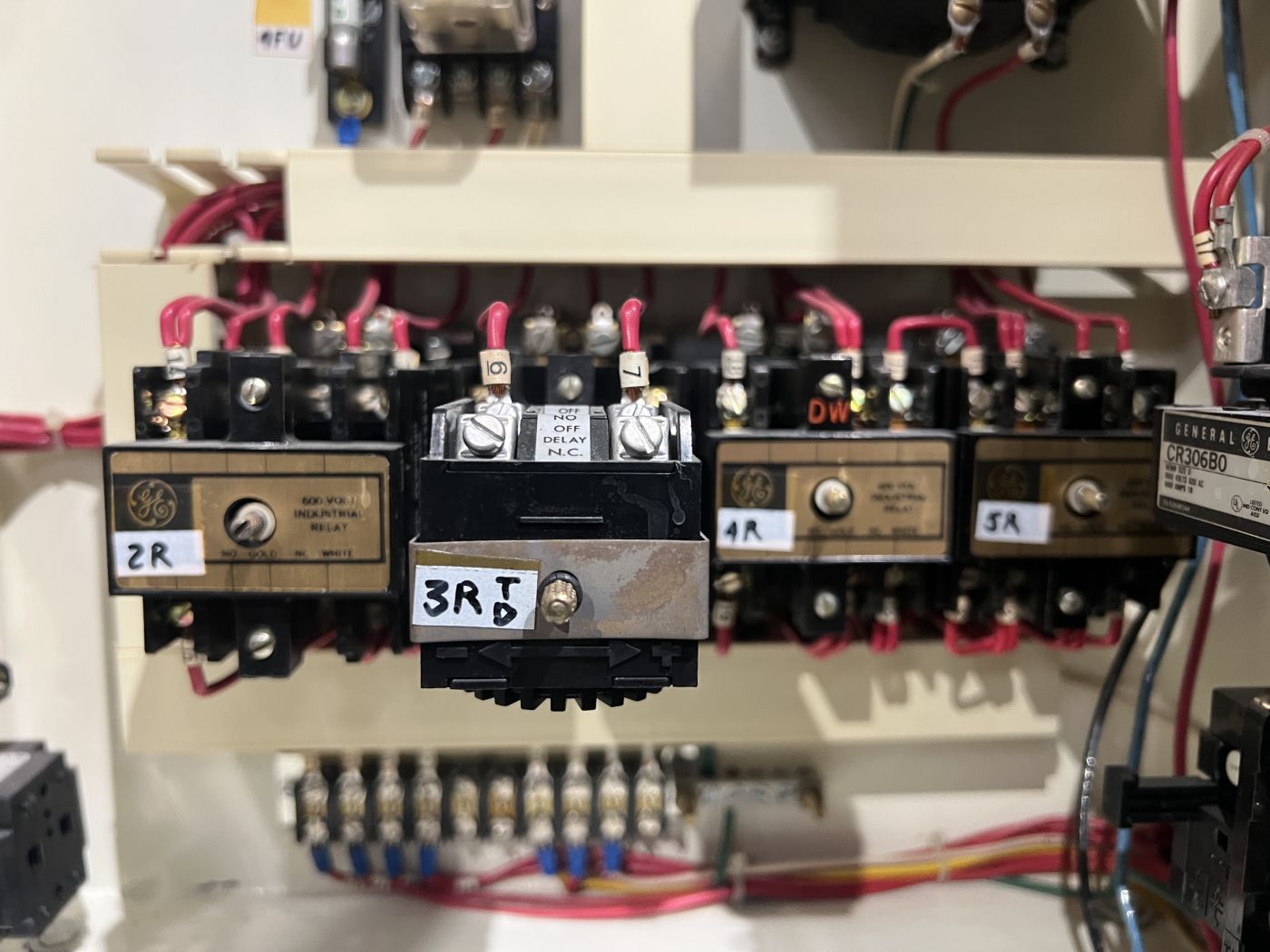

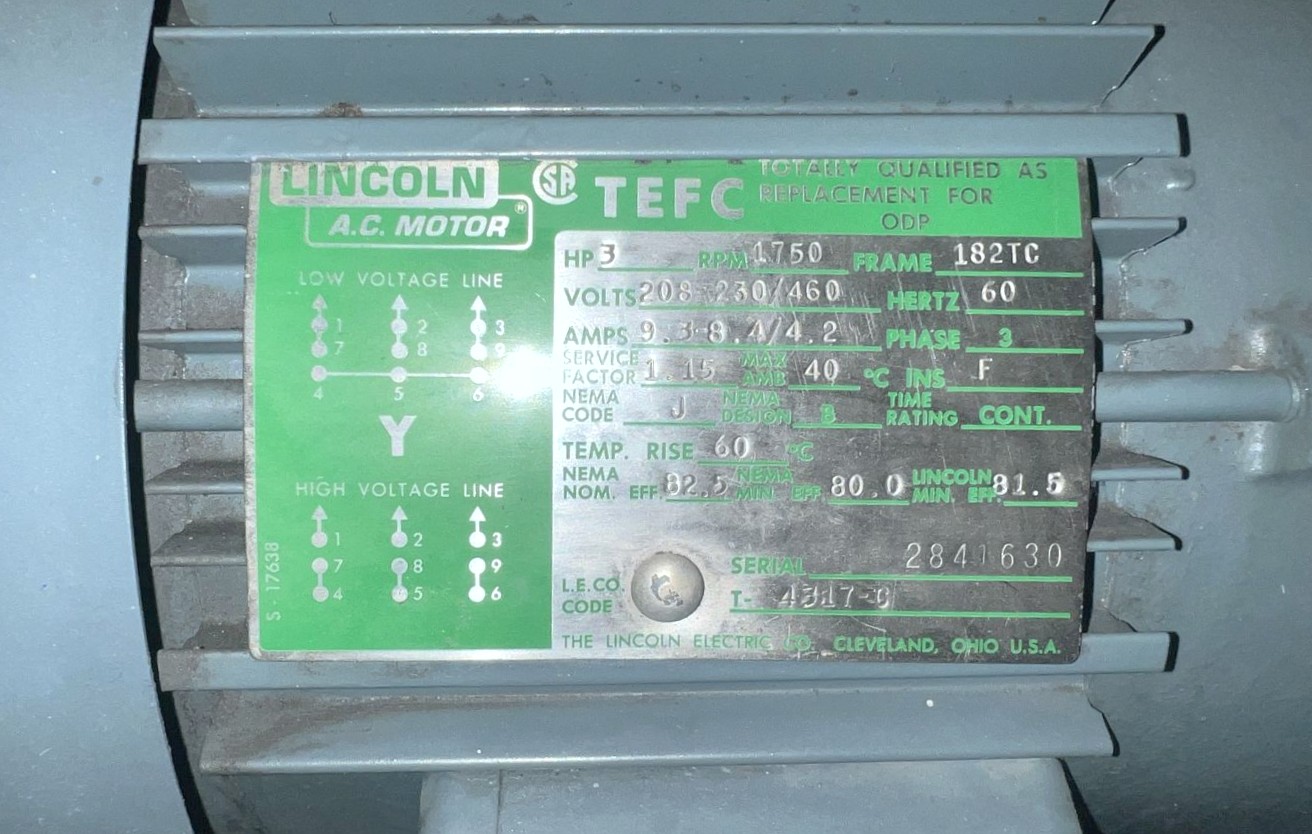

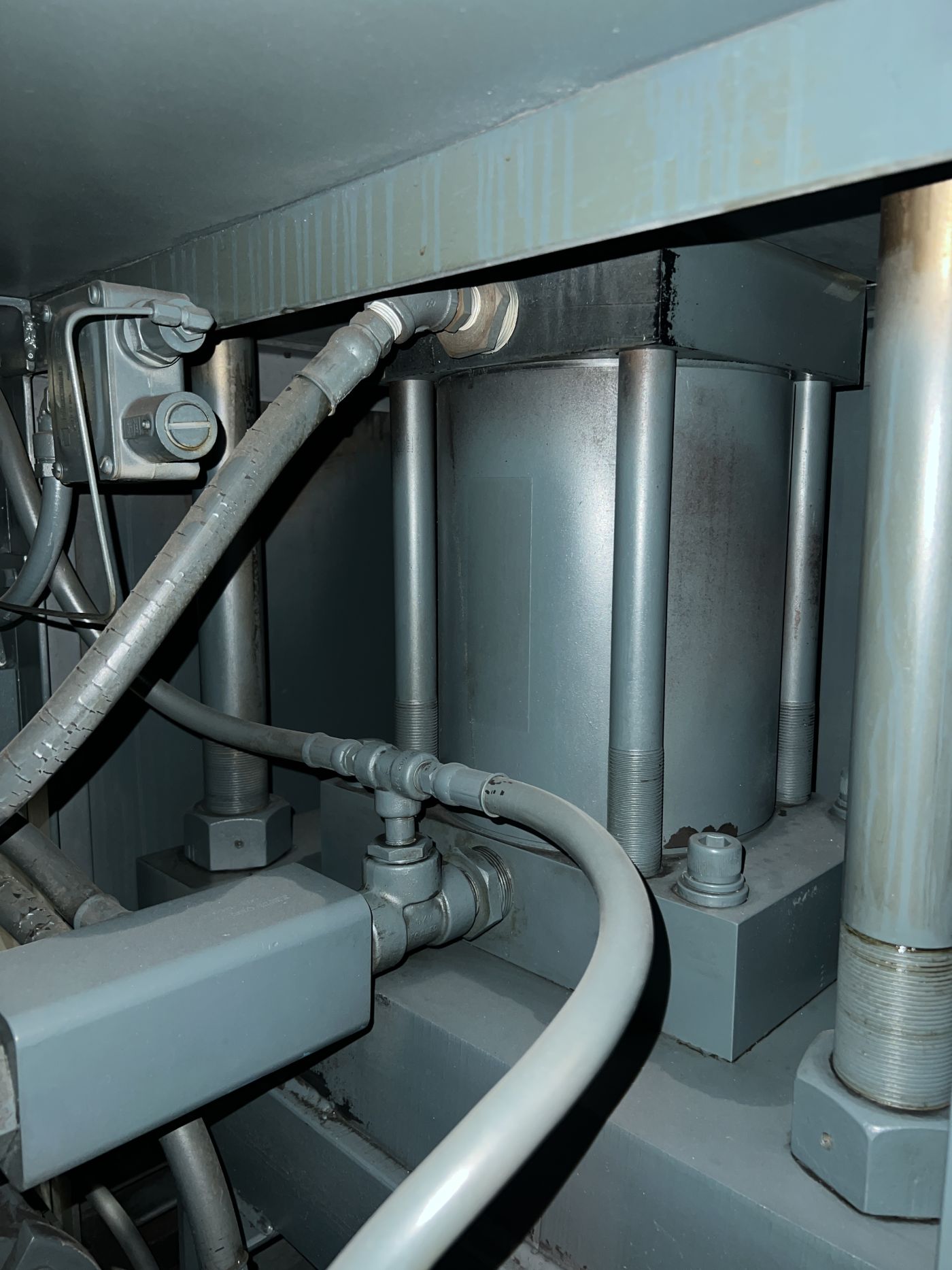

| MAX. CAPACITY | 75 TONS AT 3,000 PSI | MAX. STROKE | 8" | MAX. DAYLIGHT | 21" | OVERALL BED & RAM AREA | 25" X 16" (RL X FB) | DISTANCE BETWEEN POSTS | 19" X 9" (RL X FB) | USABLE BED AREA | 19" X 16" (RL X FB) | STEEL PLATES / BOLSTER PLATES | 15" X 15" (RL X FB) X 2" HIGH | FLOOR TO BED HEIGHT | 41" | SPEEDS | 50 IPM CLOSE / 2 IPM PRESSING / 60 IPM RETURN | RAM ROD SIZE | 3.25" DIA. | CYLINDER SIZE | 8" DIA. BORE | POSTS / 4 COLUMN SIZE | 2" DIA. | PRESS CONTROLS | GE RELAY LOGIC CONTROLLER (FULL LOAD: 7 AMPS AT 460V) | HYDRAULIC SYSTEM | REXROTH RG12MO1/5 HYDRAULIC RADIAL PISTON PUMP | ELECTRIC MOTOR | 3 HP 208-230/460V-3-60 LINCOLN A.C. MOTOR | 9.3 - 8.4 / 4.2 AMPS | APPROX. DIMENSIONS | 49" X 44" (RL X FB) X 69" HIGH | APPROX. WEIGHT | 3,100 LBS. | Equipped With | HEAT EXCHANGER | Note | PRESS IS CURRENTLY WIRED FOR 460V |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
