Description

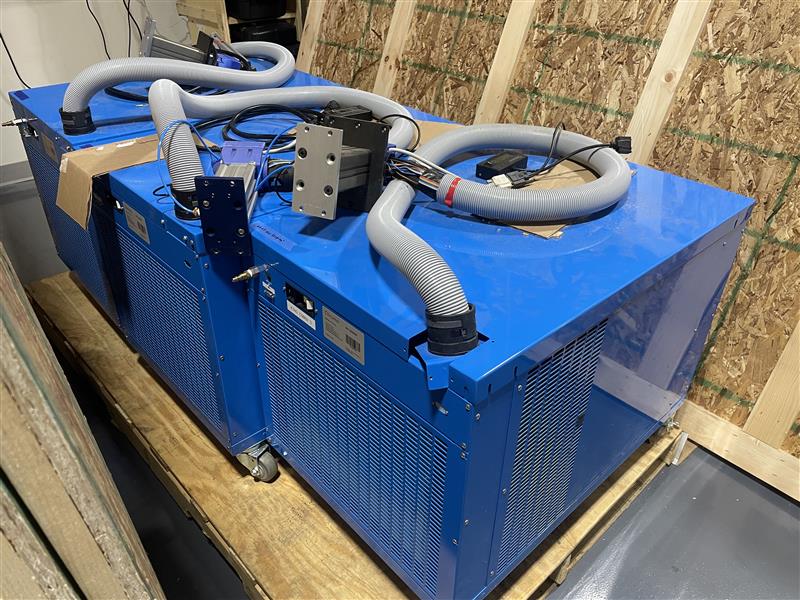

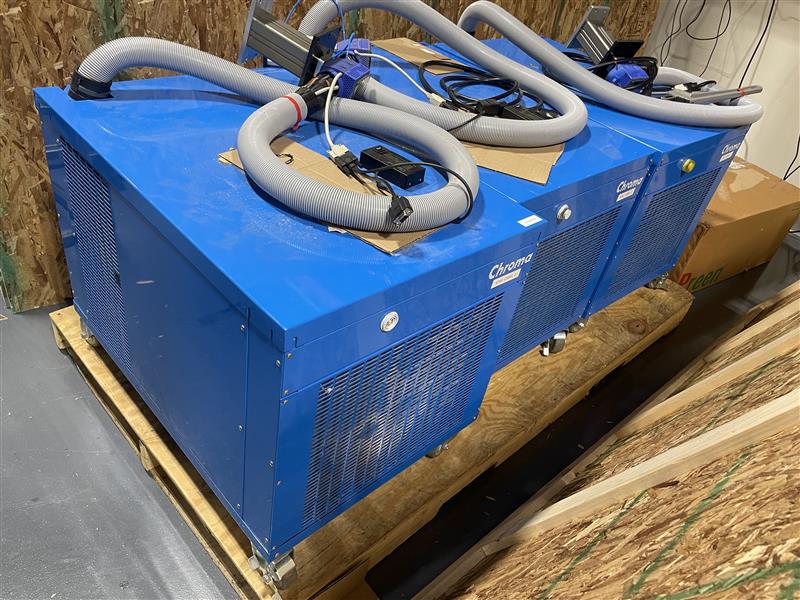

Used Thermal Forcing System for Sale

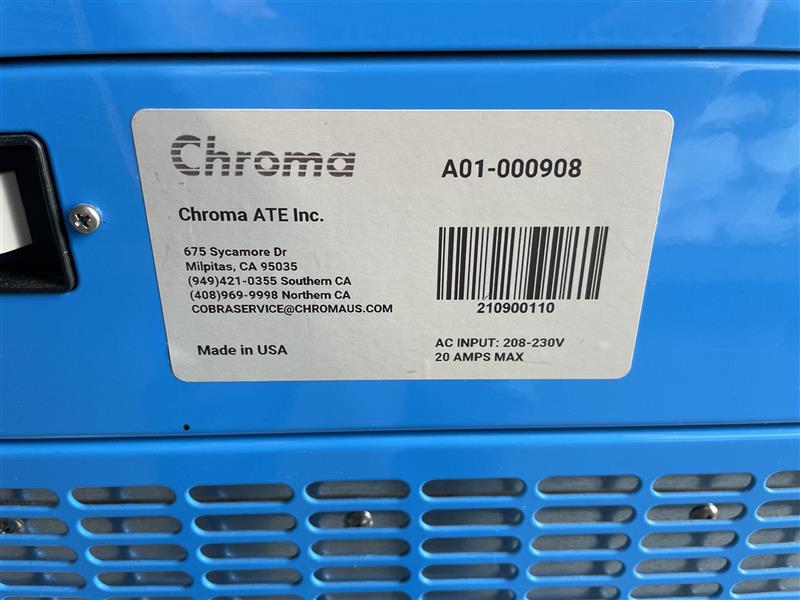

Model: Chroma A01-000908
Condition: As-Is Under Power
Location: Jackson, MI Cooper Building
Year:
Machine #: 8389
Buy Now: $

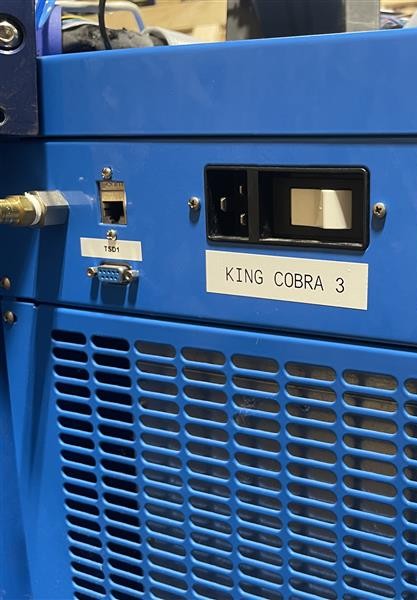

| TEMPERATURE RANGE | -94°F TO 257°F (-70°C TO 125°C) | TEMPERATURE ACCURACY | 3.6°F (2°C) WITH NO LOAD | TEMPERATURE STABILITY | 1.8°F (1°C) UNDER CONTROLLED CONDITIONS | COOLING RAMP RATE | >3.6°F / SEC. (>2°C / SEC.) | HEATING RAMP RATE | <1.8°F / SEC. (<1°C / SEC.) | DUT DIMENSIONS | 0.2" X 0.2" UP TO 3.94" X 3.94" (5 X 5 MM UP TO 100 X 100 MM) | CONTACT FORCE | $ge$ 441 LBS. ($ge$ 200 KGS) | COMMUNICATION | TCP/IP, RS232 | ELECTRICAL | 208-240V / 50/60 HZ / 20A MAX / SINGLE PHASE | APPROX. DIMENSIONS | 32" X 22" (RL X FB) X 25" HIGH | APPROX. WEIGHT | 220 LBS. | Note | HIGH POWER ACTIVE THERMAL CONTROL SYSTEM ENGINEERED FOR POST-SILICON VALIDATION AND DEVICE CHARACTERIZATION. FEATURES LIQUID-FREE OPERATION , PROGRAMMABLE TEMPERATURE AND PNEUMATICS , AND POWER MONITORING CAPABILITIES TO PREVENT THERMAL RUNAWAY DURING TESTING. UNIT OPERATES QUIETLY AT < 60 DB. (NOTE: PHOTOS DEPICT MULTIPLE UNITS AVAILABLE WITH "KING COBRA" LABELS) | Equipped With | THERMAL HEAD ASSEMBLY WITH FLEXIBLE HOSES, CASTER BASE FOR MOBILITY, DIRECT PHASE CHANGE COOLING TECHNOLOGY, AND INTEGRATED COMMUNICATION PORTS (TSD1 AND RS232) |
|---|---|
| Location | This Used Digital Temperature Controller is located in our Jackson, MI Cooper Building |
