New Gap Frame Press • New 50 Ton Press for Sale

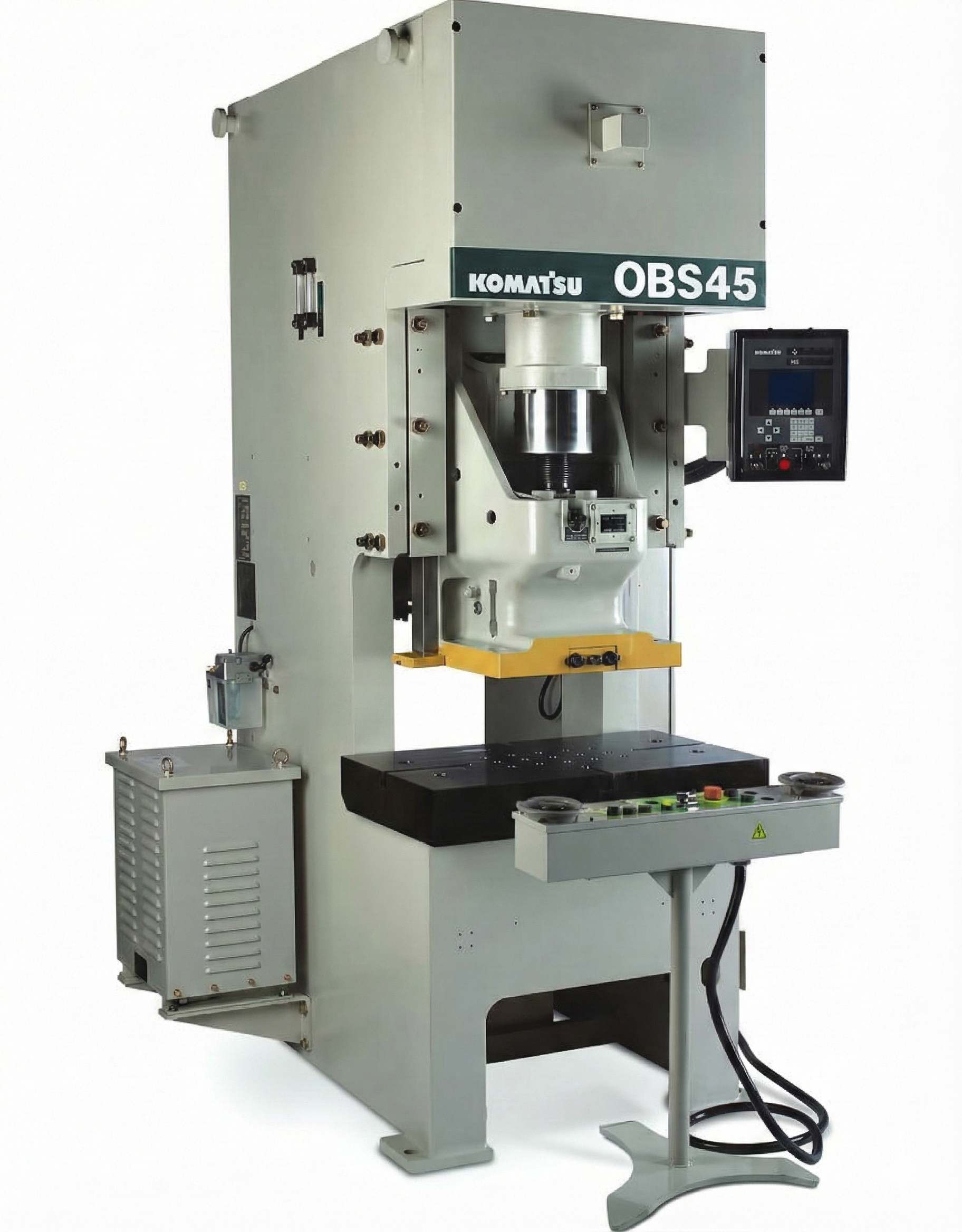

Model: Komatsu OBS45L Press
Condition: New
Location: Warehouse on Location
Year: 2025
Machine #: 7006
Buy Now: $
| MAX CAPACITY | 50 US TON AT .28" OFF BOTTOM | STROKE | 5.5" | MAX DIE HEIGHT | 11.8" SDAU OVER 4.3" H BOLSTER | BED AREA | 31.5" X 17.7" | SPEED | 50 - 100 SPM | SLIDE ADJUSTMENT | 2.4" MOTORIZED | SLIDE AREA | 15.7" X 13.8" (T-SLOTTED) | BOLSTER PLATE | 4.3" X 31.5" X 17.7" | DISTANCE BETWEEN UPRIGHTS | 19.1" | SHANK HOLE DIAMETER | 2" | DISTANCE FLOOR TO BOLSTER HEIGHT | 31.5" | CLUTCH | KOMATSU WET CLUTCH / BRAKE COMBINATION | PRESS CONTROLS | KOMATSU SIT IV PRESS CONTROL | ELECTRIC MOTOR | 5 HP 1750 RPM 240/480V-3-60 | APPROX. DIMENSIONS | 94" X 32" X 50" | APPROX. WEIGHT | 7,250 lbs. | Equipped With | ECCENTRIC SHAFT, OBS PLUNGER GUIDE SYSTEM, HEAVY-DUTY SLIDE CONSTRUCTION, HYDRAULIC OVERLOAD PROTECTOR, FLOOR STANDING | Note | __ |
|---|---|
| Location | This New Press is Located in Our Warehouse on Location |
