Machine Specifications

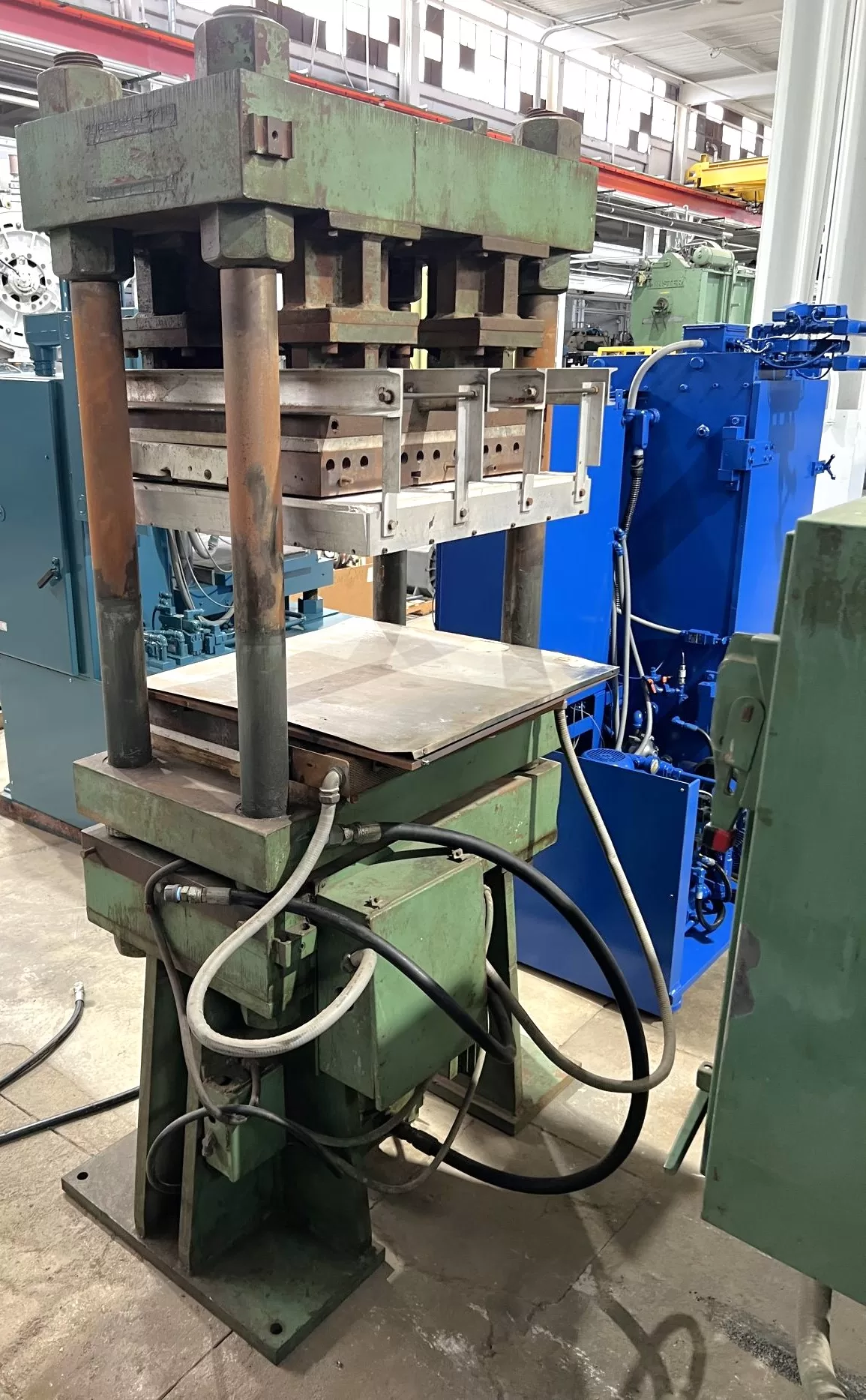

Heated Platen Press for Sale

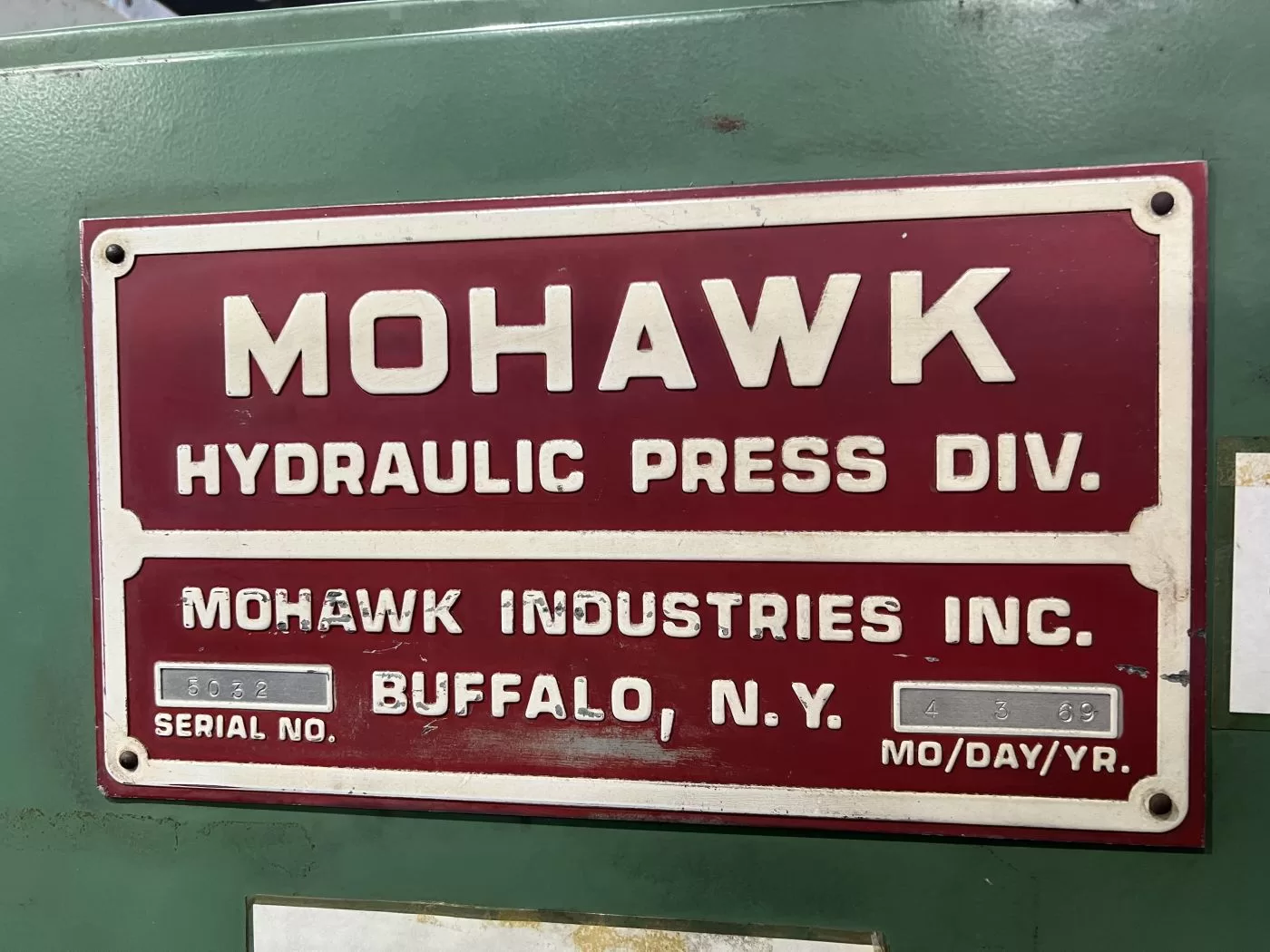

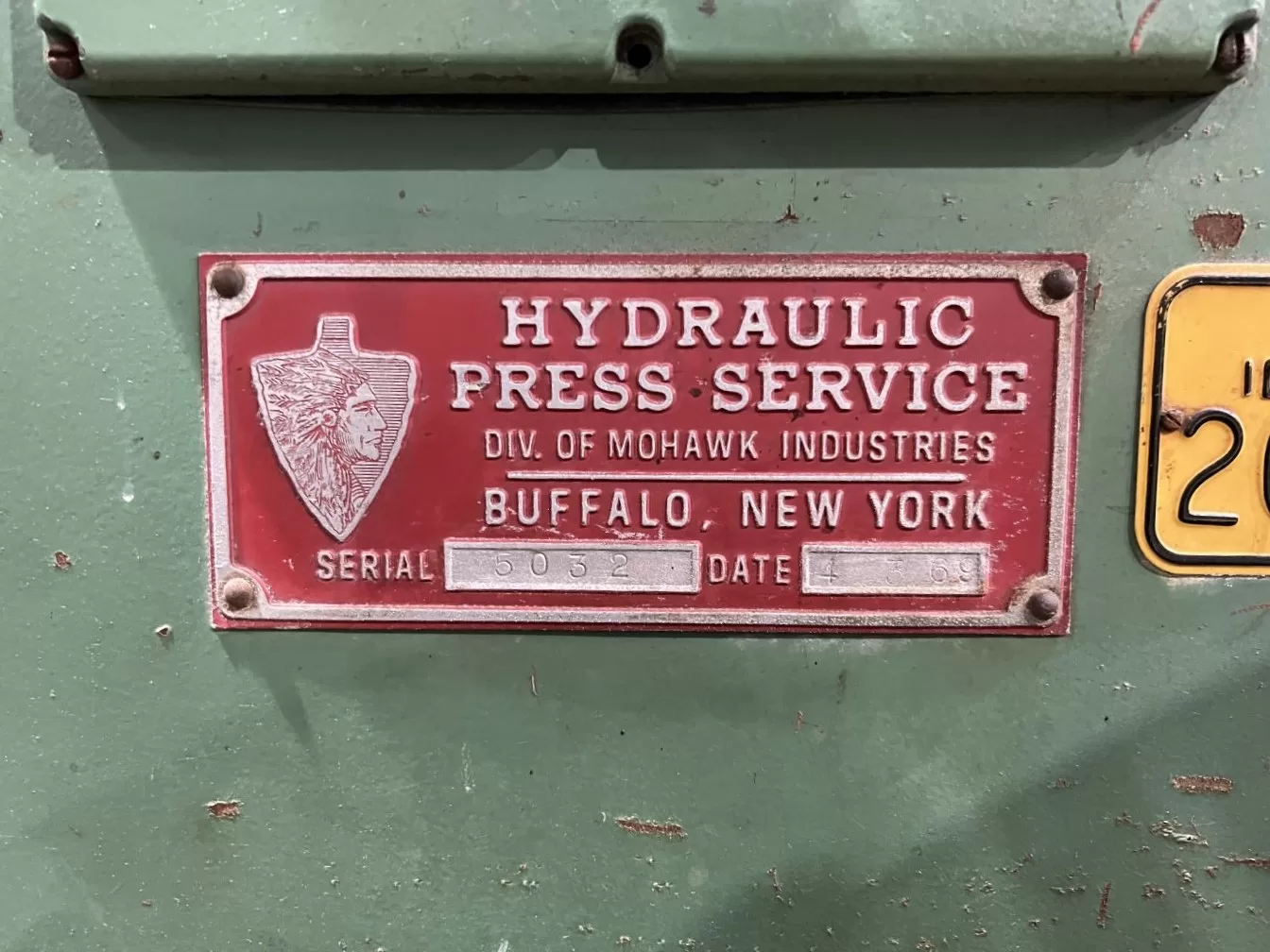

Manufacturer: Mohawk
Model: Mohawk Press
Condition: As-Is
Location: Jackson, MI Cooper Building
Year: 1969
Machine #: 6795
Buy Now: $14,500

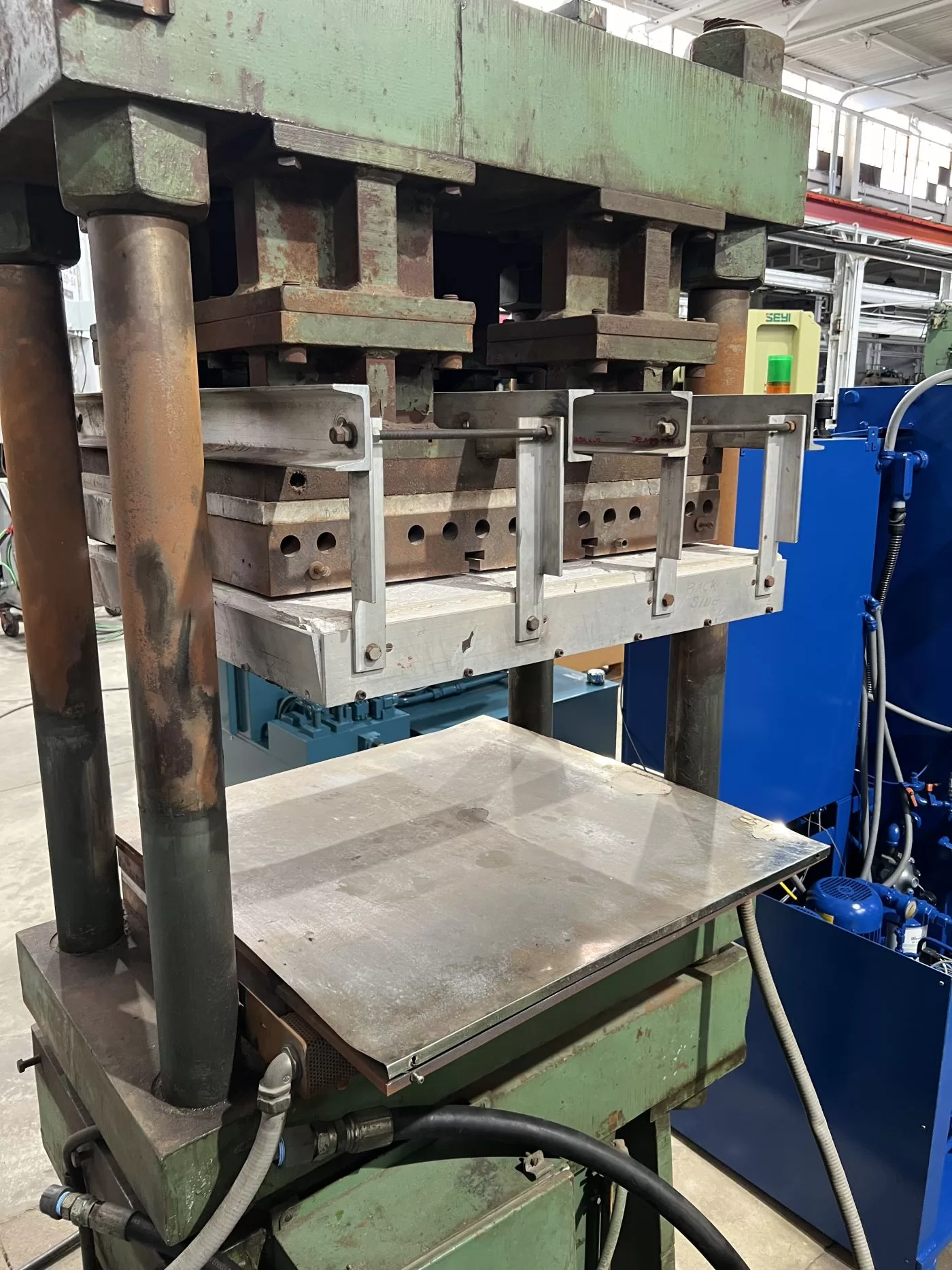

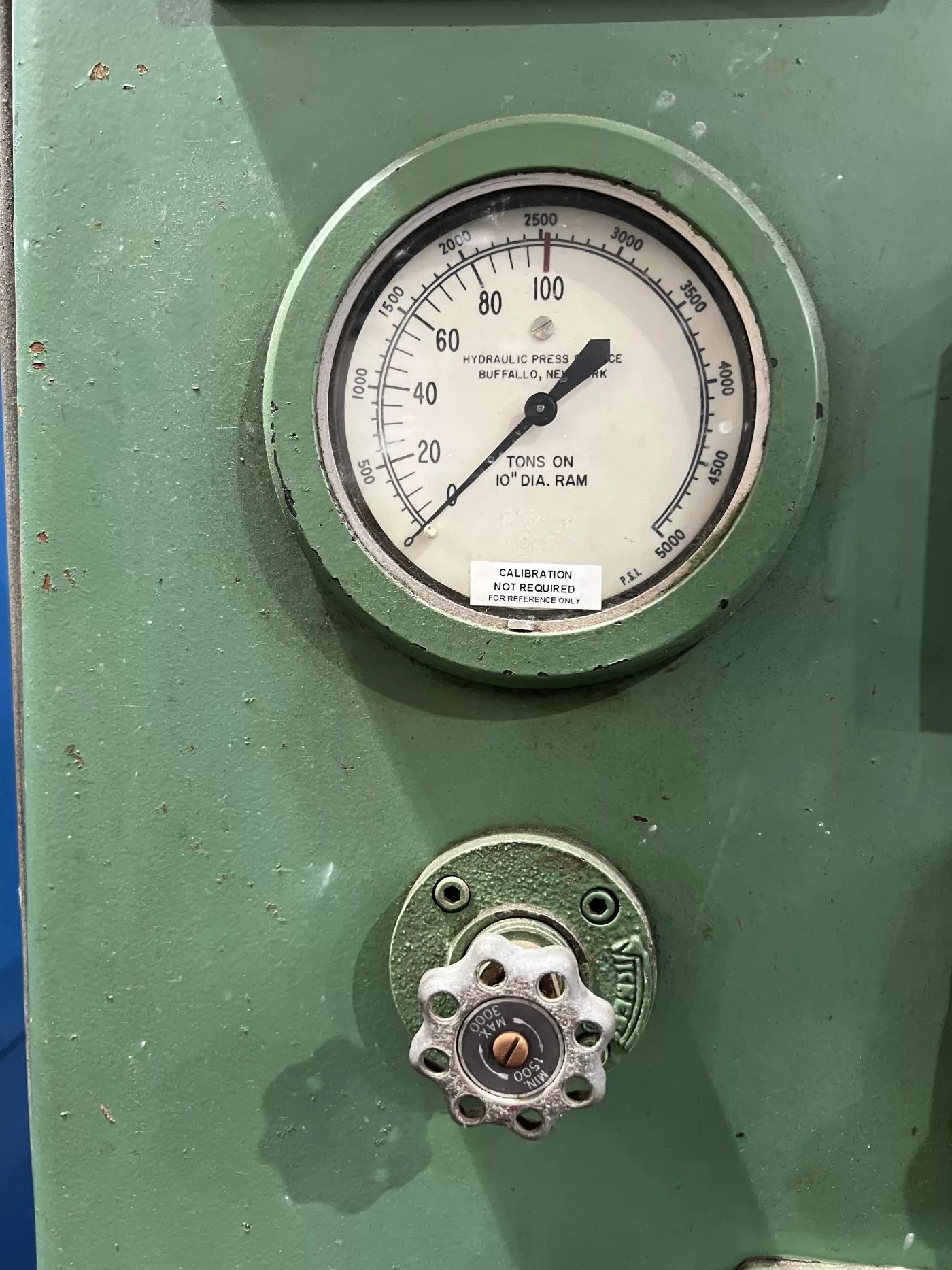

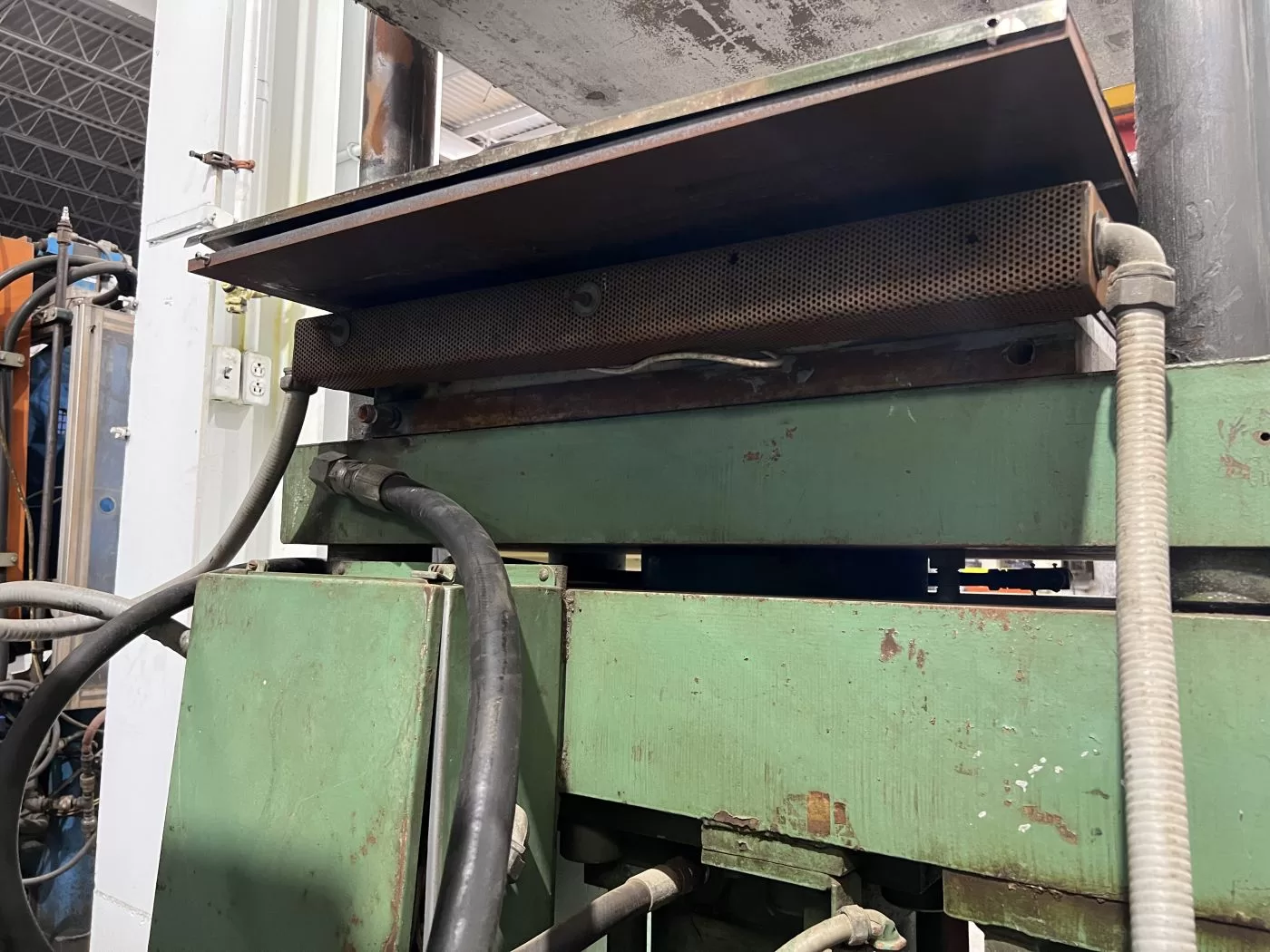

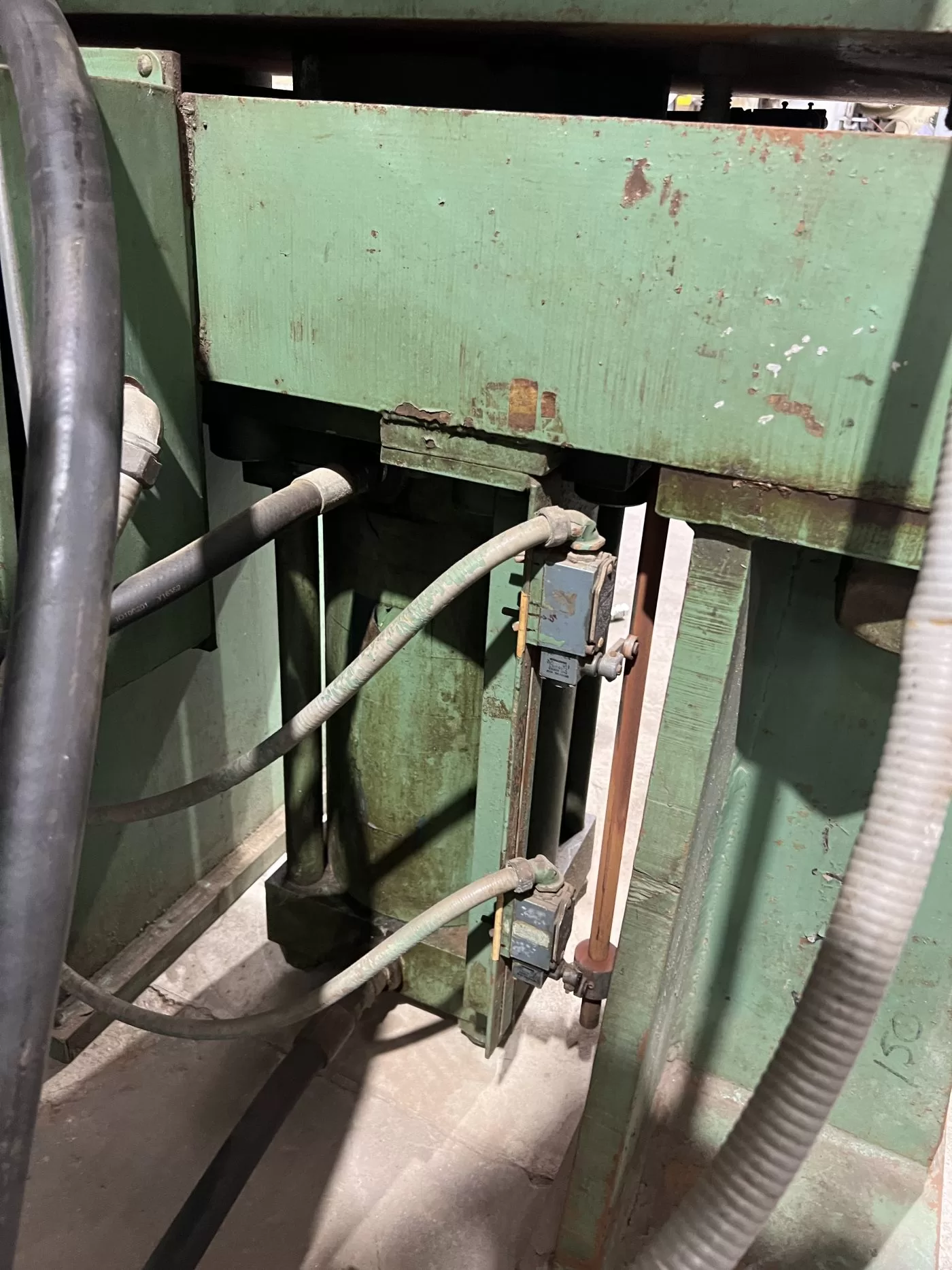

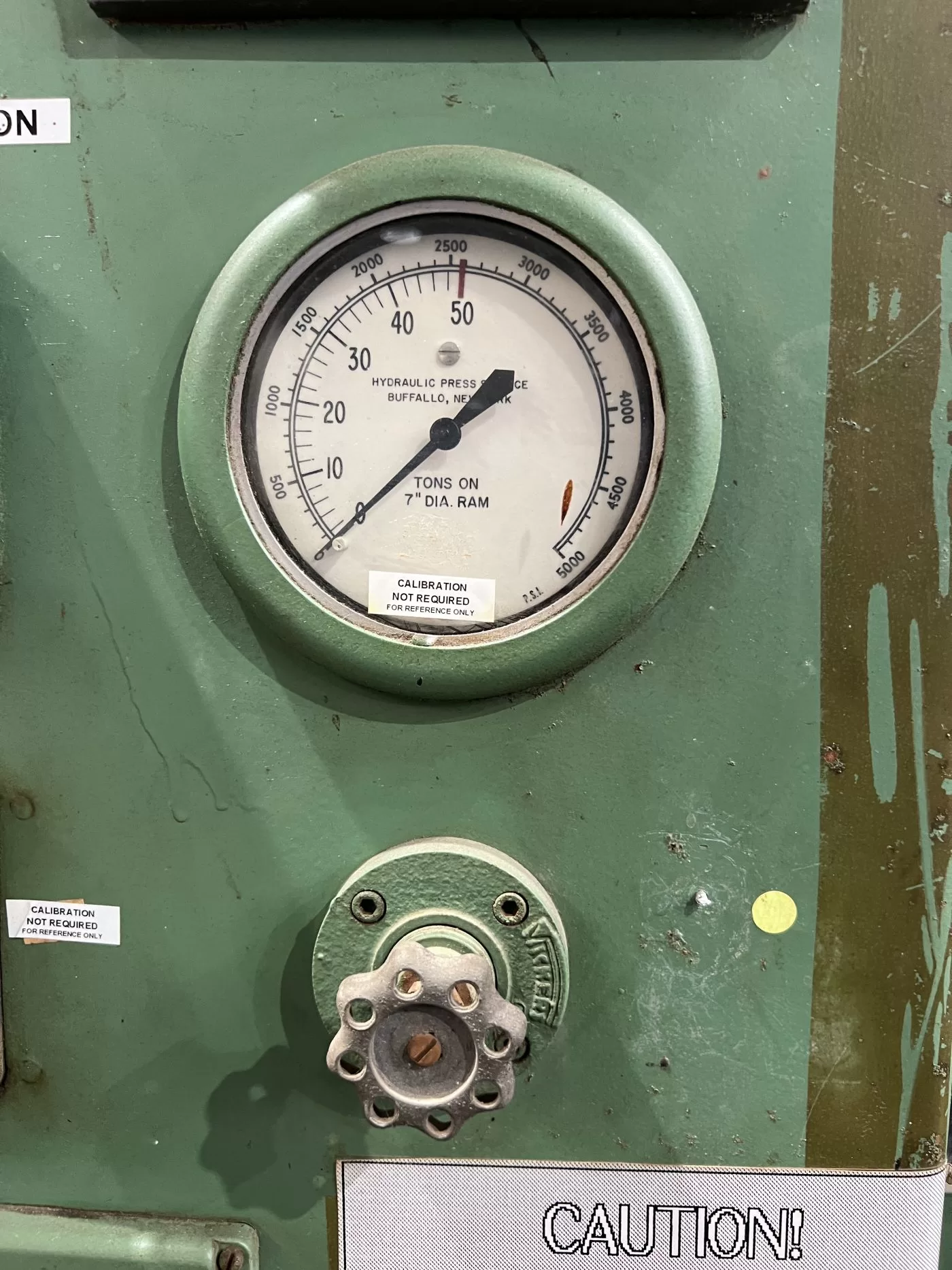

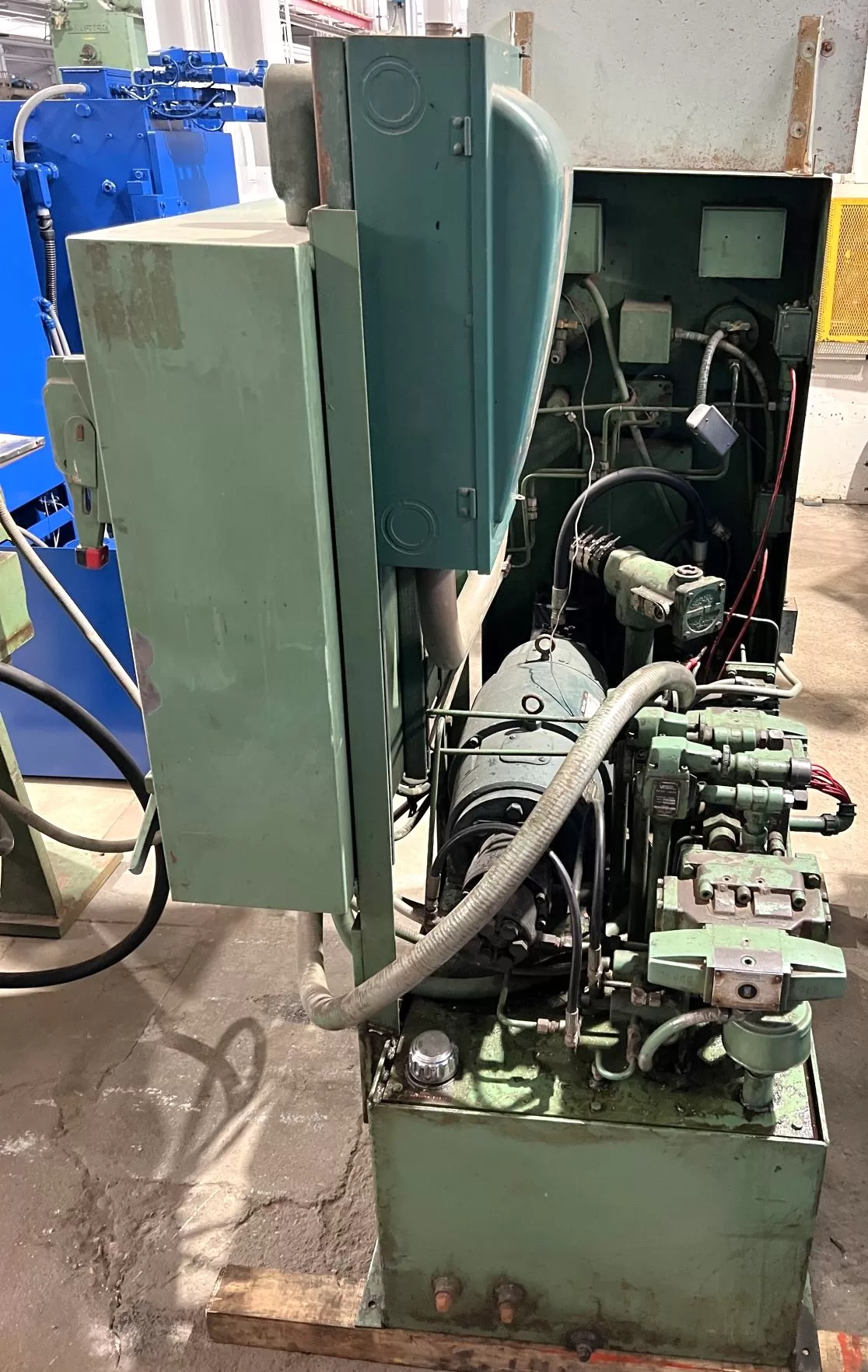

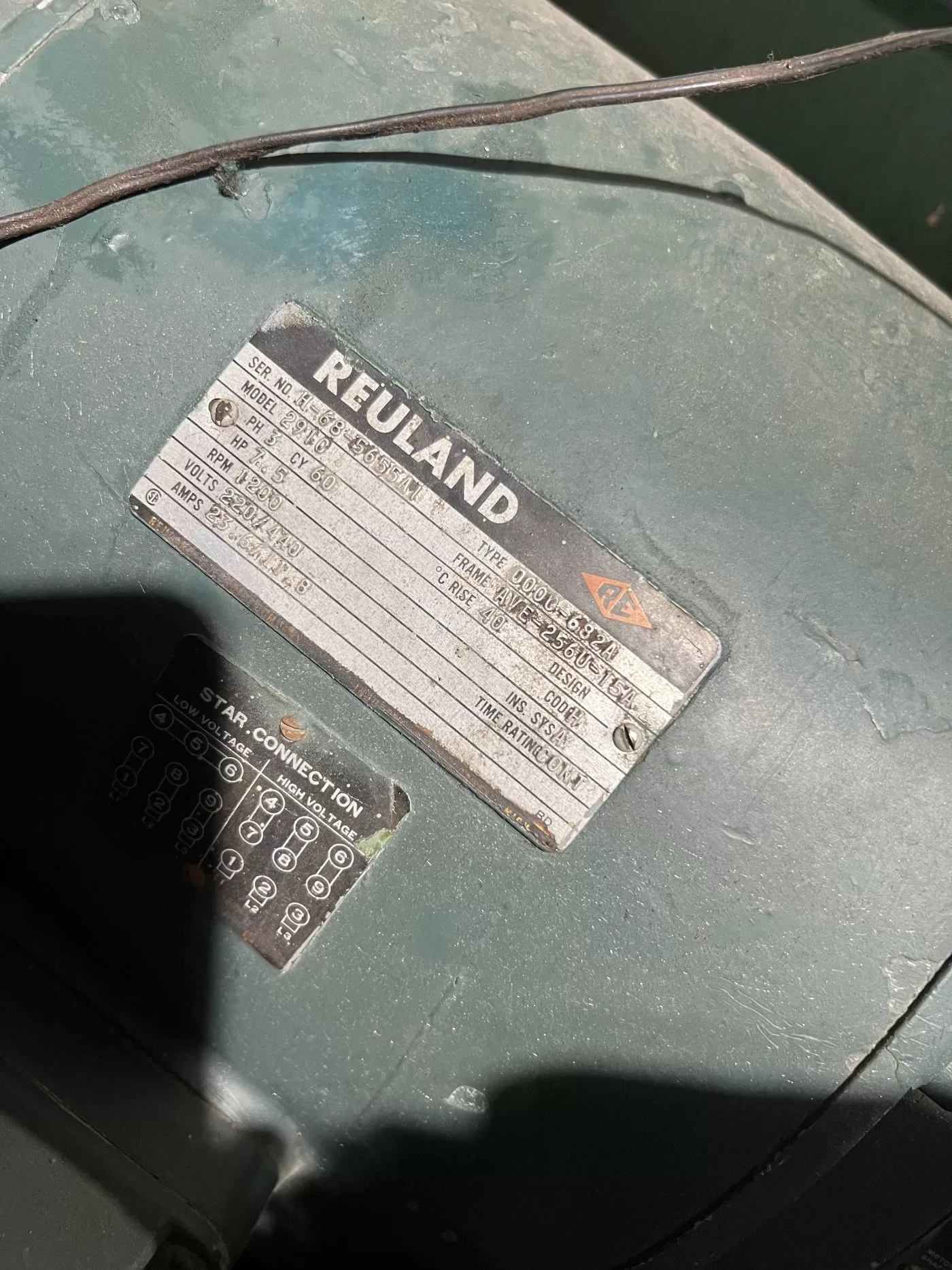

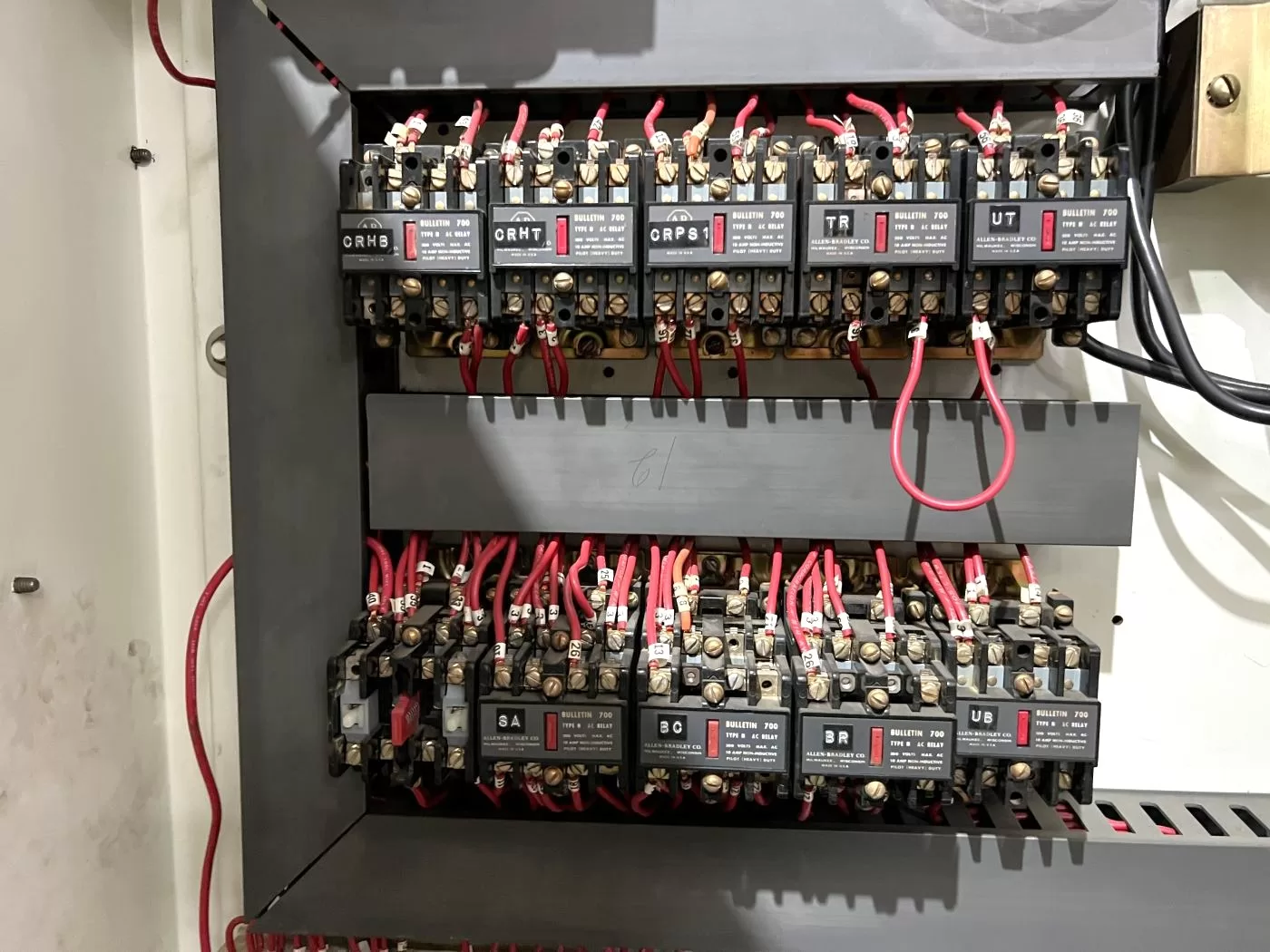

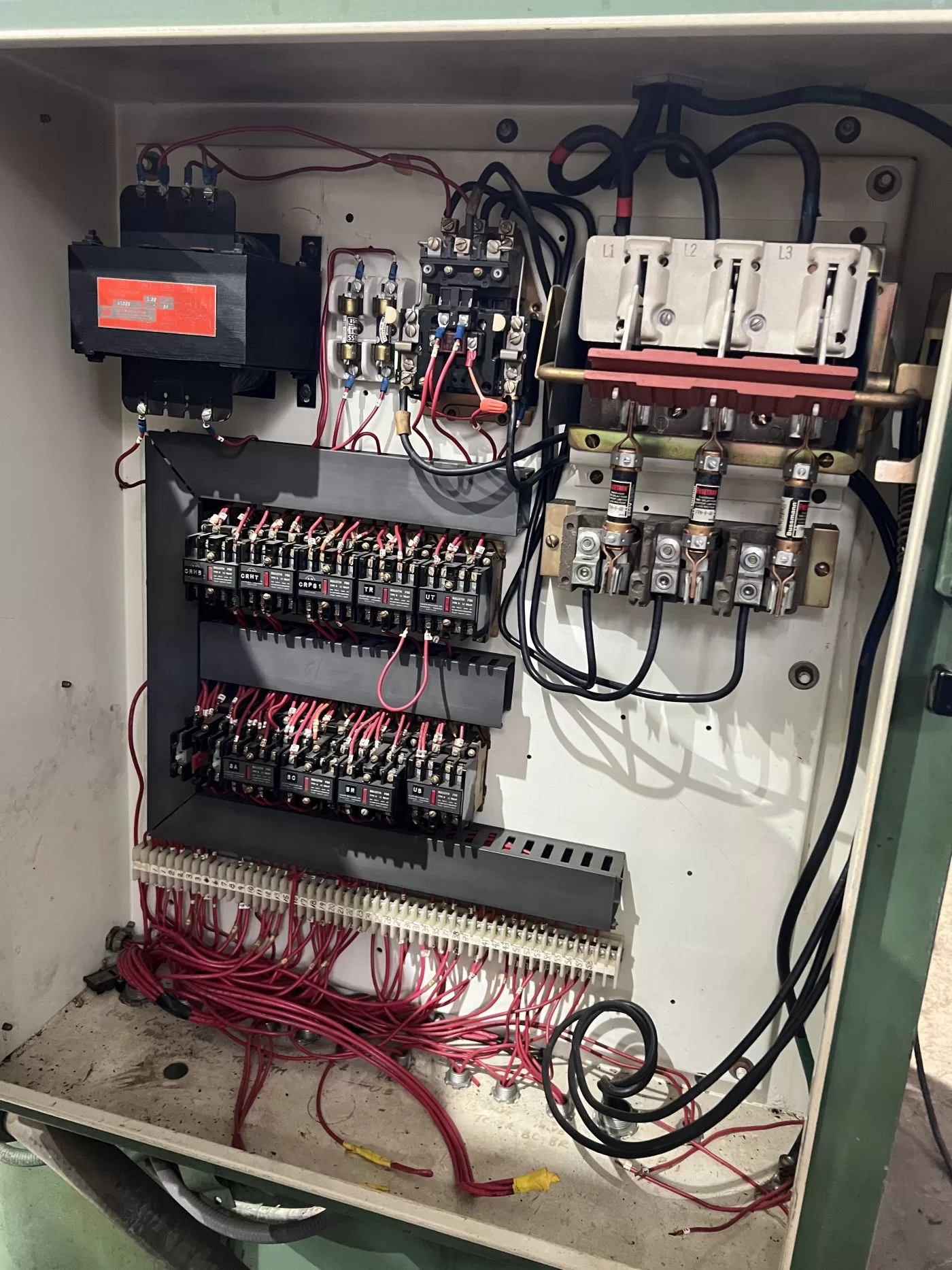

| MAX. CAPACITY | 100 TONS | MAX. stroke | 14.5″ | max. daylight | 42″ | overall bed & ram area | 43.25″ X 24″ (RL X FB) | distance between posts | 32″ X 13″ (RL X FB) | useable bed area | 32″ X 24″ (RL X FB) | HEATED PLATEN | 30″ X 24″ (RL X FB) X 3″ THICK (AS-IS) | floor to bed height | 39″ | speeds | TBD | cylinder size | CONTROLS REFERENCE A 7″ PISTON AS WELL AS A 10″ PISTON. | — | BOTTOM CYLINDER APPEARS TO BE CLOSER TO THE 7″ PISTON – MAY ONLY BE 50 TONS CAPACITY | ram rod size | APPROX. 6″ DIA. | posts/ 4 column size | 3.5″ DIA. | PRESS controls | ALLEN-BRADLEY BULLETIN 700 RELAY LOGIC CONTROLLER | hydraulic system | __ | ELECTRIC MOTOR | 7.5 HP 220/440V-3-60 REULAND MOTOR | 23.6 / 11.8 AMPS | APPROX. DIMENSIONS | 56″ X 46″ (RL X FB) X 103″ HIGH | HYDRAULIC UNIT & CONTROLS | 64″ X 51″ (RL X FB) X 88″ | approx. weight | __ | Equipped With | __ | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
