Description

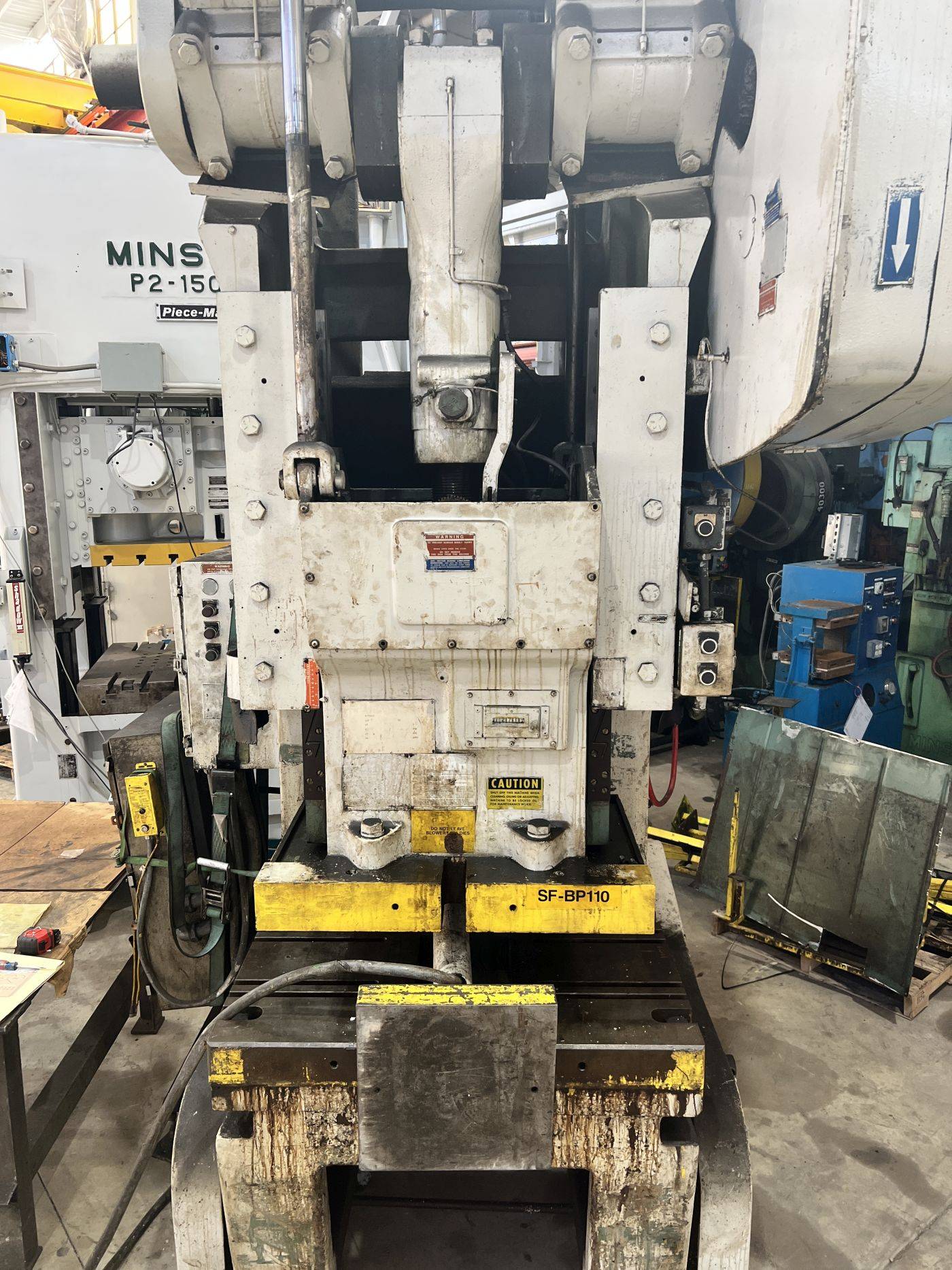

C Frame Press • Used 110 Ton Press for Sale
- Machine #
- 6584
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- 1990
- Model
- Bliss C-110
Buy Now: $
| CAPACITY | 110 TONS |
|---|---|
| STROKE | 10" |
| MAX SHUT HEIGHT TO BED | 16" |
| BED AREA | 42" X 28" (RL X FB) |
| BOLSTER PLATE | 42" X 28" (RL X FB) X 4" THICK T-SLOTTED PLATE |
| slide area | 34" X 22" (RL X FB) flanged ram |
| slide adjustment | 4" motorized |
| SPEED | 80 SPM |
| Distance betWEEN uprights | 23.5" |
| FLOOR TO BED HEIGHT | 36" |

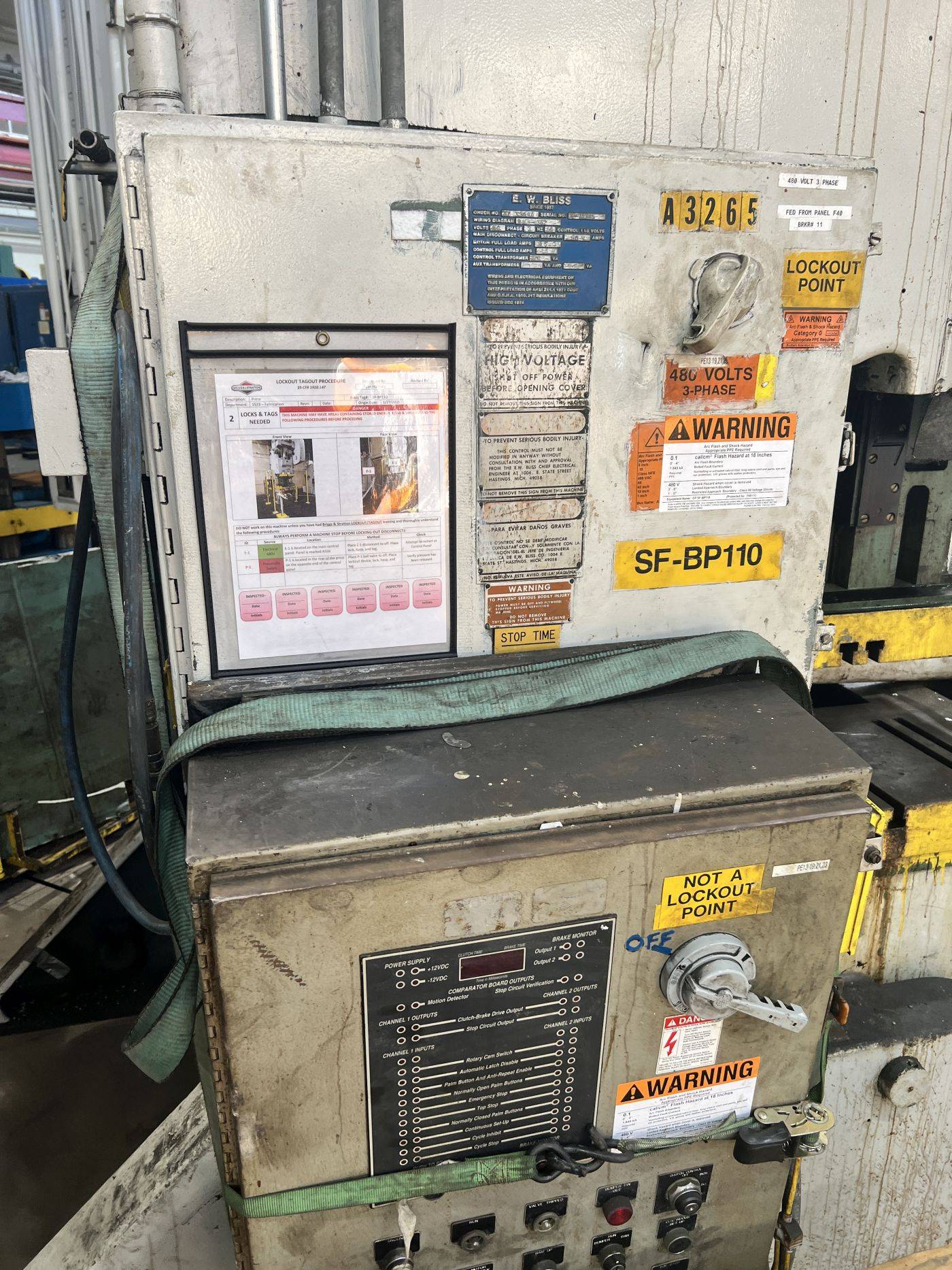

| PRESS CONTROLS | ALLEN-BRADLEY MICRO850 / 2080 PLC CONTROLLER |
| CLUTCH | bliss air clutch and brake |
| ELECTRIC MOTOR | 10 HP 1750 RPM 230/460V-3-60 ELEKTRIM MOTOR | 26.6 / 13.3 AMPS |
| APPROX. DIMENSIONS | 77" X 111" (RL X FB) X 152" HIGH |
| APPROX. WEIGHT | APPROX. 30,000 LBS. |
| Equipped With | floor standing, dual air counterbalance |
| Note | 5 IN STOCK This one may a variable speed drive on it - Jim 10/23 |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
