Description

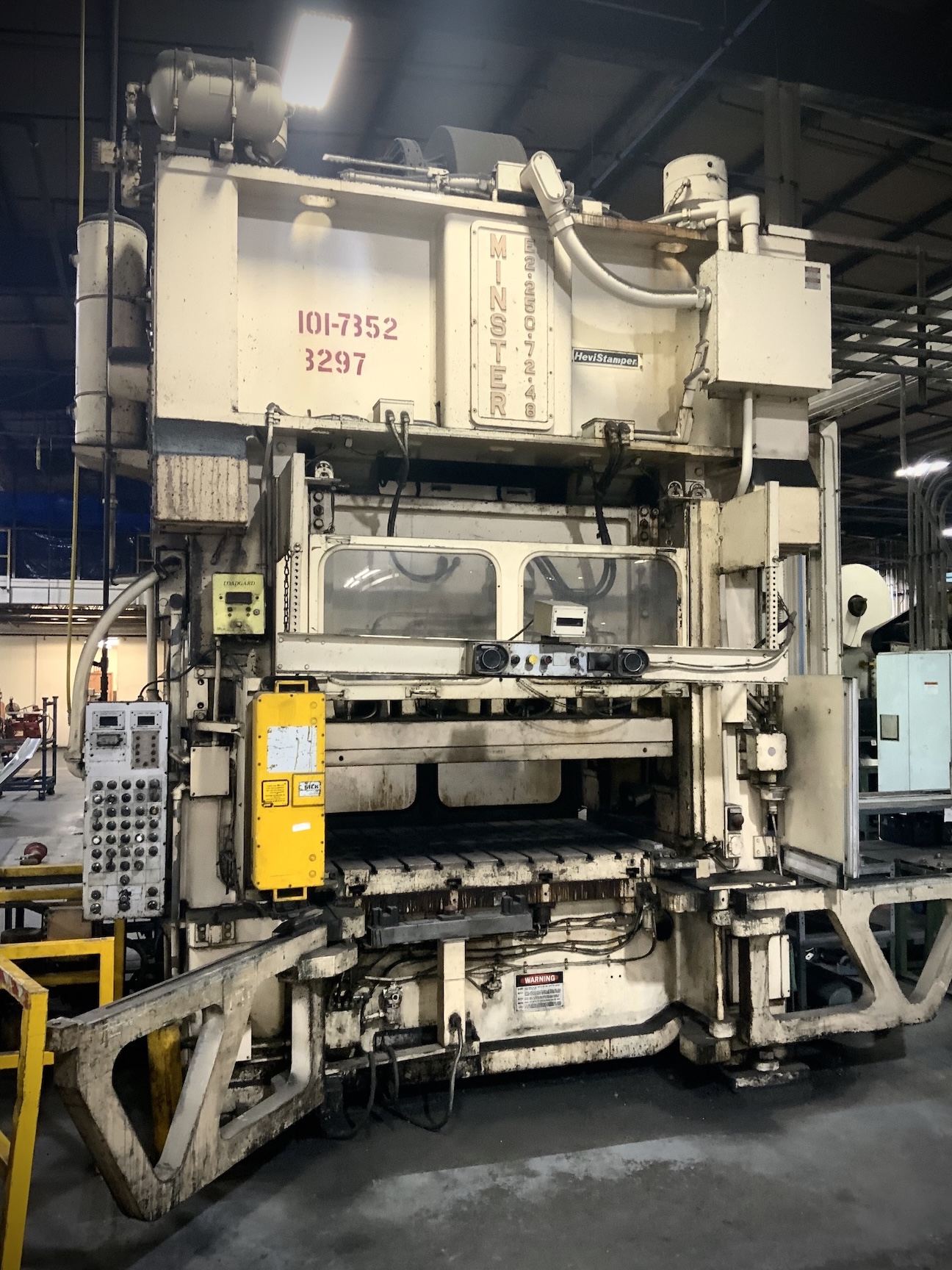

Straight Side Press • Used 250 Ton Press for Sale
Manufacturer: Minster
Model: Minster E2-250-72-48 Press
Condition: Very Good
Location: **On Location**
Year: 1983
Machine #: 8296
Buy Now: $
| CAPACITY | 250 TON | STROKE | 8″ | MAX SHUT HEIGHT TO BED | 21″ | BED AREA | 72″ RL X 48″ FB | SPEED | 40 – 80 SPM | SLIDE ADJUSTMENT | 6″ MOTORIZED | SLIDE AREA | 72″ RL X 48″ FB | slide plate | 3″ h x 72″ rl x 48″ fb | BOLSTER PLATE | 6″ H X 72″ RL X 48″ FB (T-SLOTTED) | DISTANCE BETWEEN UPRIGHTS | 74″ | DISTANCE FLOOR TO BED | 32″ | WINDOW SIZE | 28″ w x 14″ h | CLUTCH | MINSTER AIR CLUTCH / BRAKE COMBINATION | ELECTRICS | 40 HP 1750 RPM 480V-3-60 eddy current drive & new cieco press control for reconditioned price | APPROX DIMENSIONS | 195″ h x 82″ RL X 72″ FB | APPROX WEIGHT | 92,000 LBS | Equipped With | floor standing, tie rod construction, single geared twin drive, heavy duty uprights for rigidity, eight point gibbing for precision slide guiding, heavy duty slide & connections, cast iron frame, dual air counterbalances, & removable bed arms for quick die change | Note |
|---|---|
| Location | This Used Press is Located in Our **On Location** |
