50 Ton Press for Sale • Used Dake 27-477

50

50
Ton
48″
Bed R-L
36″
Stroke

New in 1

1
Used Compression Molding Press
Model: Dake 27-477
36″ Stroke, 36″ DL, 48″ x 36″ Bed, 120/42/400 Speeds, Capable of Compression Molding

Buy Now: $19,500
4-Column Presses for Sale
Dake Hydraulic Press
Machine #4625
(Jackson, MI Falahee Building)

Machine Specifications

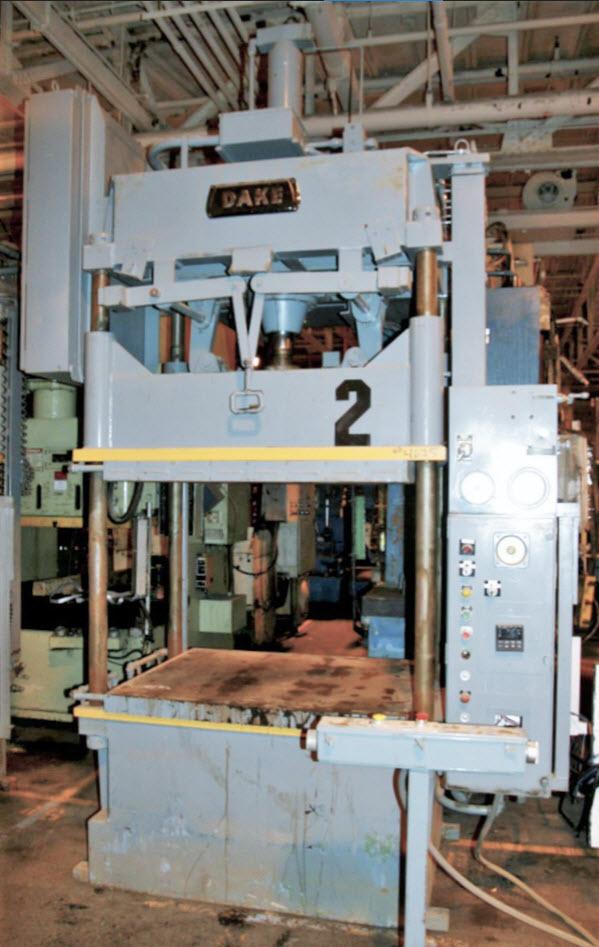

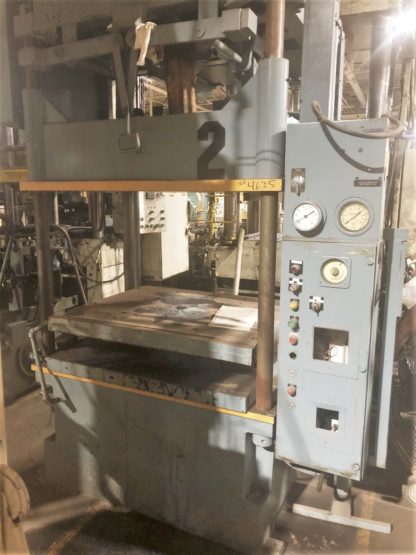

Used Compression Molding Press for Sale

Press Model: Dake 27-477
Condition: Very Good
Location: Jackson, MI Falahee Building #4625
Year: 1965
Reference: Machine #4625
Buy Now: $19,500




CAPACITY 50 TONS @ 5000 PSI
STRIPPING CAPACITY 18 TONS
STROKE 36″
DAYLIGHT 36″
usable BED & RAM AREA 48″ RL X 36″ FB
DISTANCE BETWEEN POSTS 48″ RL X 30-1/2″ FB
RAM SPEEDS 120-160 / 4-42 / 10-110 / 300-400 IPM
CYLINDER 5″ DIA. BORE
HEATED PLATENS APPROX. 45″ X 35″ SOLD WITH PRESS BUT NOT WORKING
FLOW CONTROL VALVE DAKE MODEL 48500
HYDRAULICS VICKERS MDL V-235-8-1A-12 PUMP | 30 GALLON RESERVOIR

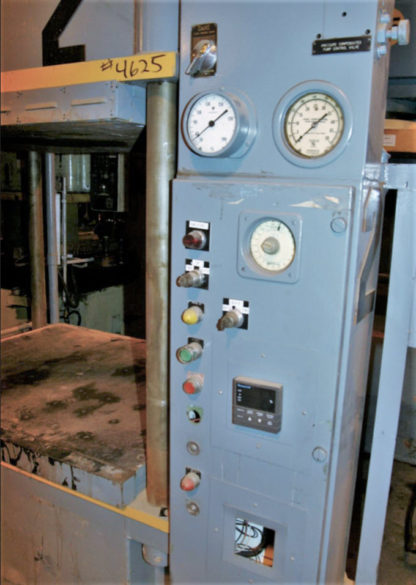

PRESS CONTROLS DAKE RELAY LOGIC CONTROLLER
ELECTRICS 7-1/2 HP, 440V-3-60 motor & controls | 1800 RPM
APPROX. DIMENSIONS 85″ x 74″ (RL X FB) X 152″ HIGH
APPROX. WEIGHT 15,000 LBS.

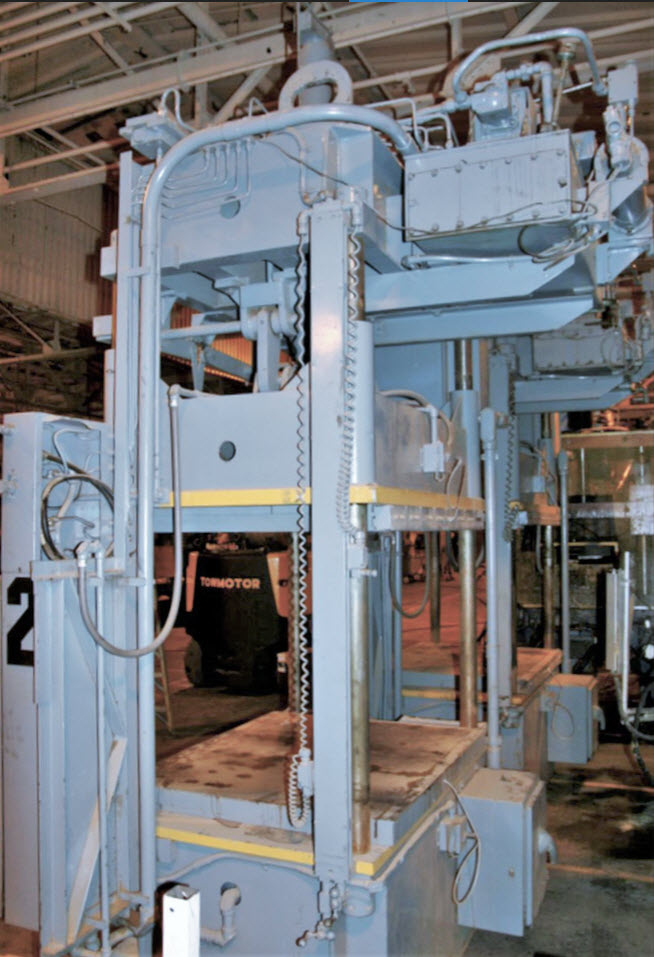

Equipped With STEEL FRAME CONSTRUCTION, FLOOR STANDING BASE, 4 POST – GUIDED PLATEN STYLE
Note HEATED PLATENS CAN BE ADDED AND INSTALLED FOR APPROX. $15,000-$35,000 MORE
Location This used 50 Ton Dake Press is located in our Jackson, MI Falahee Building
