Description

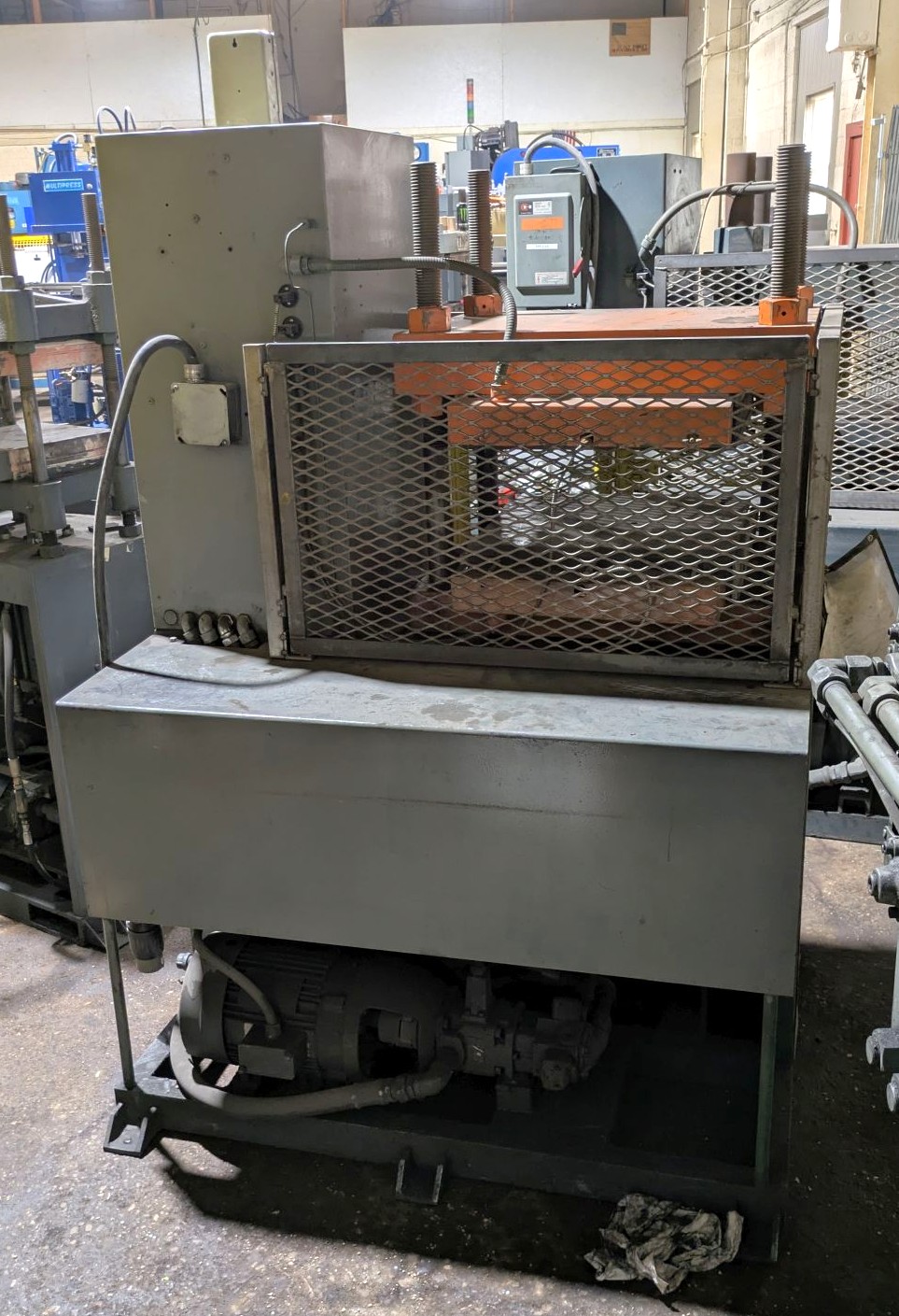

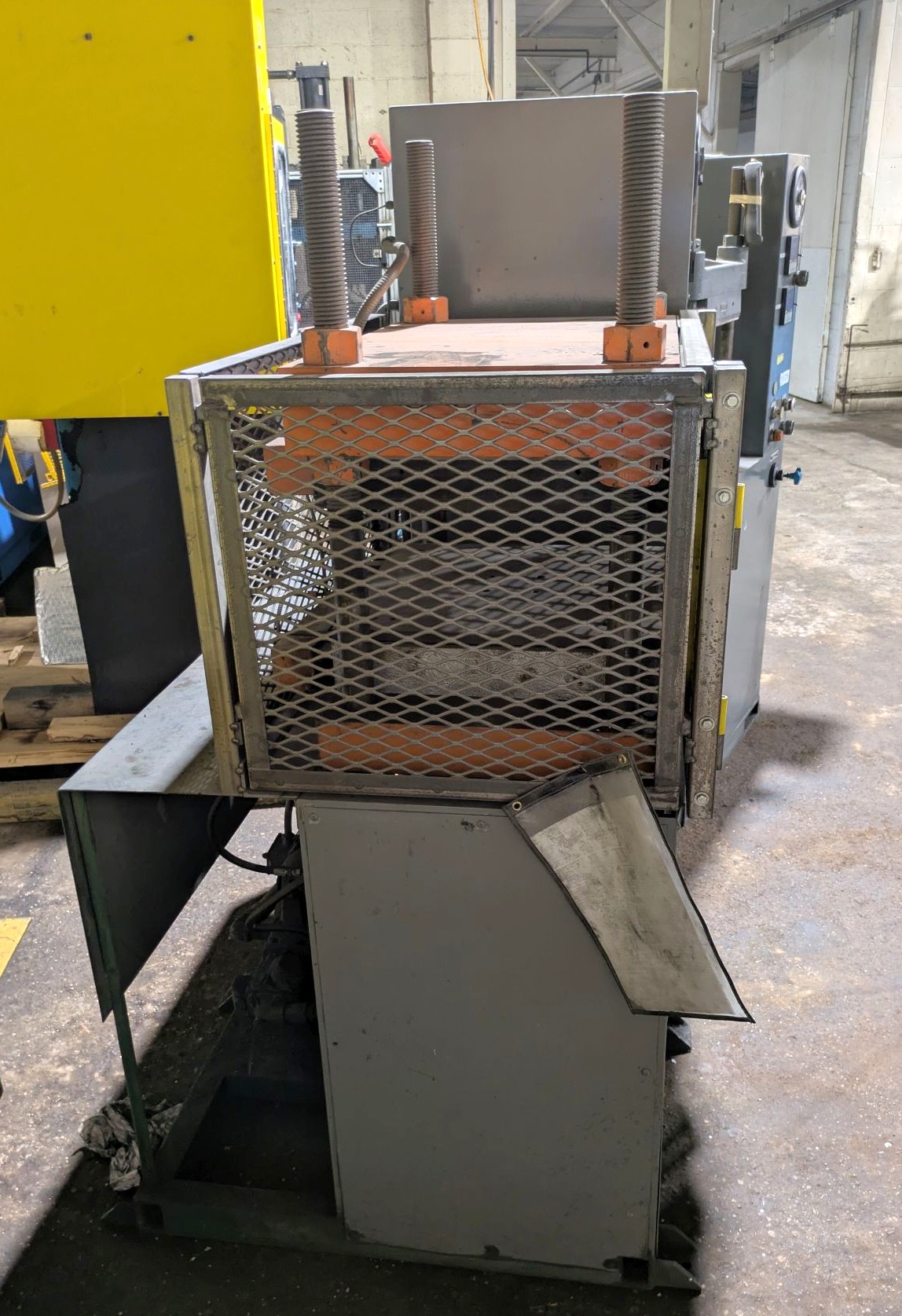

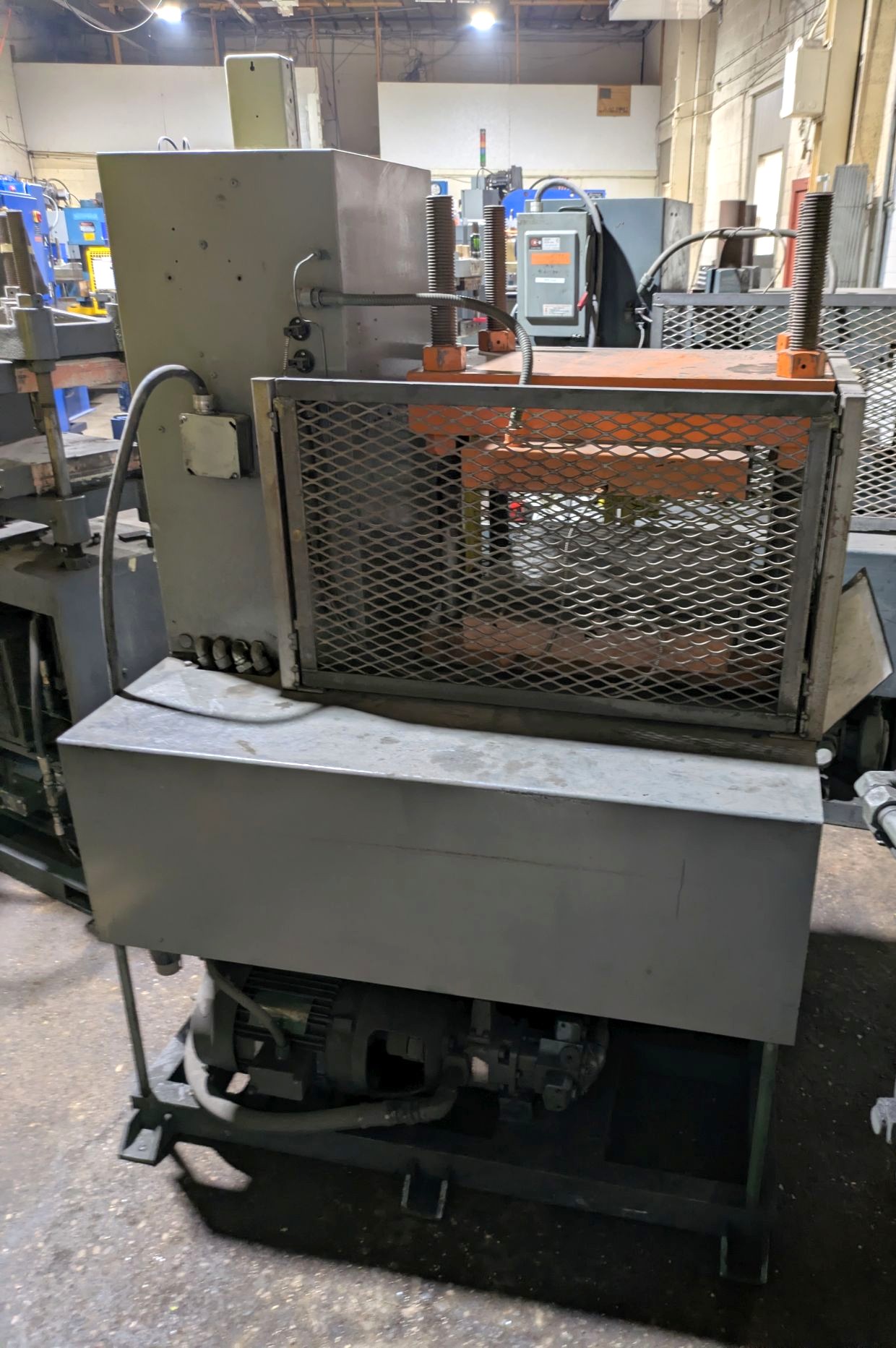

Heated Platen Press • Used 50 Ton Press for Sale
- Machine #
- 8452
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- Year Unknown
- Model

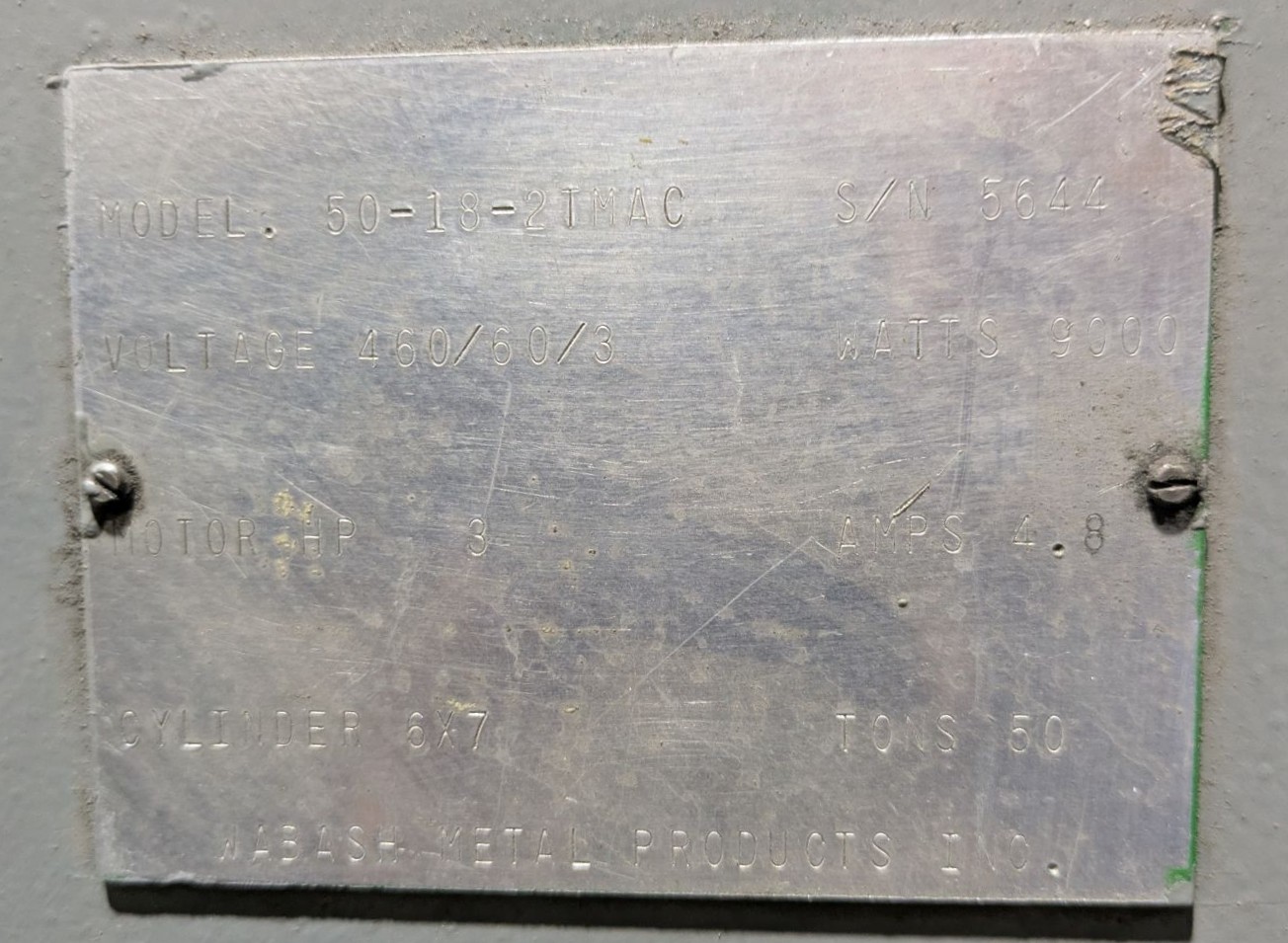

- Wabash 50-18-2TMAC
Buy Now: $
| MAX. CAPACITY | 50 Tons |
|---|---|
| MAX. STROKE | 7" |
| MAX. DAYLIGHT TO BED | 21" (Adj to 12) |
| OVERALL BED / RAM AREA | 27" x 18" (RL x FB) |
| DISTANCE BETWEEN POSTS | 21" x 12.5" (RL x FB) |
| USABLE BED AREA | 21" x 18" (RL x FB) |
| ELECTRIC HEATED PLATENS | 18" x 18" (RL x FB) x 3.5" Thick, 9000W Each |
| CYLINDER SIZE | 6" Dia. Bore |
| RAM ROD SIZE | __ |
| POSTS / 4 COLUMNS SIZE | 1.75" Dia. |
| FLOOR TO BED HEIGHT | 38" |
| PRESS CONTROLS | ALLEN-BRADLEY Relay Logic CONTROLLER |

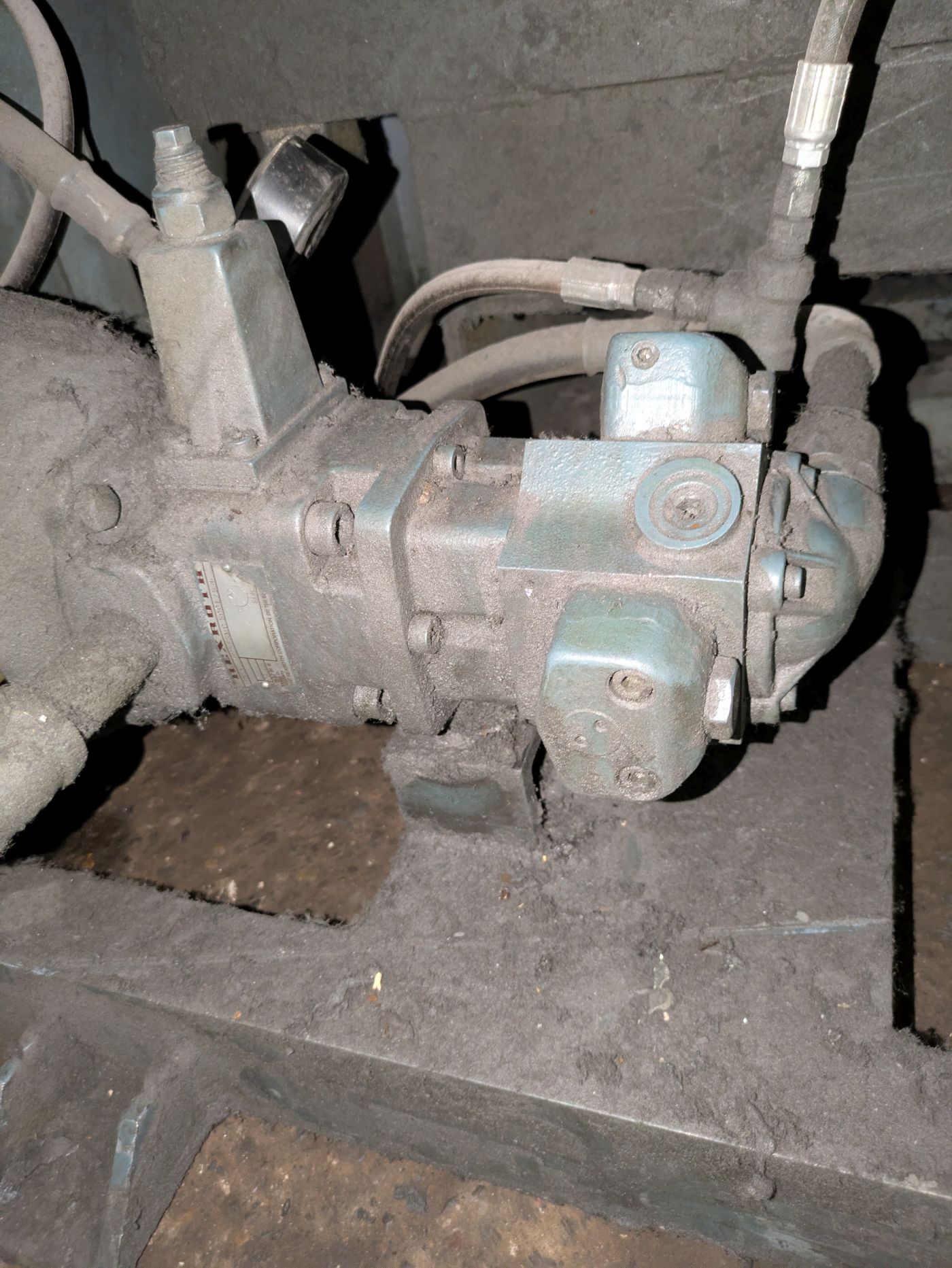

| HYDRAULIC SYSTEM | Bosch Rexroth VARIABE-DISPLACEMENT VANE pump MODEL 1PV2V3 1/25R3MC 500E/5+ |
| ELECTRIC MOTOR | 3 HP 230/460V-3-60 Lincoln MOTOR | 9.4/4.7 AMPS - 1755 RPM |
| APPROX. DIMENSIONS | 52" x 40" (RL x FB) x 76" High |
| APPROX. WEIGHT | __ |
| Equipped With | __ |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
