500 Ton Minster Press • Used Minster E2-500-144-42 Press

500

500
Ton
144″
Bed R-L
16″
Stroke
Speed: 30 SPM
New in 1

Upgraded Link 501 Controls

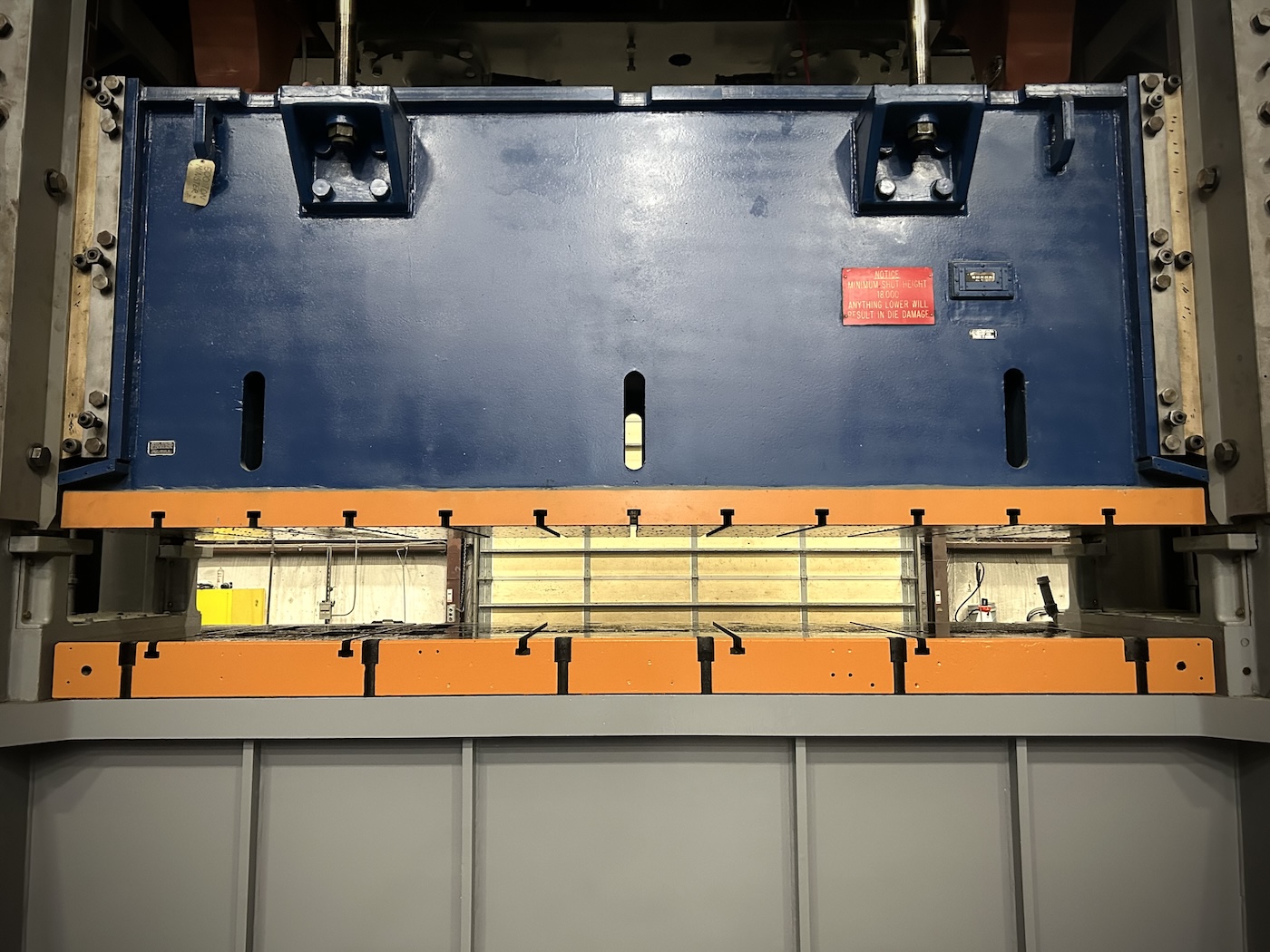

500 Ton Used Press – Straight Side Press
Model: Minster E2-500-144-42
16″ Stroke, 27″ Shut Height, 144″ x 42″ Bed, 30 SPM, Recirculating Lubrication System, Link 501 Controls

Stamping Presses for Sale
Used Minster Mechanical Press
Machine #5837
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Minster
Model: Minster E2-500-144-42 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: Year Unknown
Machine #: 5837
Buy Now: $





CAPACITY 500 TONS
STROKE 16″
MAX. SHUT HEIGHT TO BED 27″ SDAU
BED AREA 144″ RL X 42″ FB
SPEED 30 SPM
slide ADJUSTMENT 6″ MOTORIZED
slide area 144″ RL X 42″ FB (T-SLOT) – REBUILT
BOLSTER PLATE 7″ H X 144″ RL X 42″ FB (T-SLOT)
DIST UPRIGHTS / FLOOR TO BED 146″ / 34″
WINDOW SIZE 25″ W X 32″ H
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION
ELECTRICS MOTOR & LINK 501 PRESS CONTROLLER
APPROX. DIMENSIONS 224″ H X 18′ RL X 8′ FB
APPROX. WEIGHT 153,000 LBS
Equipped With TIE ROD STEEL FRAME FOUR AIR COUNTERBLANCES RECIRCULATING LUBE SYSTEM TWIN GEAR DRIVE GEARS IN OIL HYDRAULIC OVERLOADS IN RAM 4 AIR COUNTERBALANCES FLOOR STANDING BASE REBUILT slide
Note __
Location This used press is located in our Columbia, TN Warehouse

Additional information

Stroke

BedRL

Condition
