Description

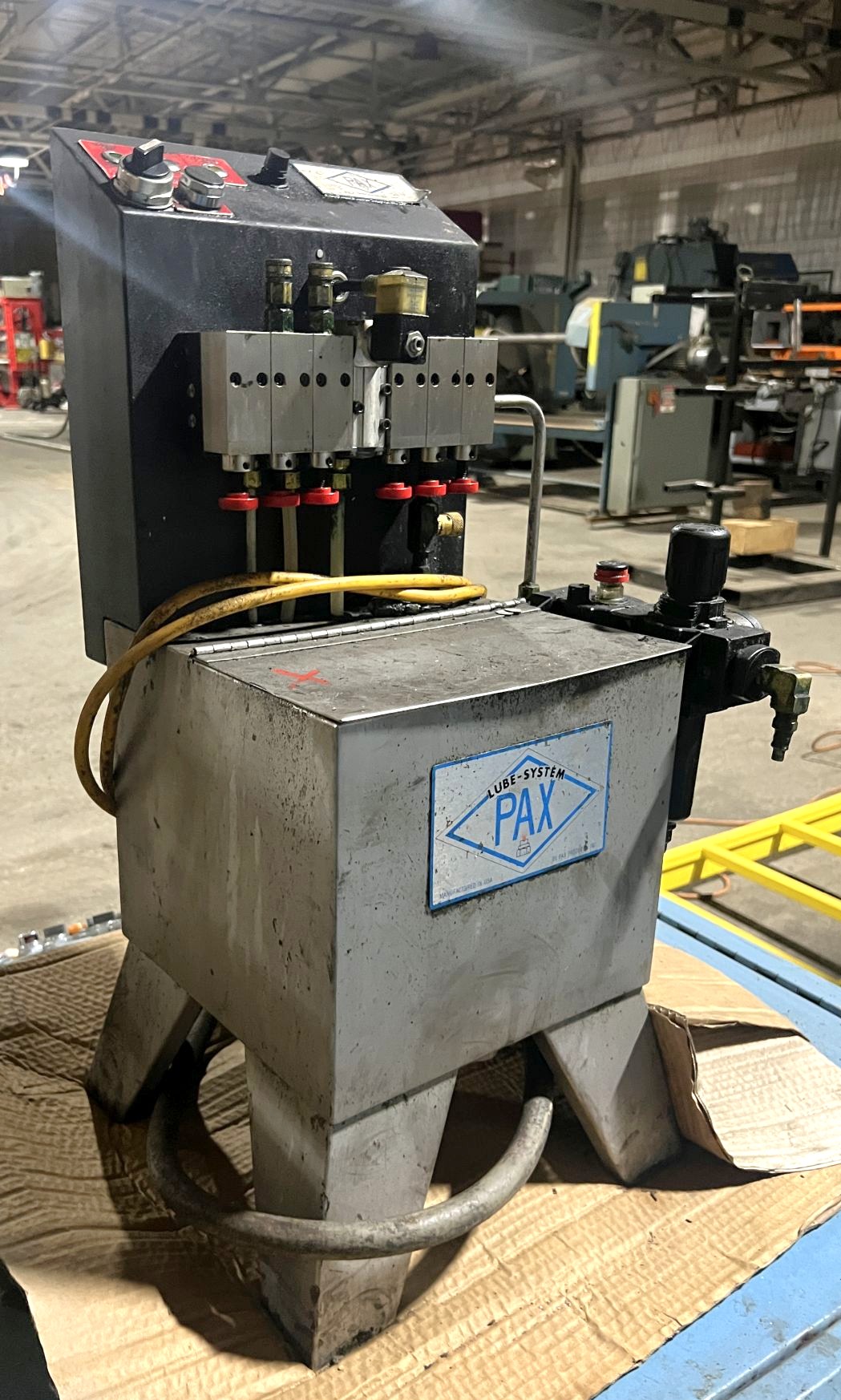

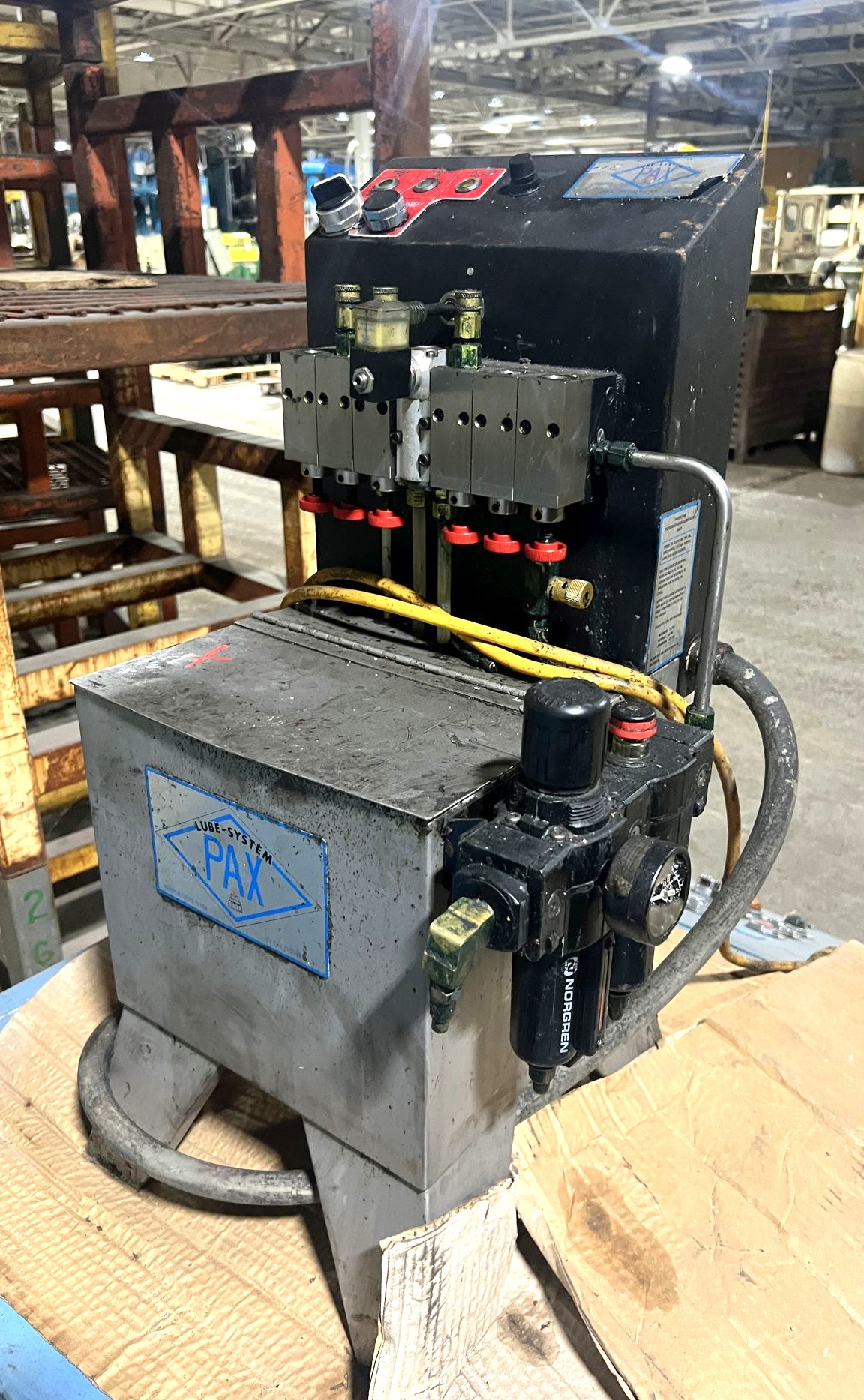

Used Lubricating Systems for Sale

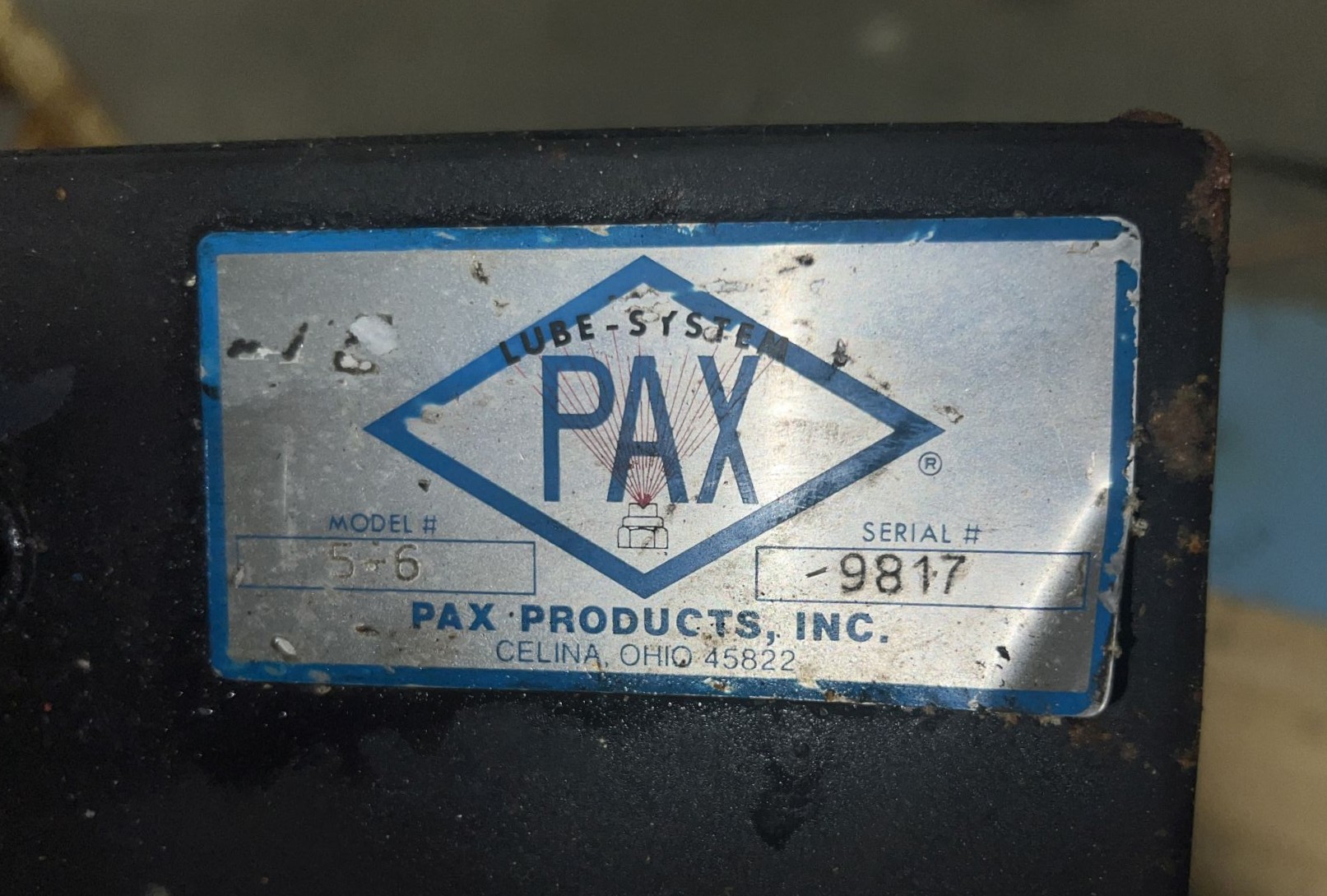

Model: 5-6
Condition: As-Is Under Power
Location: Jackson, MI Falahee Building
Year:
Machine #: 8391
Buy Now: $1,950

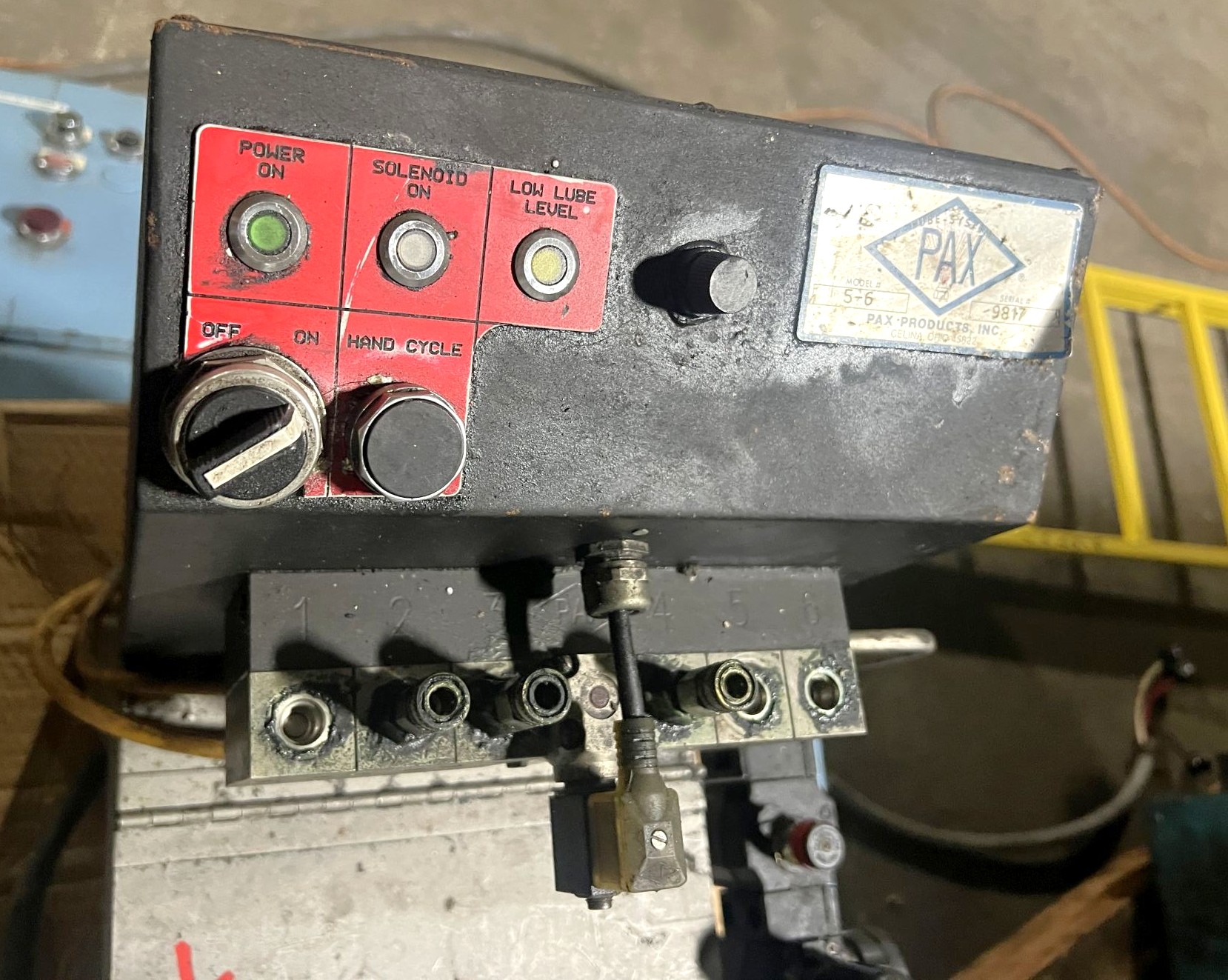

| NUMBER OF DISTRIBUTION PUMPS | 1 TO 6 | RESERVOIR CAPACITY | 5 GALLONS | RESERVOIR DIMENSIONS | APPROX. 17.5" X 14" (RL X FB) X 6.5" HIGH | LUBRICATION CAPACITY (STD. VOL) | .021 OZ PER CYCLE X NUMBER OF PUMPS | MAX. LUBRICATION CAPACITY (HIGH VOL) | .042 OZ PER CYCLE X NUMBER OF PUMPS | MAXIMUM CYCLES / MIN. (FULL CAPACITY) | 300 CPM (HIGHER SPEEDS POSSIBLE WITH REDUCED SPRAY VOLUME) | OPERATION PRESSURE | 30-125 PSI | MAX. AIR COMSUMPTION | .002 SCFM PER CYCLE X NUMBER OF PUMPS | VOLTAGE | 115 VAC/60 HZ | DIMENSIONS | 17.5" X 14" (RL X FB) X 28.5" HIGH | APPROX. WEIGHT | 50 LBS. | Note | PRE-PRESSURIZED LUBRICATION SYSTEM DESIGNED FOR PRESS ROOM APPLICATIONS. UTILIZES A HEAVY-DUTY STAINLESS STEEL RESERVOIR AND A 10:1 AIR-TO-LUBRICATION PRESSURE RATIO TO ACCOMMODATE BOTH LOW AND HIGH-VISCOSITY LUBRICANTS. THE SYSTEM DELIVERS AN "AIRLESS" SPRAY (AIR IS NOT MIXED WITH THE LUBRICANT) FOR BETTER ADHESION TO THE STOCK MATERIAL AND REDUCED AIRBORNE MIST. REQUIRES A DRY CONTACT CLOSURE TO AUTOMATICALLY CYCLE THE SYSTEM. | Equipped With | (6) INDIVIDUALLY ADJUSTABLE AIR-DRIVEN PISTON DISTRIBUTION PUMPS, INTEGRATED CONTROL PANEL FEATURING POWER ON / OFF SELECTOR SWITCH, HAND CYCLE PUSH BUTTON, SOLENOID ON INDICATOR LIGHT, LOW LUBE LEVEL INDICATOR LIGHT, AND CYCLE CONTROL DIAL, INCOMING AIR PRESSURE REGULATOR WITH GAUGE AND FILTER, AND INTERNAL DIAPHRAGM PUMP. |
|---|---|
| Location | This Used Press Luberication Machine is located in our Jackson, MI Falahee Building |
