Description
New Straight Side Press • New 121 Ton Press for Sale

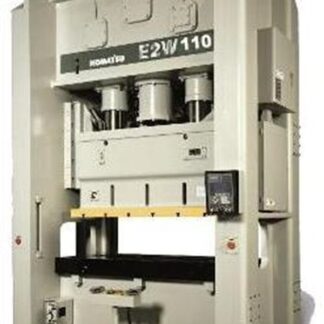

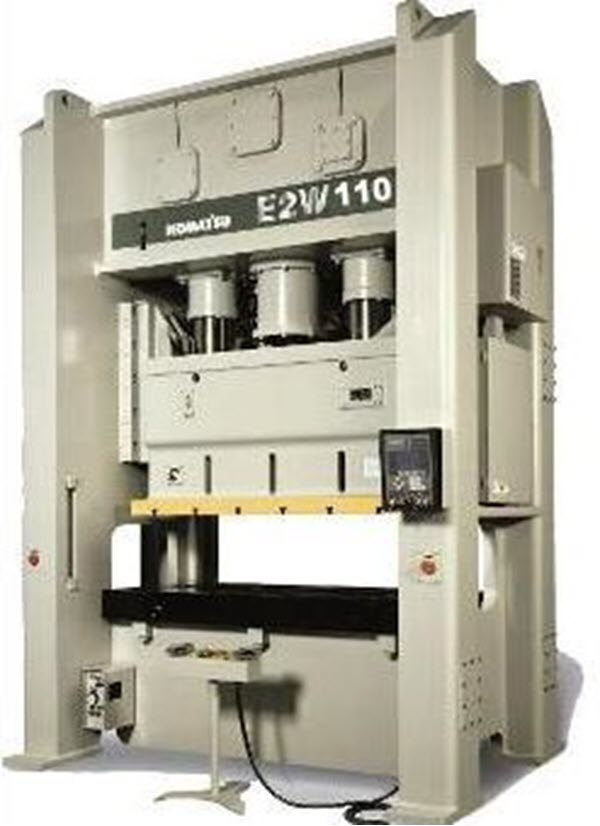

Model: Komatsu E2W110SVS Press
Condition: New
Location: Warehouse on Location
Year: 2025
Machine #: 7019
Buy Now: $
| CAPACITY | 121 US TON AT .236" OFF BOTTOM | STROKE | 7.1" | MAX DIE HEIGHT | 15.75" SDAU OVER 6.3" BOLSTER | BED AREA | 65.4" X 27.5" (RL X FB) | bolster Plate | 65.4" X 27.5" (RL X FB) X 6.3" THICK T-SLOTTED BOLSTER PLATE | SLIDE AREA | 55.1" X 20.5" (RL X FB) (T-SLOTTED) | SLIDE ADJUSTMENT | 3.9" MOTORIZED | SPEED | 35 - 70 SPM | WINDOW SIZE | 20.9" WIDE X 16.1" HIGH | CLUTCH | komatsu wet clutch / brake combination | ELECTRIC MOTOR | 15 HP 1750 rpm 480V-3-60 - APPROX. 21 fla | PRESS CONTROLS | KOMATSU DISPLAY CONTROLS | APPROX. DIMENSIONS | 93" X 85.5" (RL X FB) X 141.9" HIGH | APPROX. WEIGHT | 33,000 lbs. | Equipped With | AIR COUNTERBALANCE, HYDRAULIC OVERLOAD PROTECTION SYSTEM, ECCENTRIC GEAR DRIVE IN WET CLUTCH FOR CONTINUOUS LUBRICATION OF MAJOR DRIVE COMPONENTS, PLUNGER GUIDED SLIDE, FLOOR STANDING DESIGN | Note | CAPACITY RATING POINT AT .236" |
|---|---|
| Location | This New Press is Located in Our Warehouse on Location |
