Description
New Servo Press • New 220 Ton Press for Sale

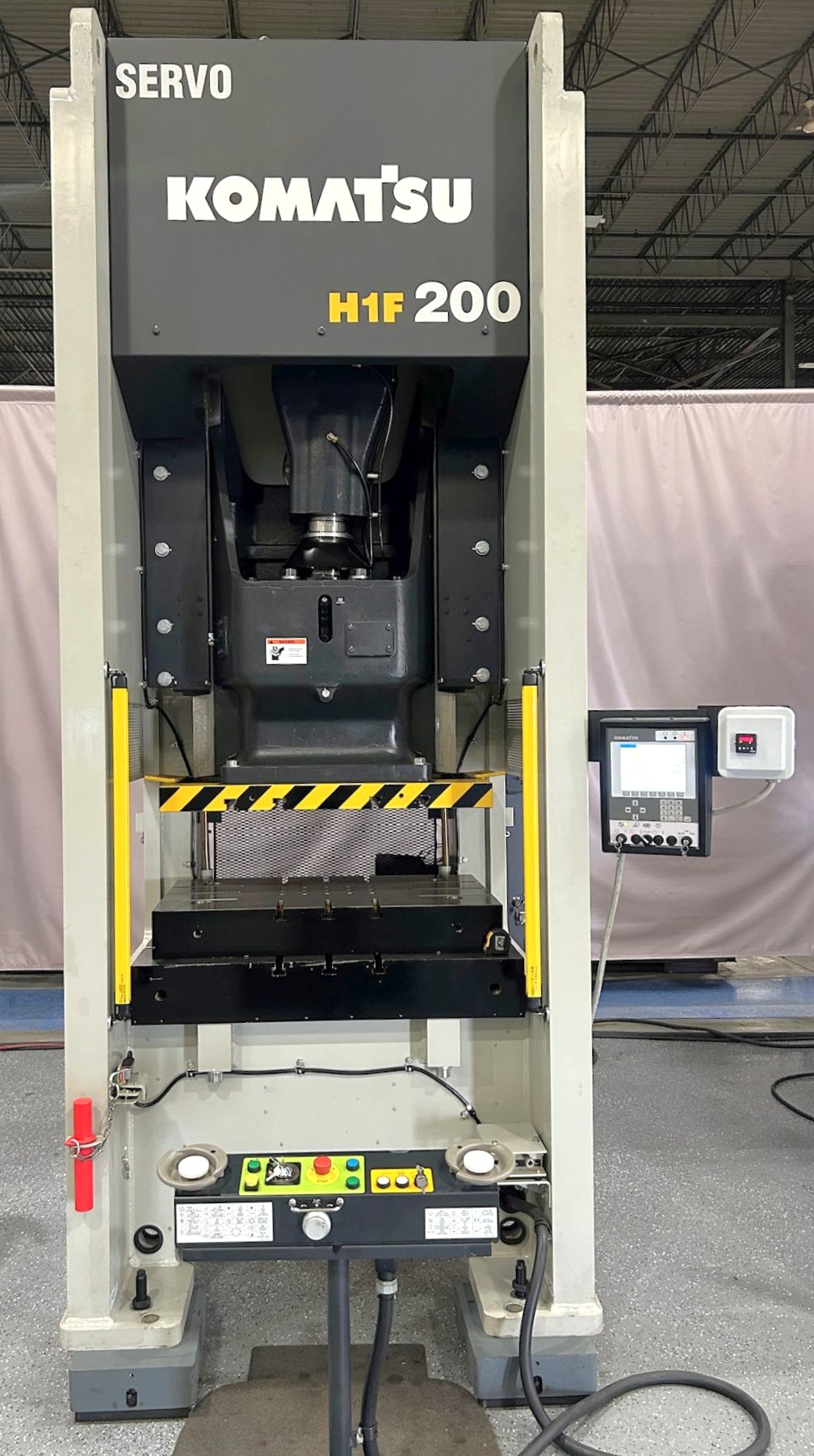

Model: Komatsu H1F200-2O Standard Press
Condition: New
Location: Warehouse on Location
Year: 2026
Machine #: 7063
Buy Now: $

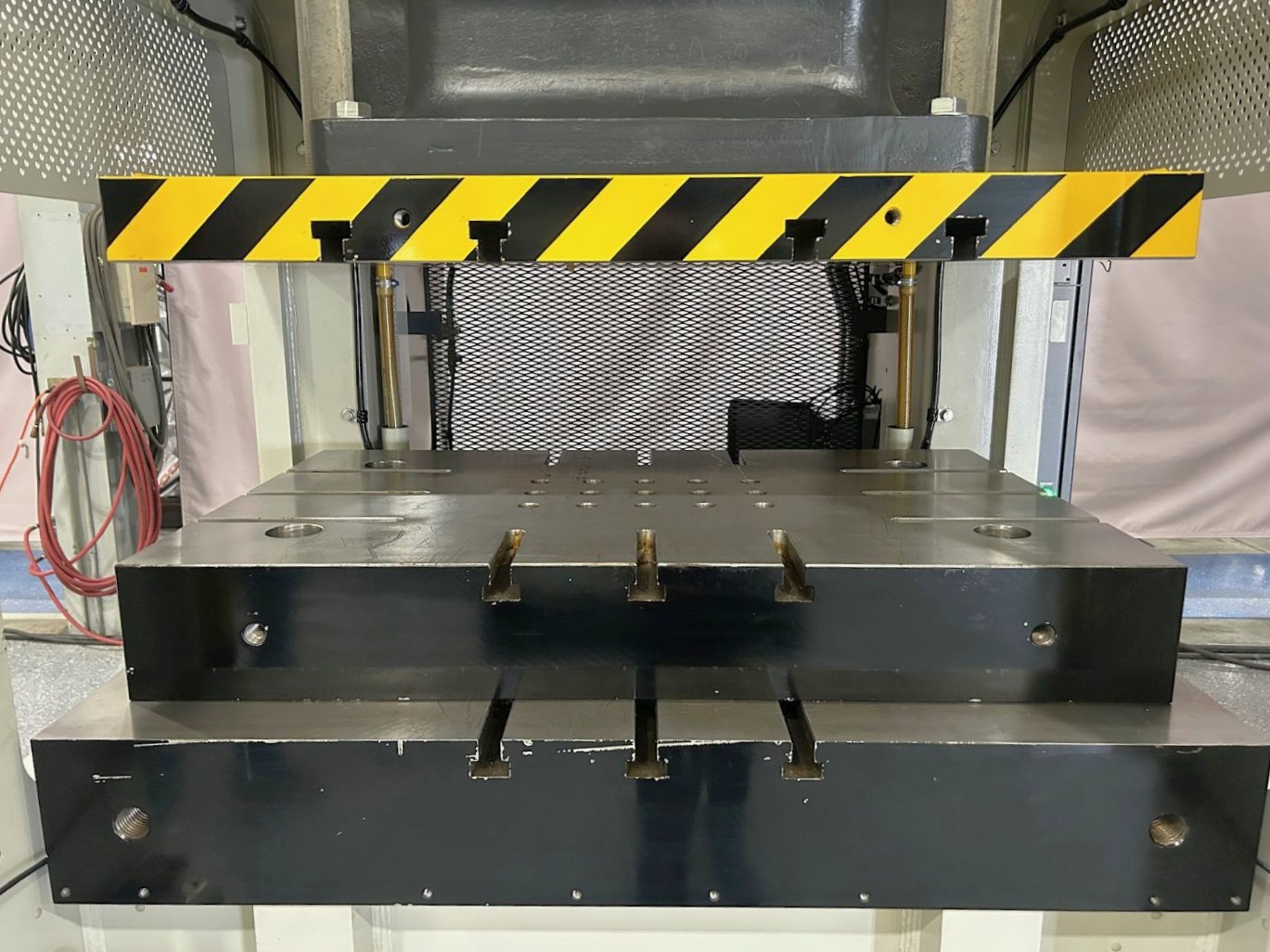

| MAX CAPACITY | 220 US TON AT .24" OFF BOTTOM | MAX STROKE | 11.8" ROTATION / 1.18" - 9.84" PENDULUM | MAX DIE HEIGHT | 17.7" SDAU OVER 7.1" BOLSTER | SLIDE ADJUSTMENT | 4.7" MOTORIZED | BED AREA | 47.2" X 33.1" (RL X FB) | BOLSTER PLATE | 47.2" X 33.1" X 7.1" (RL X FB X H) T-SLOTTED | SPEED | 50 SPM | PENDULUM SPEED | UP TO 124 SPM | SLIDE AREA | 41.3" X 25.6" (RL X FB) T-SLOTTED | DISTANCE BETWEEN UPRIGHTS | 34.3" | DISTANCE FLOOR TO BOLSTER | 39.4" STANDARD / 38.2" LONG | THROAT DEPTH | 16.9" | ELECTRIC SERVO MOTOR | 80 HP | PRESS CONTROL | KOMATSU SIT IV CONTROL SYSTEM (PRECISE DIGITAL DATA) | APPROX. DIMENSIONS | 60.2" X 108.9" X 154.2" (RL X FB X H) | APPROX. WEIGHT | 54,000 LBS. | Equipped With | Auto Die Height Adjustment, Quick-responding dependable hydraulic overload protector, Precision Oil-Lubricated 6-Point Gibbing, Air Counterbalance System, & floor standing | Note | __ |
|---|---|
| Location | This New Press is Located in Our Warehouse on Location |
