Machine Specifications
New Straight Side Press for Sale
Manufacturer: Komatsu

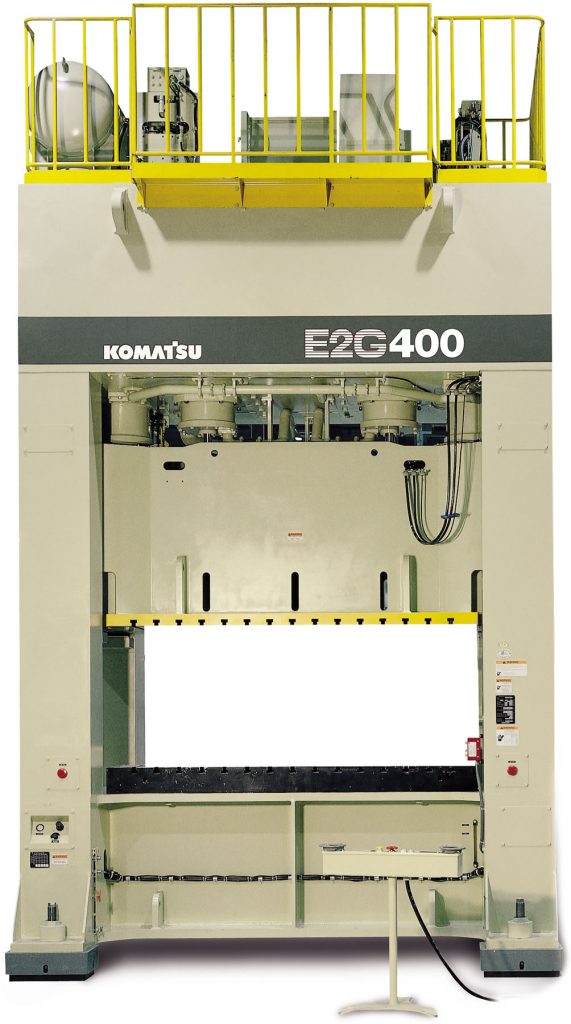

Model: Komatsu E2G400C Press
Condition: New
Location: Warehouse on Location
Year: 2024
Machine #: 7031
Buy Now: $
| CAPACITY | 440 TONS AT .26″ RATING POINT | STROKE | 10.2″ | MAX. SHUT HEIGHT TO BOLSTER | 36.2″ | BED AREA | 144″ X 61″ (RL X Fb) | bolster Plate | 144″ X 61″ (RL X Fb) | RAM / SLIDE AREA | 144″ X 61″ (RL X Fb) | RAM / SLIDE ADJUSTMENT | 12.2″ | SPEED | 30-65 SPM | WINDOW SIZE | 63″ WIDE | CLUTCH | MULTIPLE DISC HYDRAULIC CLUTCH AND BRAKE | ELECTRIC MOTOR, DRIVE & GEARING | CENTER DRIVE DESIGN WITH HELICAL GEARS & SPLINED CONNECTIONS | PRESS CONTROLS | KOMATSU SIT IV – SYSTEM INTEGRATED TERMINAL CONTROLLER | APPROX. DIMENSIONS | 191″ X 146″ (RL X FB) X 350″ HIGH | APPROX. WEIGHT | __ | Equipped With | HYDRAULIC OVERLOAD PROTECTOR, SLIDE ADJUSTMENT WITH HYDRAULIC SLIDE LOCK AND TRAVEL PROTECTION DIGITALLY DISPLAYED, DUAL PLUNGER GUIDE SYSTEM | Note | CAPACITY RATING POINT AT .260″ |
|---|---|
| Location | This New Press is Located in Our Warehouse on Location |
