100 Ton Minster Press • Used Minster P2-100-42 Press

100

100
Ton
42″
Bed R-L
3″
Stroke
Speed: 100-200 SPM
New in 1

1
100 Ton Used Press – Straight Side Press
Model: Minster P2-100-42
3″ Stroke, 17″ Shut Height, 4″ Adjustment, 42″ x 31″ Bed Area, 100-200 SPM Variable Speed, Updated Wintriss Controls

Straight Side Double Crank Press for Sale
Used Minster Stamping Press (Mechanical)
Machine #6380
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Minster
Model: Minster P2-100-42 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1972
Machine #: 6380
Buy Now: $





capacity 100 ton
stroke 3″
max shut height to bed 17″ sdau
bed area 42″ rl X 31″ fb
speed 100 – 200 spm
slide adjustment 4″ MANUAL
slide area 42″ rl x 18.5″ FB T-SLOTTED
bolster plate 5″ h x 42″ rl X 18.5″ fb THICK T-SLOTTED PLATE
DISTANCE BETWEEN UPRIGHTS 44″
FLOOR TO BED HEIGHT 36″ WITHOUT ISOLATOR PADS
window size 16″ WIDE X 14.5″ HIGH
clutch minster air clutch / brake combination

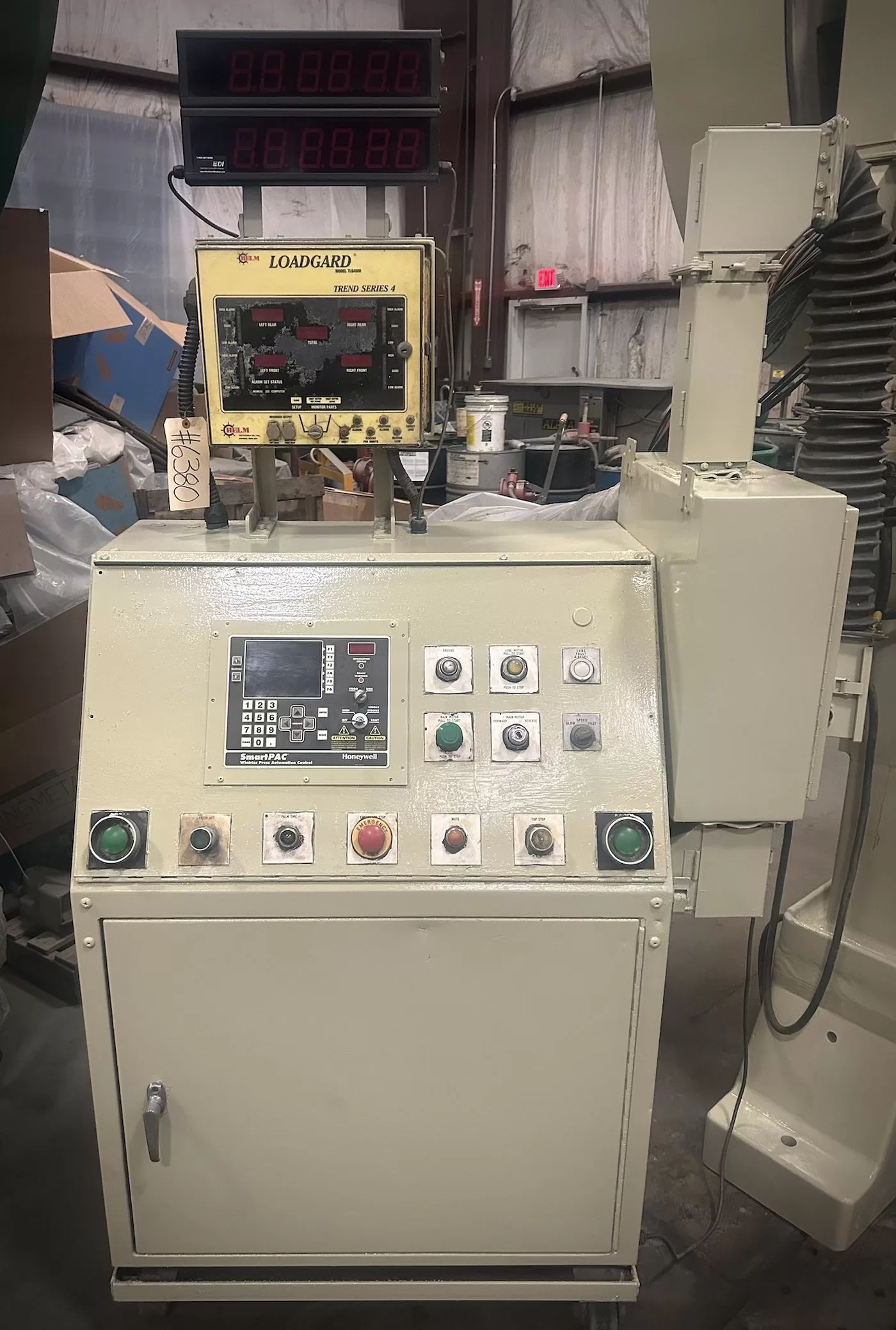

PRESS CONTROLS Wintriss smartpac press control
electrics 15 hp 1150 rpm 240/480v-3-60 motor & abb 480v-3-60 vfd
approx dimensions 87″ h x 105″ rl X 87″ fb
approx weight 22,500 lbs
Equipped With floor standing, flywheel type, tie rod frame, & dual air counterbalances
Note __
Location This used press is located in our Columbia, TN Warehouse
