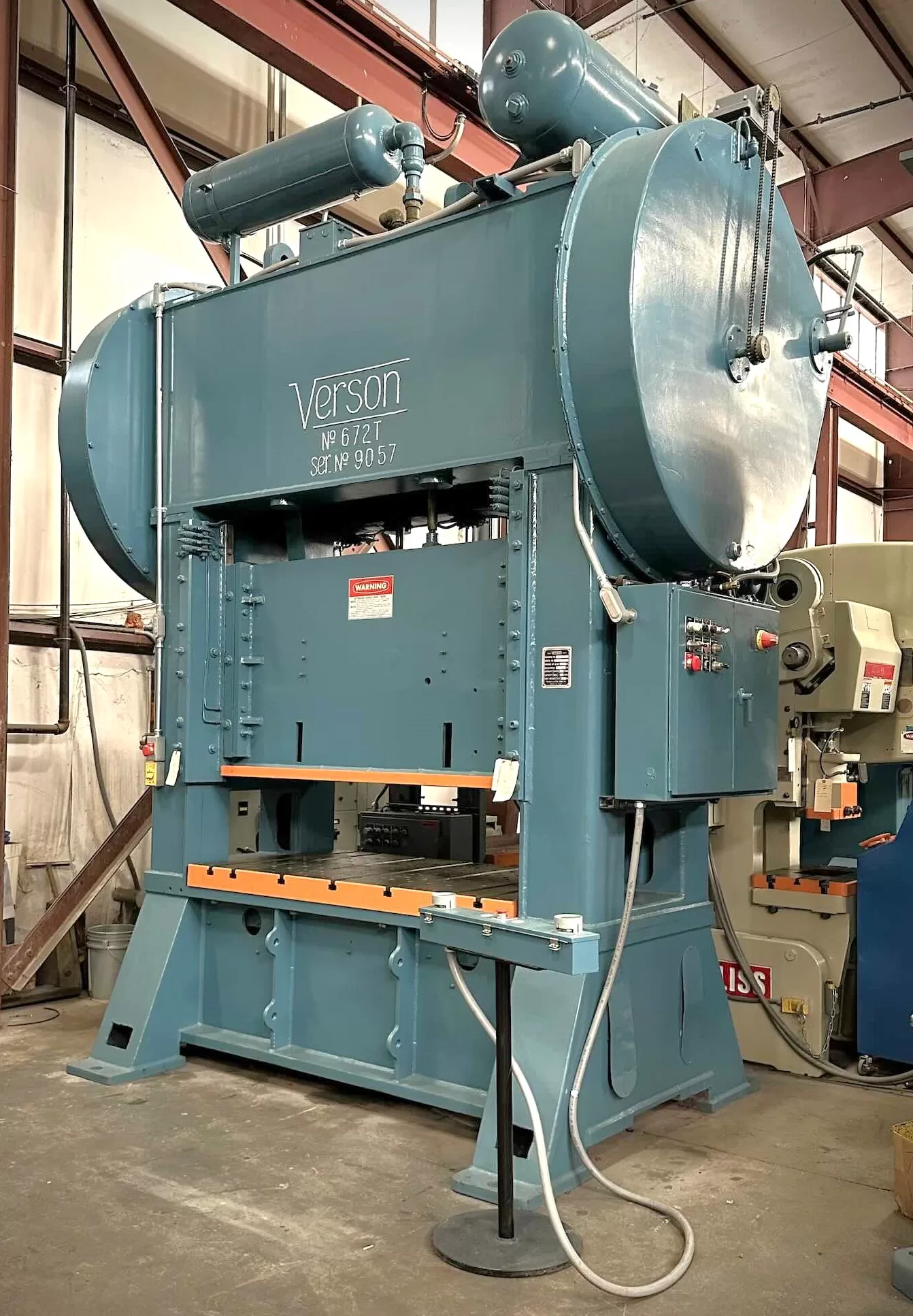

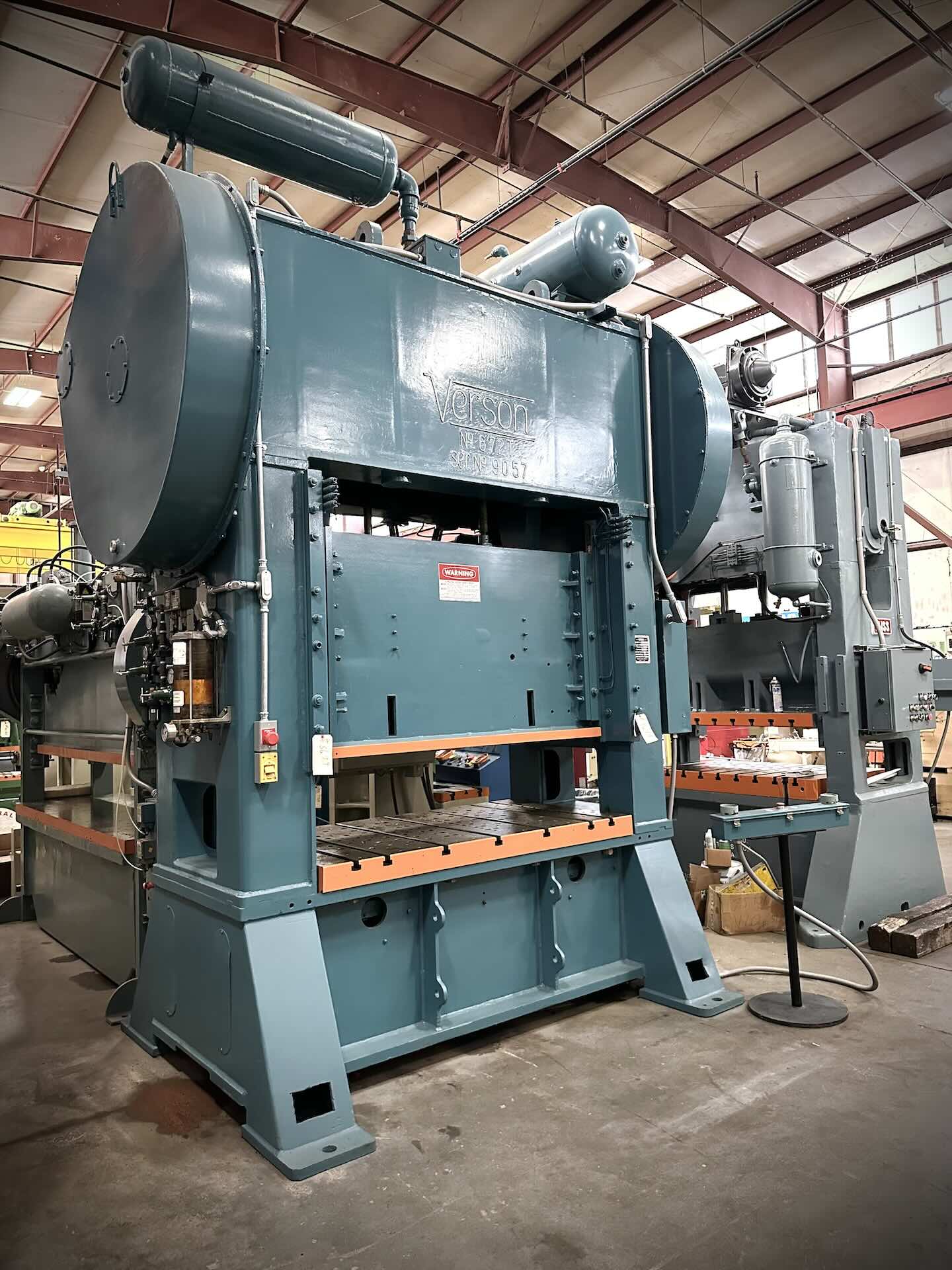

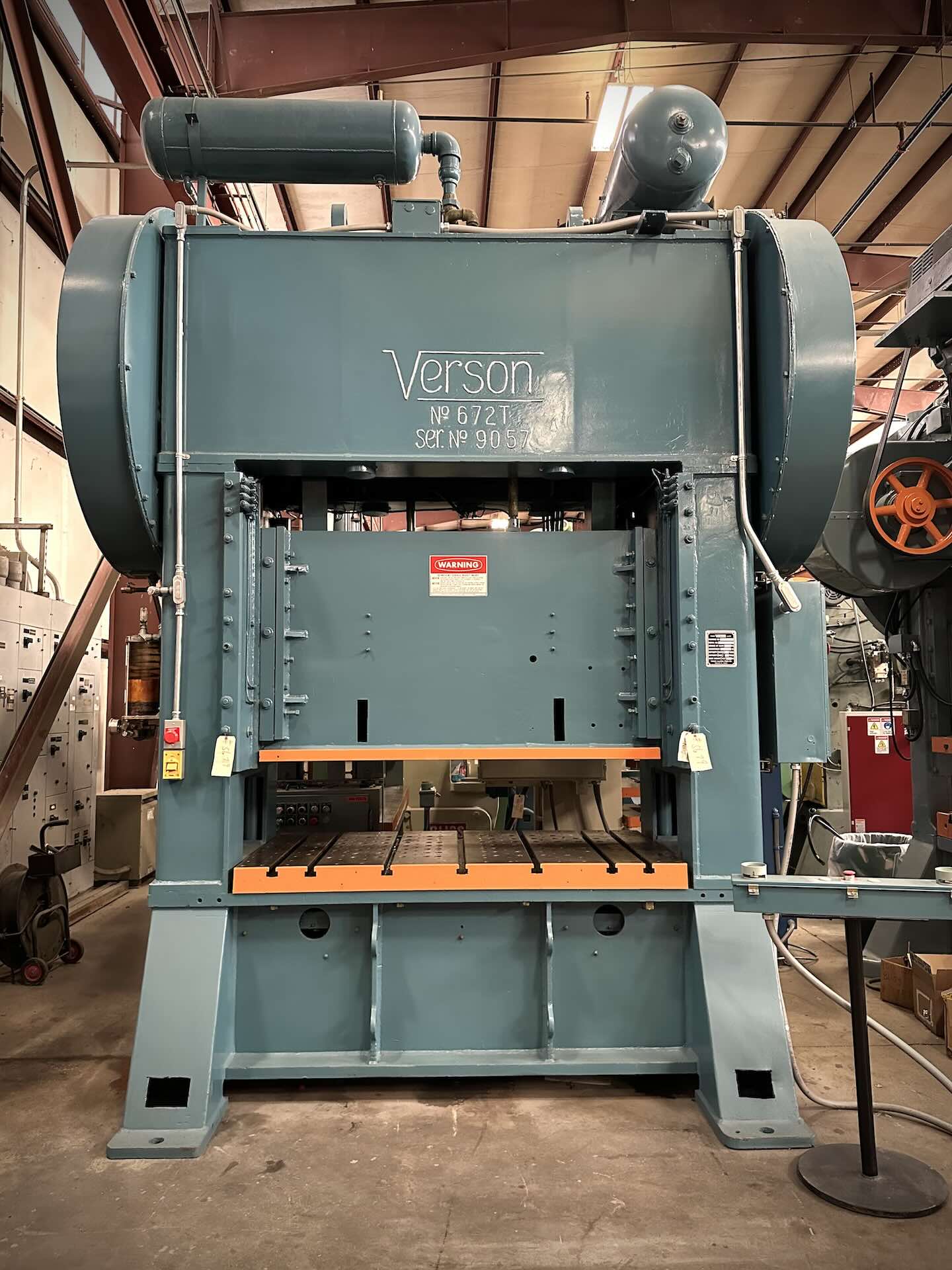

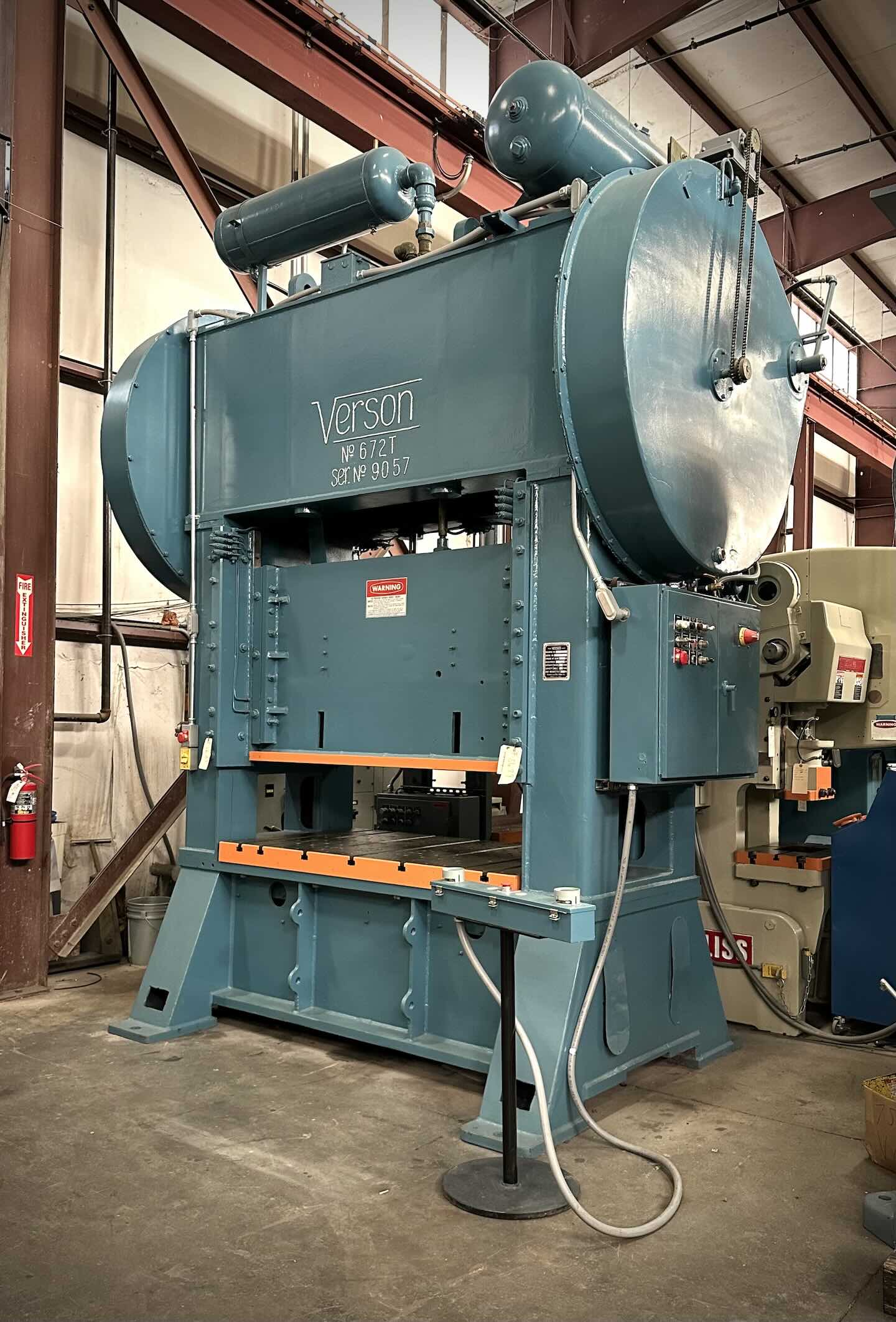

Straight Side Press • Used 125 Ton Press for Sale

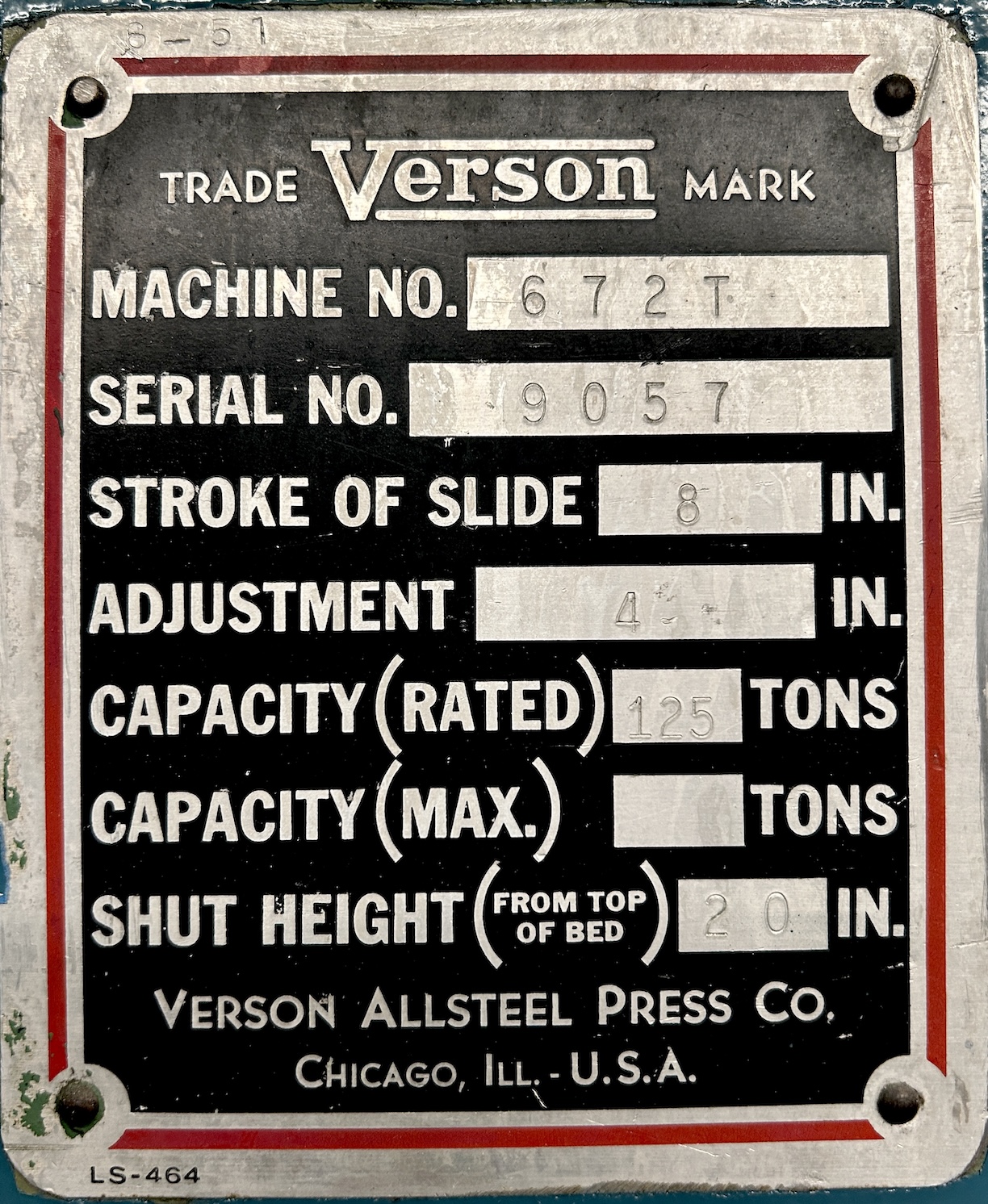

Model: Verson 672T Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: Year Unknown
Machine #: 5679
Buy Now: $29,500

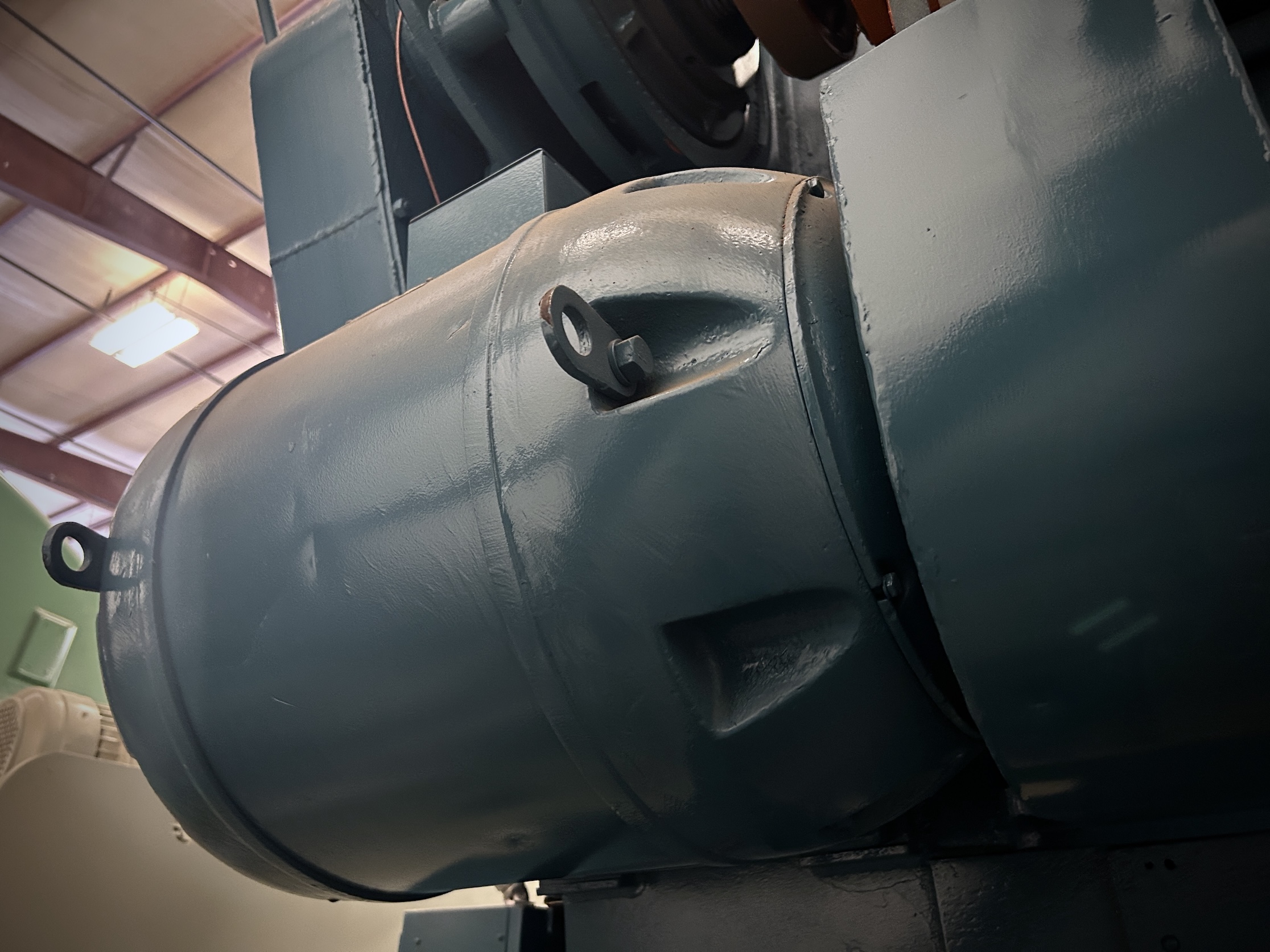

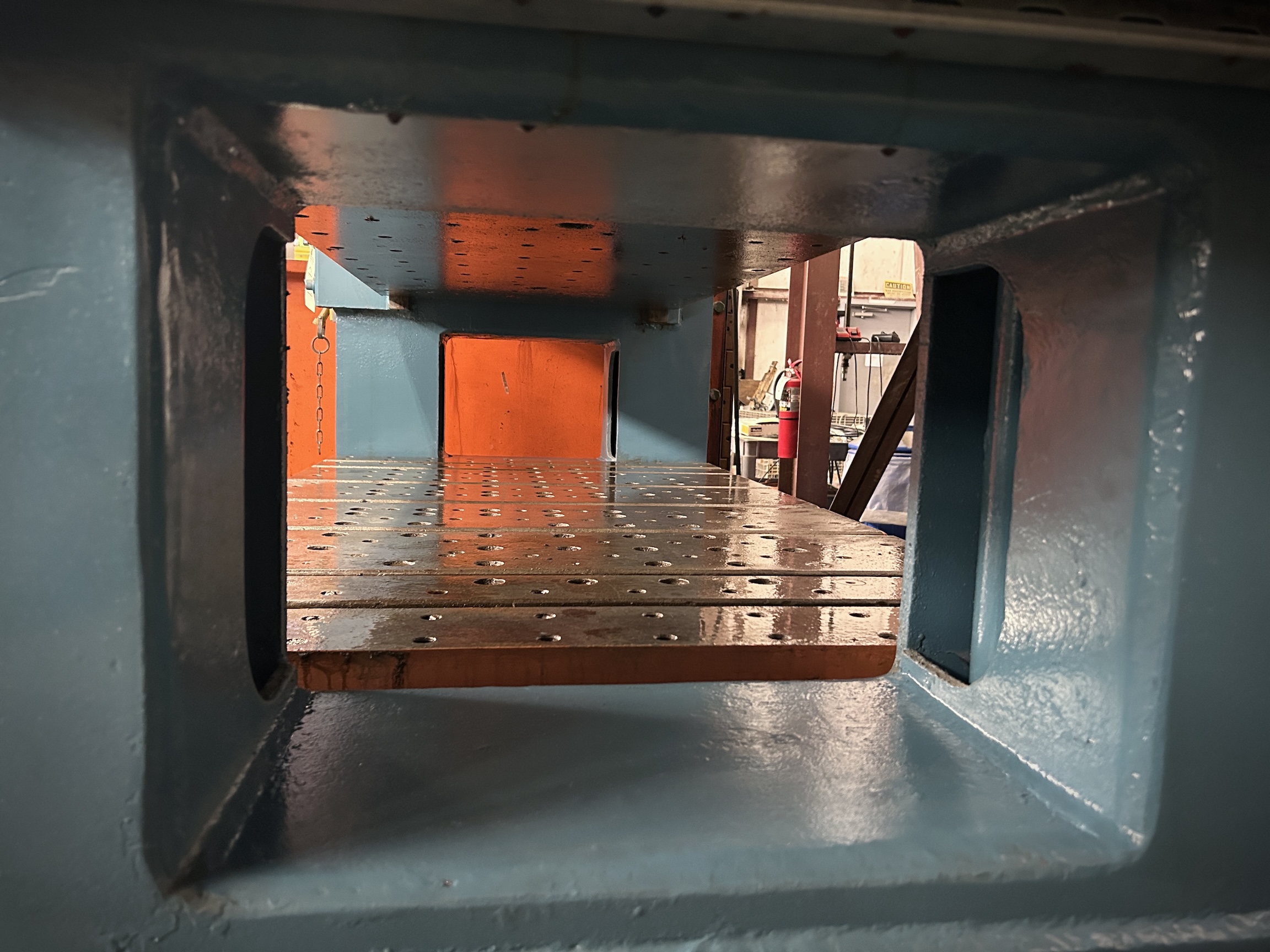

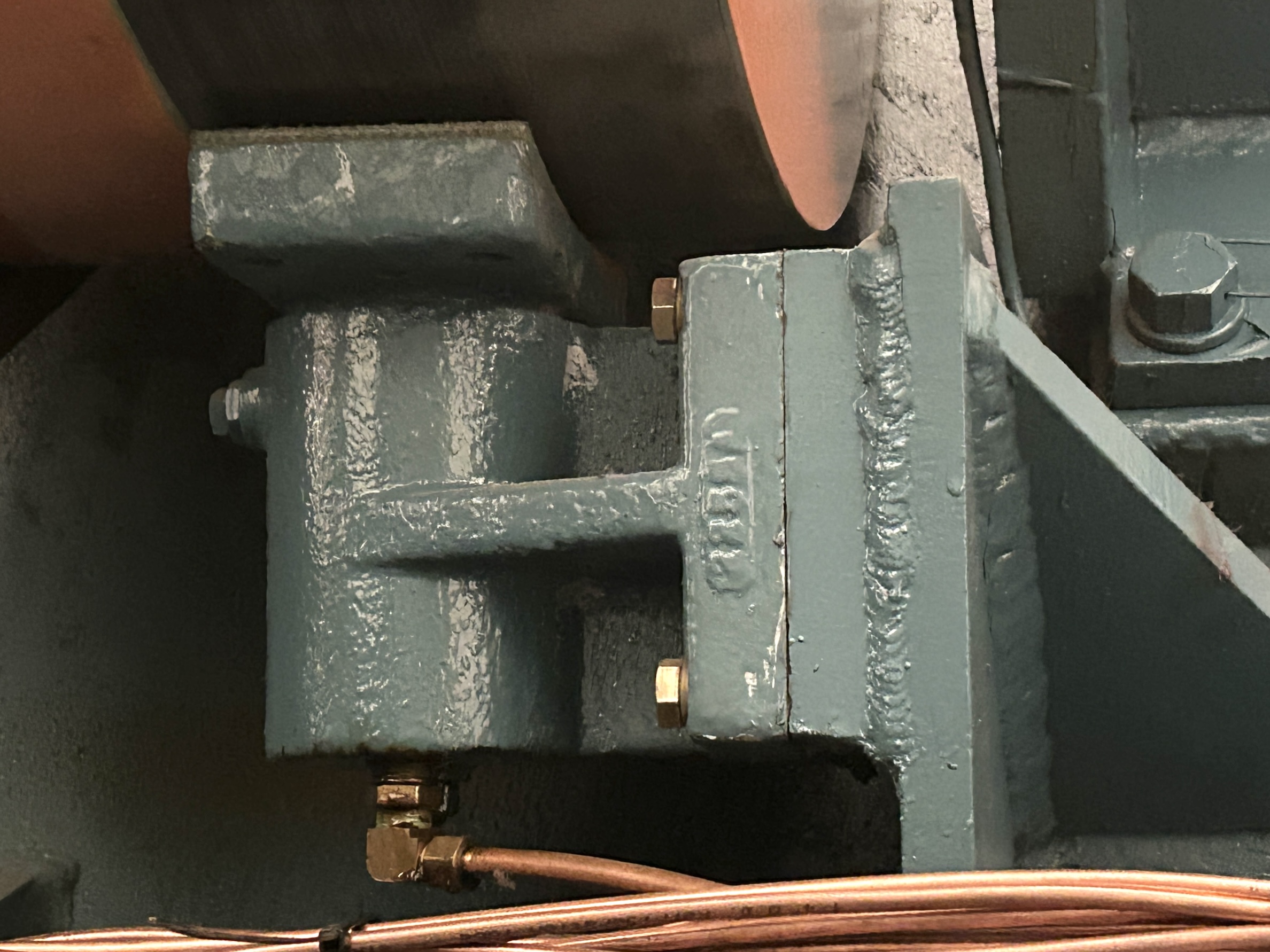

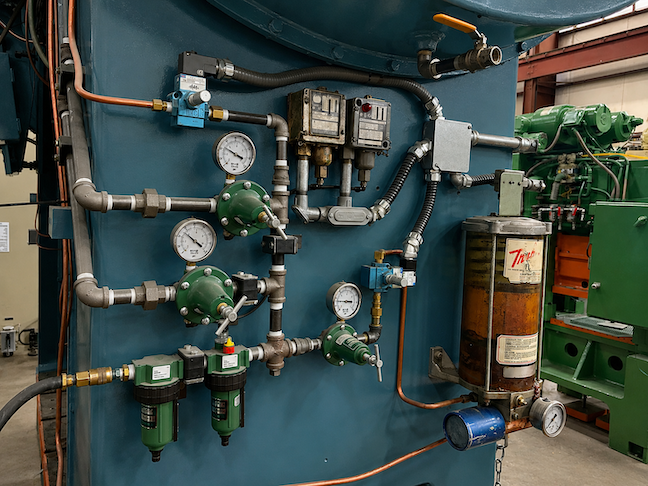

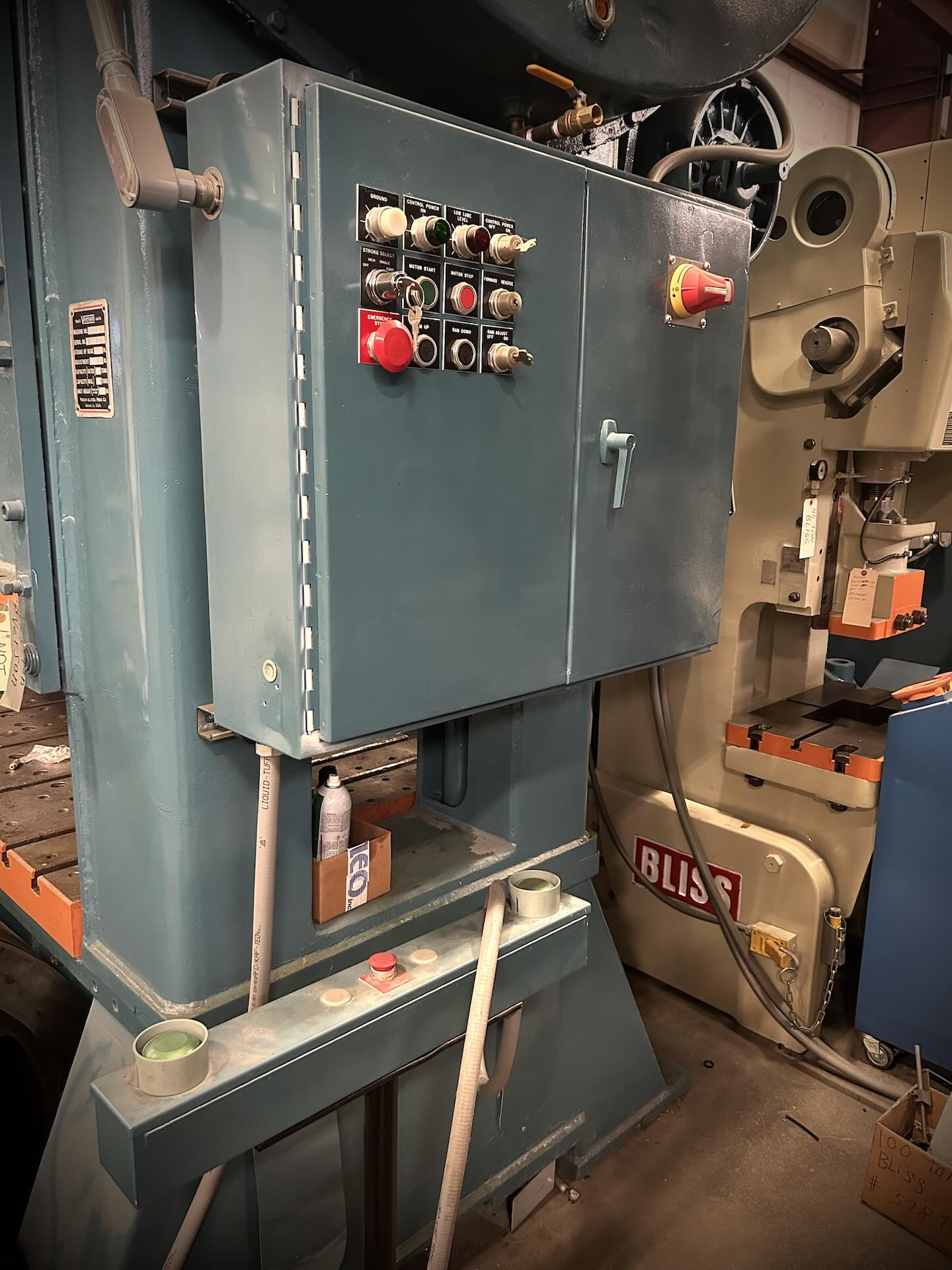

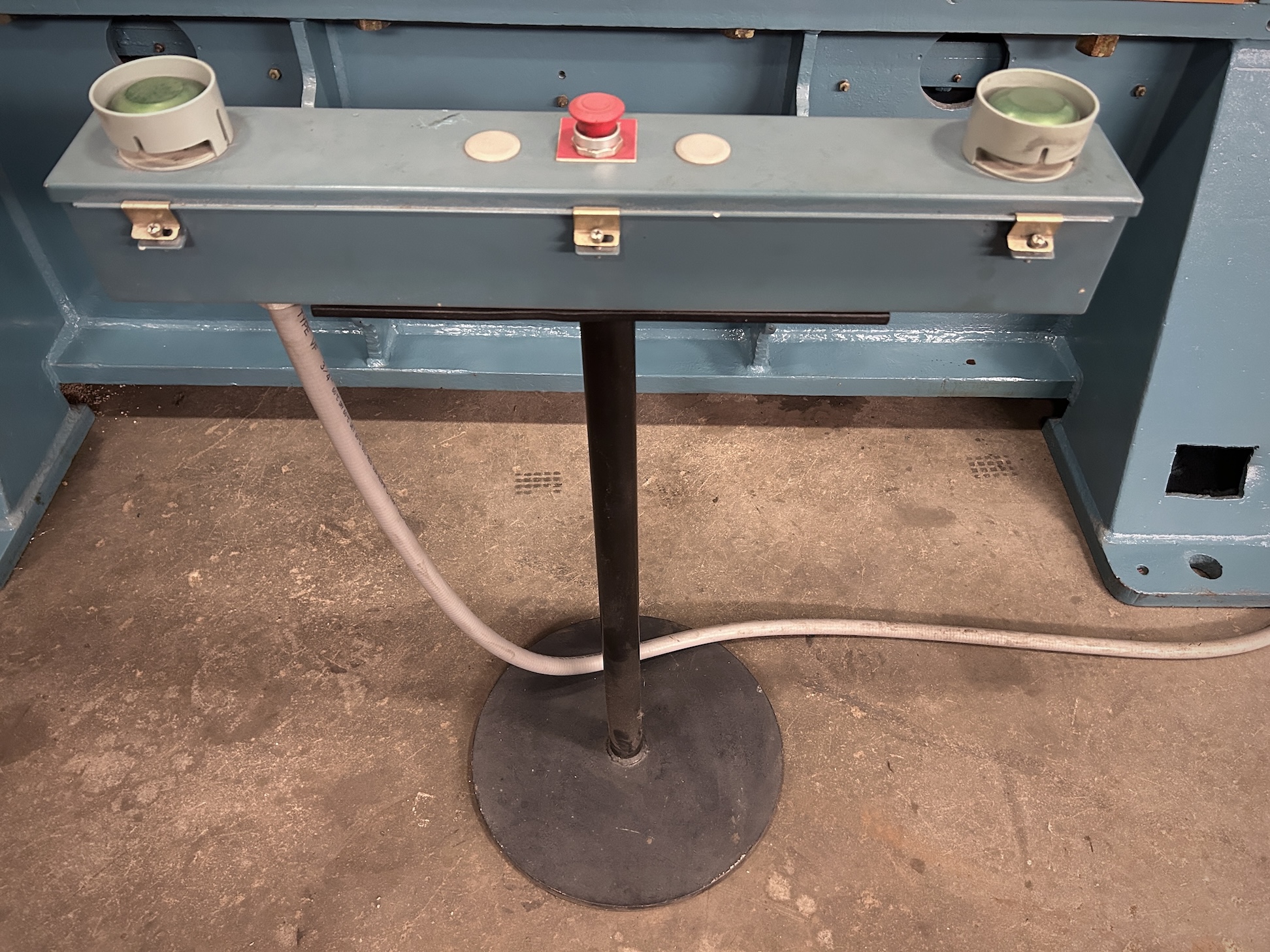

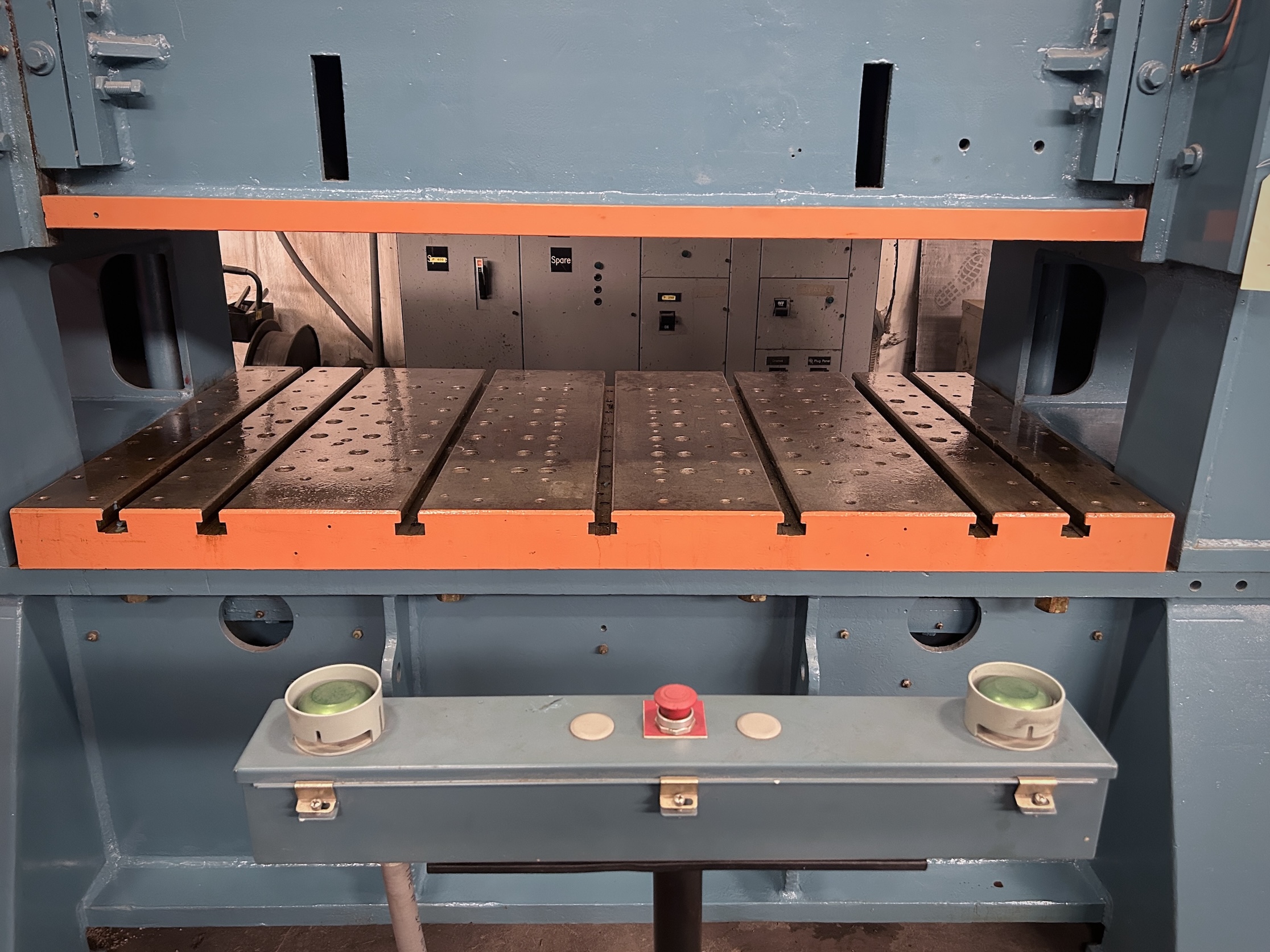

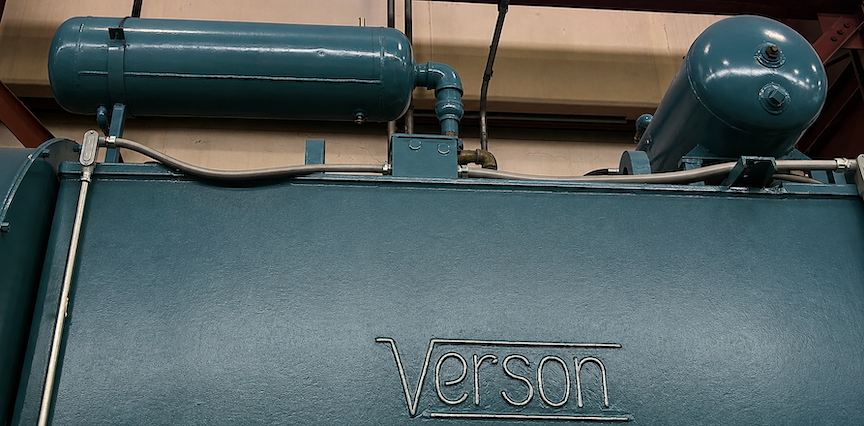

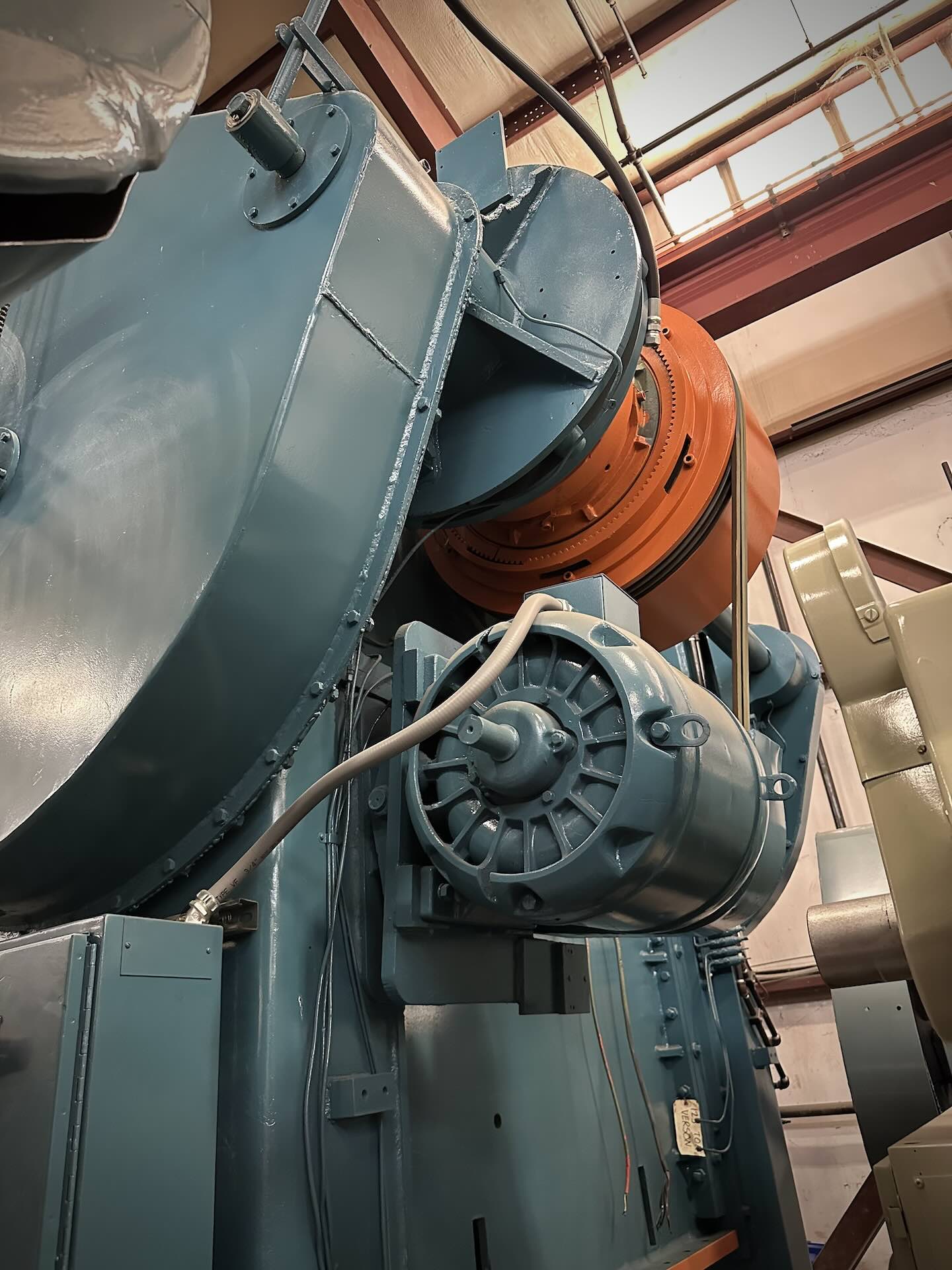

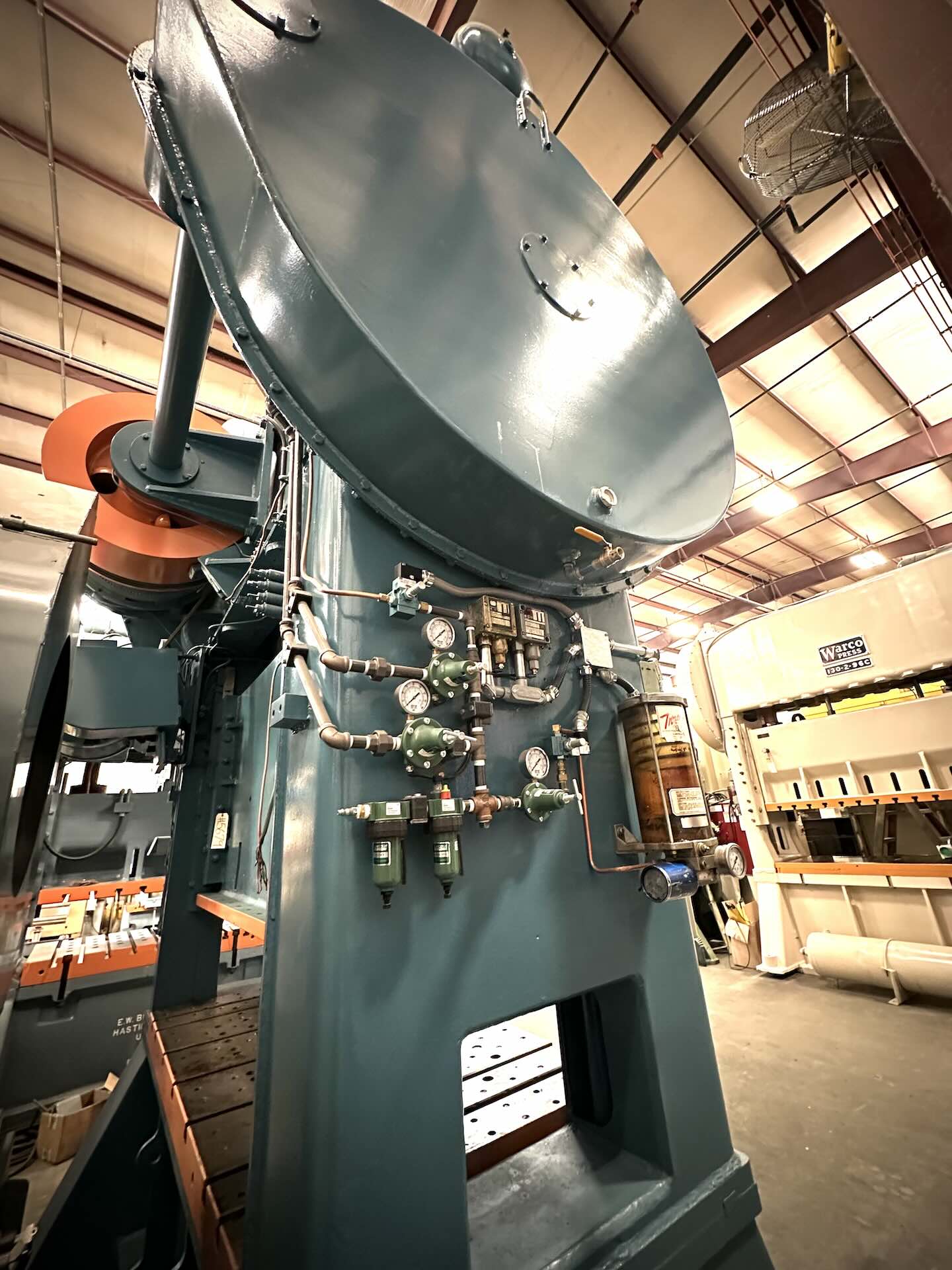

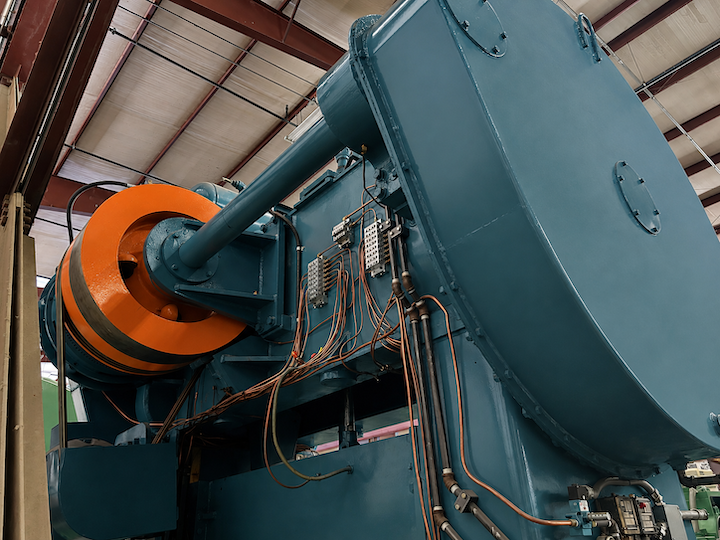

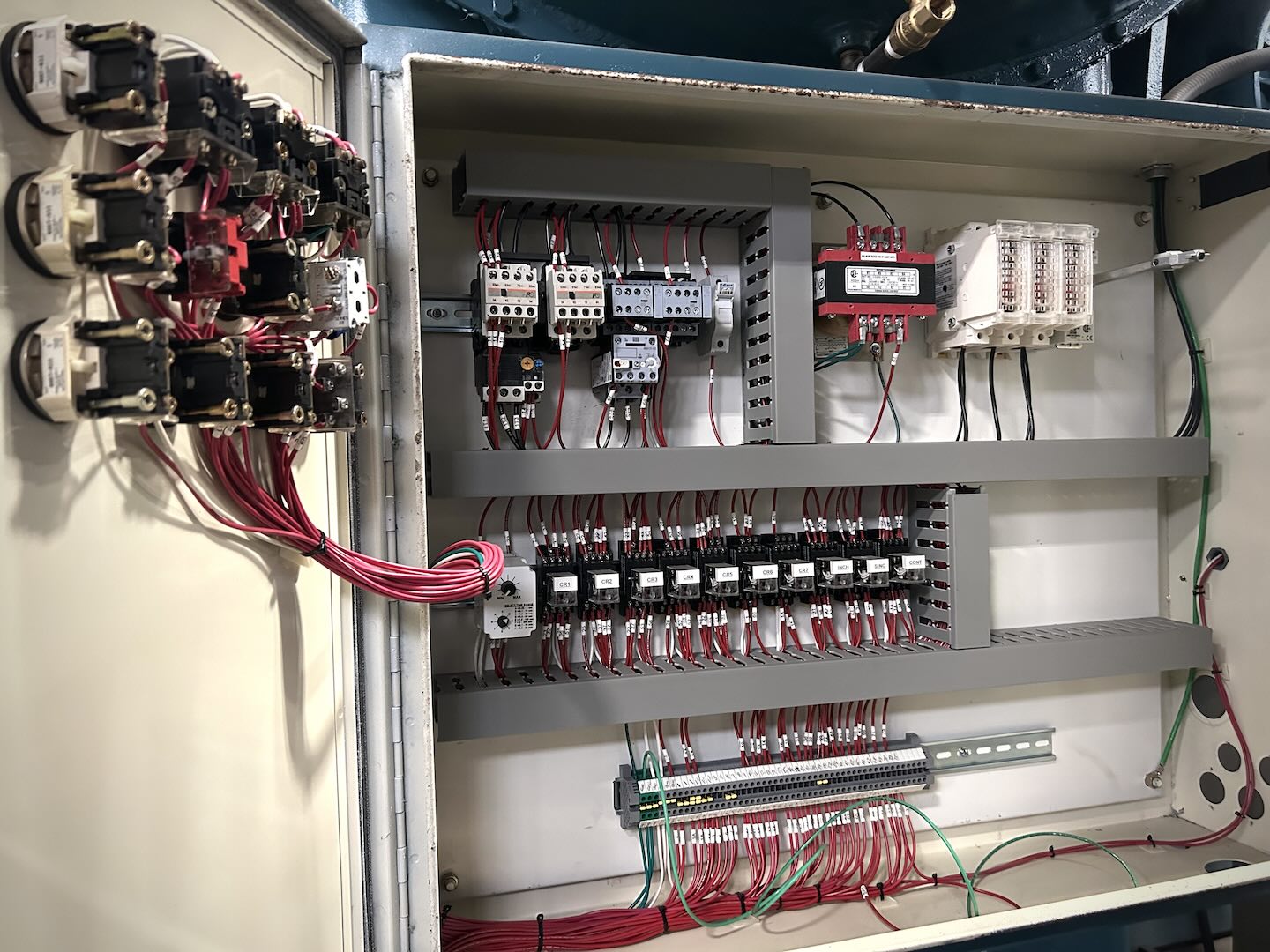

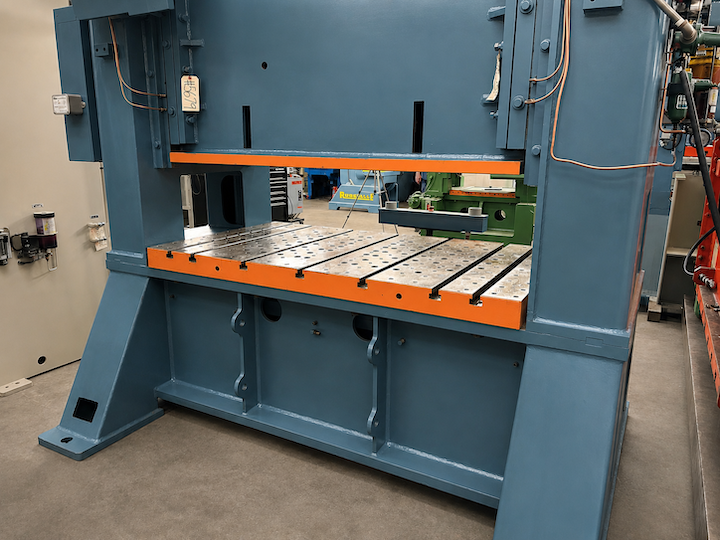

| CAPACITY | 125 tON | STROKE | 8" | SHUT HEIGHT TO BED | 20" (SDAU) | BED AREA | 72" X 40" (rl x fb) | slide adjustment | 4" (MOTORIZED) | SPEED | 40 SPM (VARIABLE SPEED AVAILABLE FOR UPCHARGE) | slide area | 67" RL X 30" FB | BOLSTER | 4" X 72" RL X 40" FB | distance between uprights | 74" | distance floor to bed | 32.75" | WINDOW SIZE | 18-1/2" FB X 14" H | CLUTCH | vERSON AIR CLUTCH & BRAKE. | ELECTRICS | 15 HP 1150 RPM 240/480V-3-60 MOTOR & MODERN RELAY BASED PRESS CONTROL (CURRENTLY INCH & SINGLE STROKE ONLY) | APPROX. DIMENSIONS | 12'7" H X 9'8" RL X 7' FB | APPROX WEIGHT | 42,000 LBS | Equipped With | FLOOR STANDING BASE, TWIN GEAR DRIVE W/GEARS IN OIL, SINGLE BACK GEARED, TIE ROD frame, KEYED FRAME, dual AIR COUNTERBALANCEs, trabon AUTOMATIC GREASE LUBRICATION SYSTEM, FLYWHEEL BRAKE, AIR CUSHION IN BASE | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
