150 Ton Federal Press • Used Federal S2-150-84-42 Press

150

150
Ton
84″
Bed R-L
10″
Stroke
Speed: 32 SPM
New in 1

1

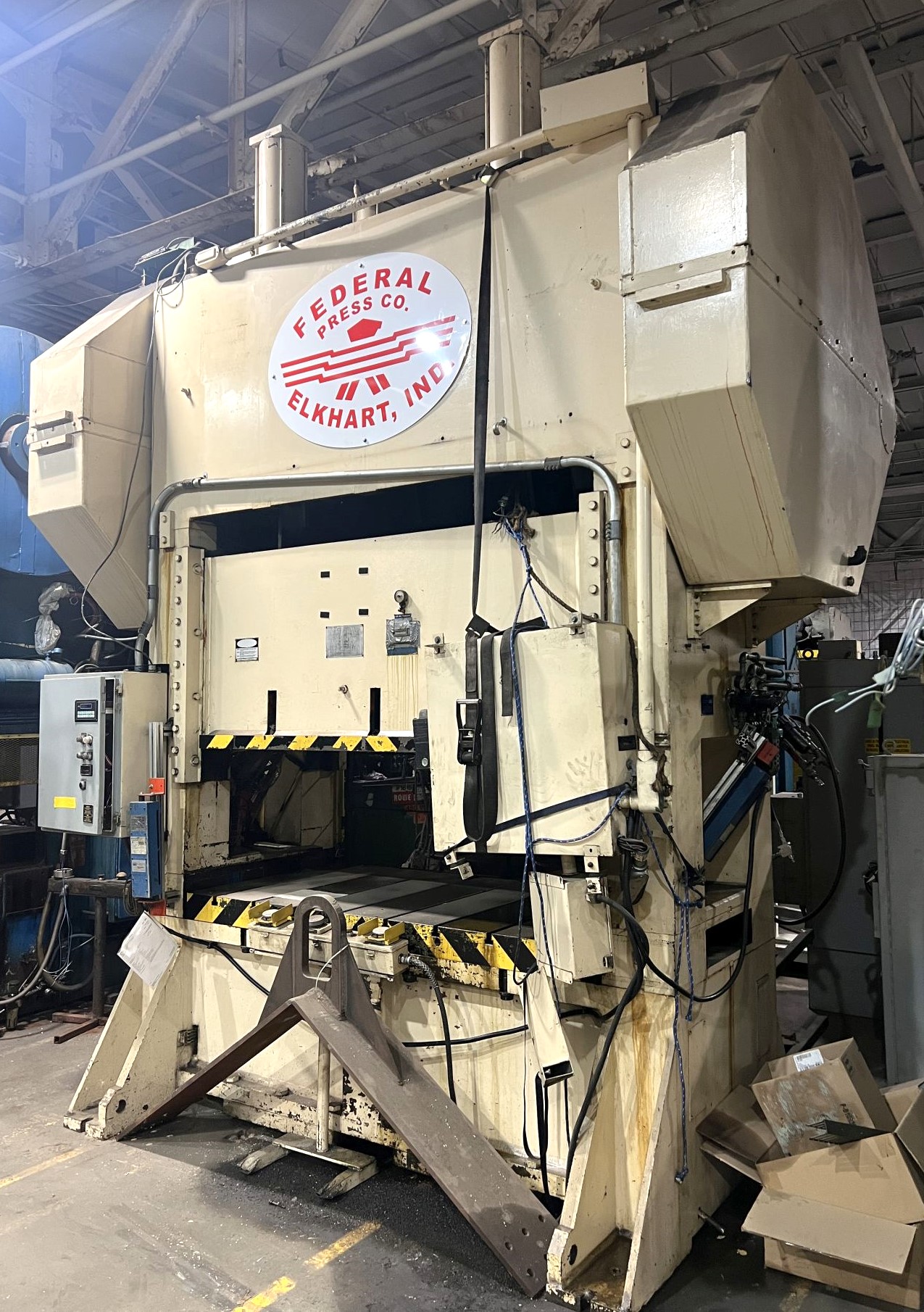

150 Ton Used Press – Straight Side Press
Model: Federal S2-150-84-42
10″ Stroke, 17″ Shut Height, 84″ x 42″ Bed, 32 SPM, 5″ Adjustment, 8″ Upright Spacers

Stamping Presses for Sale
Used Federal Mechanical Press
Machine #5244
Jackson, MI Falahee Building
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Federal
Model: Federal S2-150-84-42 Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year: 1971

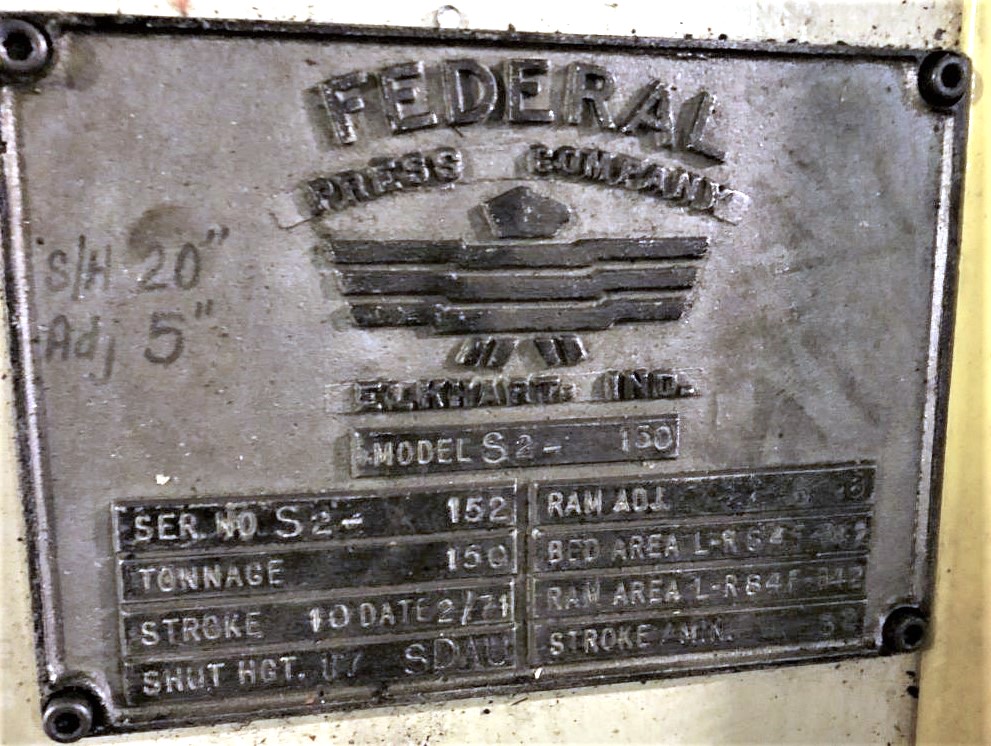

Machine #: 5244
Buy Now: $





CAPACITY 150 TONS
STROKE 10″
MAX SHUT HEIGHT TO BED 17″ SDAU (MODIFIED TO 20″)
BED AREA 84″ X 42″ (RL X FB)
SPEED 32 SPM
RAM ADJUSTMENT 8″ MOTORIZED (MODIFIED TO 5″)
RAM AREA 84″ X 42″ (RL X FB)

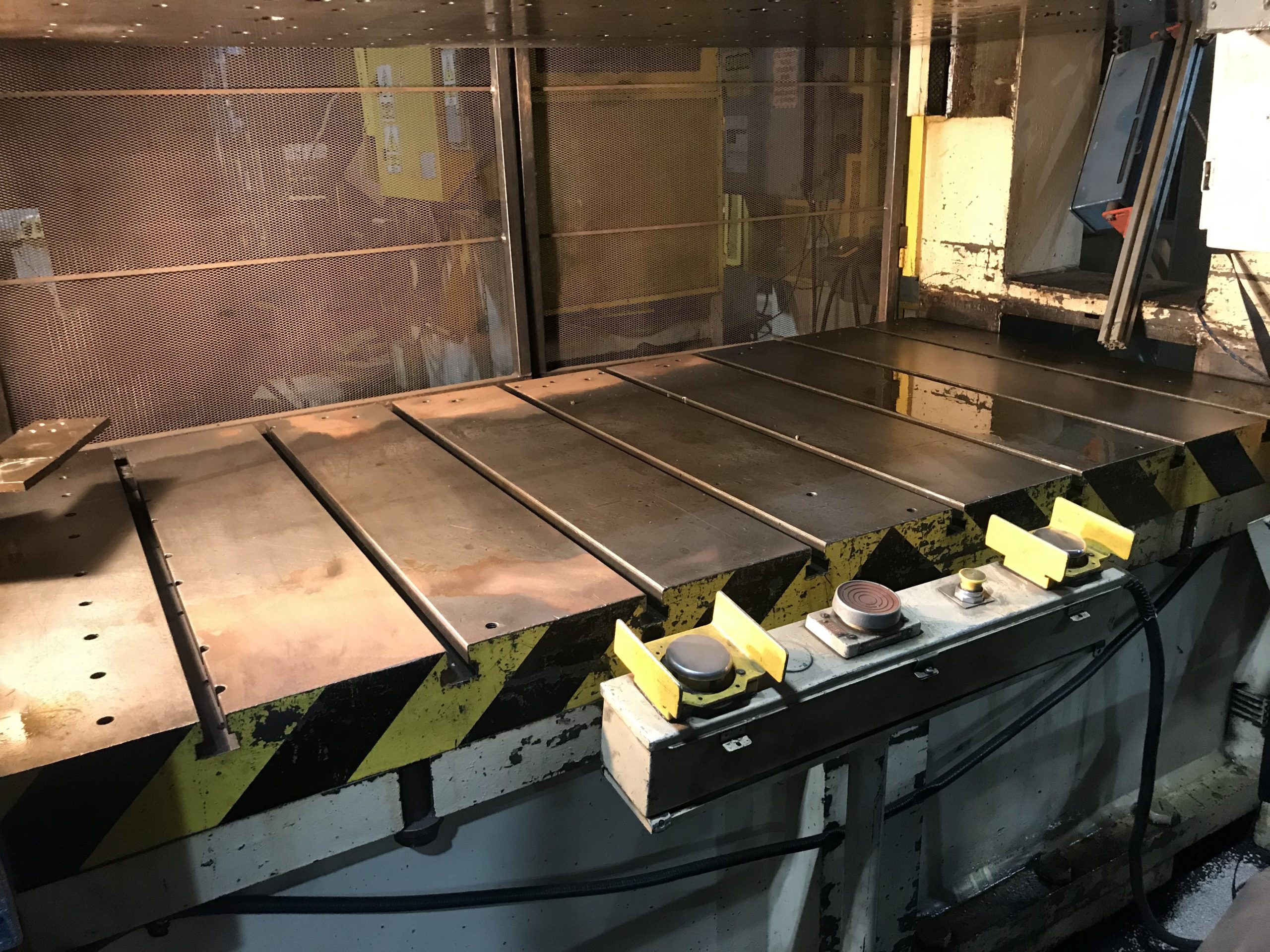

BOLSTER PLATE 84″ X 42″ (RL X FB) X 4.75″ H T-SLOTTED BOLSTER PLATE
DIST UPRIGHTS / FLOOR TO BED 86″ / 34″
WINDOW SIZE 20″ WIDE X 24″ HIGH
CLUTCH FEDERAL AIR CLUTCH & BRAKE
APPROX DIMENSIONS 156″ X 96″ (RL X FB) X 185″ HIGH
APPROX WEIGHT 63,000 LBS

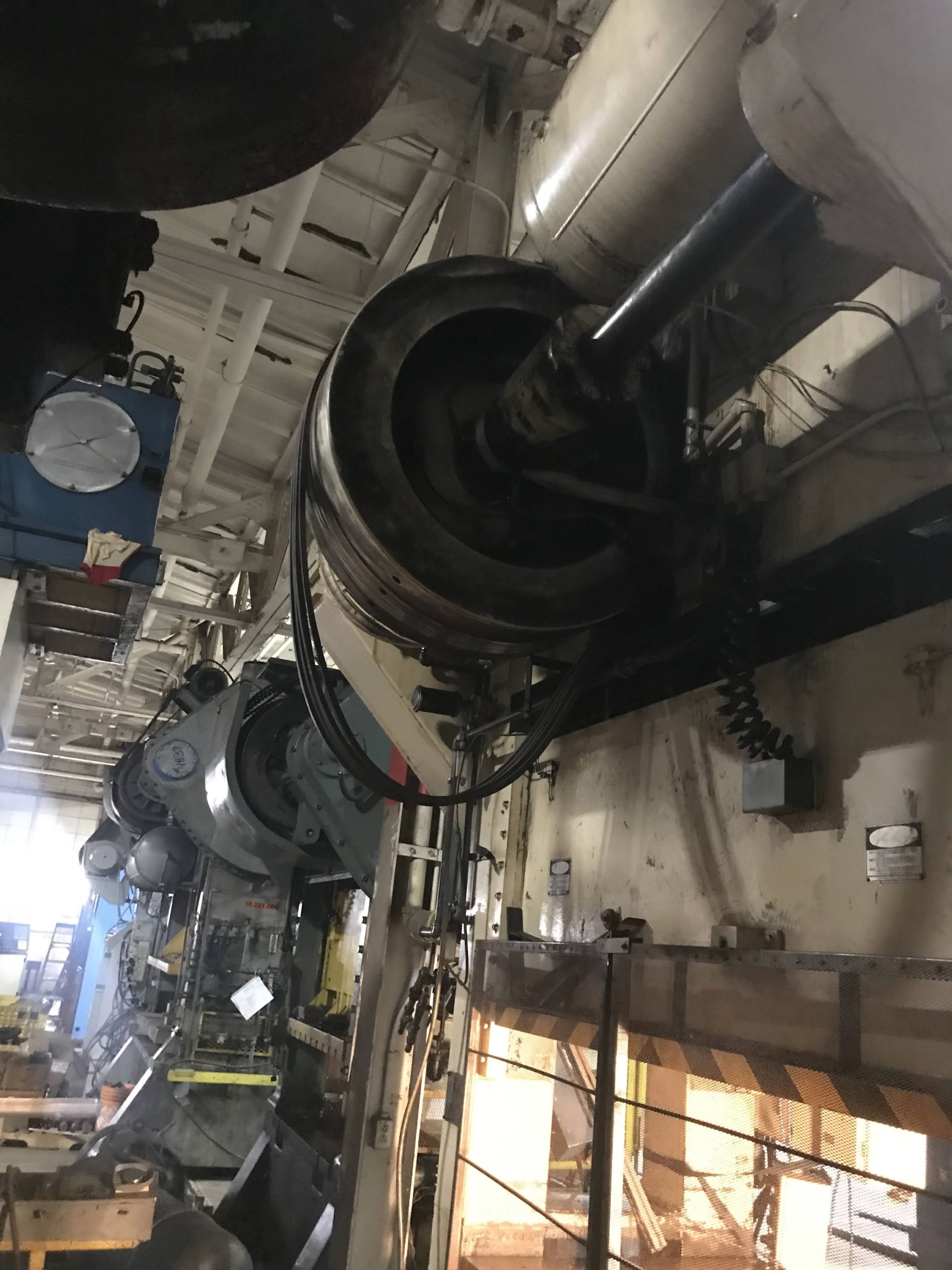

Equipped With FLOOR STANDING, 4 AIR COUNTERBALANCES, LINCOLN CENTRO-MATIC OIL LUBRICATION SYSTEM, TWIN GEAR, SINGLE BACK GEARED DESIGN, 8″ SPACERS IN UPRIGHTS
Note __
Location This used press is located in our Jackson, MI Falahee Building
