200 Ton Federal Press • Used Federal S2-200-72-48 Press

200

200
Ton
72″
Bed R-L
10″
Stroke
Speed: 25-50 SPM
New in 1

1

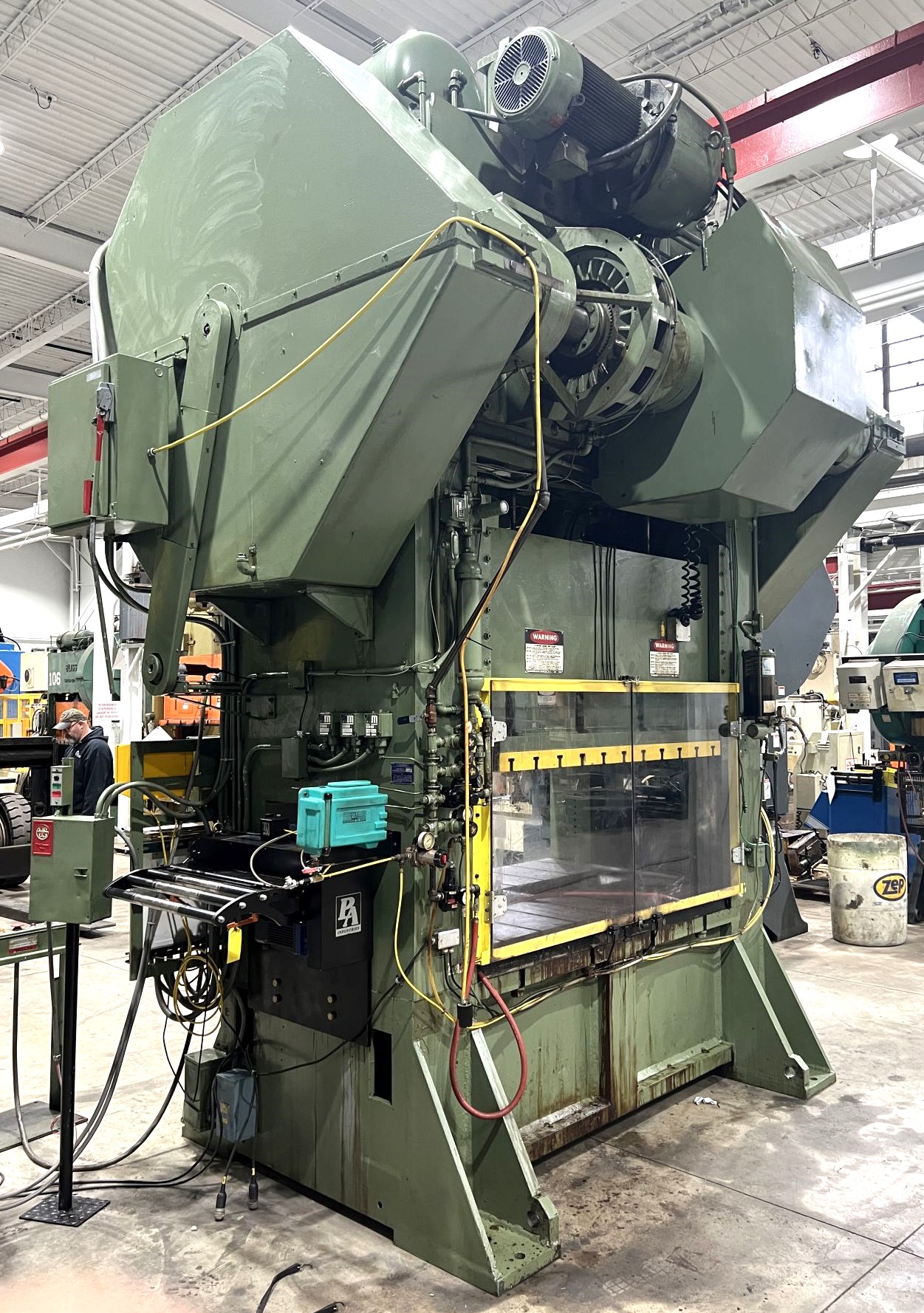

200 Ton Used Press – Straight Side Press
Model: Federal S2-200-72-48
10″ Stroke, 28″ Daylight, 72 x 48, 25-50 SPM Variable Speed, Wintriss Controls

Straight Side Double Crank Press for Sale
Used Federal Stamping Press (Mechanical)
Machine #6825
Jackson, MI Cooper Building
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Federal
Model: Federal S2-200-72-48 Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1972
Machine #: 6825
Buy Now: $





CAPACITY 200 TONS
STROKE 10″
MAX. SHUT HEIGHT TO BED 28″
RAM ADJUSTMENT APPROX. 8″ motorized

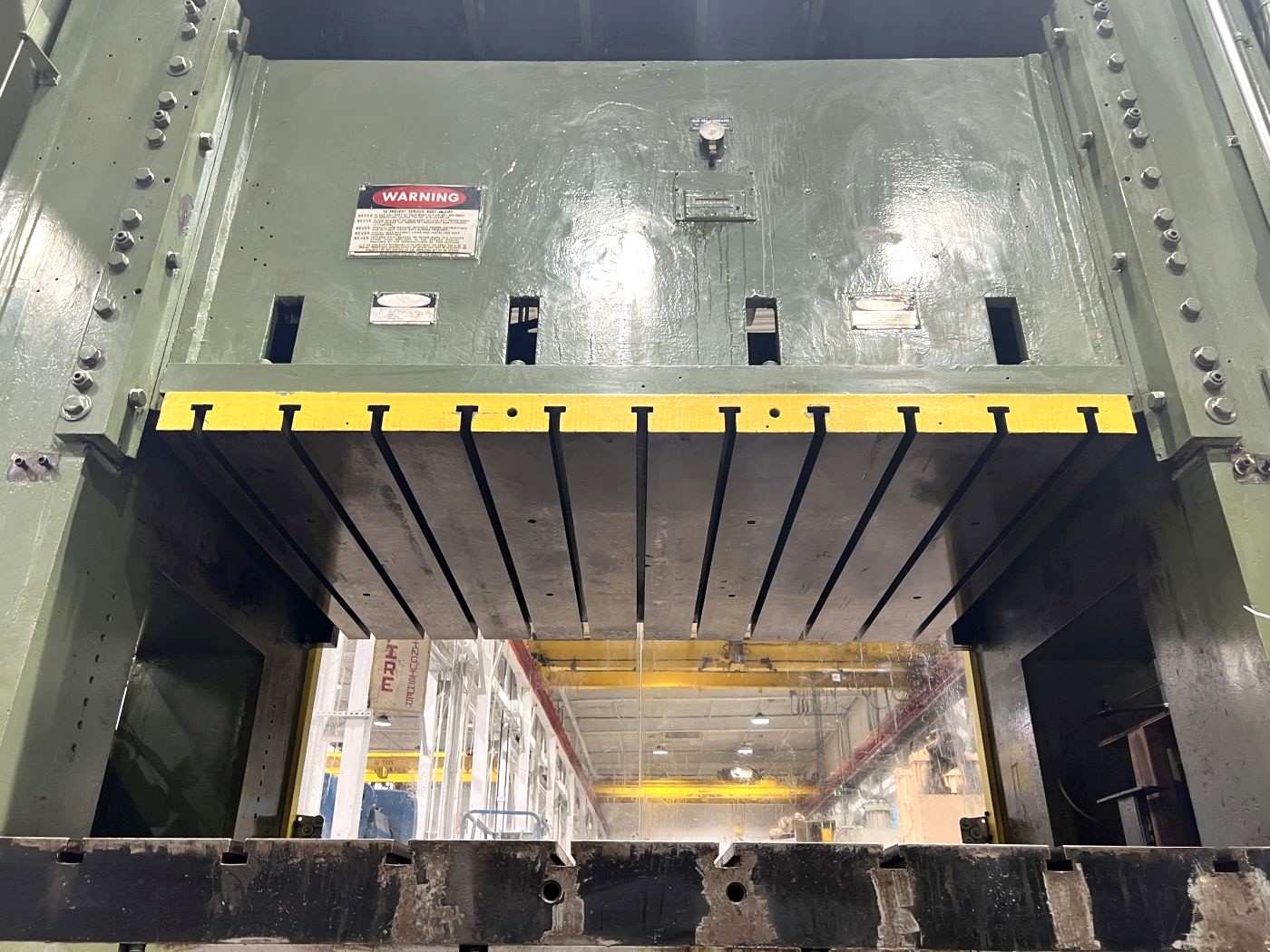

BED AREA 72″ X 48″ (RL X FB)
top BOLSTER PLATE 72″ X 48″ (RL X FB) X 3″ THICK T-SLOTTED BOLSTER PLATE
bottom bolster Plate 72″ X 48″ (RL X FB) X 5″ THICK T-SLOTTED BOLSTER PLATE with 63″ x 12″ (RL+FB) Hole
RAM AREA 66.75″ x 48″ (RL X FB)
SPEED 25 – 50 SPM
WINDOW SIZE 24″ W x 24″ H
CLUTCH FEDERAL AIR CLUTCH AND BRAKE
ELECTRIC MOTOR 25 HP 1750 rpm EDDY CURRENT drive

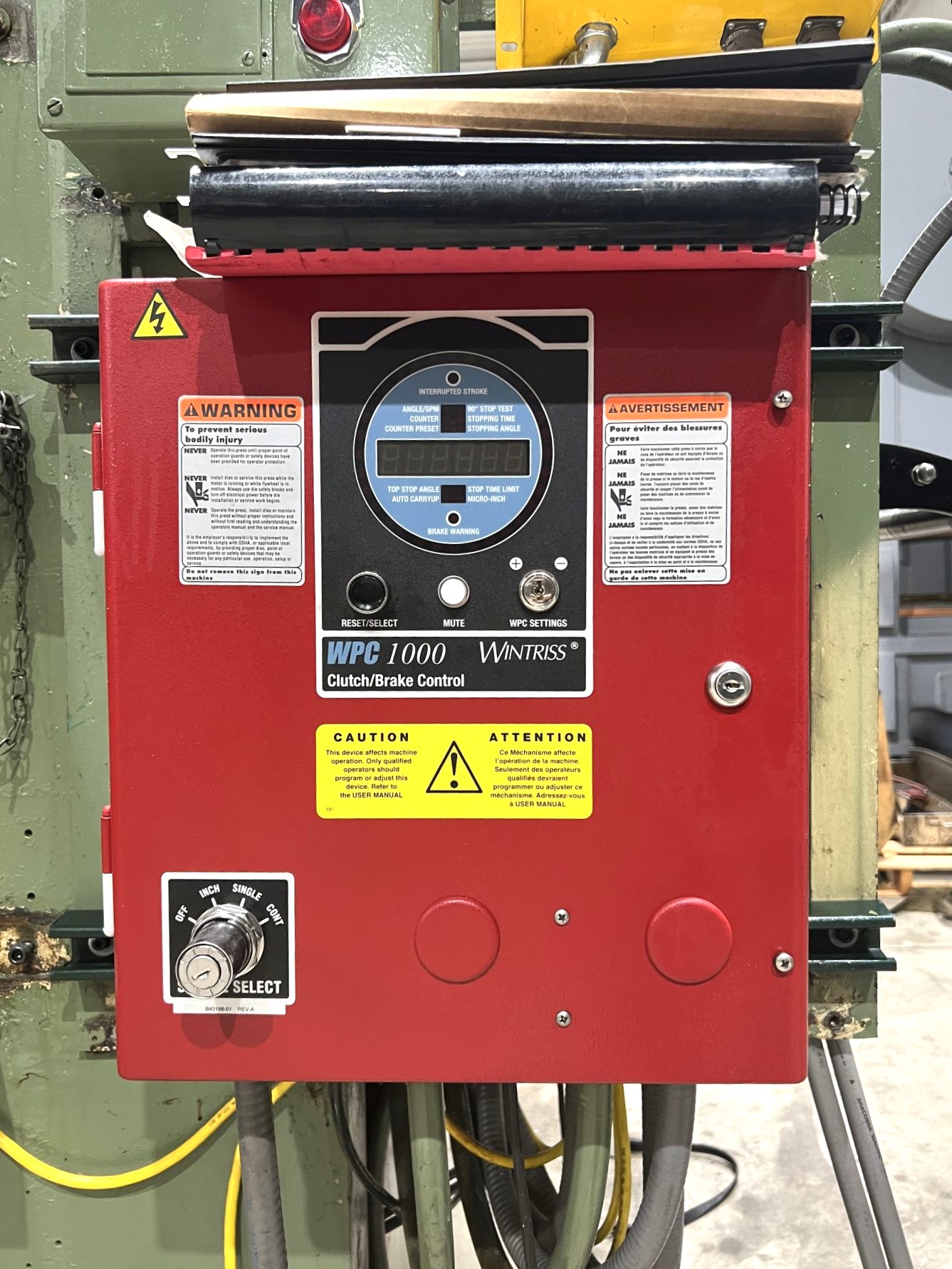

PRESS CONTROLS WINTRISS WPC 1000 CLUTCH / BRAKE CONTROL, MERLIN ISB DISPLAY
APPROX. DIMENSIONS 156″ X 104″ (LR X FB) X 186″ HIGH
APPROX. WEIGHT 82,000 LBS.
Equipped With __
Note __
Location This used press is located in our Jackson, MI Cooper Building
