Machine Specifications

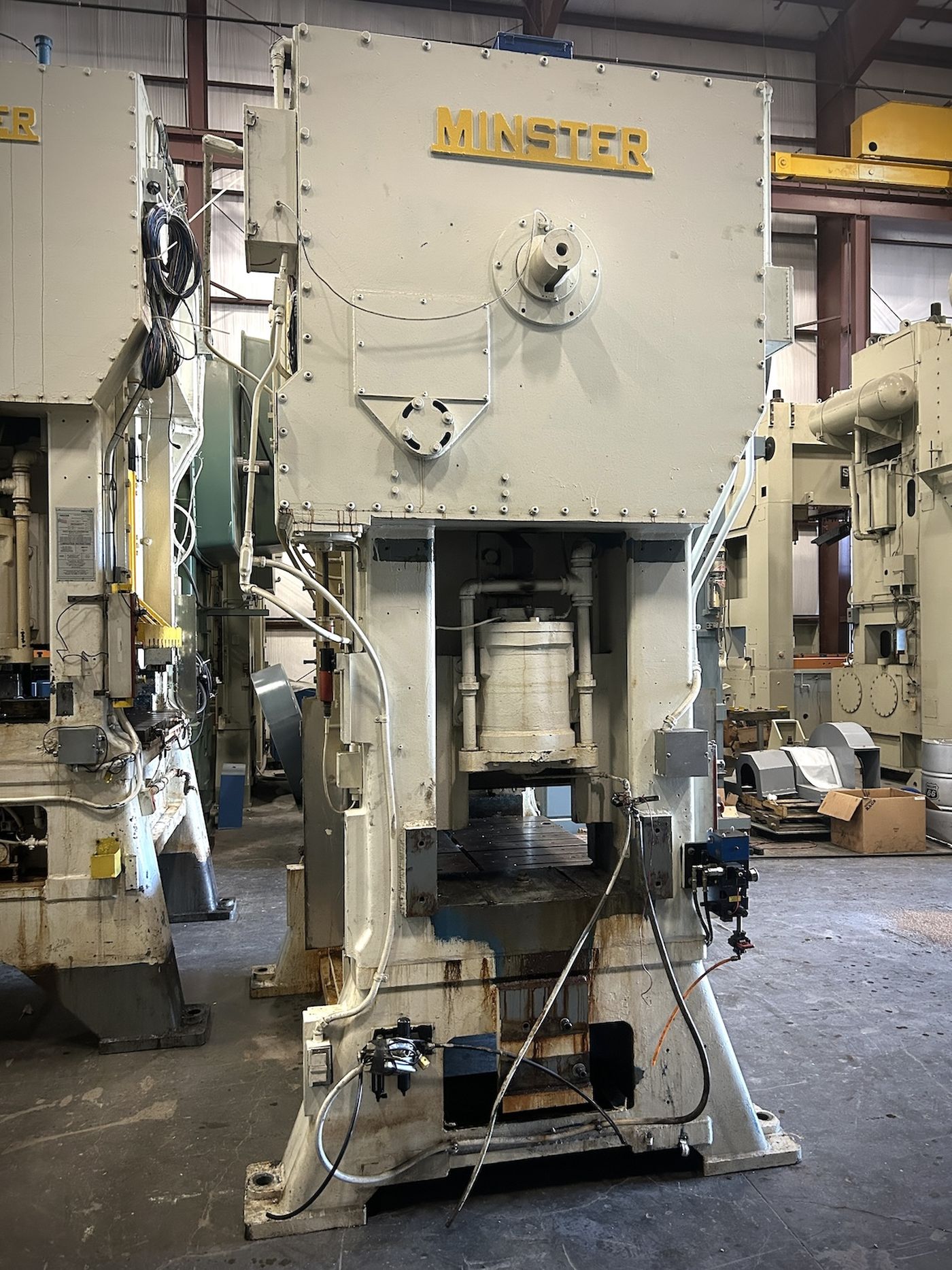

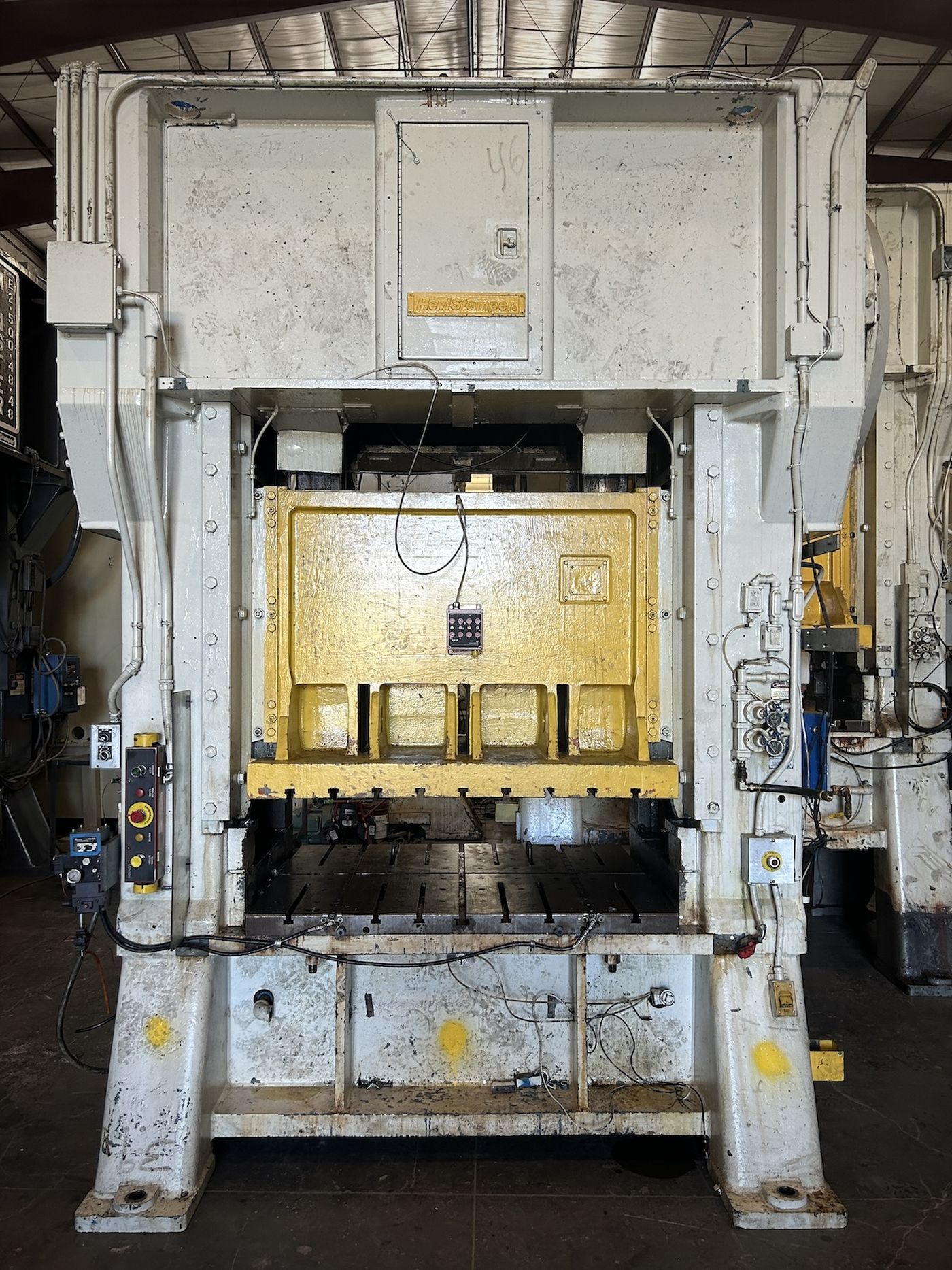

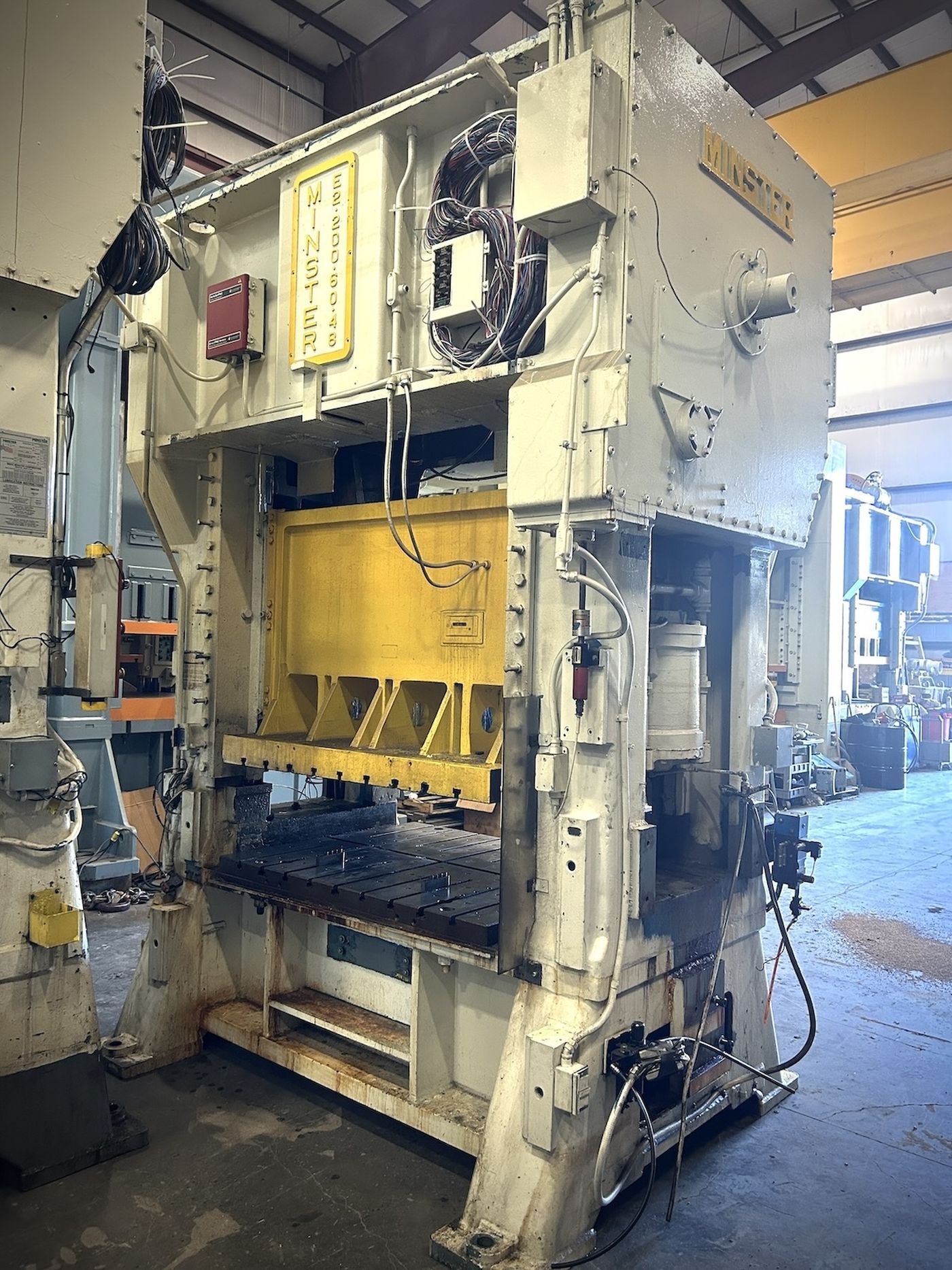

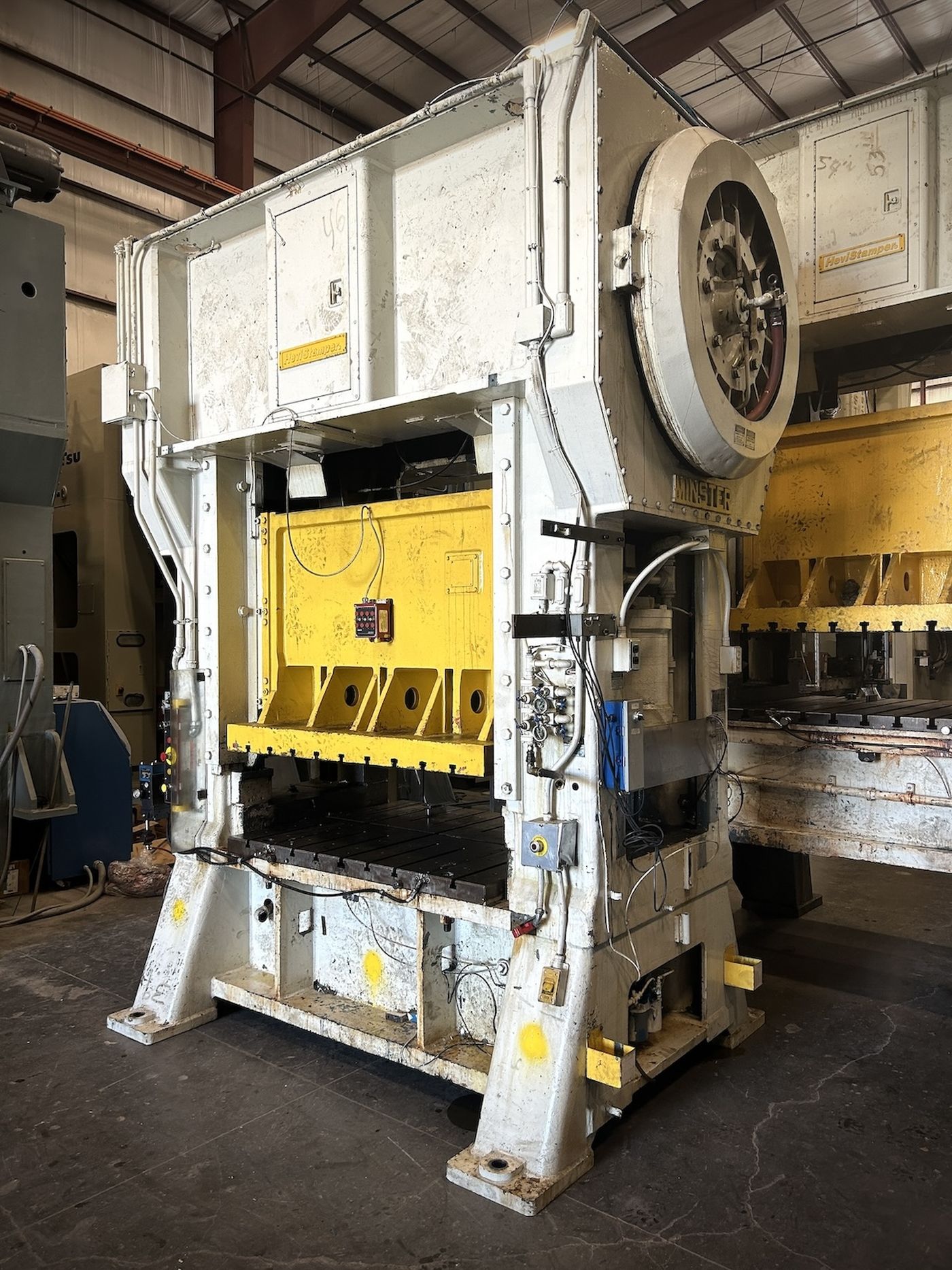

Straight Side Press for Sale
Manufacturer: Minster
Model: Minster E2-200-60-48 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1972
Machine #: 8106
Buy Now: $
| CAPACITY | 200 TON | STROKE | 6″ | MAX SHUT HEIGHT TO BED | 21″ SDAU | BED AREA | 60″ X 48″ (RL X FB) | SPEED | 60 – 120 SPM | SLIDE ADJUSTMENT | 6″ MOTORIZED | SLIDE AREA | 60″ X 48″ (RL X FB) T-SLOTTED | BOLSTER PLATE | APPROX. 5″ THICK X 60″ X 48″ (RL X FB) T-SLOTTED PLATE | DISTANCE BETWEEN UPRIGHTS | 60″ | DISTANCE FLOOR TO BED | 32″ | WINDOW SIZE | 25″ WIDE | CLUTCH | MINSTER AIR CLUTCH / BRAKE COMBINATION | ELECTRICS | 30 HP 1750 RPM 480V-3-60 MOTOR & CONTROL | APPROX DIMENSIONS | 96″ X 76″ (RL X FB) X 179″ HIGH | APPROX WEIGHT | 63,000 LBS | Equipped With | FLOOR STANDING, TIE ROD FRAME, CAST IRON FRAME | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
