Machine Specifications
Straight Side Press for Sale
Manufacturer: Komatsu

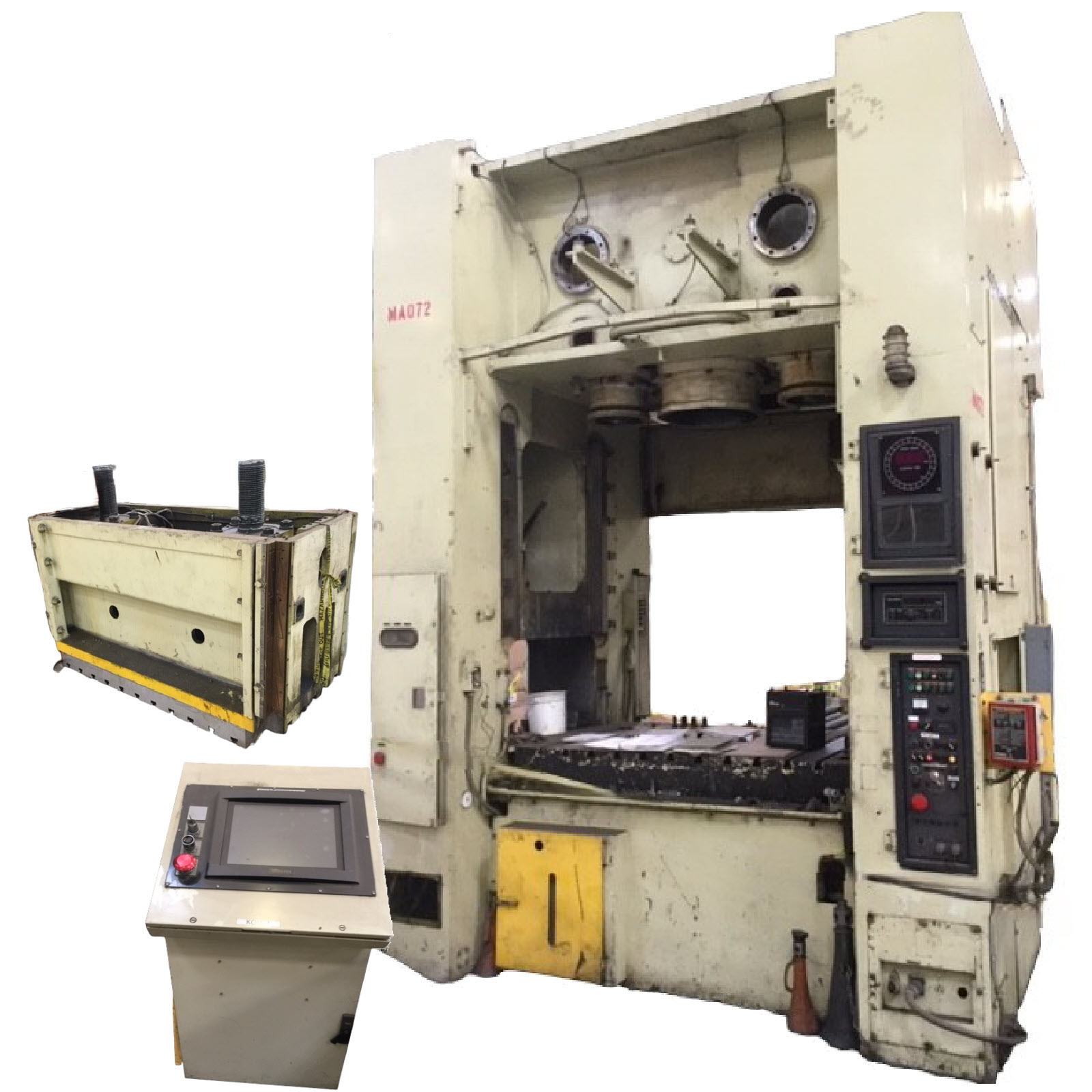

Model: Komatsu E2M-300 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1985
Machine #: 5561
Buy Now: $
| capacity | 330 us tons | stroke | 7.9″ | max die height | 21.7″ SDAU over 7.9″ h bolster | bed area | 72.8″ rl x 43.3″ fb | speed | 30 – 80 spm | slide adjustment | 3.9″ motorized | slide area | 72.8″ rl x 35.4″ fb | bolster plate | 7.9″ h x 72.8″ rl x 43.3″ fb (t-slot) | distance between uprights | 81.5″ | distance floor to bed | 37.5″ | window size | 36″ w x 29″ h | clutch | komatsu air clutch / brake combination | electrics | 50 hp 1750 480v-3-60 motor & komatsu control | approx dimensions | 180″ h x 128″ rl x 120″ fb | approx weight | 78,000 lbs | Equipped With | floor standing, single back geared, air counterbalances | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
