35 Ton South Bend Johnson Press • Used South Bend Johnson 35 FW-AC Press

35

35
Ton
24"
Bed R-L
2.5"
Stroke
Speed: - 150 SPM
Model: 35 FW-AC South Bend Johnson

1
Year: 1
2.5" Stroke, 11" Shut Height, 24" x 15" Bed Area, 150 SPM

C Frame Press for Sale
Used Gap Frame Presses
Used South Bend Johnson Punch Press (Mechanical) for Sale
Machine #5436
Jackson, MI Cooper Building
Sale Price: $
Machine #: 5436 Categories: , , Manufactuer:

Description

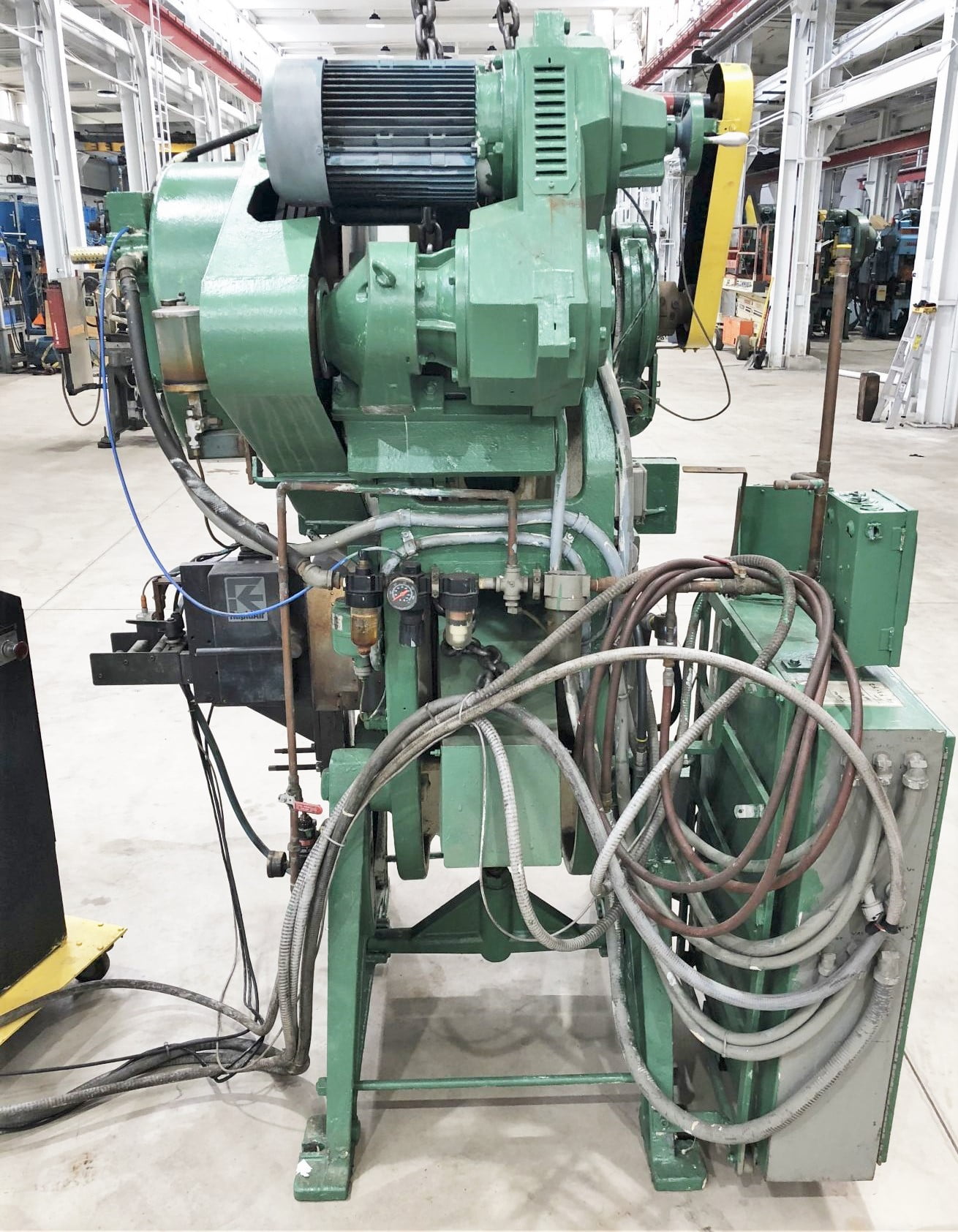

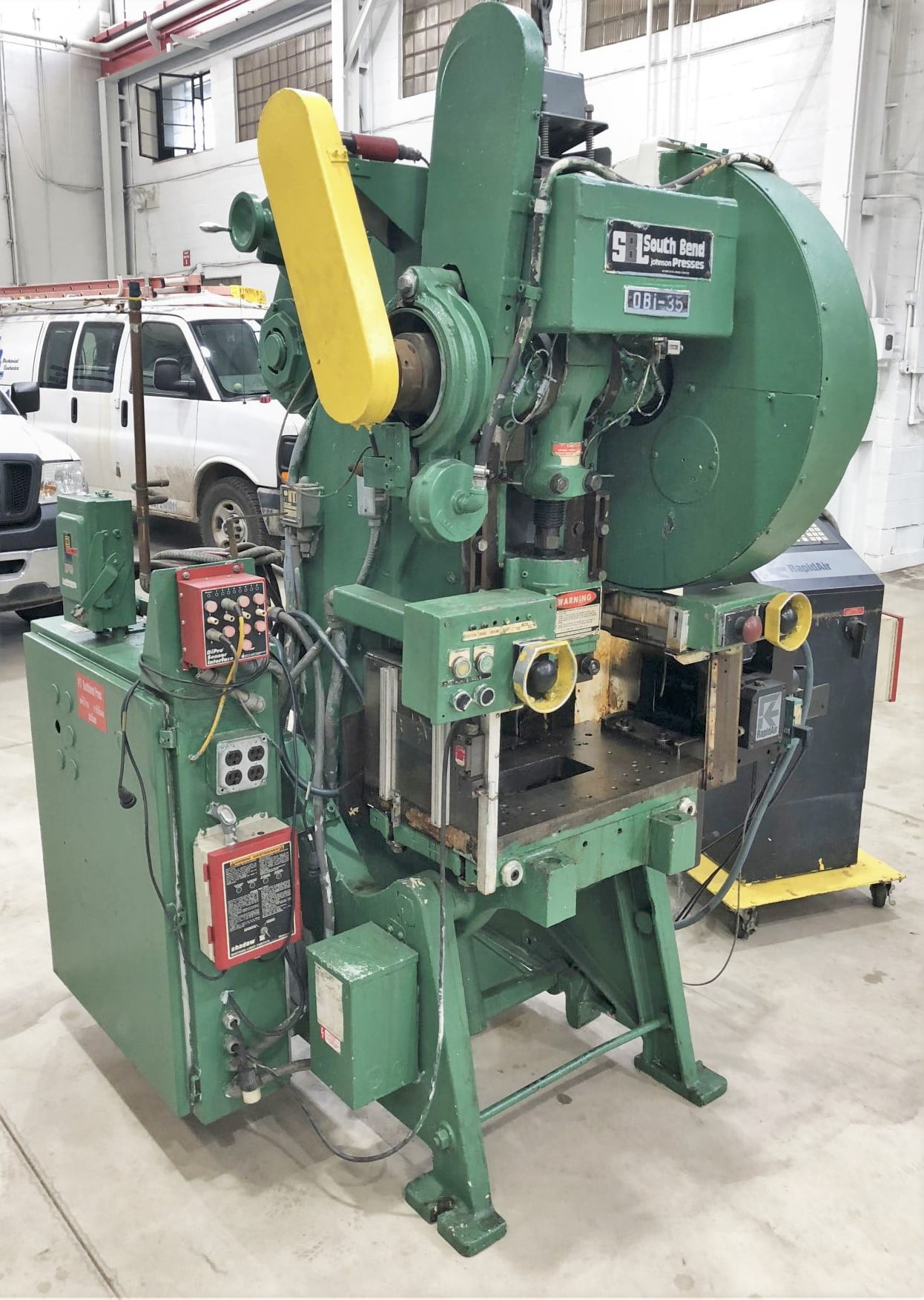

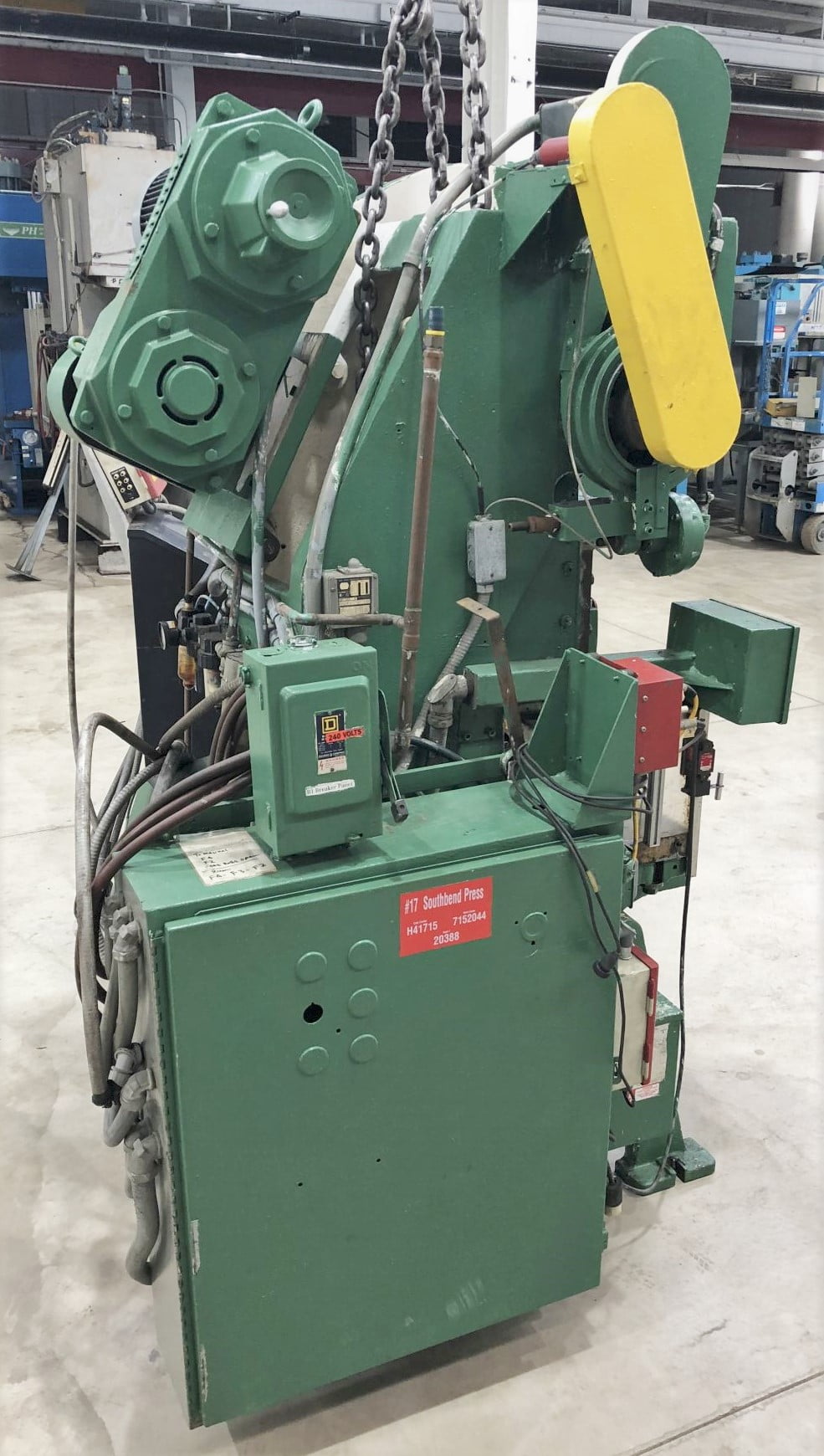

C Frame Press • Used 35 Ton Press for Sale

Manufacturer: South Bend Johnson
Model: South Bend Johnson 35 FW-AC Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1979
Machine #: 5436
Buy Now: $





CAPACITY 35 TONS
STROKE 2.5"
MAX. SHUT HEIGHT TO BED 11" SDAU
BED AREA 24" X 15" (RL X FB)
RAM AREA 10.25" X 8" (RL X FB)
BOLSTER PLATE 24" X 15" (RL X FB) X 2" THICK WITH 10.25" X 4.25" HOLE IN CENTER
RAM ADJUSTMENT 2.5" - MANUAL
SPEED 150 SPM
CLUTCH AIR CLUTCH AND BRAKE
MOTOR 7.5 HP 3 PHASE 60 HZ 230/460 V SEW-EURODRIVE, INC MOTOR
CONTROLS CUTLER HAMMER RELAY LOGIC CONTROLS
DISTANCE BETWEEN UPRIGHTS 10"
MEASUREMENT FROM FLOOR TO BED 29"
OVERALL DIMENSIONS --
APPROX. WEIGHT --
Equipped With WINTRISS CONTROLS RESOLVER MODEL 4253401
Note __
Location This Used Press is Located in Our Jackson, MI Cooper Building
