400 Ton CMC / Bliss Press • Used CMC / Bliss SE1-400 Press

400

400
Ton
60″
Bed R-L
10″
Stroke
Speed: 20-40 SPM
New in 1

New Controls, New Strap Bearing, New Connection Pin, Rebuilt Clutch & Brake, Squared Ram

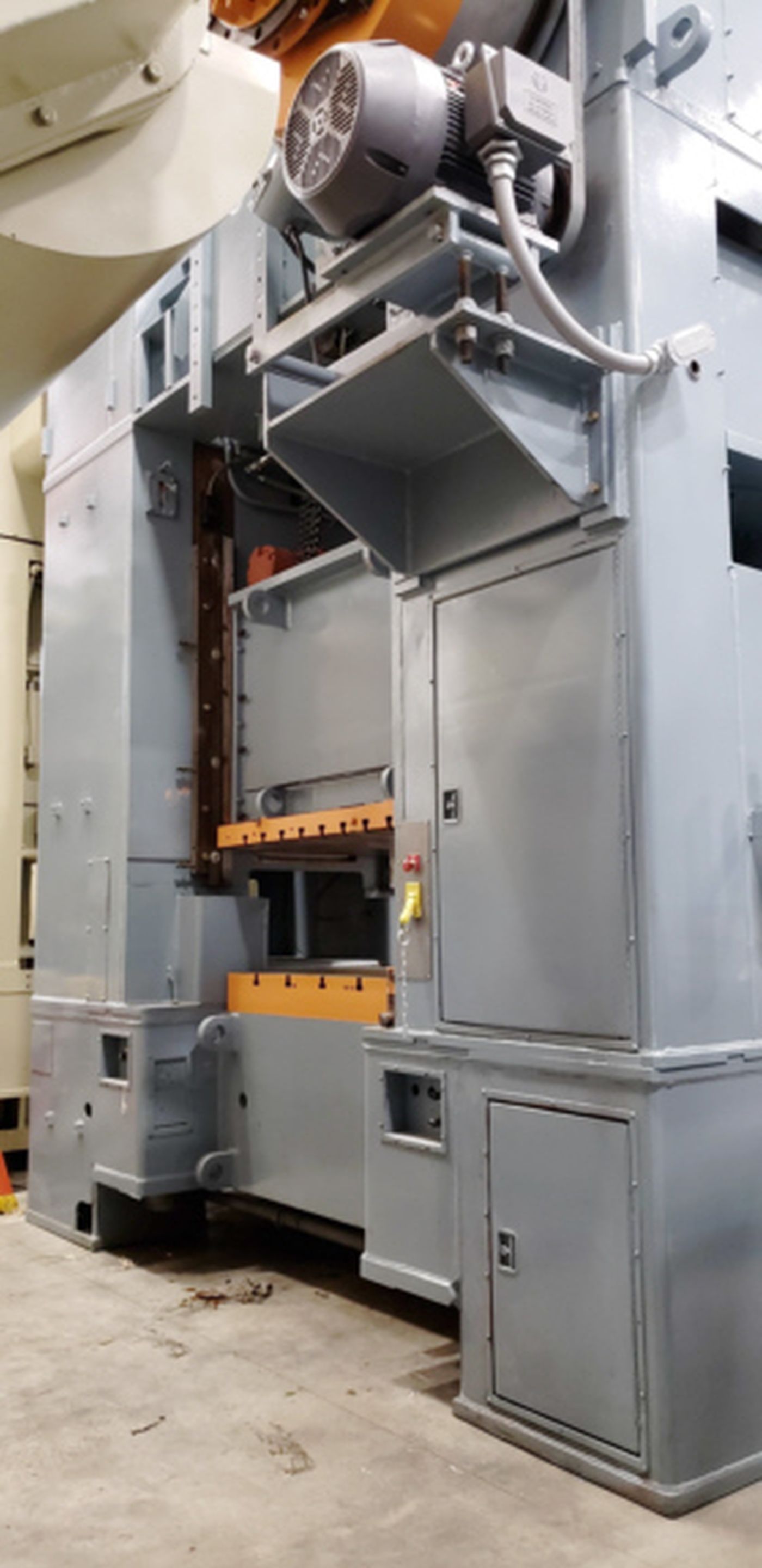

400 Ton Used Press – Straight Side Single Crank Press
Model: CMC / Bliss SE1-400
10″ STR, 32″ SH, 60X48 BED, 20-40 SPM, 8″ ADJ, RECONDITIONED & UNDER POWER

Stamping Presses for Sale
Used CMC / Bliss Mechanical Press
Machine #5235
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Single Crank Press for Sale

Manufacturer: CMC / Bliss
Model: CMC / Bliss SE1-400 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1978
Machine #: 5235
Buy Now: $





CAPACITY: 400 TONS
STROKE: 10″
SHUT HEIGHT TO BED 32″ (SDAU)
BED AREA 60 ” RL X 48″ FB
SPEED: 20 – 40 SPM (VARIABLE)
RAM ADJUSTMENT 8″ ( MOTORIZED)
RAM AREA: 67″ RL X 48″ FB (T-SLOTTED)
WINDOW SIZE: 28-1/2″ FB X 18″ H

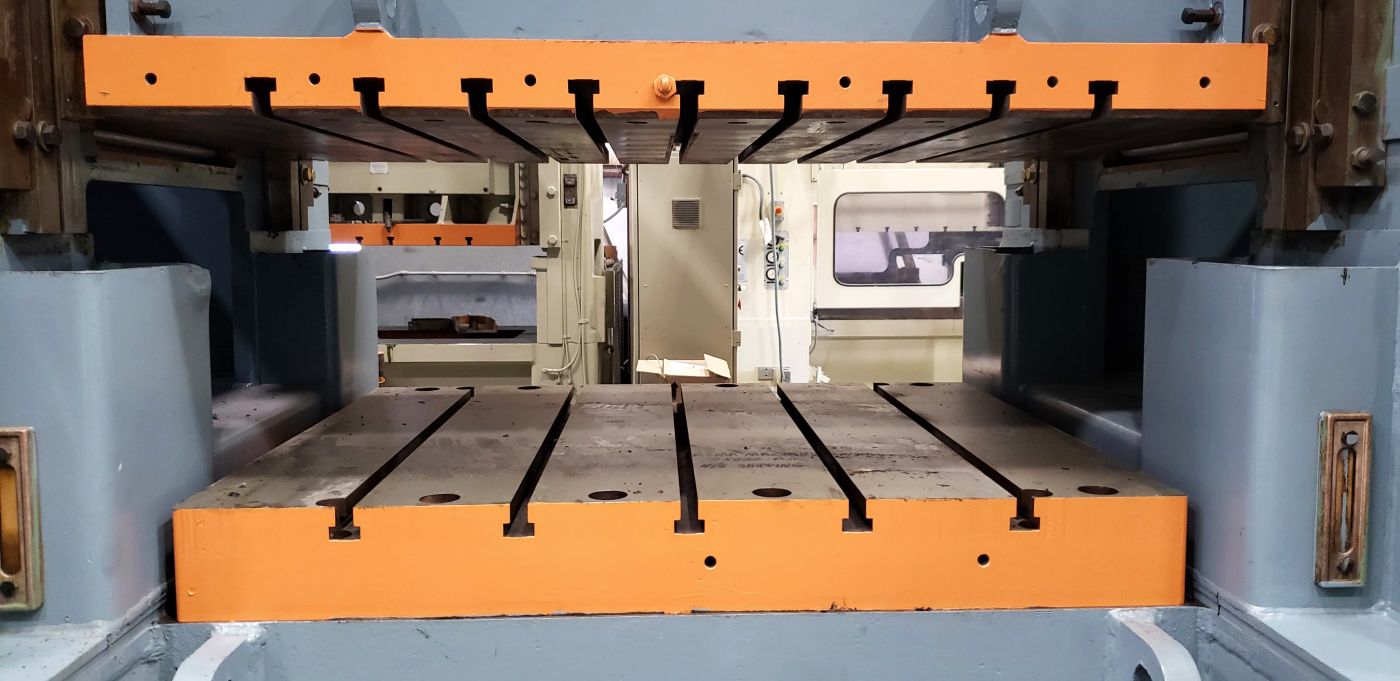

BOLSTER SIZE: 6-1/2″ X 60″ RL X 48″ FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED: 62″ / 43″
CLUTCH: AIR CLUTCH & BRAKE

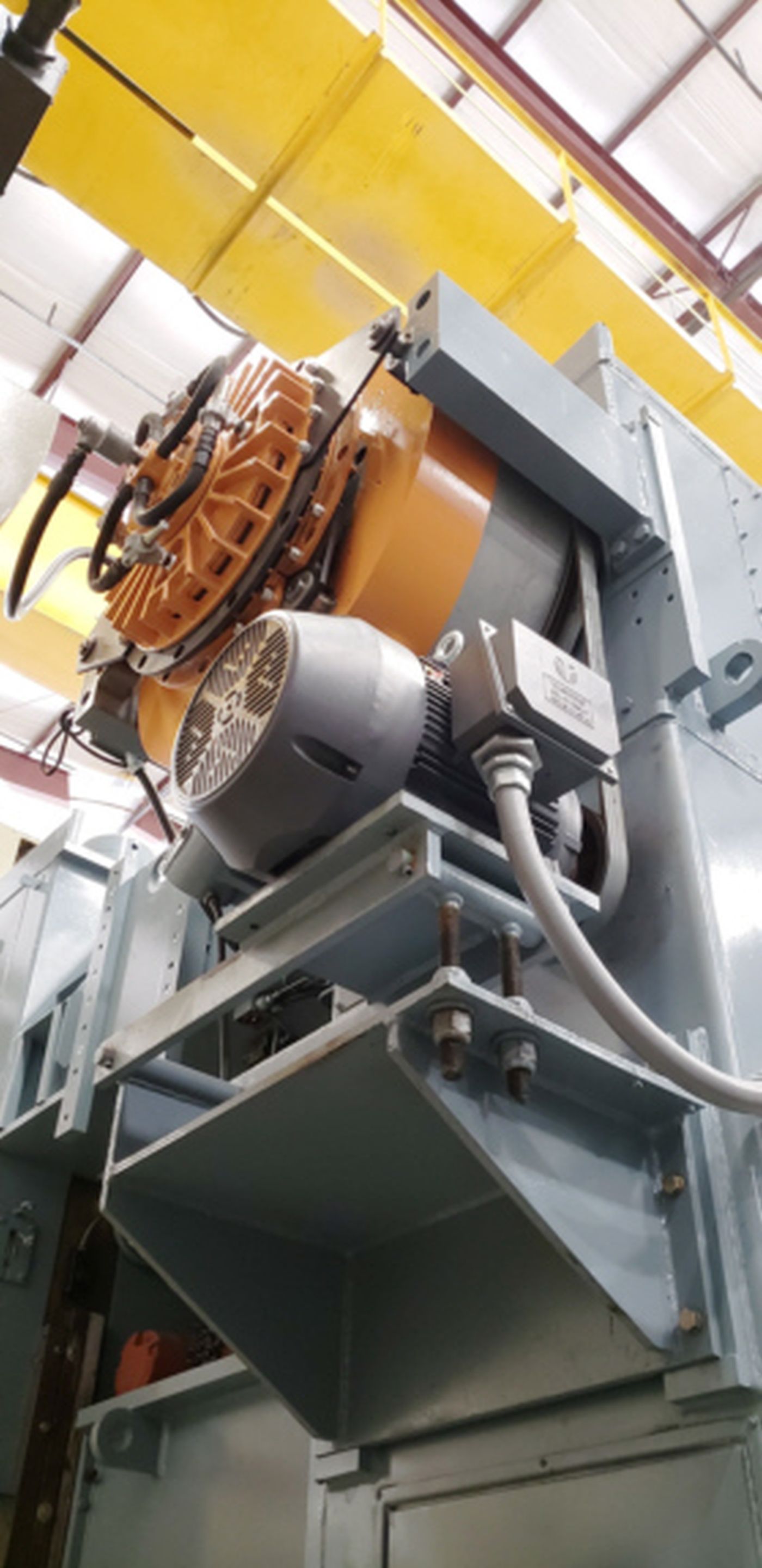

ELECTRICS: 60 HP 1800 RPM 480V-3-60 MOTOR MAIN MOTOR & NEW CIECO PRESS CONTROL
APPROX DIMENSIONS: 17′ H X 13’11” RL X 12′ FB
APPROX WEIGHT: 150,000 LBS.
Equipped With TIE ROD, KEYED FRAME STEEL FRAME CONSTRUCTION AUTOMATIC RECIRCULATING OIL LUBRICATION SYSTEM AIR COUNTERBALANCED RAM FLOOR STANDING BASE ECCENTRIC STYLE, GEARS OPERATE IN OIL HYDRAULIC OVERLOADS

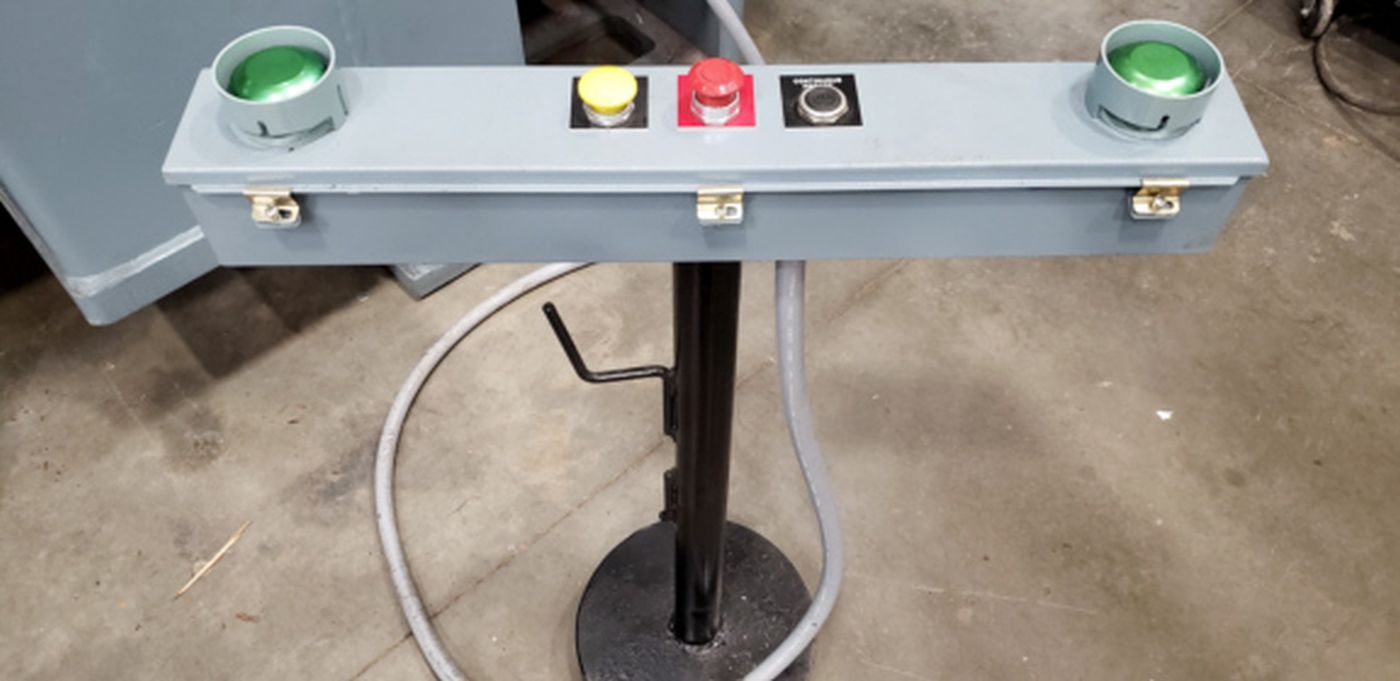

Note RECONDITIONING COMPLETED: REBUILT AC & BRAKE NEW STRAP BEARING NEW LOWER RAM CONNECTION PIN RAM WAS SQUARED BOLSTER GROUND NEW CIECO 1000 PRESS CONTROLS
Location This used press is located in our Columbia, TN Warehouse
