Machine Specifications
OBI Press for Sale

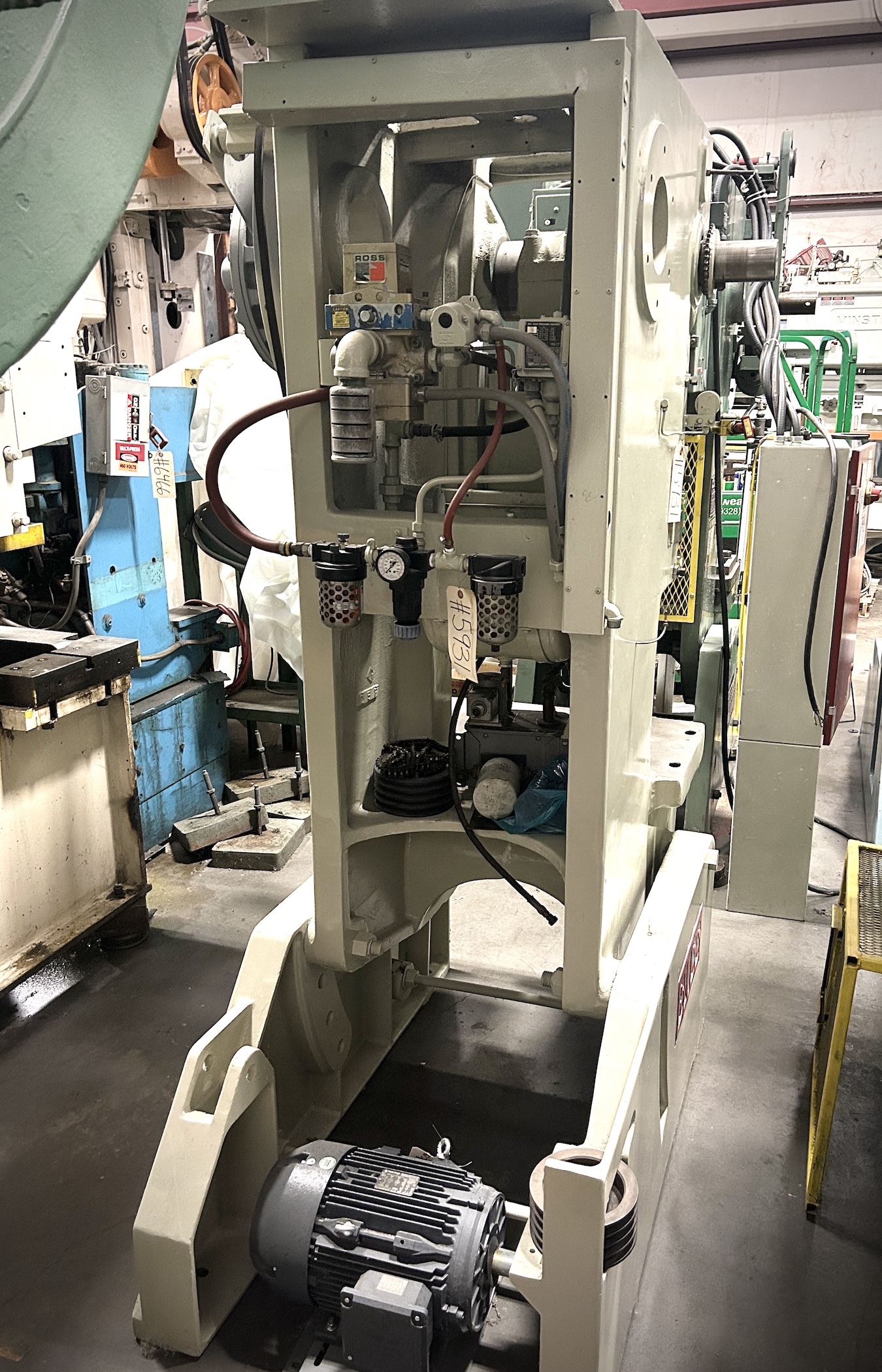

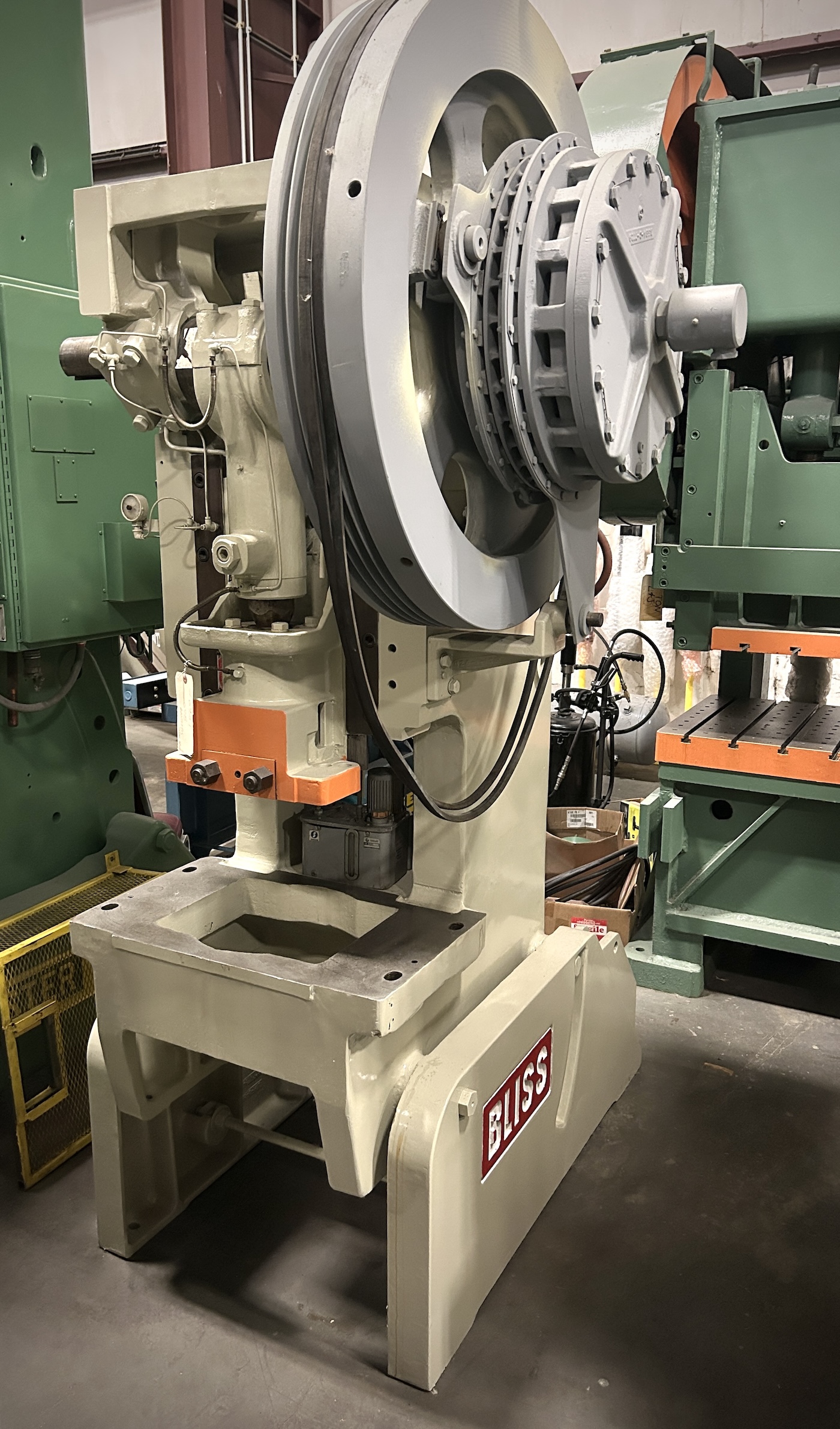

Manufacturer: Bliss
Model: Bliss C-45 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1976
Machine #: 5931
Buy Now: $

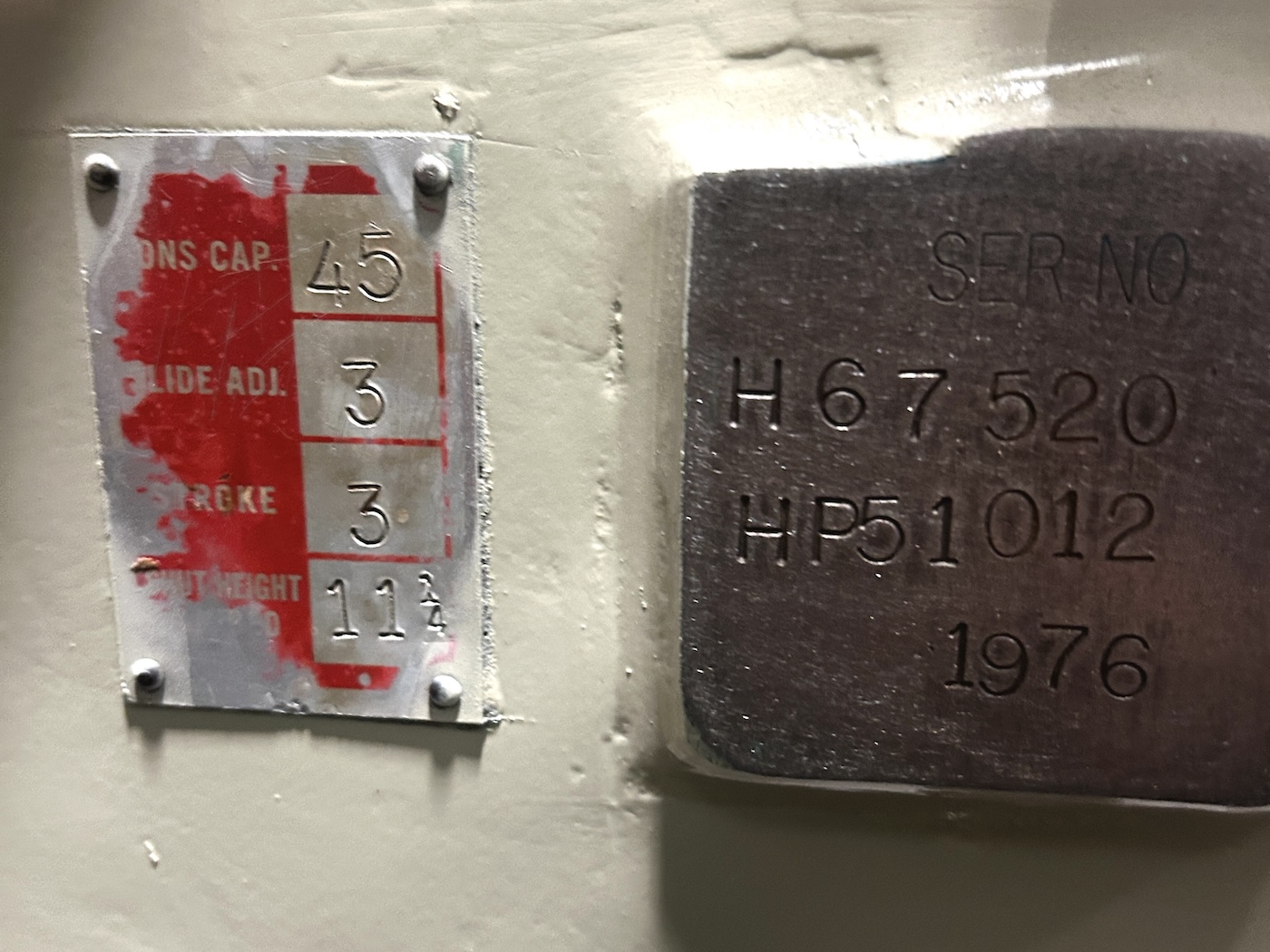

CAPACITY | 45 TON | STROKE | 3″ | MAX SHUT HEIGHT TO BED | 11.25″ SDAU | BED AREA | 29.5″ X 18″ (rl x FB) | SPEED | 100 SPM (50 – 100 spm POSSIBLE for UPCHARGE) | RAM ADJUSTMENT | 3″ MANUAL | RAM AREA | 15.25″ RL X 11.25″ FB | BOLSTER PLATE | NONE CURRENTLY. WILL INCLUDE WITH RECONDITIONED PRICE | DIST UPRIGHTS / FLOOR TO BED | 14″ / 41″ | CLUTCH | BLISS AIR CLUTCH / BRAKE COMBINATION | ELECTRICS | will include new techtop 5 HP 1150 RPM 208-240/480V-3-60 MOTOR & new cieco 1100r press control for reconditioned price | APPROX DIMENSIONS | 112″ H X 5′ RL X 5′ FB | APPROX WEIGHT | 8,000 LBS | Equipped With | floor standing, cast iron frame, direct drive. will include different base. | Note | __ |
---|---|
Location | This Used Press is Located in Our Columbia, TN Warehouse |
