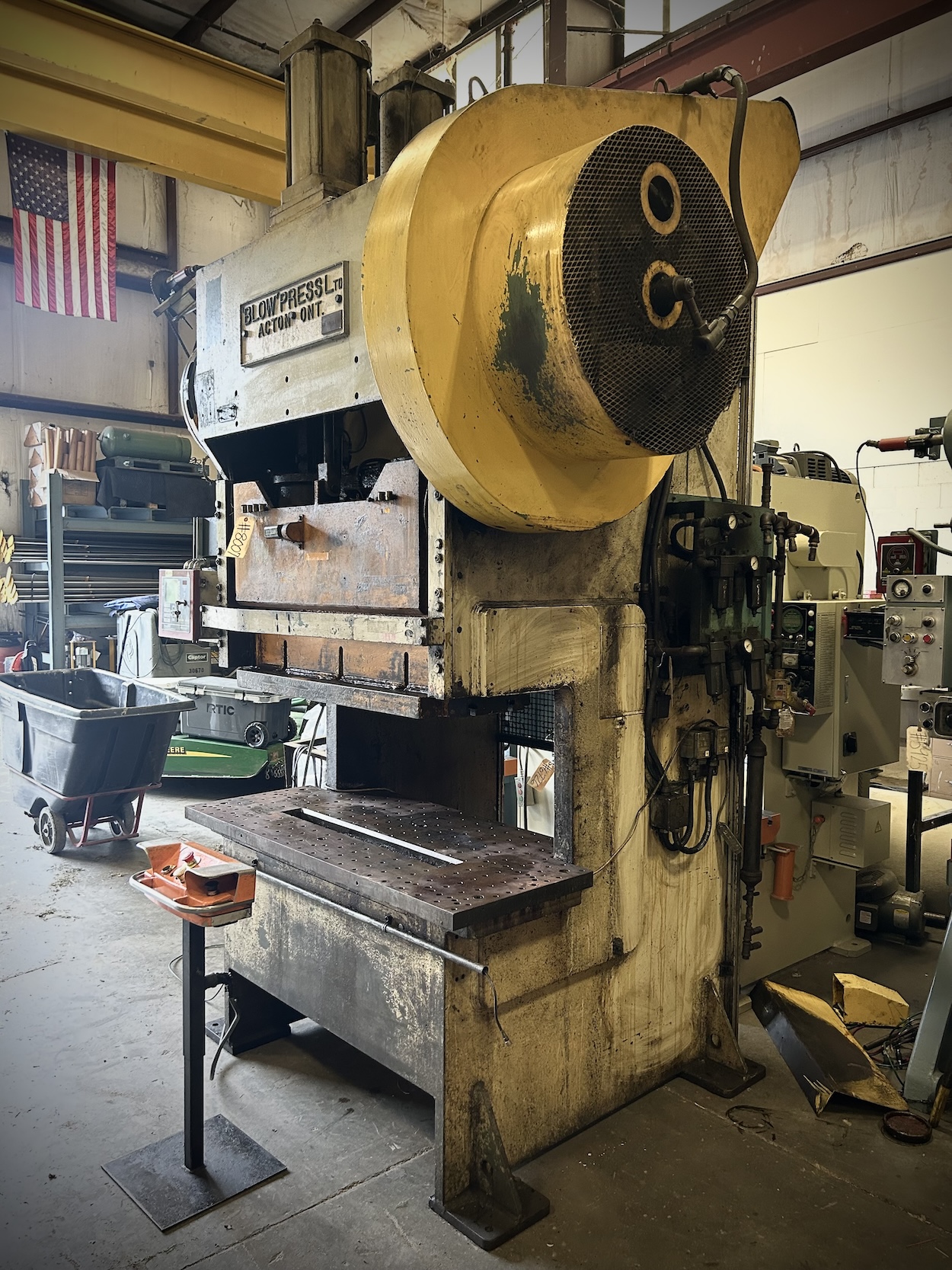

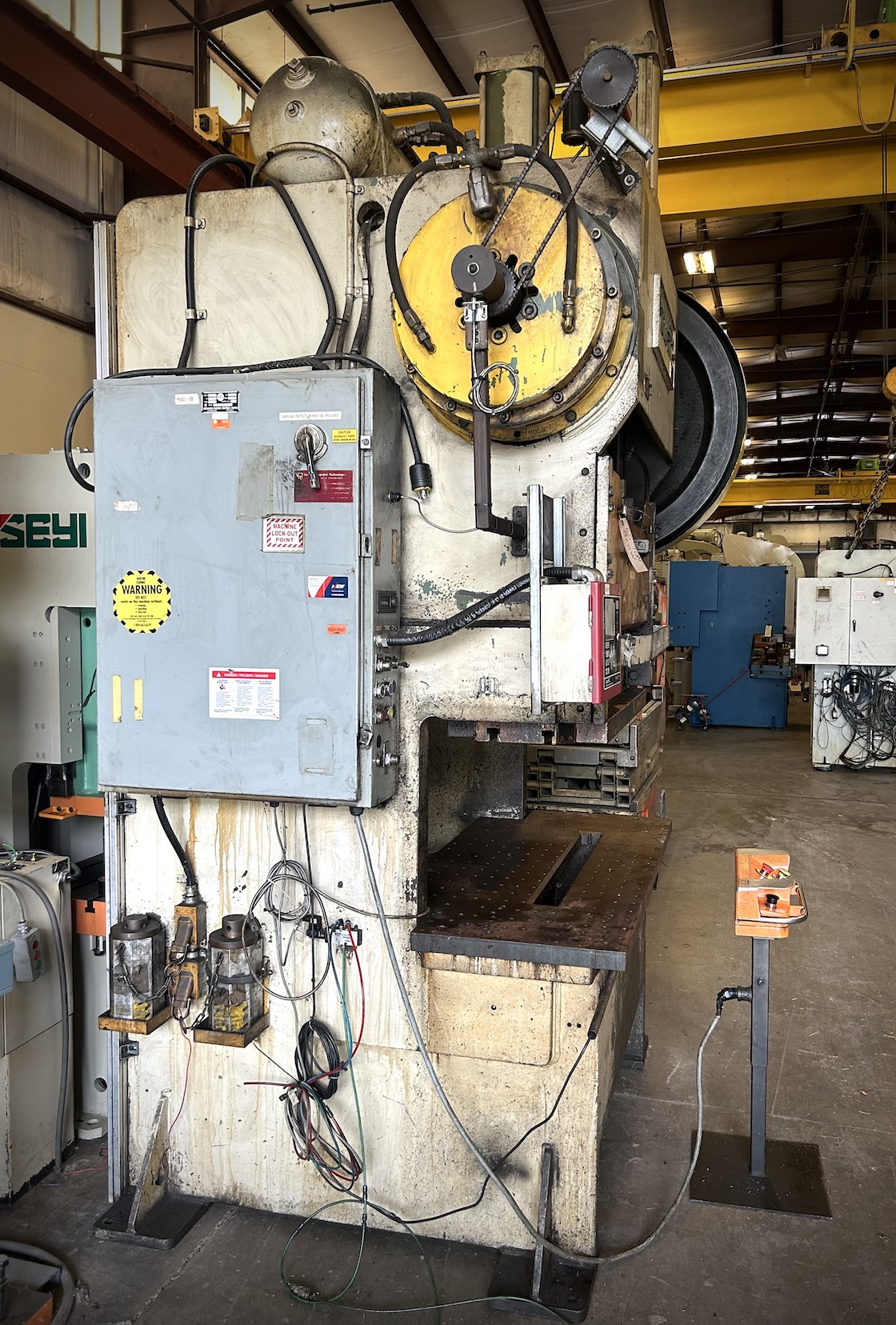

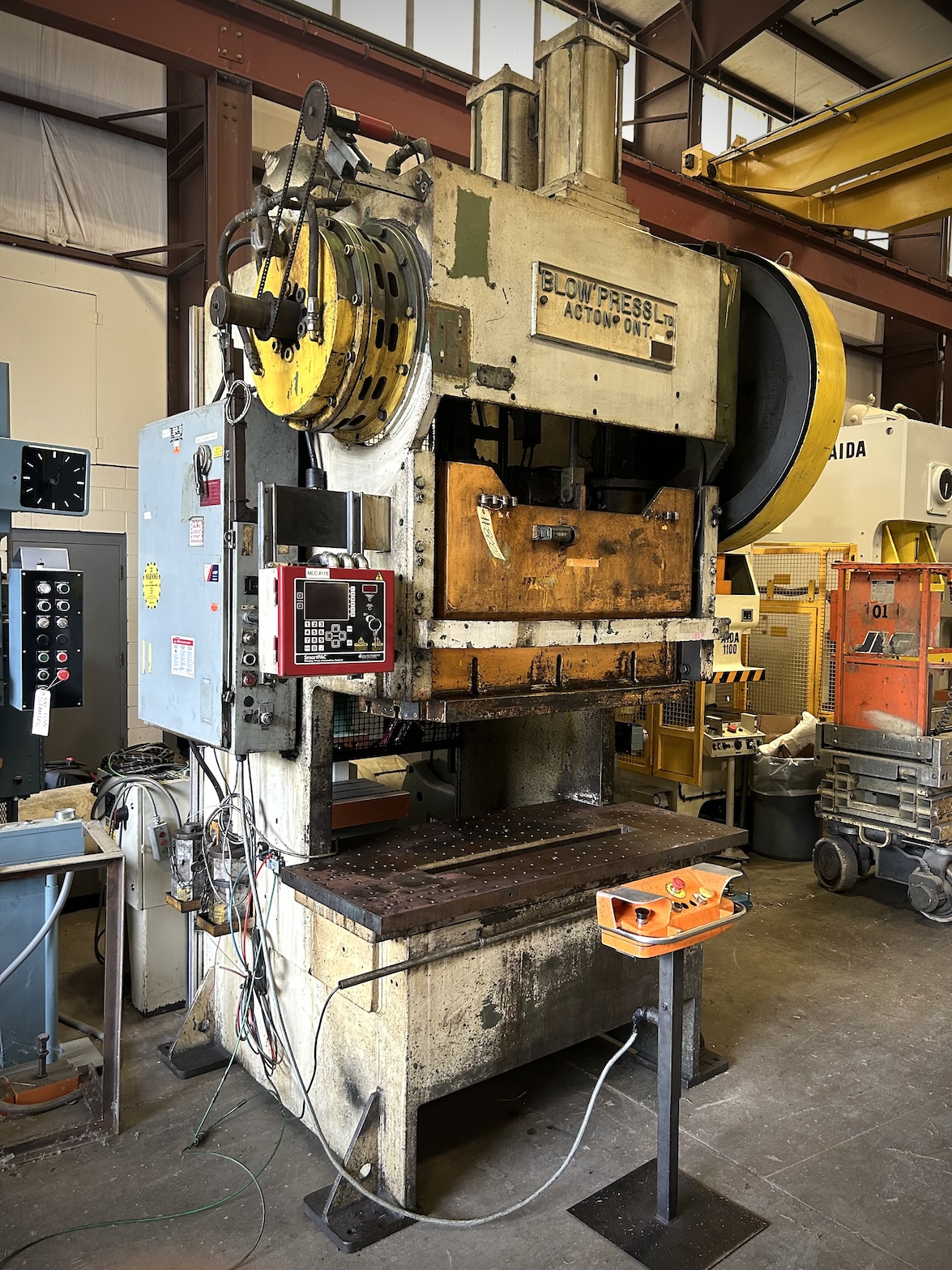

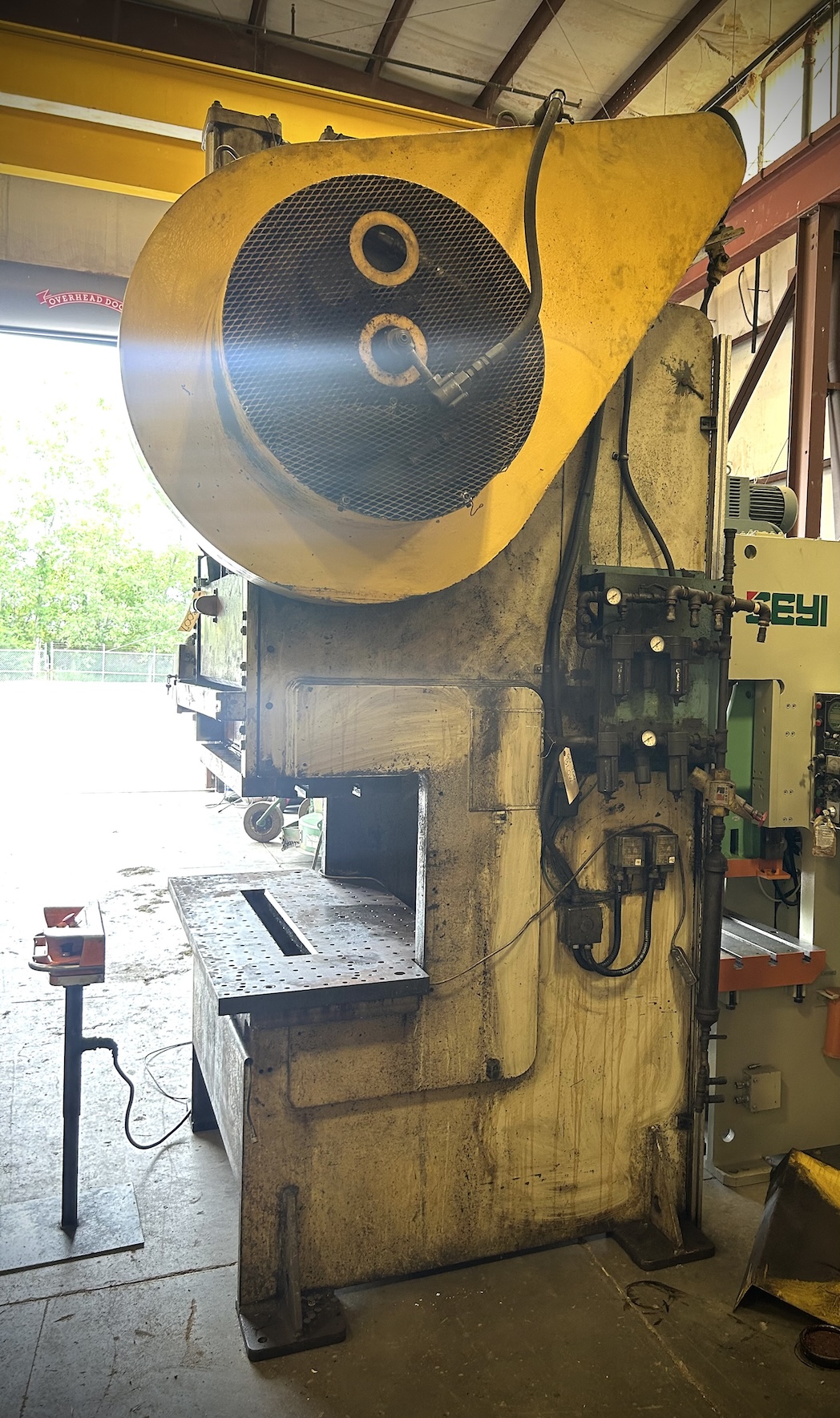

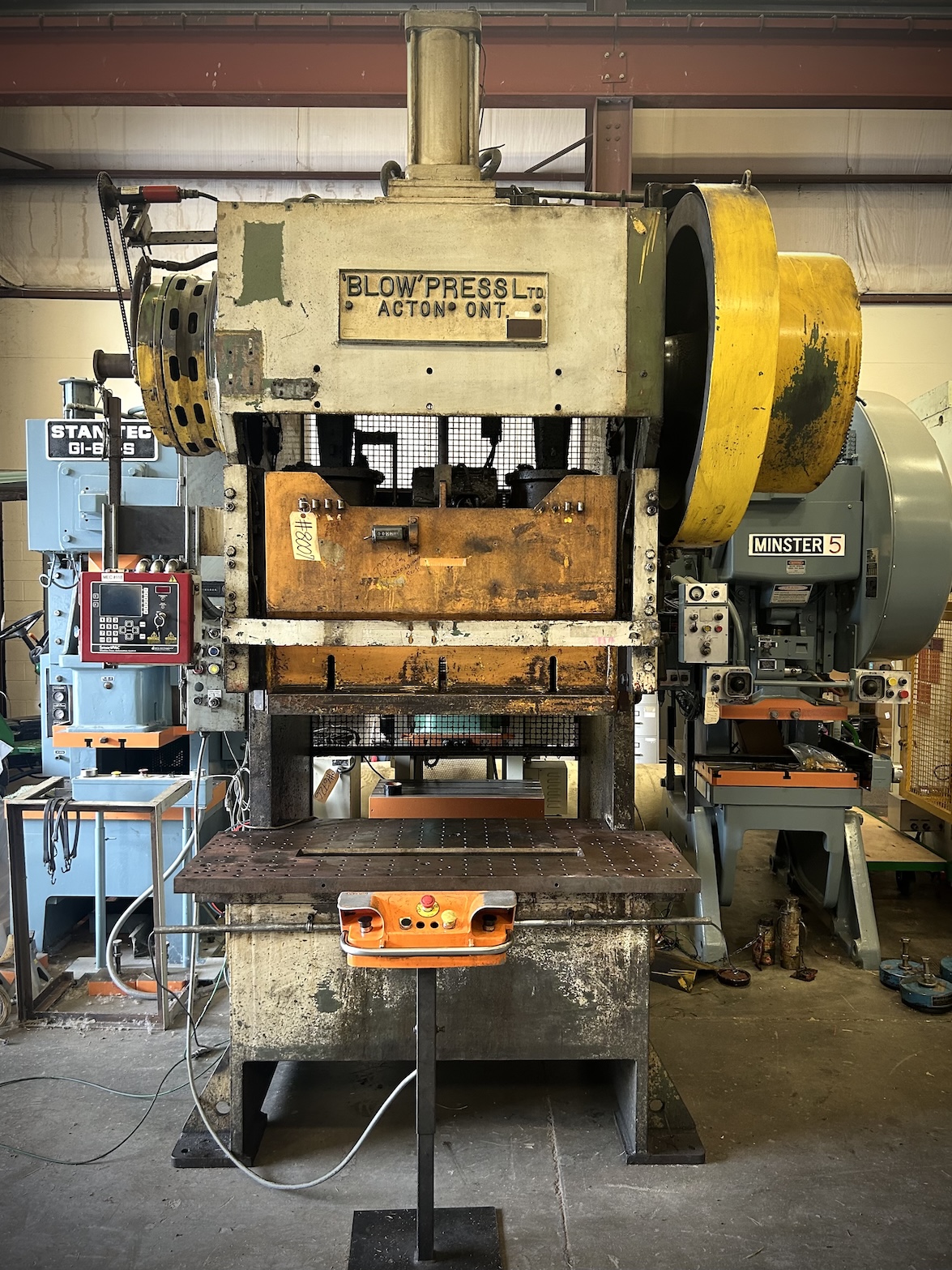

Gap Frame Double Crank Press • Used 60 Ton Press for Sale
Model: Blow GD60 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1982
Machine #: 8007
Buy Now: $
| CAPACITY | 60 TONS | STROKE | 6" | MAX DIE HEIGHT | 21" sdau over 1.875" h bolster | BED AREA | 60" x 18" (rl x fb) | SPEED | APPROX. 110 SPM | SLIDE ADJUSTMENT | 3.5" motorized | SLIDE AREA | 47" rl x 18" fb (t-slot) | BOLSTER PLATE | 1.875" h x 62" rl x 22" fb | DISTANCE BETWEEN UPRIGHTS | 48" | DISTANCE FLOOR TO BED | 35" | CLUTCH | Wichita air clutch & brake | PRESS CONTROLS | Existing wintriss wpc press control | ELECTRIC MOTOR | 10 hp 1150 rpm 575v-3-60 motor (can rewind OR REPLACE WITH 208-240/480v for RECOND PRICE) | APPROX DIMENSIONS | 134" h x 90" rl x 72" fb | APPROX WEIGHT | 17,000 lbs | Equipped With | dual air counterbalances, floor standing, direct drive, steel fabricated, heavily reinforced frame, replaceable phenolite liners on slide ways, bronze bushed crank bearings, bronze lined ball seat connections, motorized slide adjustment | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
