80 Ton South Bend Johnson Used Press for Sale • South Bend Johnson 80-FW-AC Press

80

80
Ton
36″
Bed R-L
4″
Stroke
Speed: 85 SPM
New in 1

1

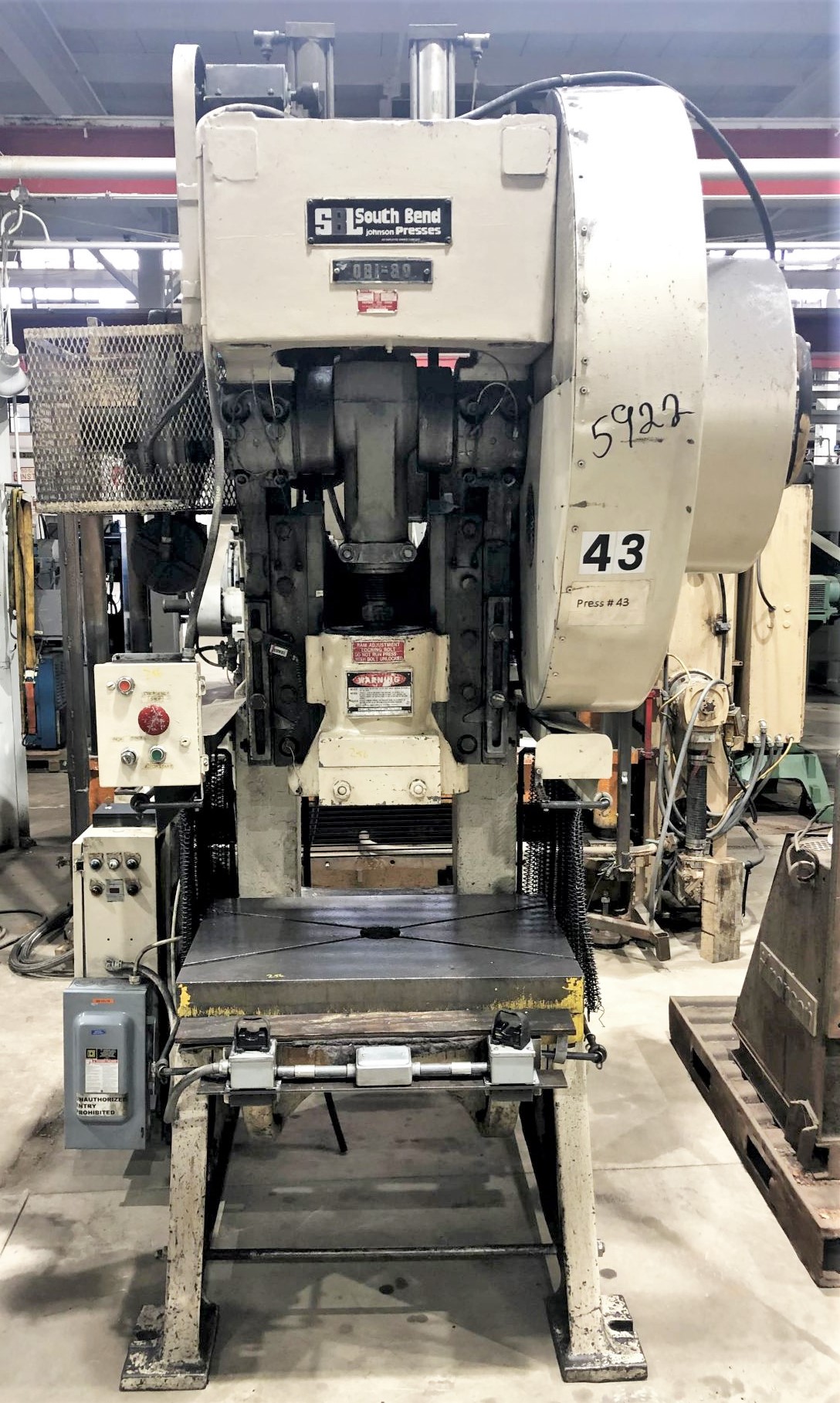

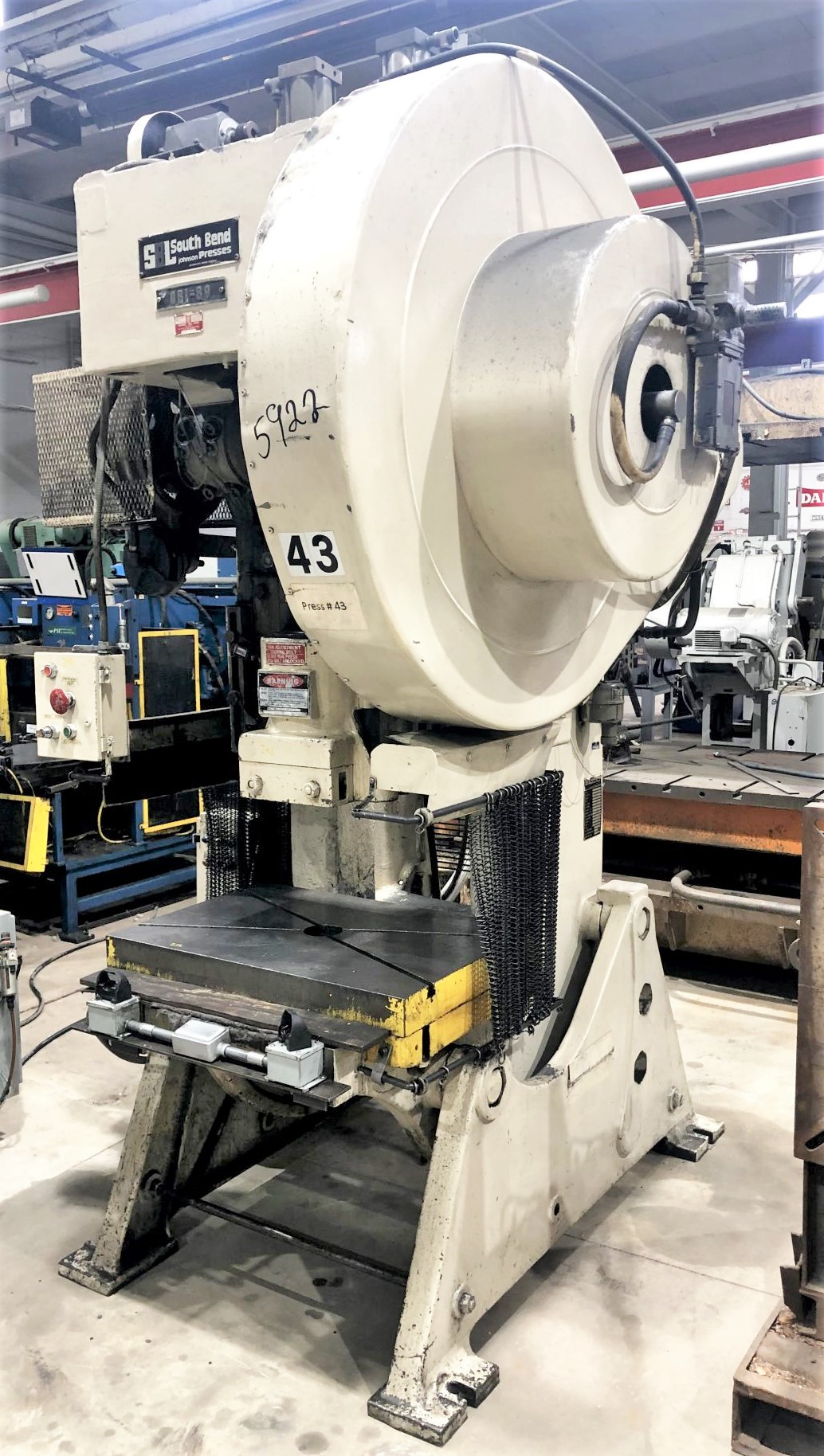

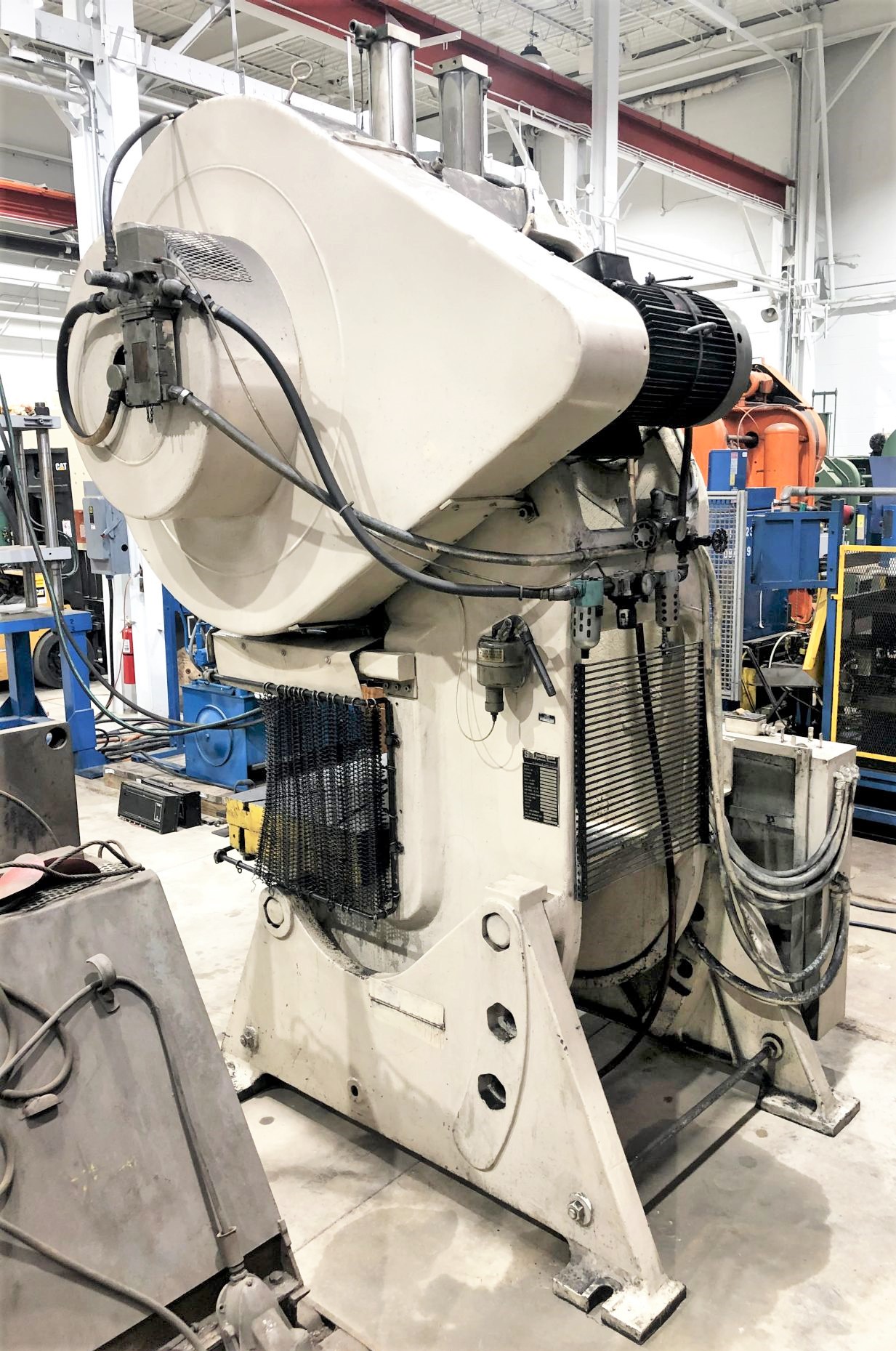

C Frame Used Press
Model: South Bend Johnson 80-FW-AC
4″ Stroke, 15.5″ Shut Height, 36″ x 24″ Bed Area, 85 Strokes per Minute, SSM Press Controls

Gap Frame Presses for Sale
Used South Bend Johnson Punch Press (Mechanical)
Machine #5922
Jackson, MI Cooper Building
Sale Price: $

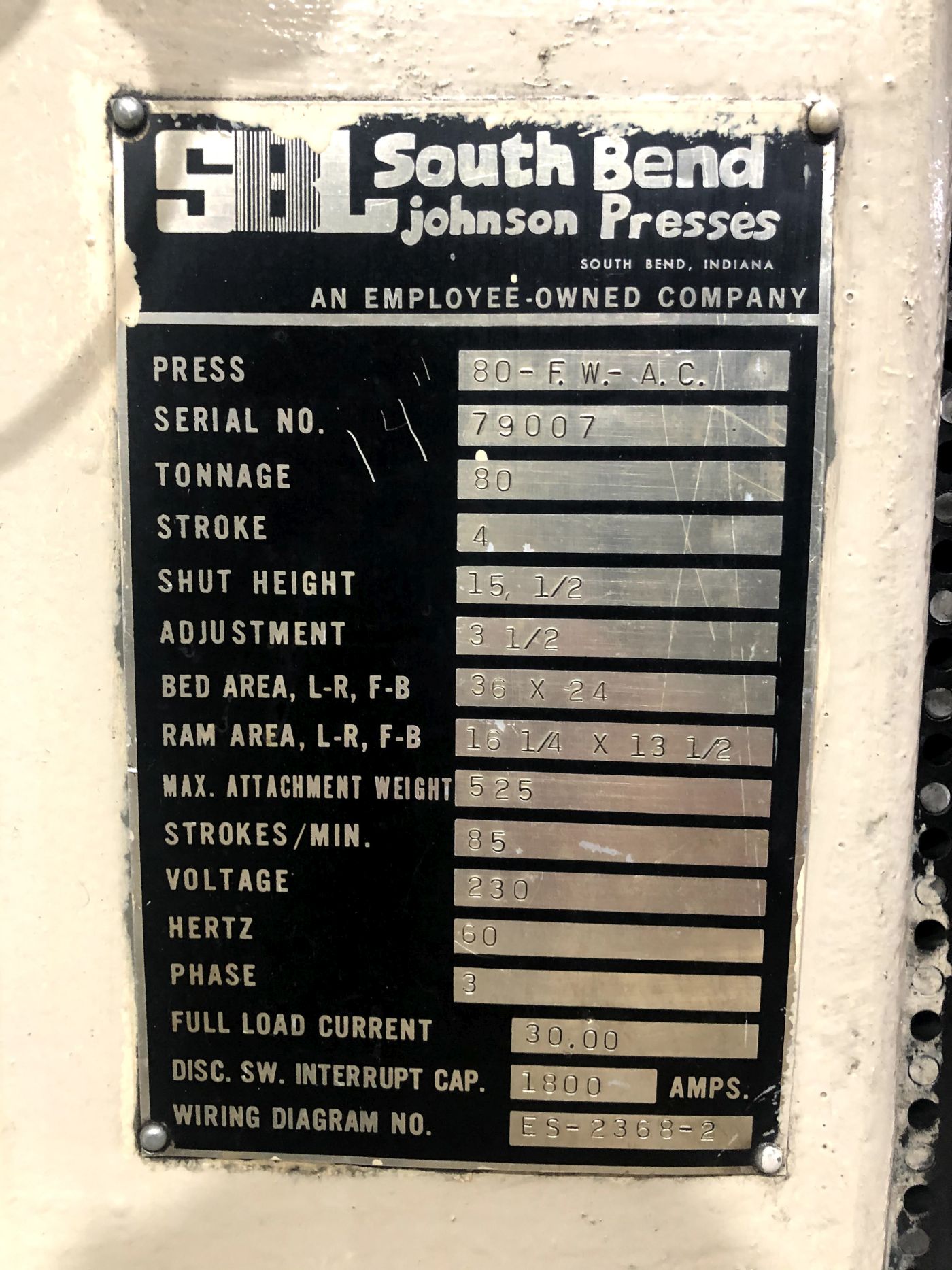

Machine Specifications

C Frame Used Press for Sale

Manufacturer: South Bend Johnson
Model: South Bend Johnson 80-FW-AC Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1979
Machine #: 5922
Buy Now: $





CAPACITY 80 TONS
STROKE 4″
MAX. SHUT HEIGHT TO BED 15.5″
BED AREA 36″ X 24″ (RL X FB)
RAM AREA 16.25″ X 13.5″ (RL X FB)
RAM ADJUSTMENT 3.5″
SPEED 85 SPM
BOLSTER PLATE 36″ X 24″ (RL X FB) X 3.5″ THICK T-SLOTTED BOLSTER PLATE
DISTANCE BETWEEN UPRIGHTS 17.5″
FLOOR TO BED 33.5″
THROAT DEPTH 14″
CLUTCH AIR CLUTCH & BRAKE

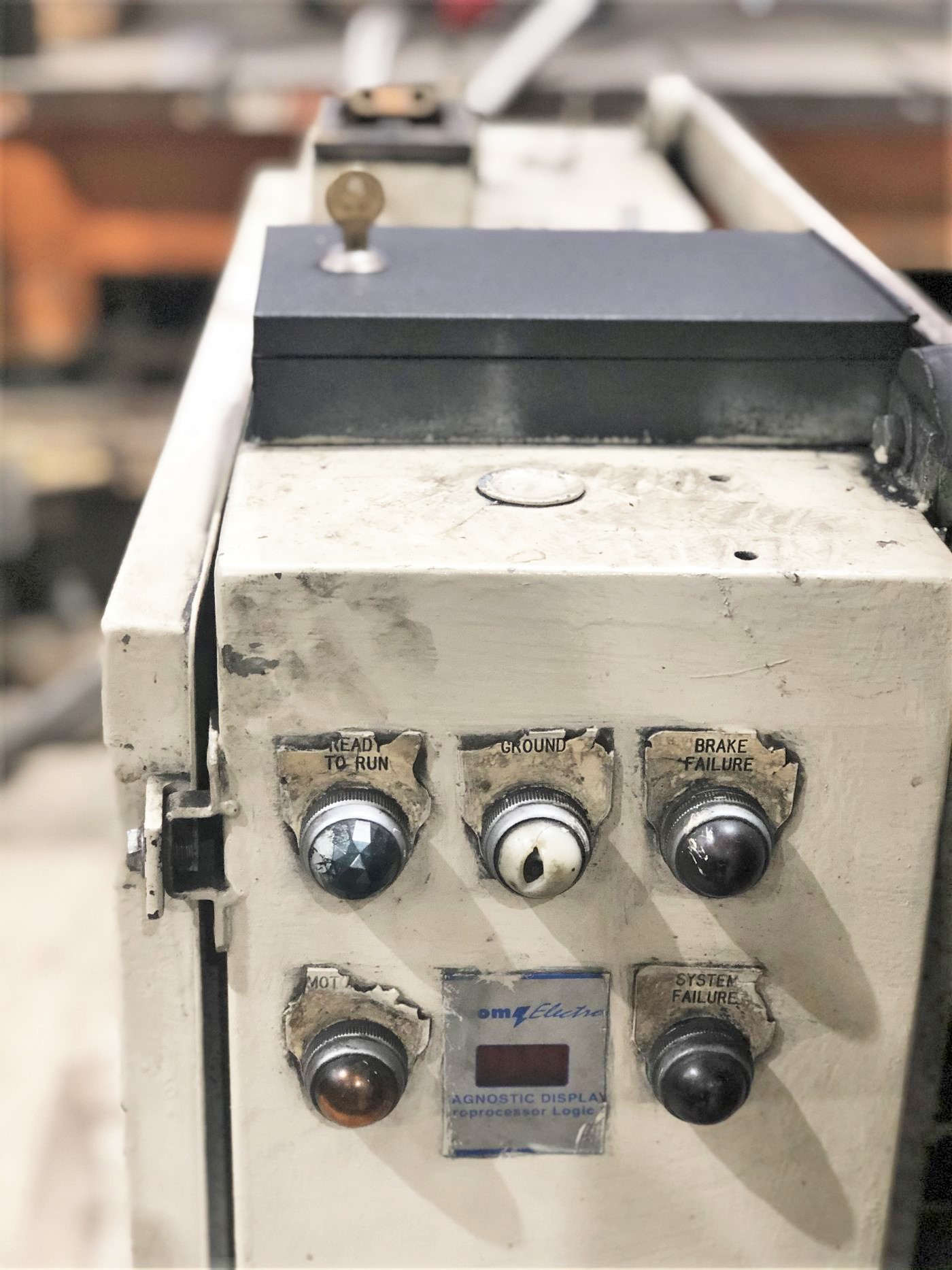

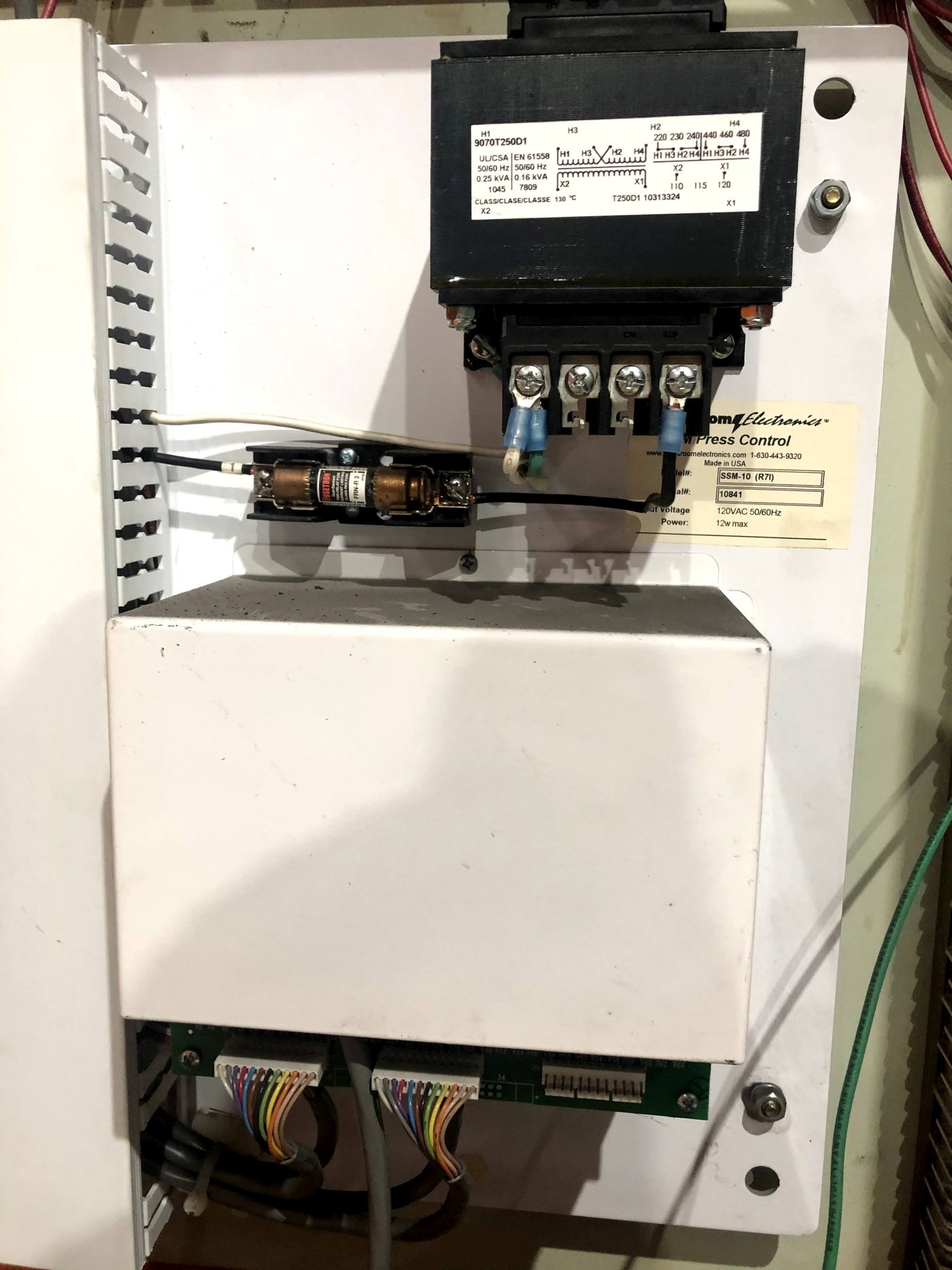

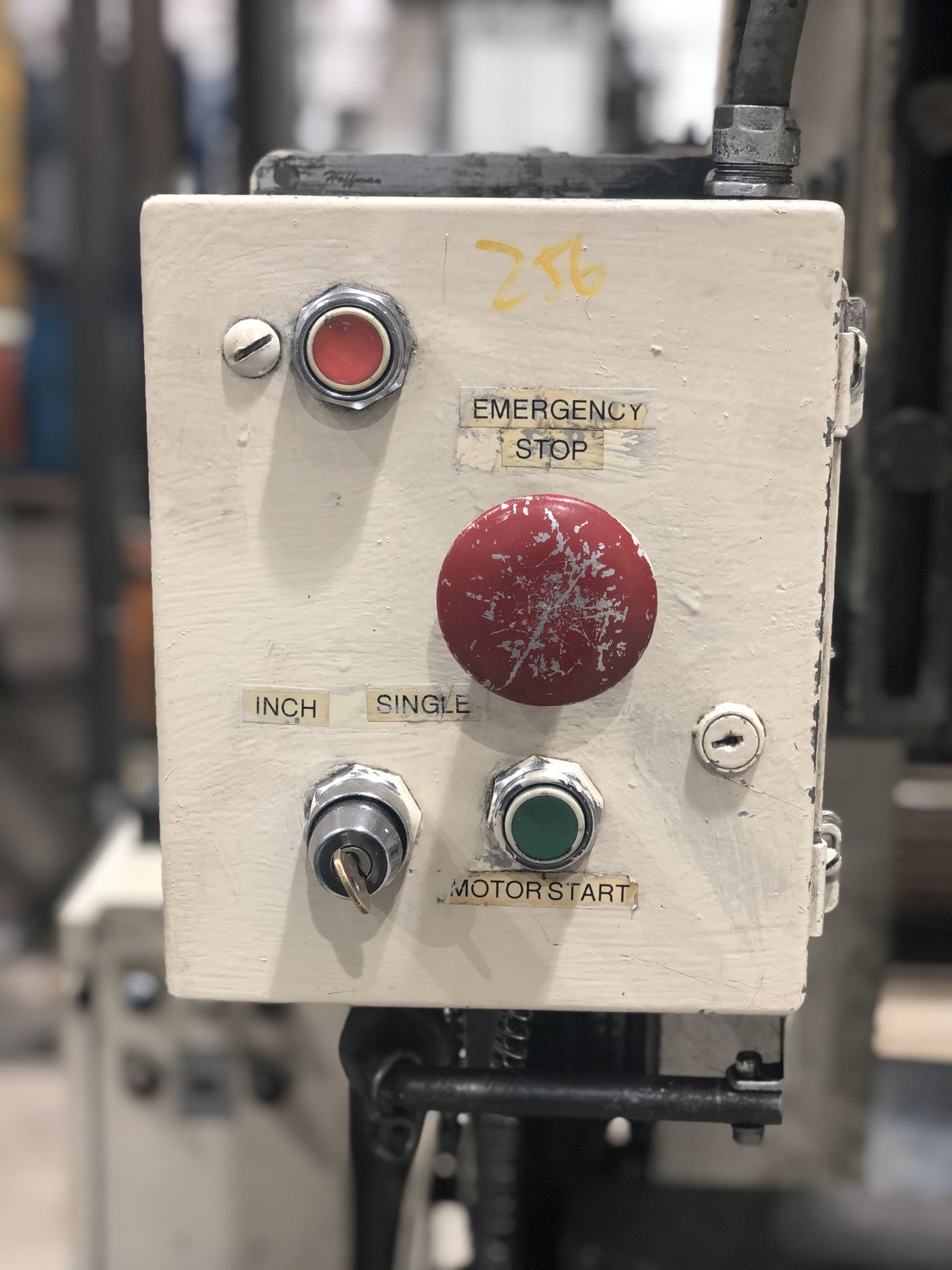

PRESS CONTROLS SSM PRESS CONTROL MODEL SSM-10 (R7I)
ELECTRICAL 7.5 HP 230/460V-3-60 LINCOLN MOTOR | 30/15 AMPS
APPROX. DIMENSIONS 77″ X 82″ (RL X FB) X 123″ HIGH
APPROX. WEIGHT 16,500 LBS.
Equipped With __
Note __
Location This used press is located in our Jackson, MI Cooper Building
