Description
Used Servo Feed for Sale

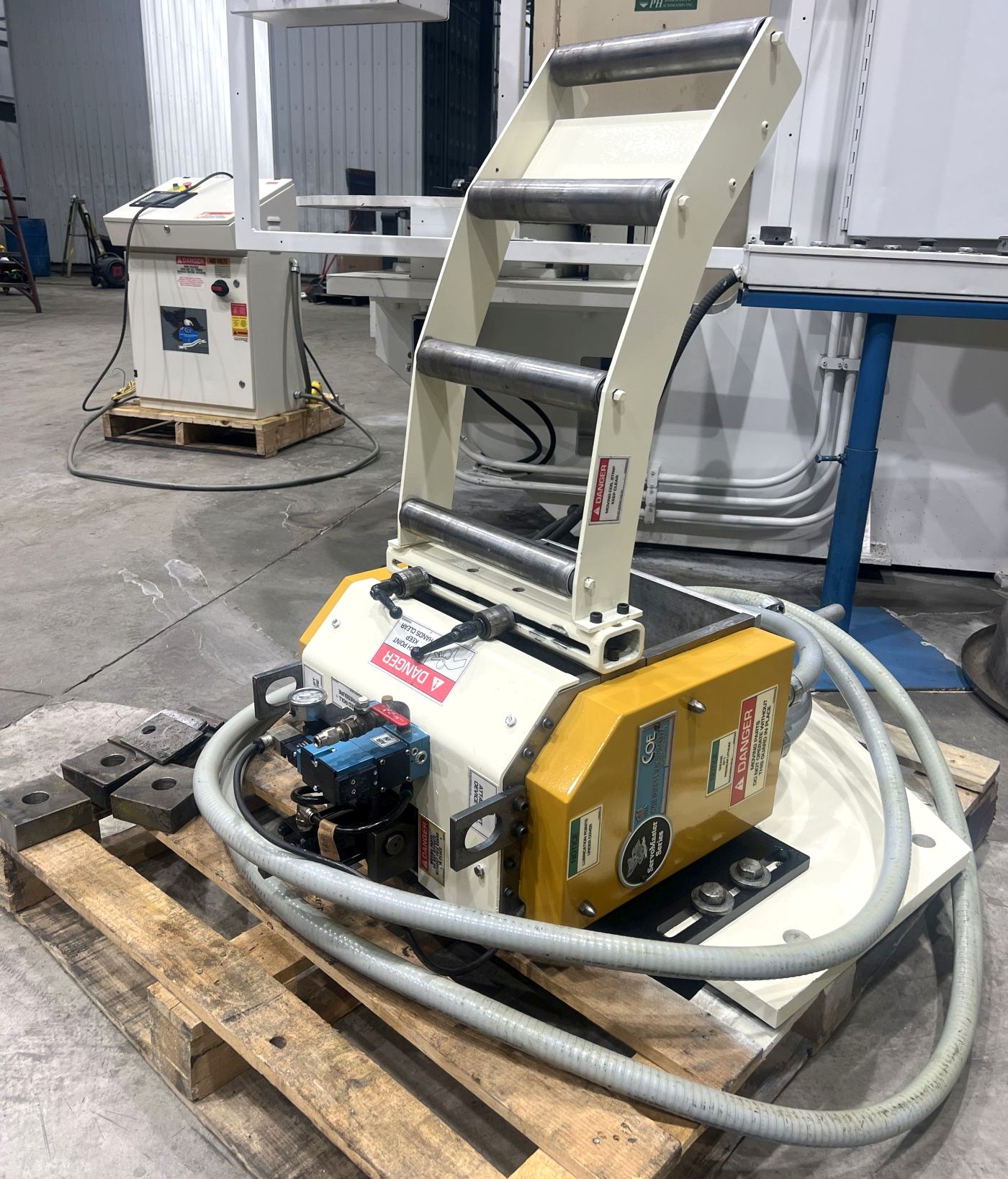

COE Model: CPRF-S112
Condition: Excellent
Location: Jackson, MI Falahee Building #8349
Year: 2016
Buy Now: $

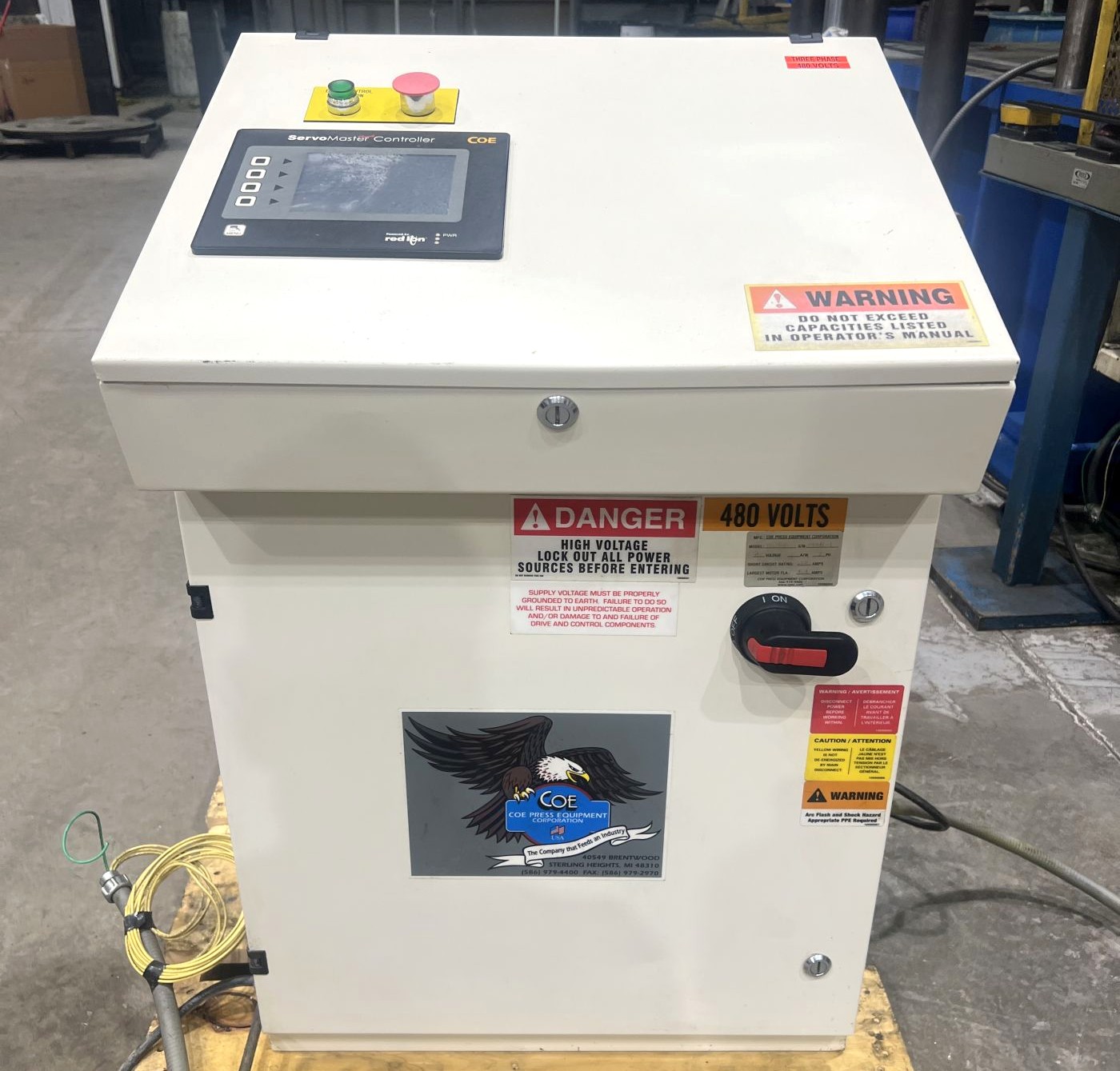

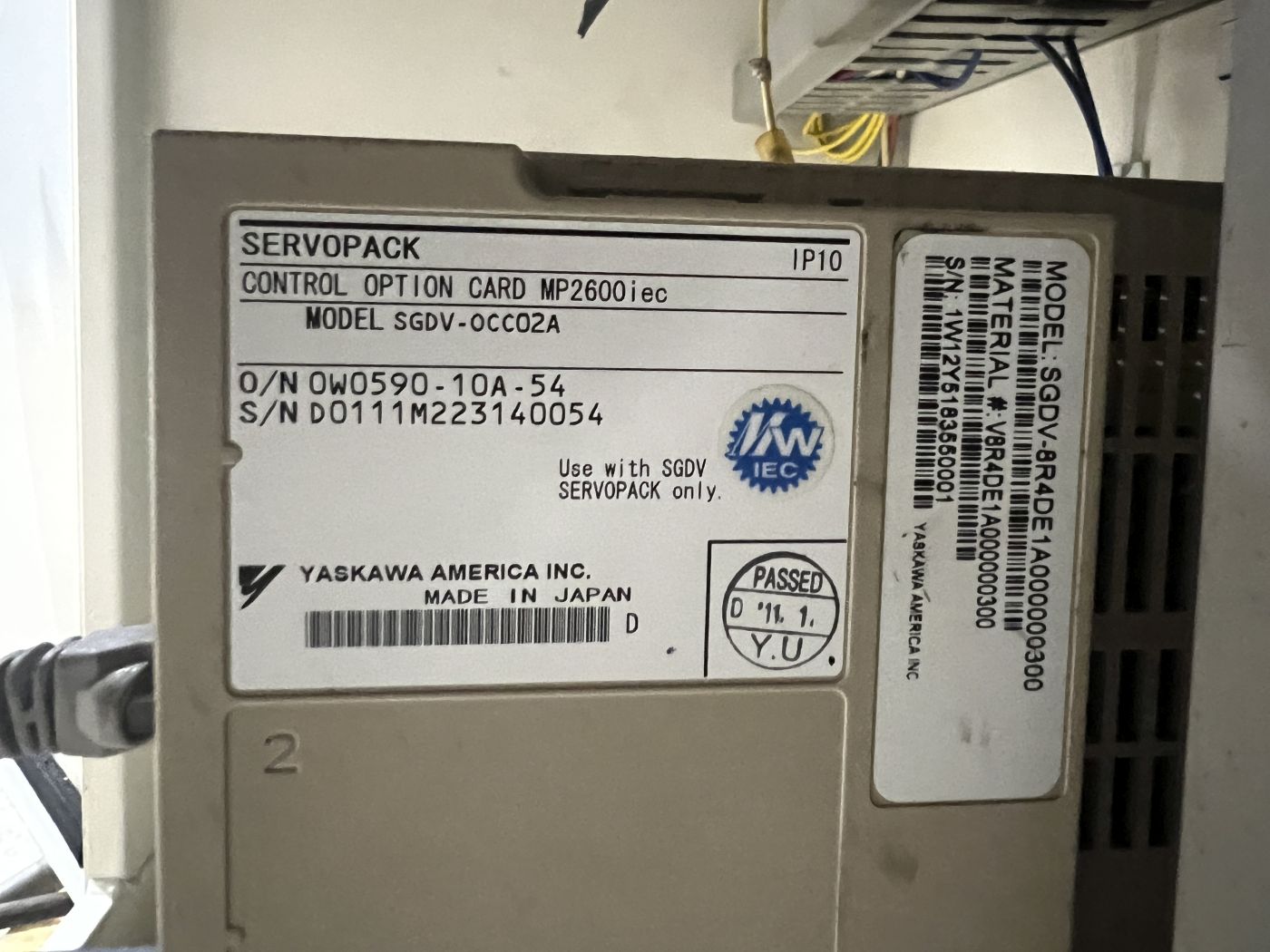

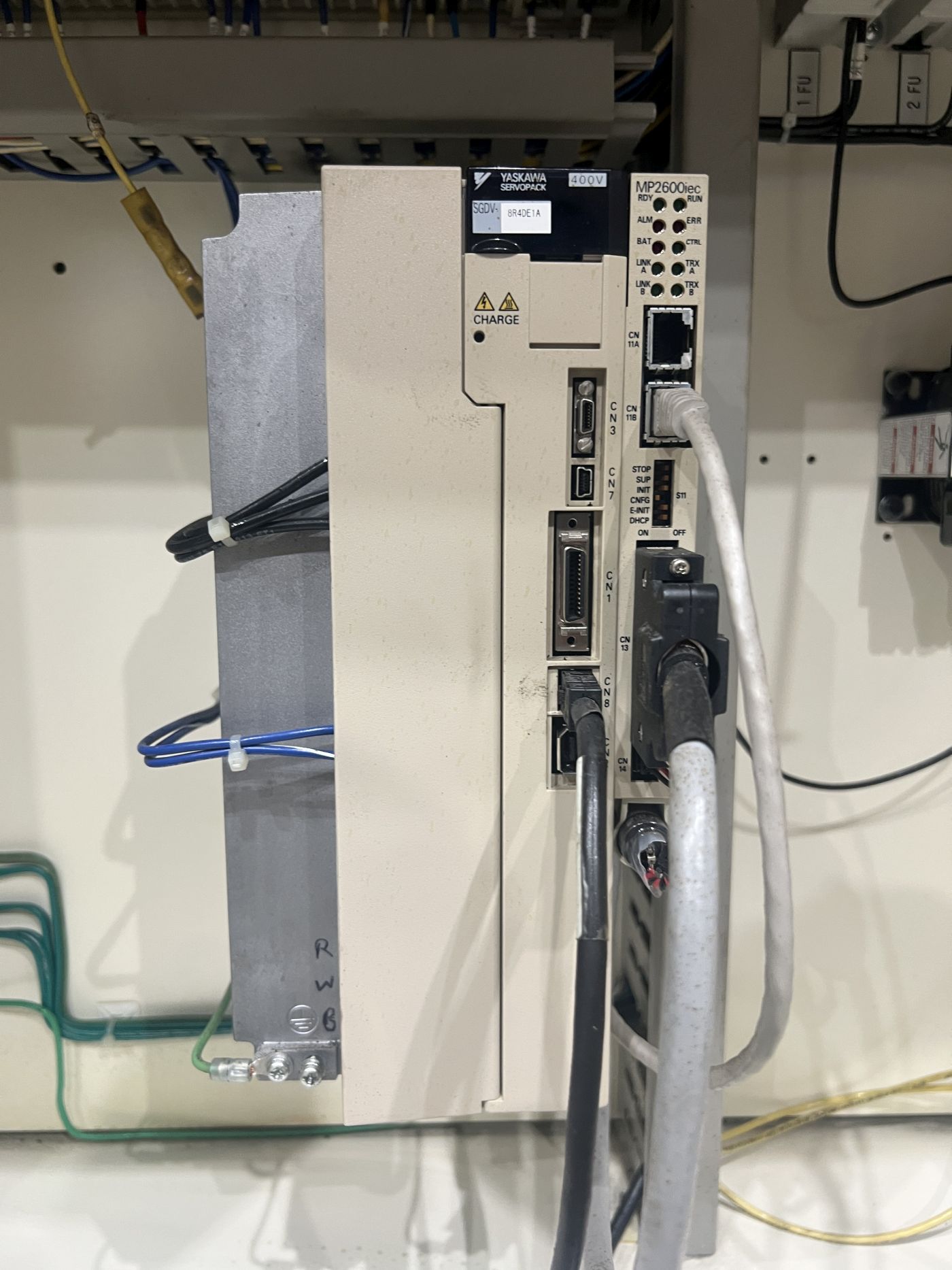

| MAX. MATERIAL WIDTH | 12" | THICKNESS AT FULL WIDTH | APPROX. .125" @ 12" WIDE | MATERIAL CAPACITY | .140" AT 6" WIDE / .010" TO .125" AT 12" WIDE | FEED DIRECTION | RIGHT TO LEFT | SECONDARY COLOR VOLTAGE | 460V | SPM AT 180 DEG | 162 AT 4" - 137 AT 6" - 106 AT 10" - 95 AT 12" | SPM AT 240 DEG | 217 AT 4" - 183 AT 6" - 160 AT 10" - 95 AT 12" | NUMBER OF ROLLS | 2 | ROLL DIA. | 2.25" | DRIVE RATIO | 3.73:1 | ACCELERATION | 60 FEET / SEC / SEC | ROLL SPEED | 315 FEET / MINUTE | OPERATOR STAND | RED LION SERVOMASTER TOUCHSCREEN CONTROLLER COLOR SCREEN | SERVO DRIVE | YASKAWA AMERICA SERVOPACK MODEL SGDV-OCCO2A | APPROX. DIMENSIONS | 48"' X 48" (RL X FB) x 48" HIGH | APPROX. WEIGHT | 2,000 Lbs | Equipped With | FUNNELED STOCK PATH, PRECISION CLUSTER GEAR DRIVEN UPPER FEED ROLL, RIGID MACHINED TIE BAR CONSTRUCTION, SEALED PRECISION ROLLER BEARINGS, HEAVY DUTY PLUS MODEL WITH LARGER DRIVE RATIO, REMOTE JOG PENDANT | Note | PRESS MOUNTED TYPE |
|---|---|
| Location | This Used COE CPRF-S112 Servo Feed is located in our Jackson, MI Falahee Building |
