Machine Specifications
New 5-Axis Lasers for Sale

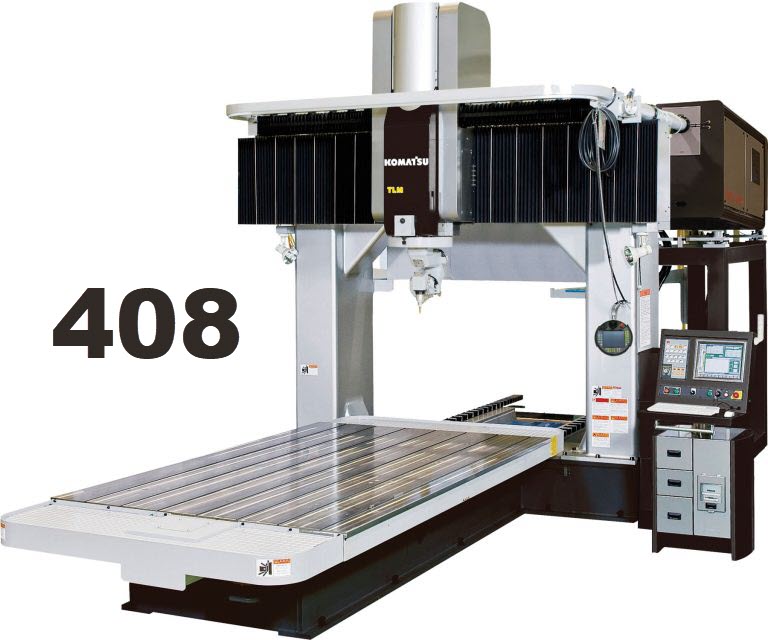

Manufacturer: Komatsu
Model: TLM-408
Condition: New
Location: Laser Sales Catalog Either In Transit or Made to Order
Year: 2024
Machine #: 7093
Buy Now: $
| TABLE SIZE | 51″ X 98″ | TABLE HEIGHT | 27.5″ | X-AXIS STROKE TABLE (LEFT TO RIGHT) | 98″ | Y-AXIS STROKE OPTICAL HEAD (FRONT TO BACK) | 51″ | Z-AXIS STROKE OPTICAL HEAD (FRONT TO BACK) | 24″ (FROM TABLE TOP 3.9″ – 27″) | C-AXIS OPTICAL HEAD | ±200° | A-AXIS OPTICAL HEAD | ±180° | X,Y-AXIS RAPID FEED RATE | 1,575″ PER MINUTE | Z-AXIS RAPID FEED RATE | 1,181″ PER MINUTE | C,A-AXIS RAPID FEED RATE | 200″ PER SECOND | X,Y,Z-AXIS CUTTING FEED RATE | 1,181″ PER MINUTE | X,A-AXIS CUTTING FEED RATE | MAX 200°/sec. | DRIVE MOTOR | AC SERVO | DRIVE MECHANISM | BALL SCREW | GUIDE MECHANISM | LINEAR BALL GUIDE | POSITIONING ACCURACY | ±0.001″ / 12″ | APPROX. DIMENSIONS | 144″ X 285″ (RL X FB) X 144″ HIGH | APPROX. WEIGHT | 26,460 LBS. | Note | INSTALLATION / TRAINING SERVICE AND START-UP PARTS KIT INCLUDED WITH PURCHASE. OPTIONAL MACHINE TOOL ENCLOSURE, EXHAUST SYSTEM, 359° C-AXIS ROTATION, 2.5″ & 7″ FOCAL LENGTH LENS, 48″ Z-AXIS TRAVEL, PROGRAMMABLE POWER RAMPING, AUTO POWER RAMPING, PIPE CUTTING SOFTWARE | Equipped With | 3,300W LASER OSCILLATOR, 8 GB HARD DISK, ONE POINT DIRECTIONAL HEAD, ON LINE GAP SENSOR, PATENTED NOZZLE DESIGN, CMM TYPE TEACHING PROBE, 5-AXIS JOY STICK DIGITIZING, 32-BIT MICROPROCESSORS, CUTTING CONDITIONS LIBRARY, “SUPERIOR CUT” HIGH PRESSURE GAS ASSIST SYSTEM |
|---|---|
| Location | This New Industrial Sized Laser Machine is located in our Laser Sales Catalog Either In Transit or Made to Order |
