Description
New Straight Side Press • New 176 Ton Press for Sale

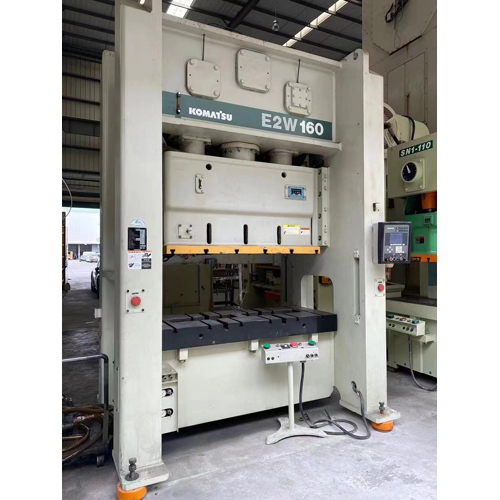

Model: Komatsu E2W160-SVS Press
Condition: New
Location: Press Sales Catalog Either In Transit or Made to Order
Year: 2026
Machine #: 7084
Buy Now: $
| CAPACITY | 176 US TON AT .276" OFF BOTTOM | STROKE | 7.9" | MAX DIE HEIGHT | 18.1" SDAU OVER 6.7" BOLSTER | BED AREA | 72.8" X 29.9" (RL X FB) | BOLSTER PLATE | 72.8" X 29.9" X 6.7" (RL X FB X H) T-SLOTTED | SLIDE AREA | 63" X 22.8" (RL X FB) T-SLOTTED | SLIDE ADJUSTMENT | 3.9" MOTORIZED | SPEED | 30 - 60 SPM | WINDOW SIZE | 23.2" X 18.5" (W X H) | DISTANCE FLOOR TO BOLSTER | 31.5" | DISTANCE BETWEEN UPRIGHTS | 75" | CLUTCH | KOMATSU WET CLUTCH / BRAKE COMBINATION | ELECTRIC MOTOR | 20 HP 1750 RPM 240/480V-3-60 | PRESS CONTROL | KOMATSU SIT IV CONTROL | APPROX. DIMENSIONS | 97.2" X 87" X 139.2" (RL X FB X H) | APPROX. WEIGHT | 46,000 LBS | Equipped With | SYMMETRICAL UNITIZED FRAME, DOUBLE REDUCTION GEARING, MULTIPLE DISC CLUTCH & BRAKE, PLUNGER GUIDE SYSTEM, HYDRAULIC OVERLOAD PROTECTOR, air counterbalance, & floor standing | Note | __ |
|---|---|
| Location | This New Press is Located in Our Press Sales Catalog Either In Transit or Made to Order |
