200 Ton Bliss Press • Used Bliss HP2-200-42-36 Press

200

200
Ton
42″
Bed R-L
4″
Stroke
Speed: 60-120 SPM
New in 1

1

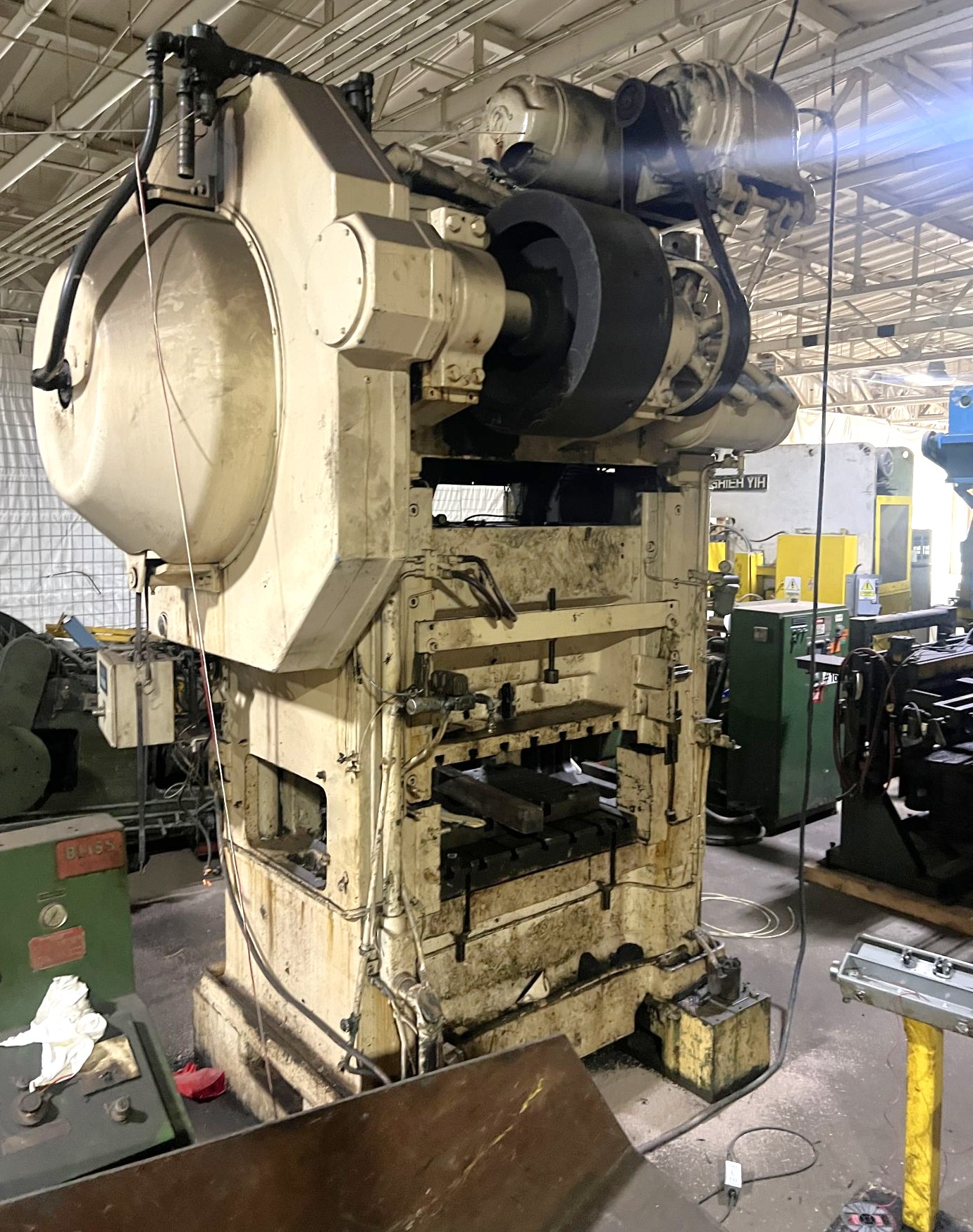

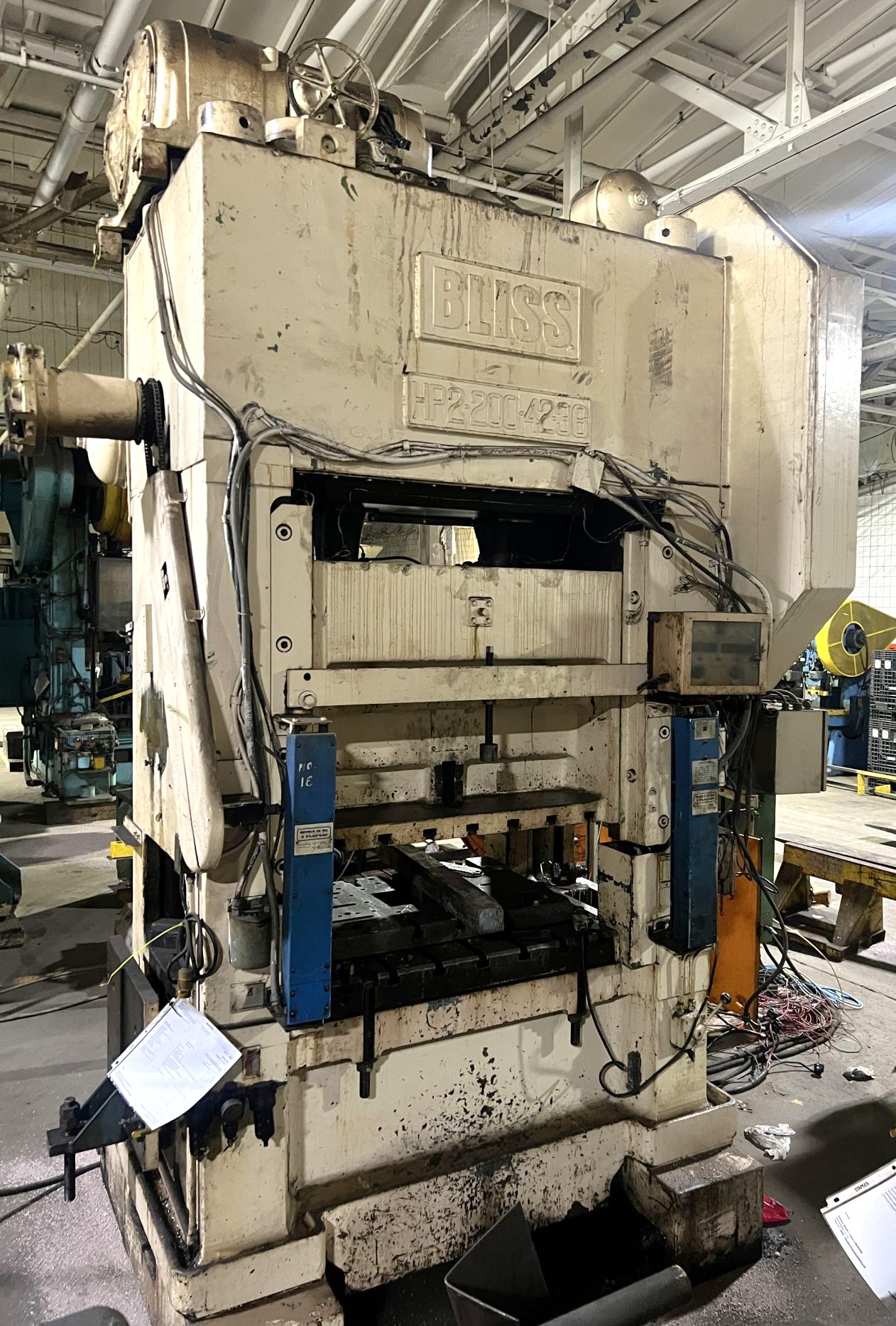

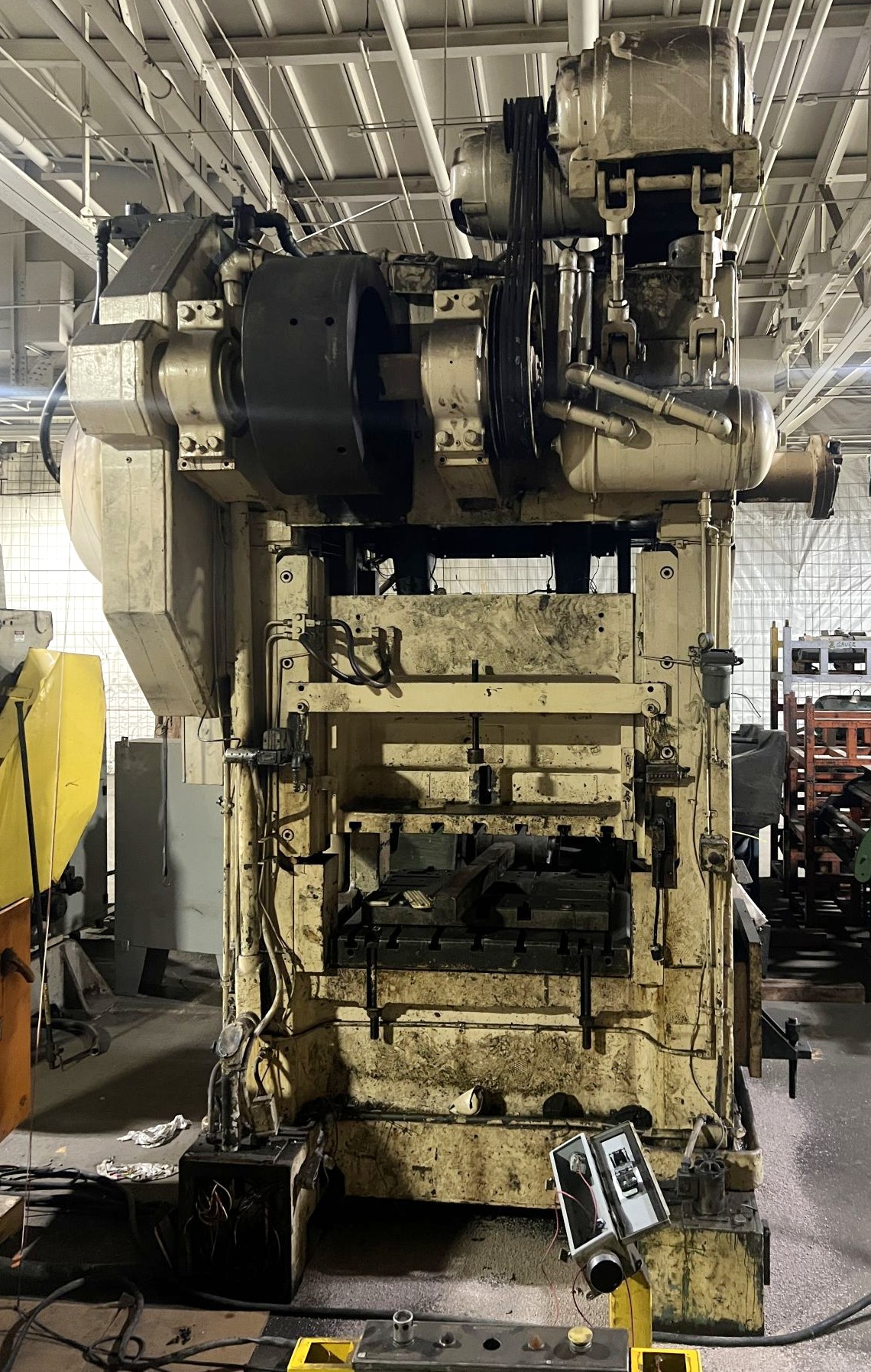

200 Ton Used Press – Straight Side Press
Model: Bliss HP2-200-42-36
4″ Str, 20.5″ Sh, 42″ x 36″ Bed, 4.5″ T-Slot Bolster, 60-120 SPM

High Speed Presses for Sale
Used Bliss Stamping Press (Mechanical)
Machine #5450
Jackson, MI Falahee Building
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Bliss
Model: Bliss HP2-200-42-36 Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year: 1966
Machine #: 5450
Buy Now: $

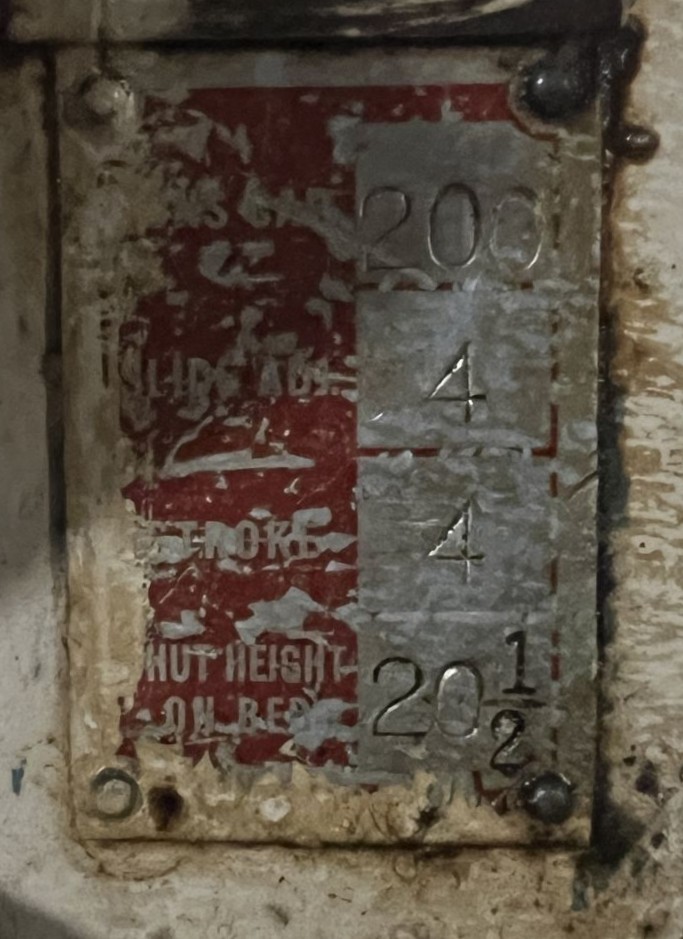

CAPACITY 200 TONS
STROKE 4″
MAX SHUT HEIGHT TO BED 20.5″ SDAU
BED AREA 42″ X 36″ (RL X FB)
SPEEDS 60-120 SPM

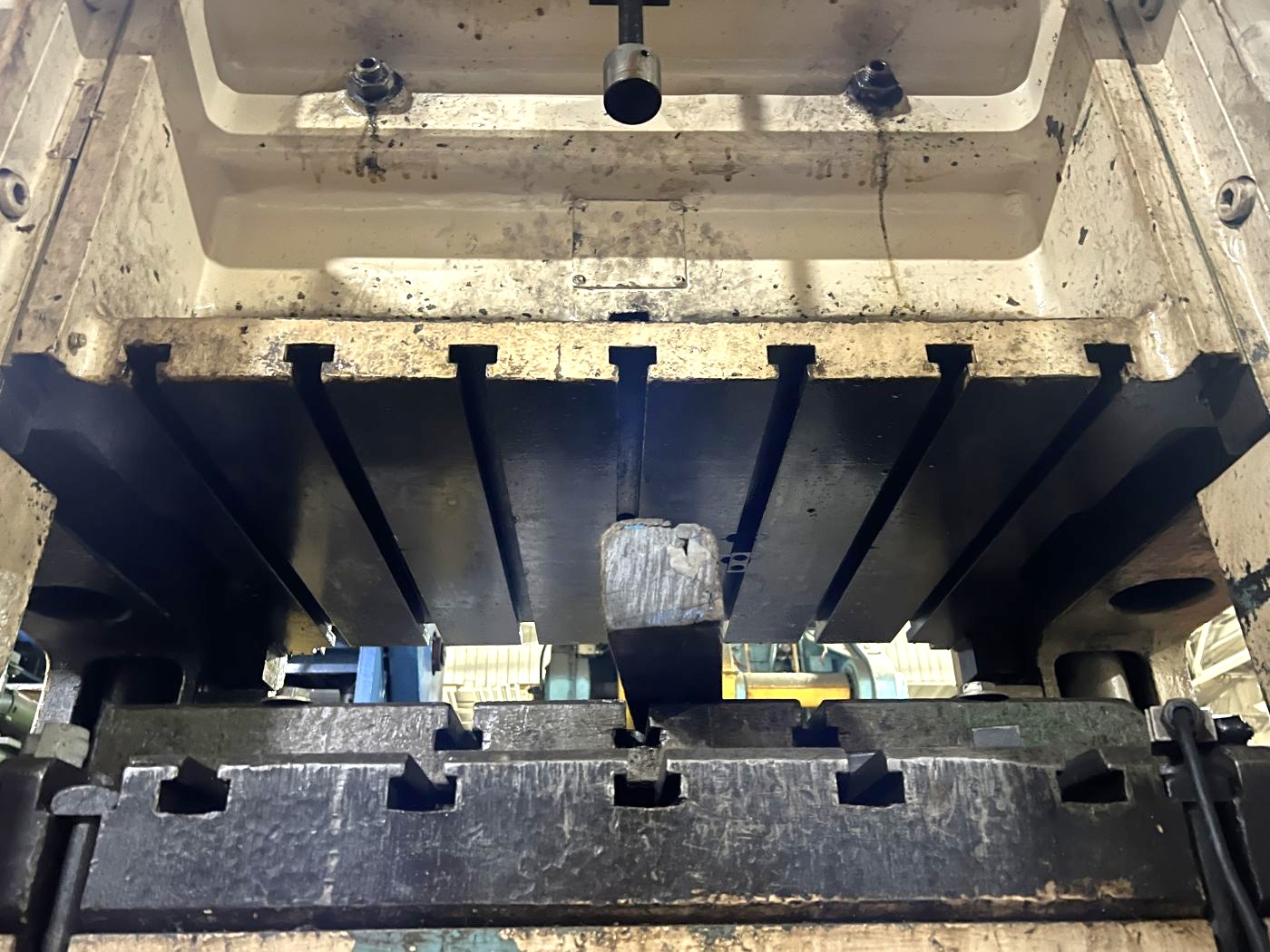

RAM AREA 43″ x 30.5″ (rl x fb) t-slotted

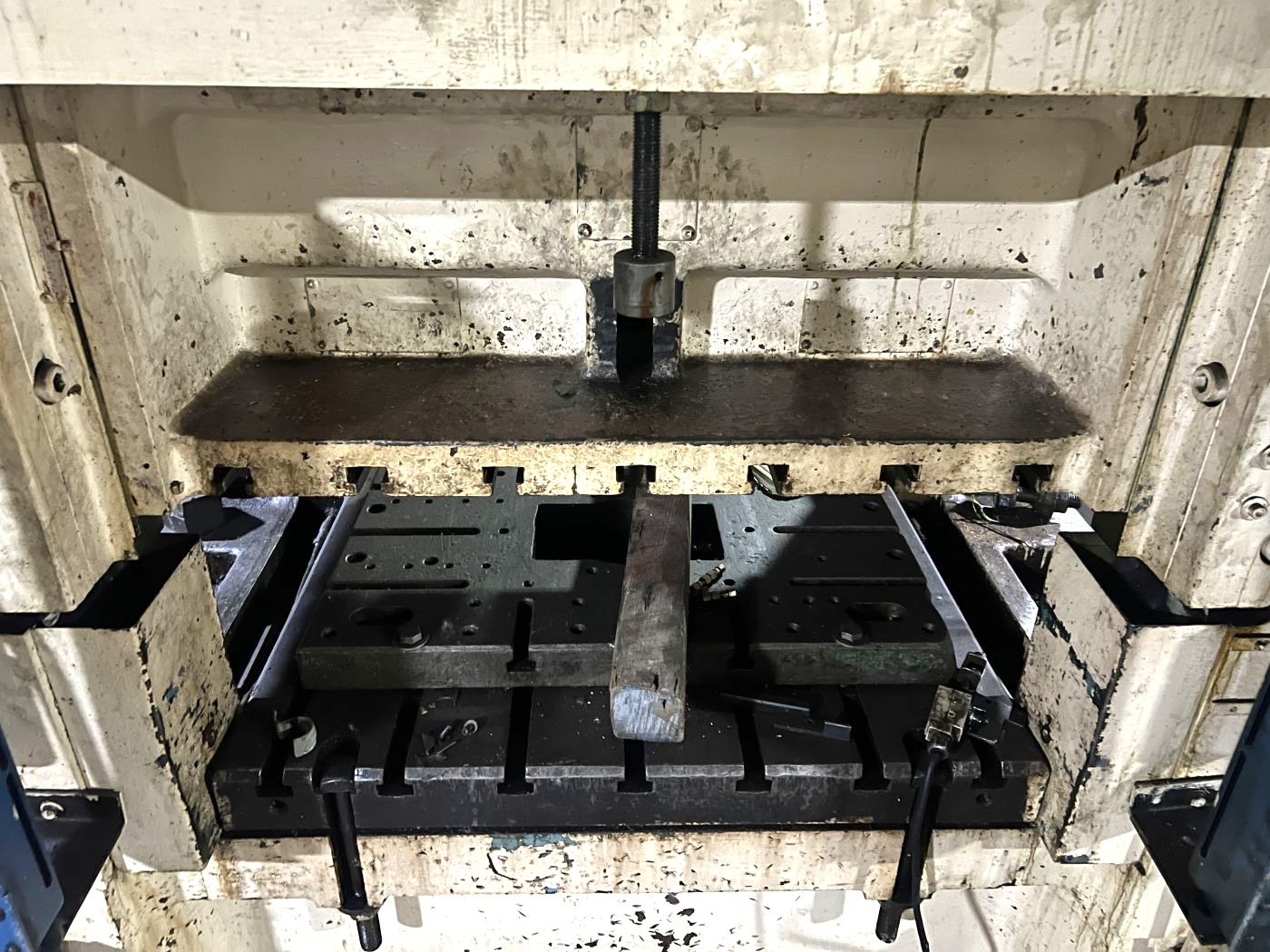

BOLSTER SIZE 42″ x 36″ (rl x fb) x 4.5″ thick t-slotted bolster plate
RAM ADJUSTMENT 4″

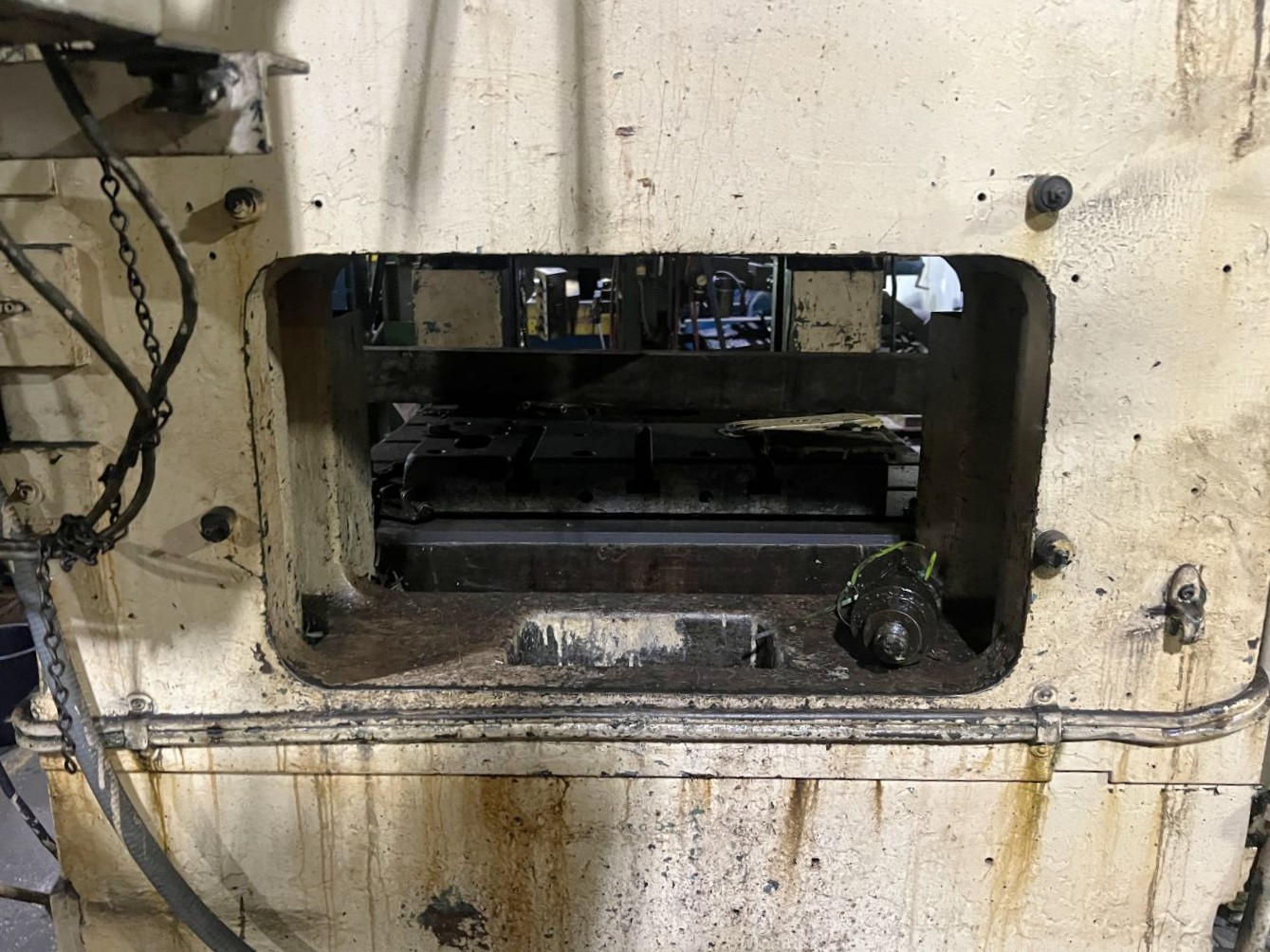

WINDOW SIZE 25″ x 14.5″ (wide x HIGH)

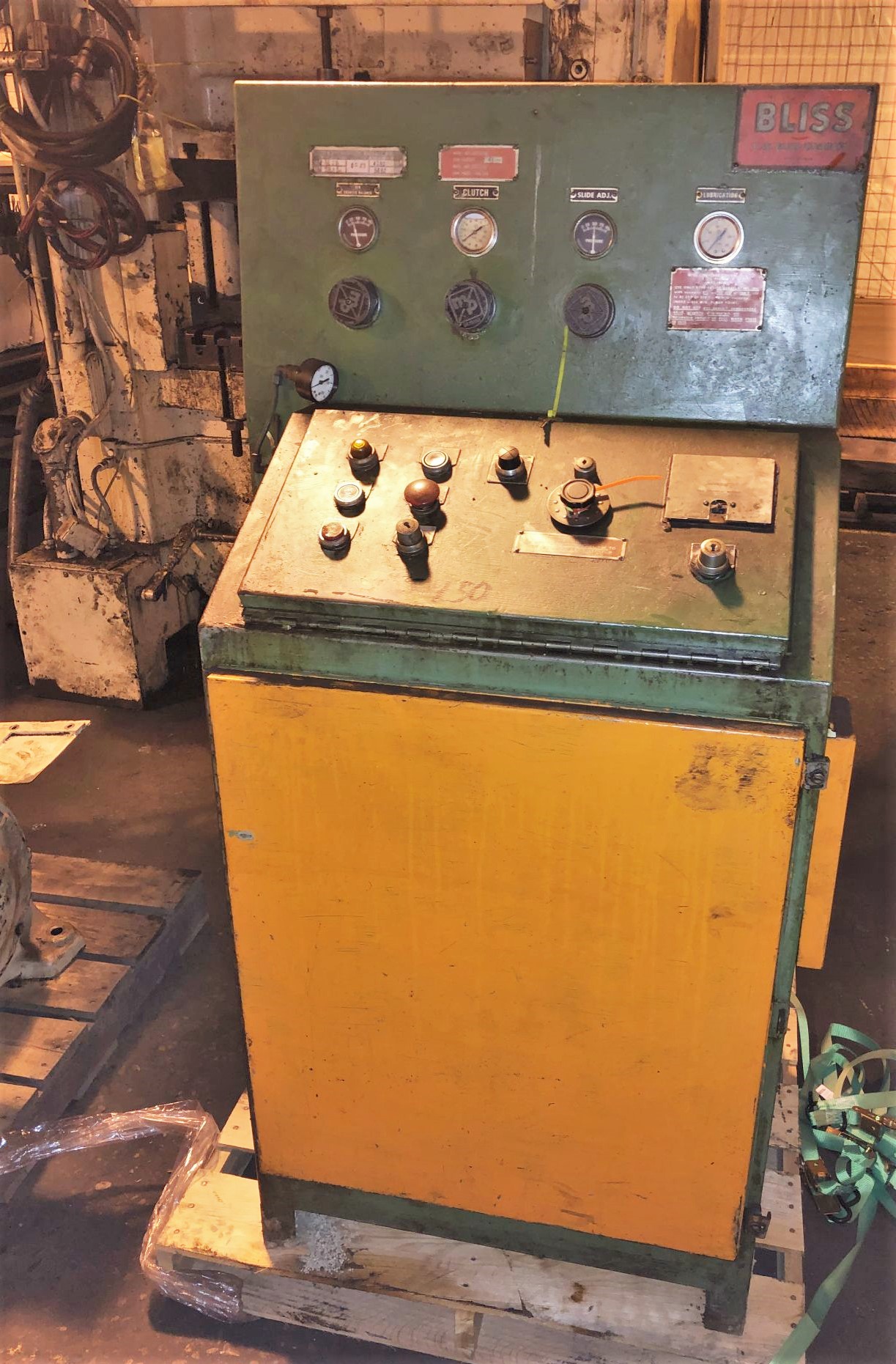

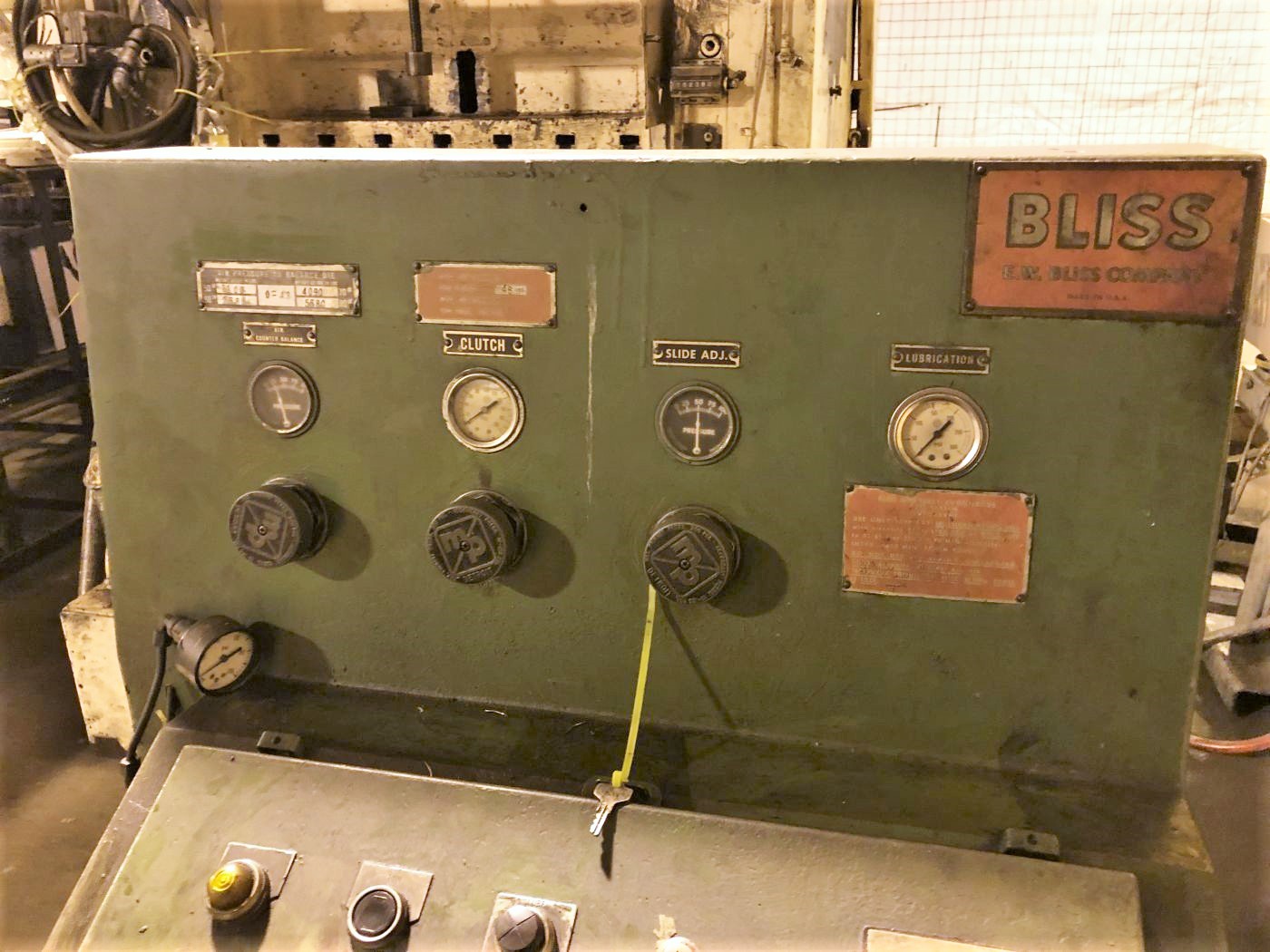

CLUTCH bliss air clutch and brake

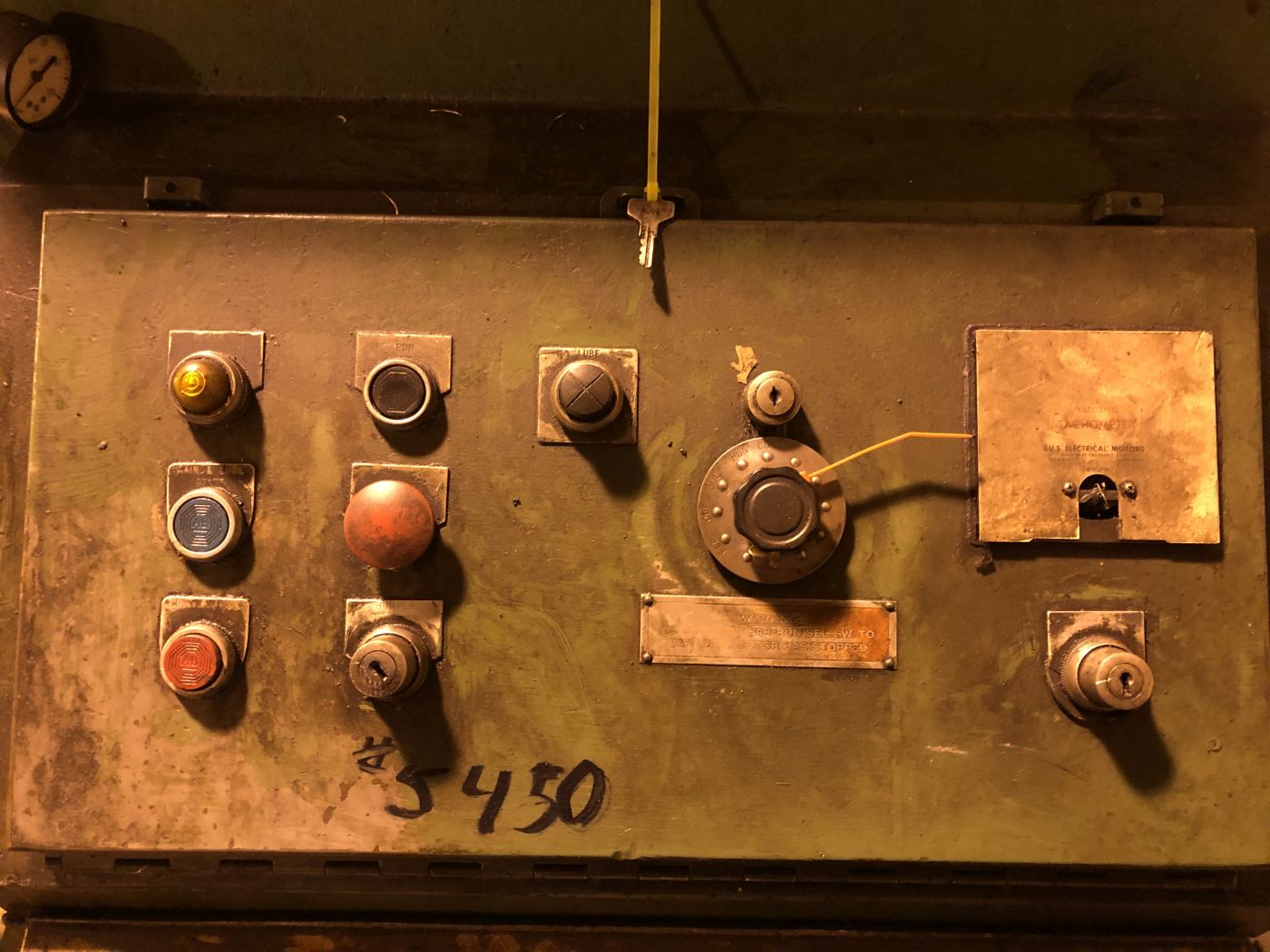

ELECTRICS 30 HP 1750 rpm 240/480v-3-60 MOTOR & triad procam 7 press controls
APPROX. DIMENSIONS 125″ X 85″ (RL X FB) X 154″ HIGH
APPROX. WEIGHT 55,000 lbs
Equipped With Floor standing cast iron, tie rod constructed single back geared
Note FLOOR STANDING DESIGN
Location This used press is located in our Jackson, MI Falahee Building
