200 Ton Blow Press • Used Blow SC2-200-60-36 Press

200

200
Ton
60″
Bed R-L
5″
Stroke
Speed: 30-90 SPM
New in 2001

1

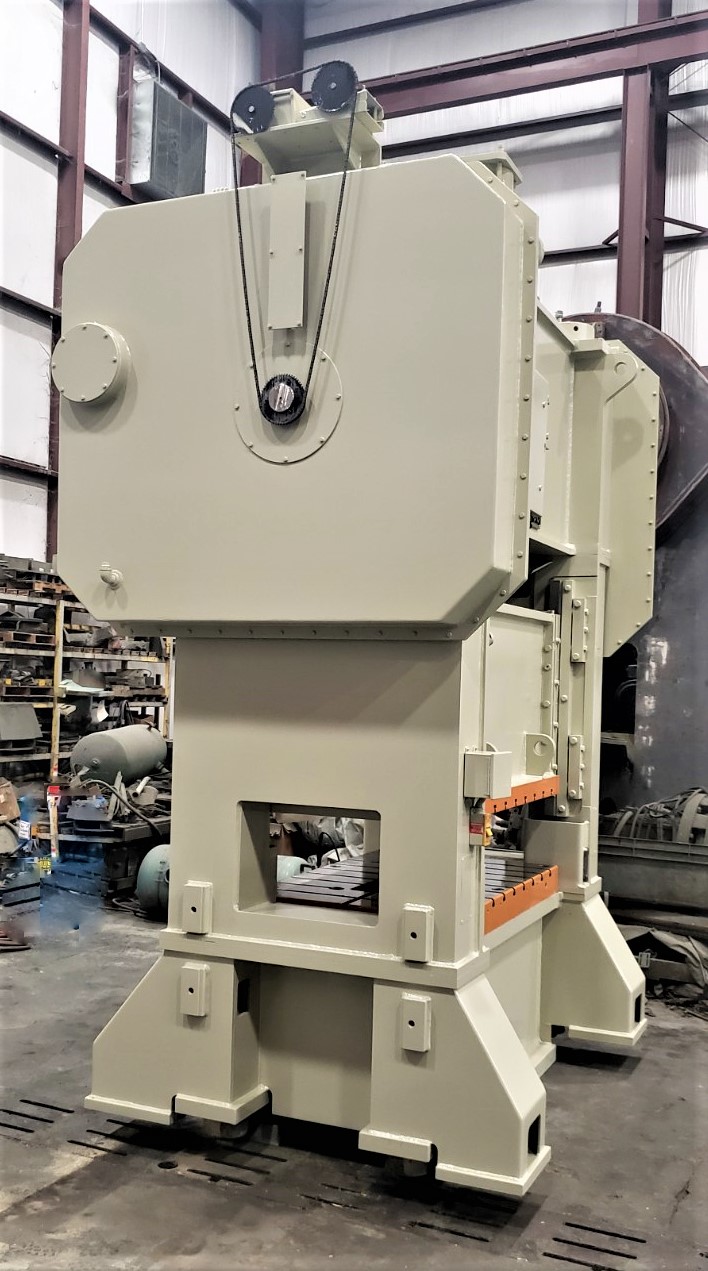

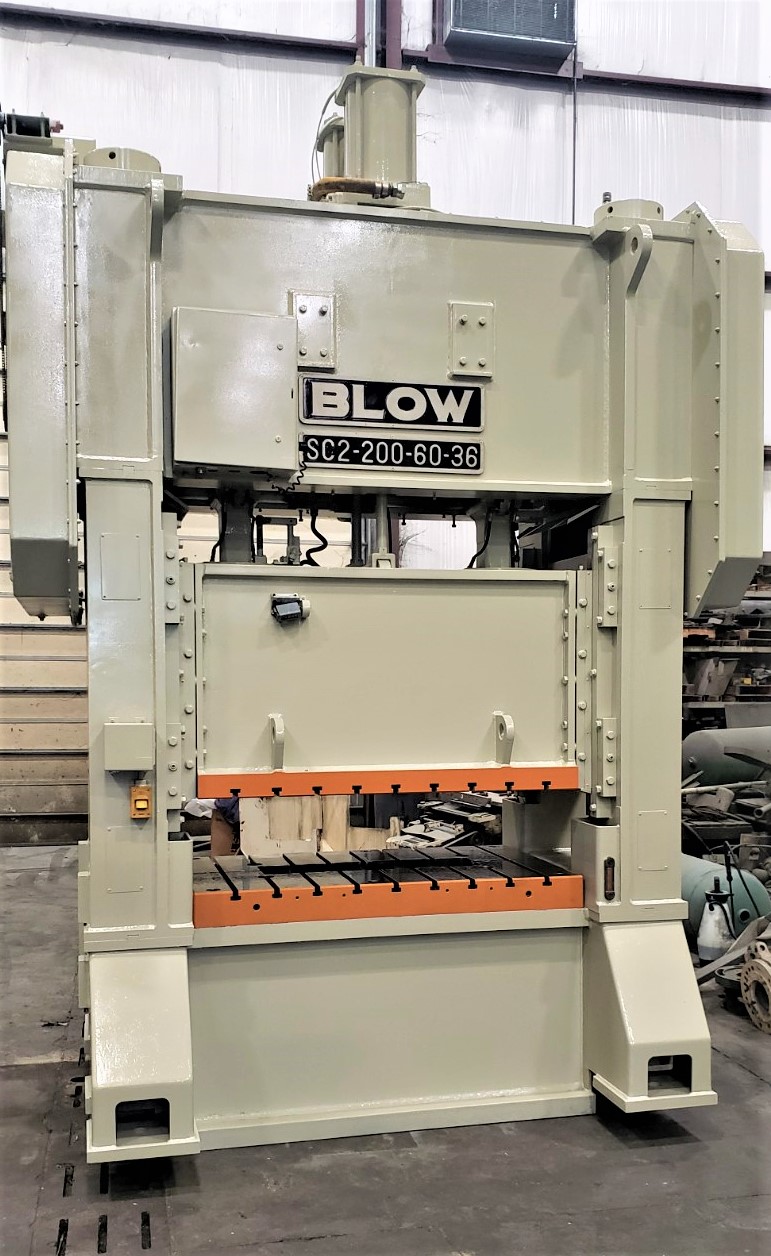

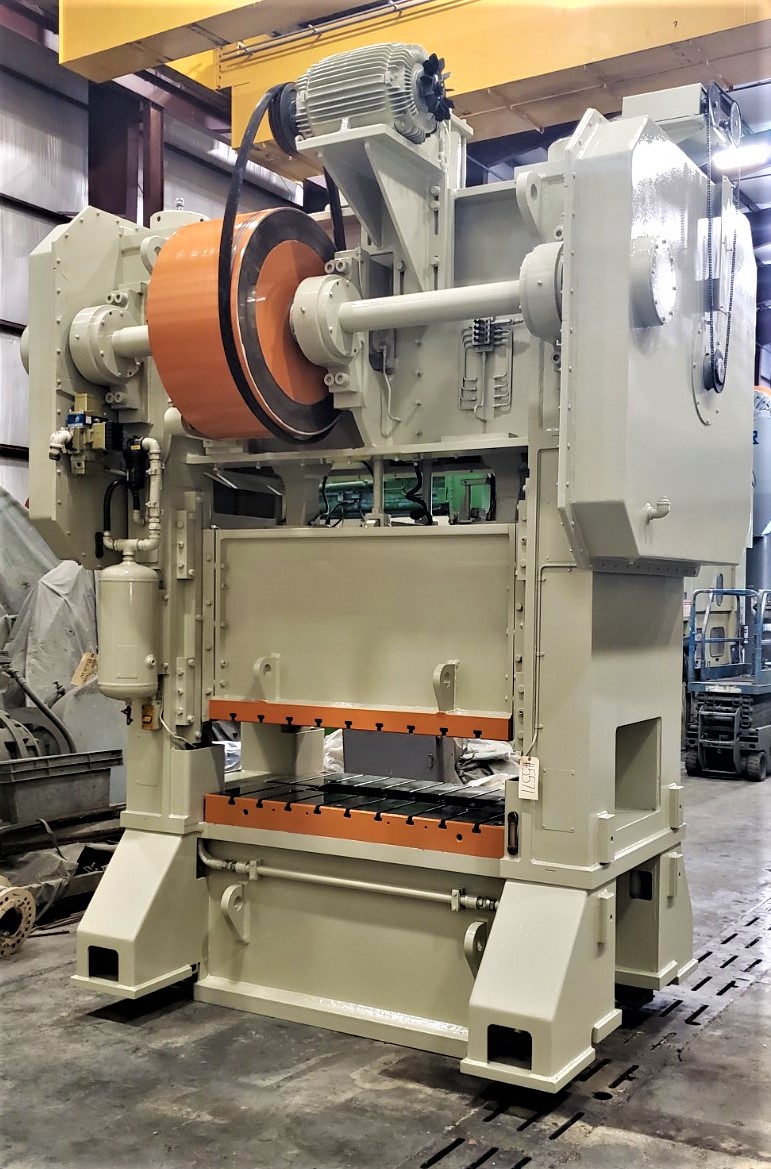

200 Ton Used Press – Straight Side Press
Model: Blow SC2-200-60-36
5″ STR, 16″ SH, 60X36 BED, 30-90 SPM, 6″ ADJ, UNDER POWER

High Speed Presses for Sale
Used Blow Stamping Press (Mechanical)
Machine #5571
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Blow
Model: Blow SC2-200-60-36 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2001
Machine #: 5571
Buy Now: $





CAPACITY 200 TONS
STROKE 5″
MAX. SHUT HEIGHT 16″ SDAU OVER BOLSTER
BED AREA 60″ RL X 36″ FB
SPEED 30 – 90 SPM
RAM ADJUSTMENT 6″ MOTORIZED

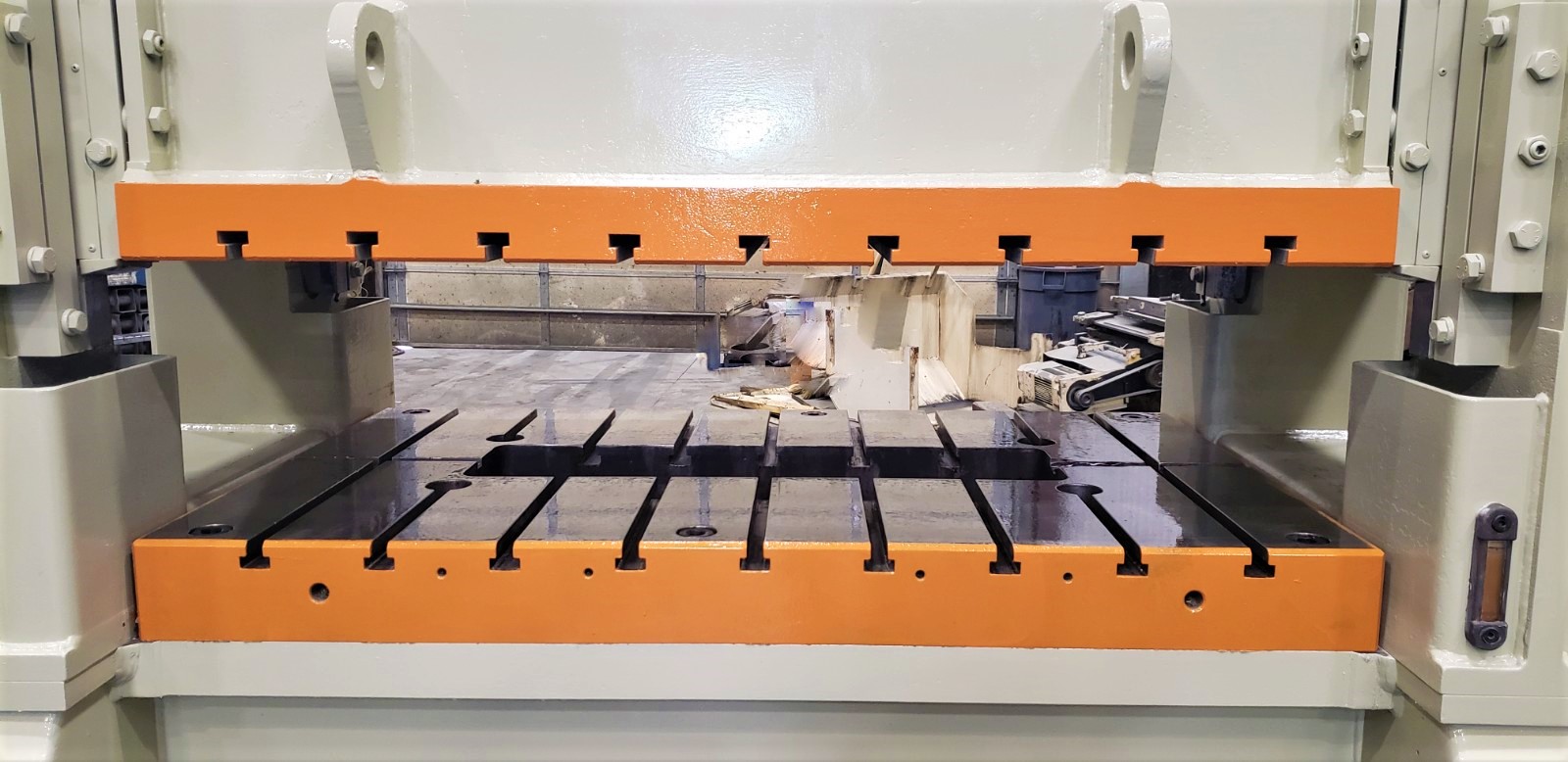

RAM AREA 60″ RL X 36″ FB (T-SLOTTED)
BOLSTER PLATE 5″ H X 60″ RL X 36″ FB (T-SLOTTED)
DISTANCE UPRIGHTS / FLOOR TO BED 61″ / 32.5″

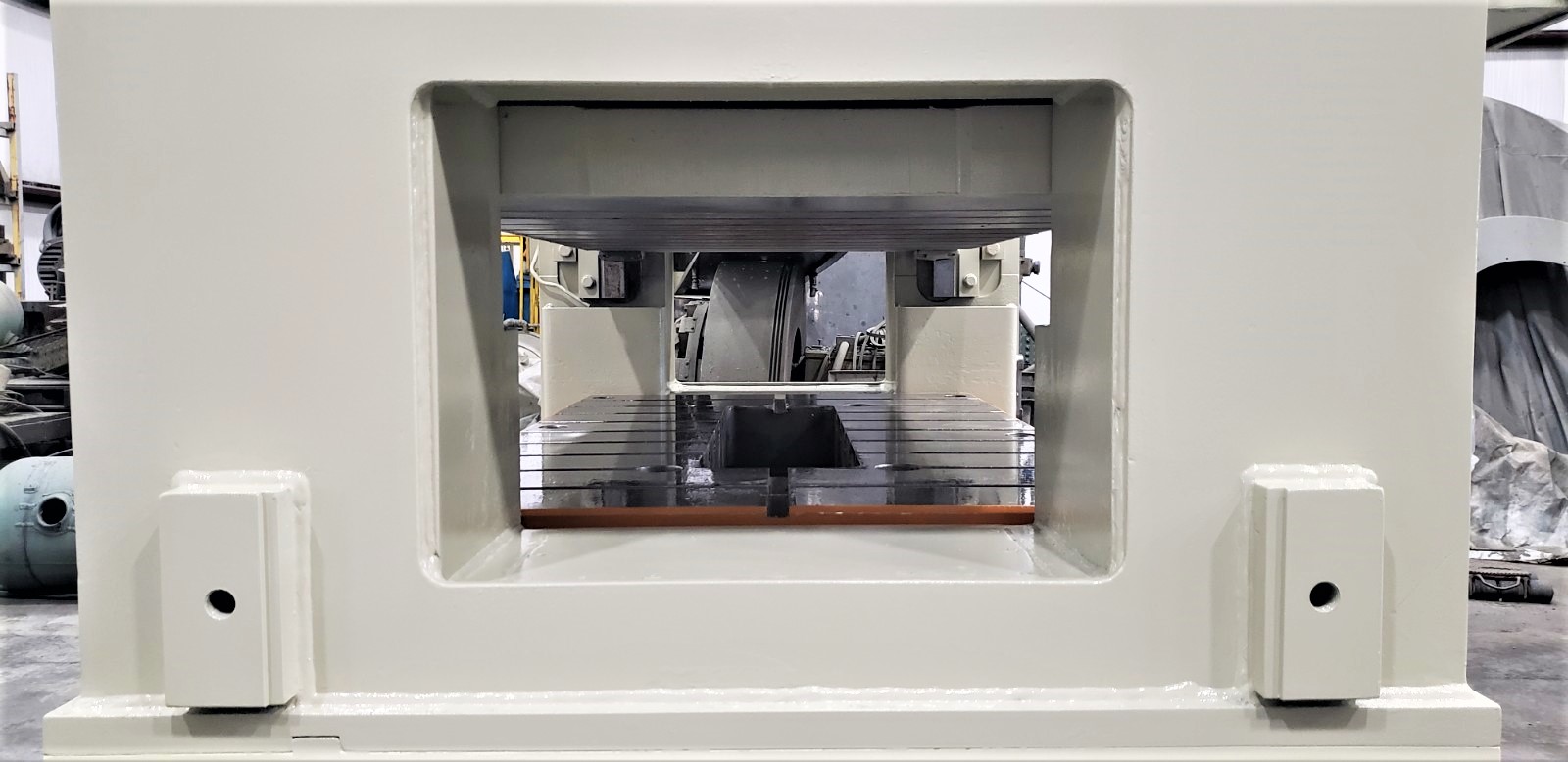

WINDOW SIZE 22″ W X 16″ H

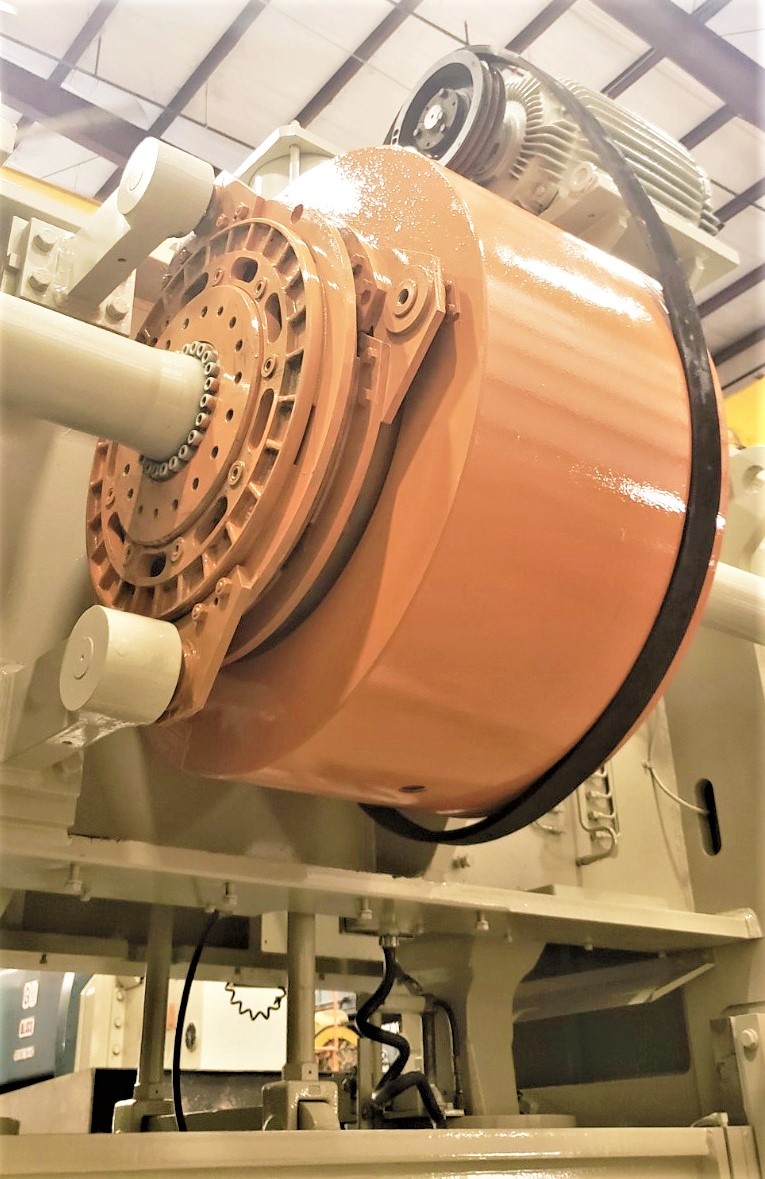

CLUTCH WICHITA COMBINATION AIR CLUTCH / BRAKE
ELECTRICS 30 HP 1750 RPM 240/480V-3-60 MOTOR W/480V VFD & LINK PRESS CONTROL
APPROX. DIMENSIONS 13.5′ H X 10′ RL X 7.5′ FB
APPROX. WEIGHT 60,000 LBS
Equipped With DUAL AIR COUNTERBALANCED RAM TIE ROD FRAME CONSTRUCTION
Note __
Location This used press is located in our Columbia, TN Warehouse
