Description

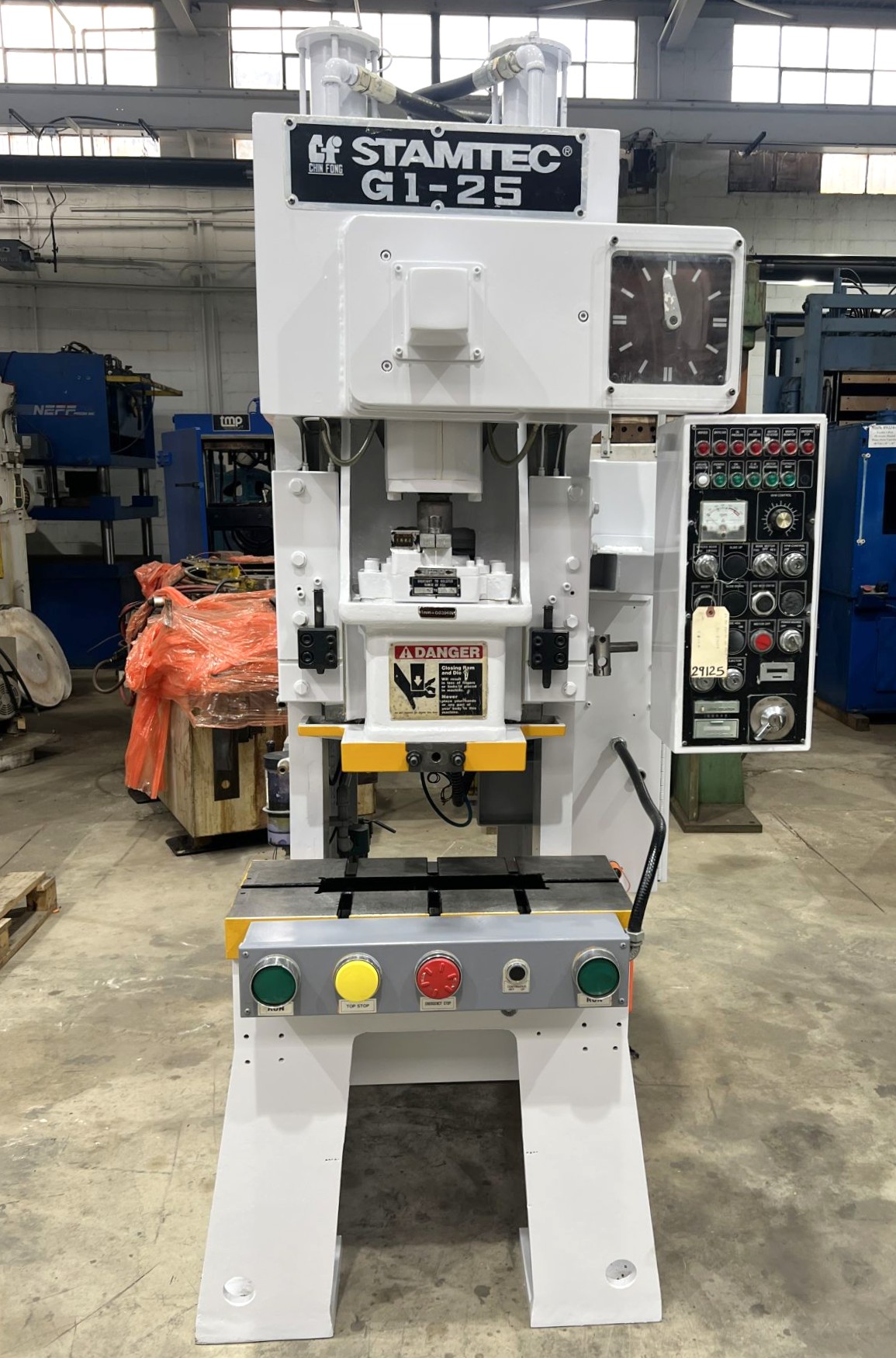

C Frame Press • Used 27 Ton Press for Sale
Manufacturer: Stamtec
Model: Stamtec G1-25N Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1997
Machine #: 8263
Buy Now: $

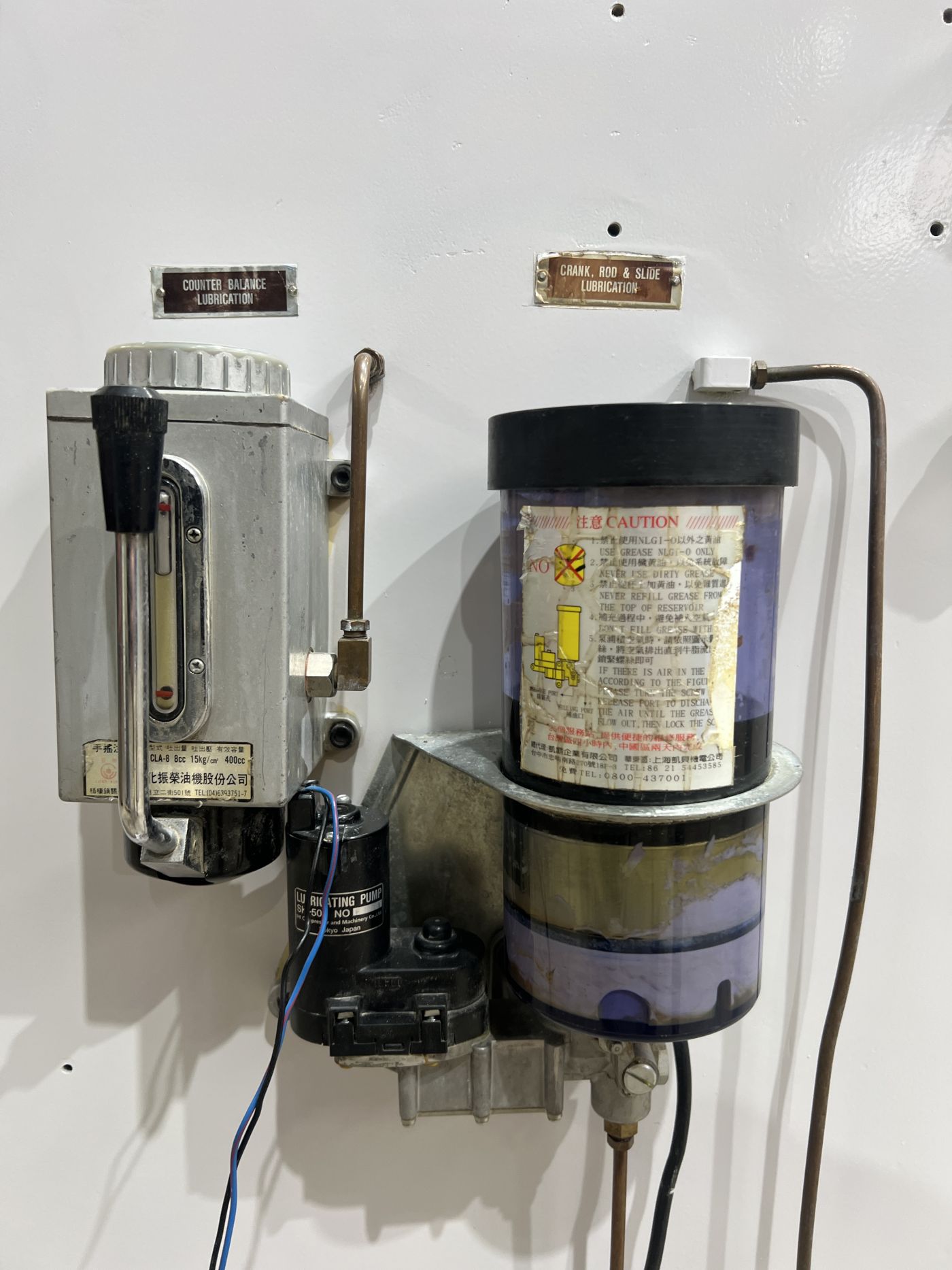

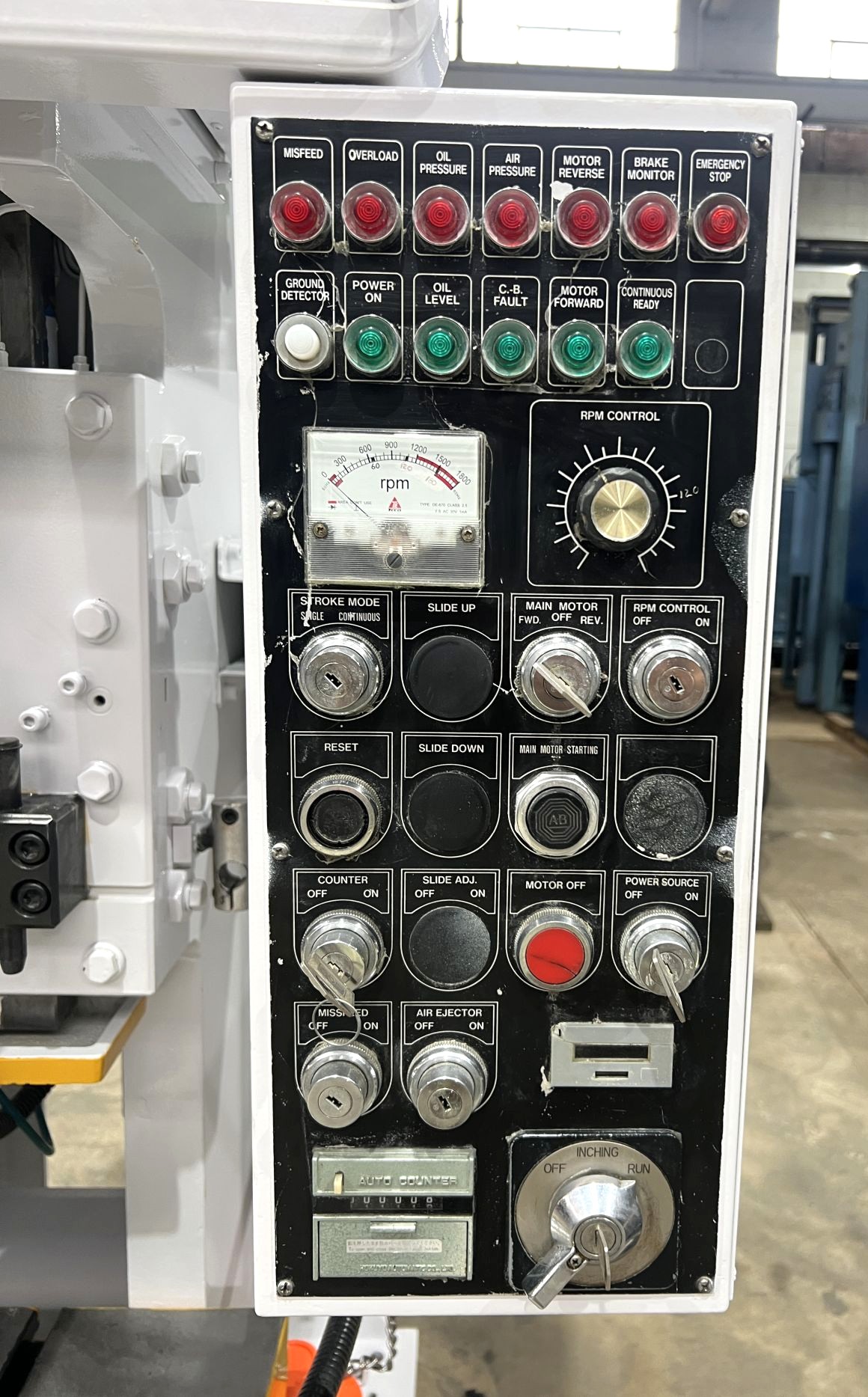

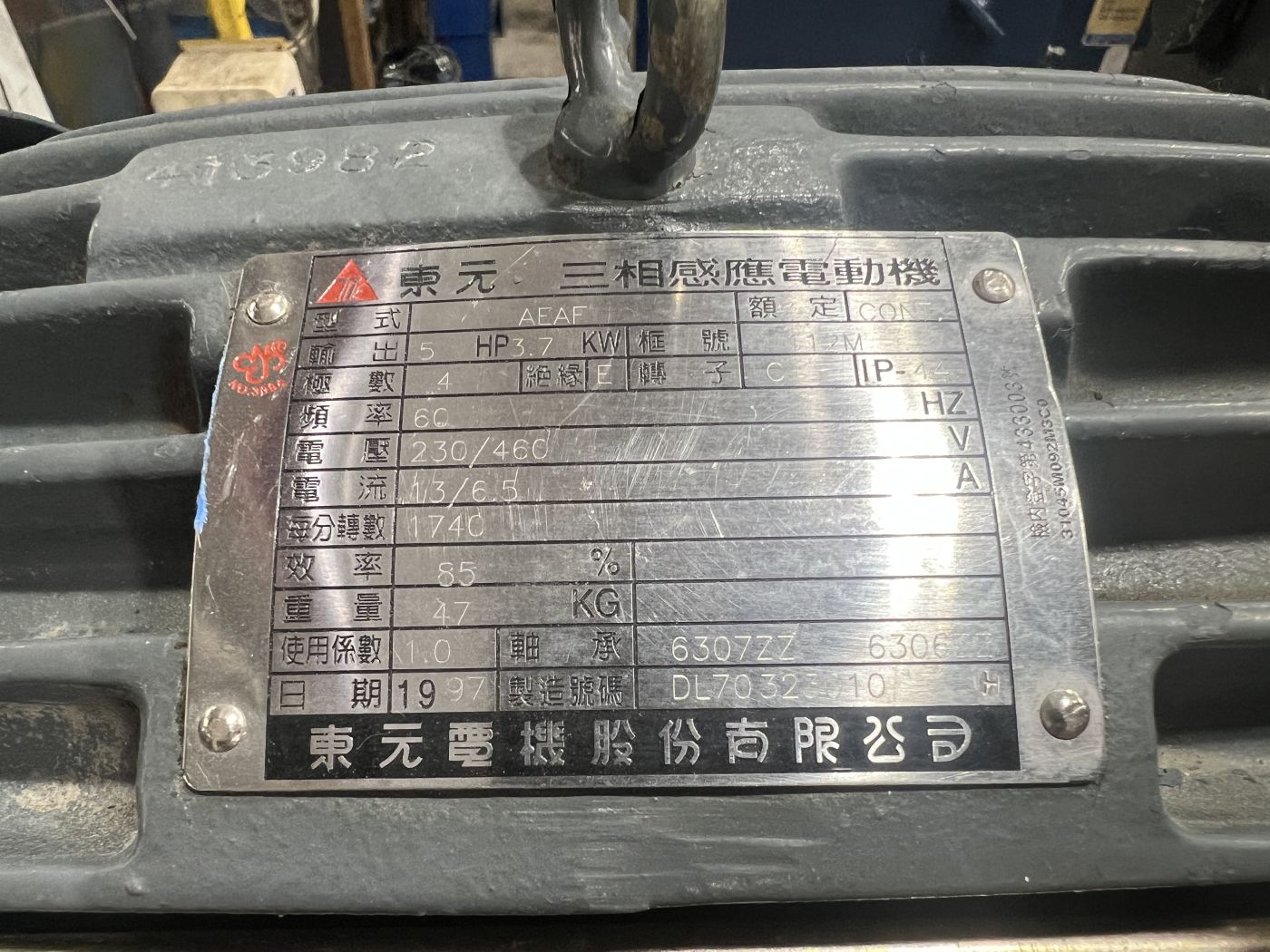

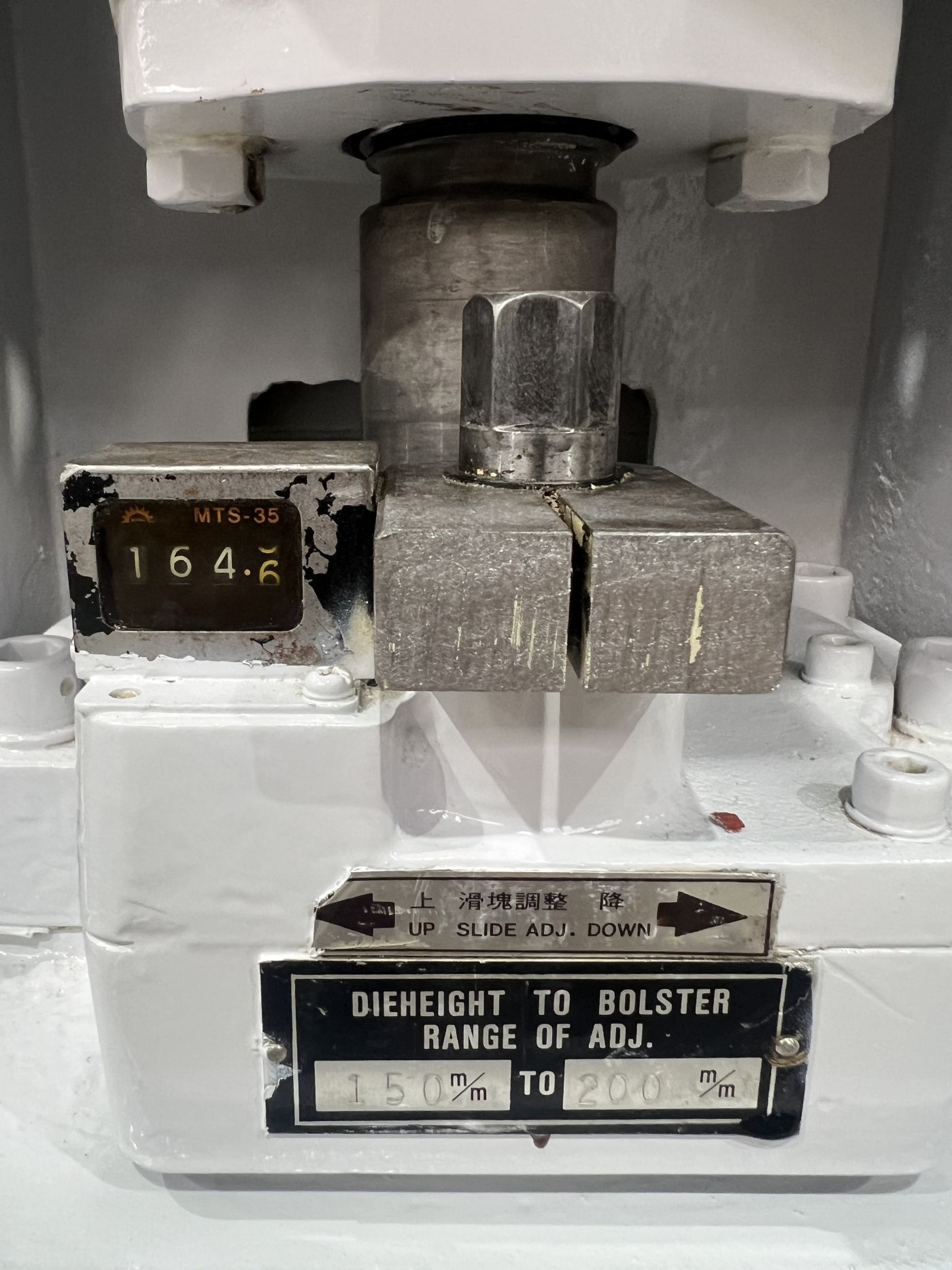

| capacity | 27 us ton | stroke | 2.4″ | max die height | 7.9″ sdau over bolster | bed area | 26.8″ rl x 11.8″ fb | speed | 60 – 140 spm | slide adjustment | 2″ MANUAL | slide area | 11.8″ rl x 8.7″ fb (t-slotted) | bolster plate | 3″ h x 26.8″ rl x 11.8″ fb (t-slotted) | distance between uprights | 16.25″ | distance floor to bed | 27.25″ | clutch | stamtec air clutch / brake combination | electrics | 5 hp 1750 rpm 240/480v-3-60 eddy current drive & stamtec press control | approx dimensions | 94″ h x 45″ rl x 60″ fb | approx weight | 5,000 lbs. | Equipped With | HYDRAULIC OVERLOAD PROTECTION, LOW DEFLECTION, SUPER RIGID STEEL FRAME, EXTRA LONG 6 PT CENTERED GIBS, REMOVABLE BOLSTER & SLIDE PLATE, AUTOMATIC LUBRICATION SYSTEM, DUAL AIR COUNTERBALANCES, SINGLE BACK GEARED DESIGN, FLOOR STANDING | Note |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
