Machine Specifications

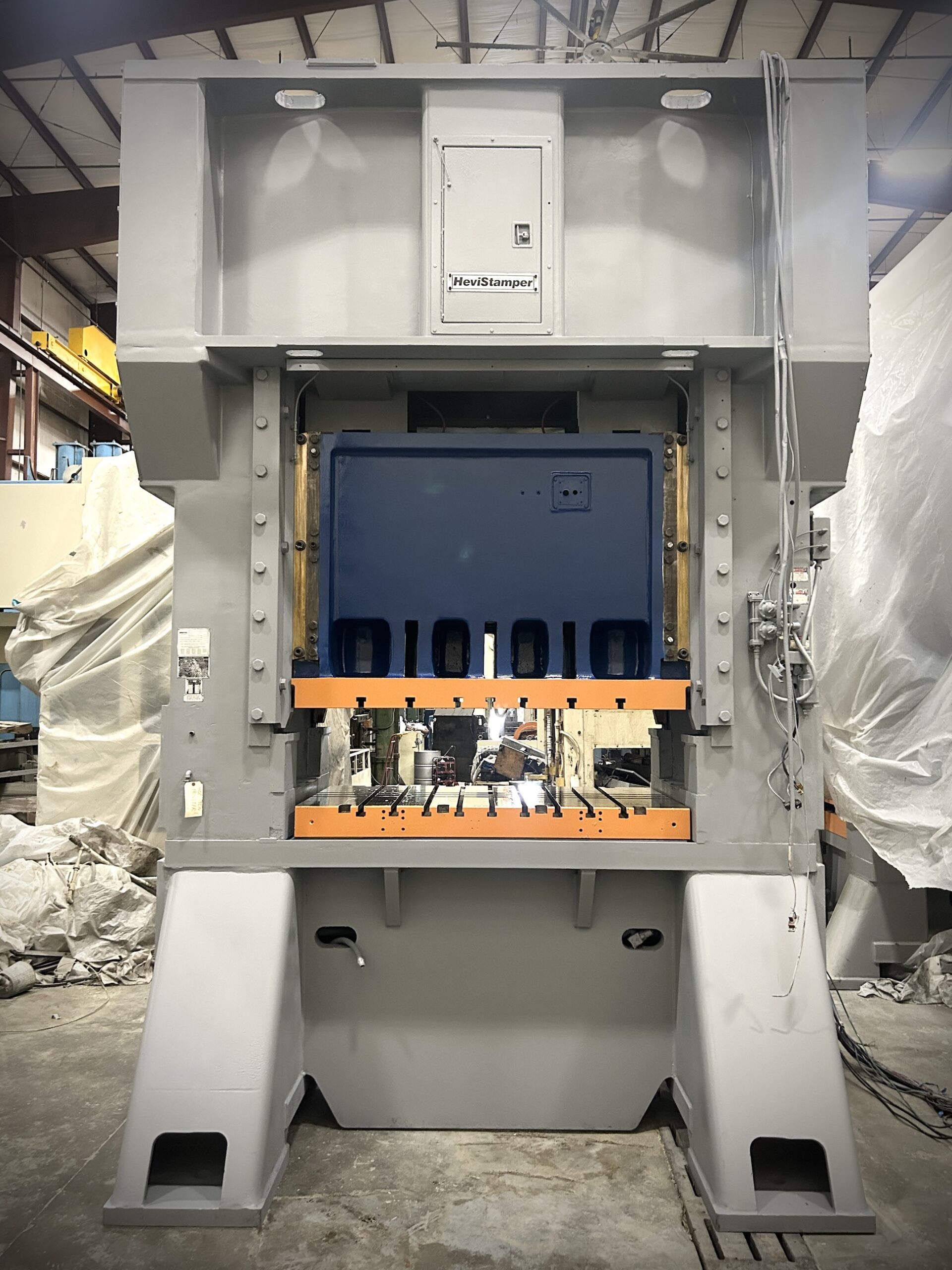

Straight Side Press for Sale
Manufacturer: Minster

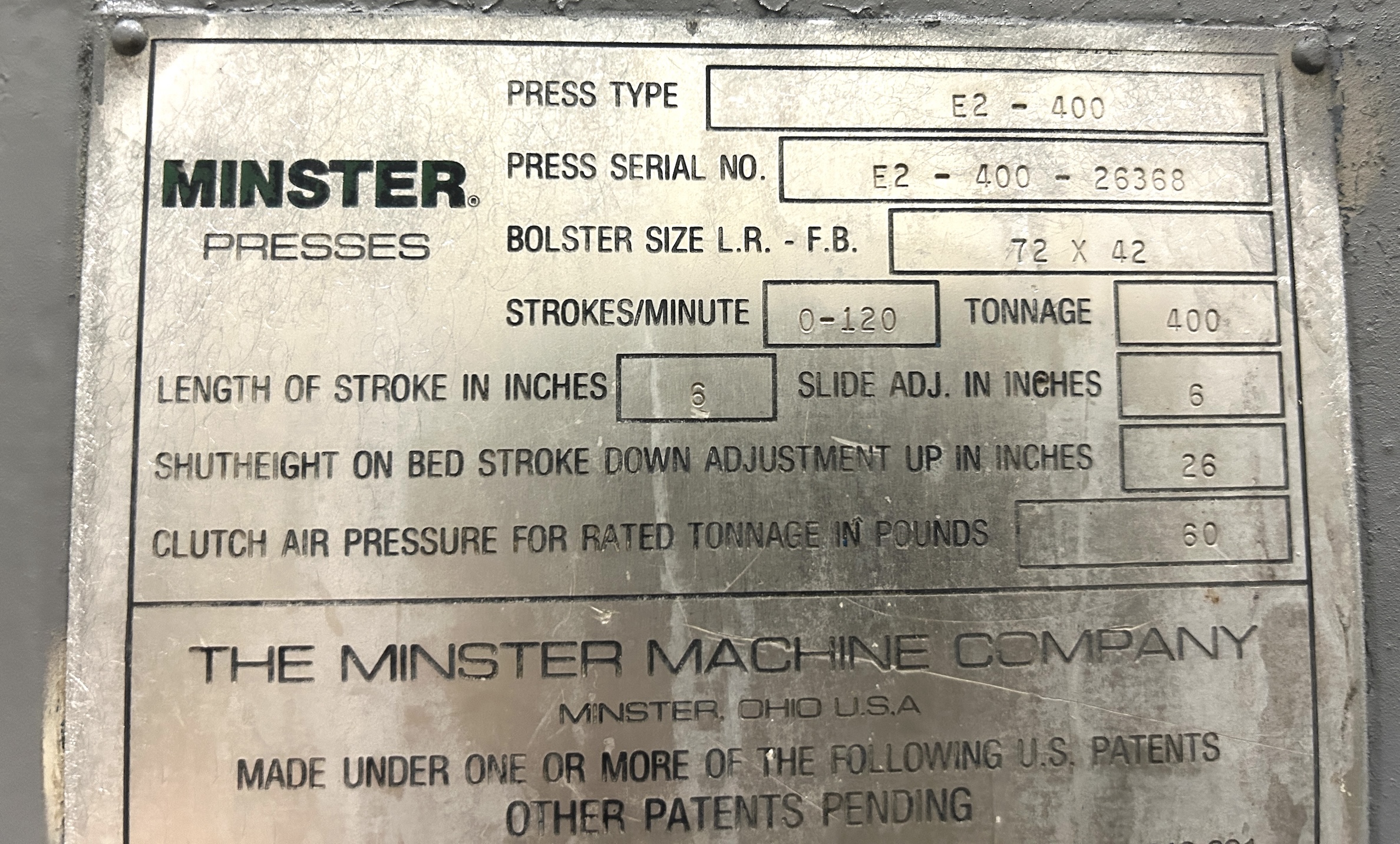

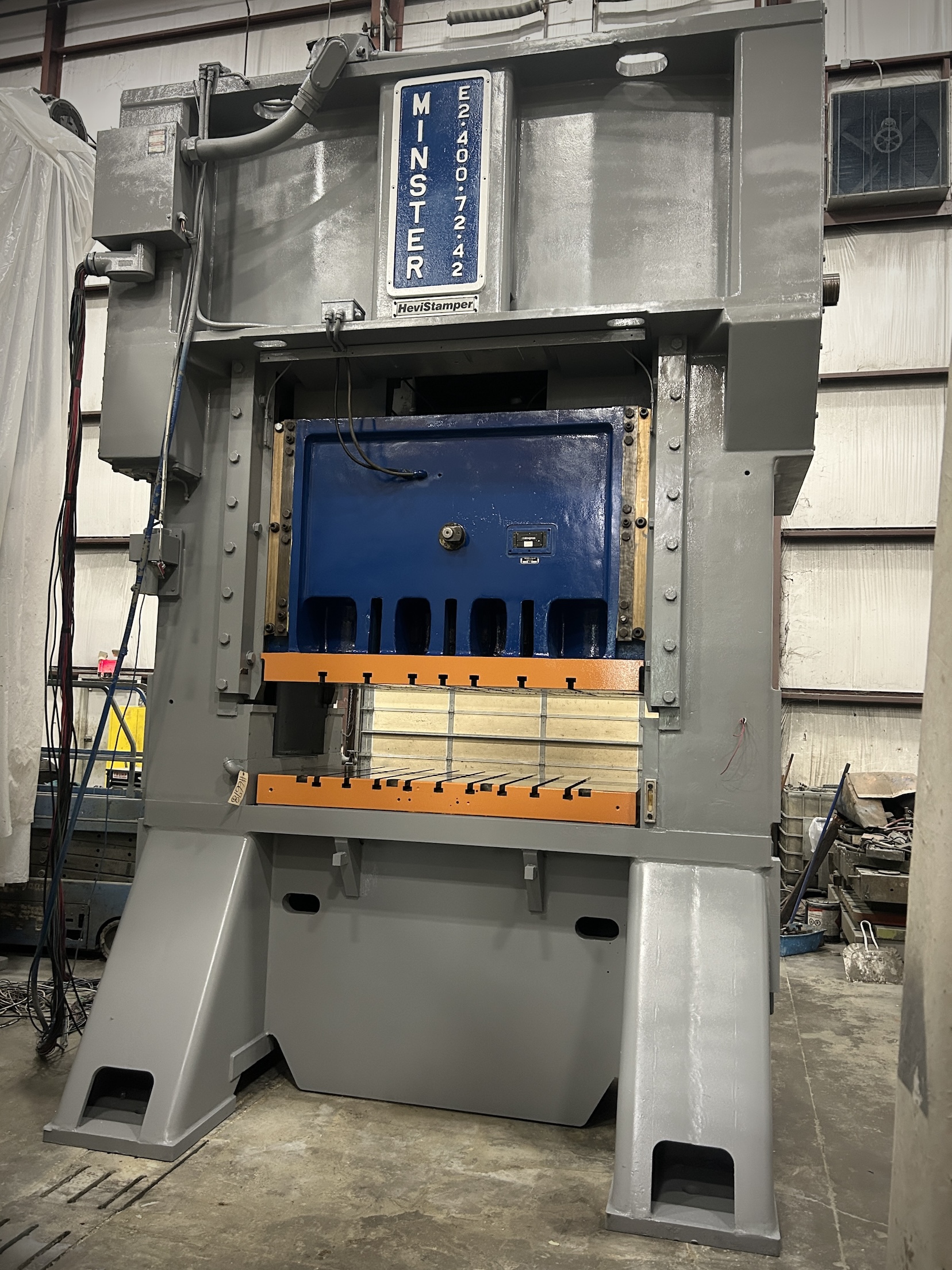

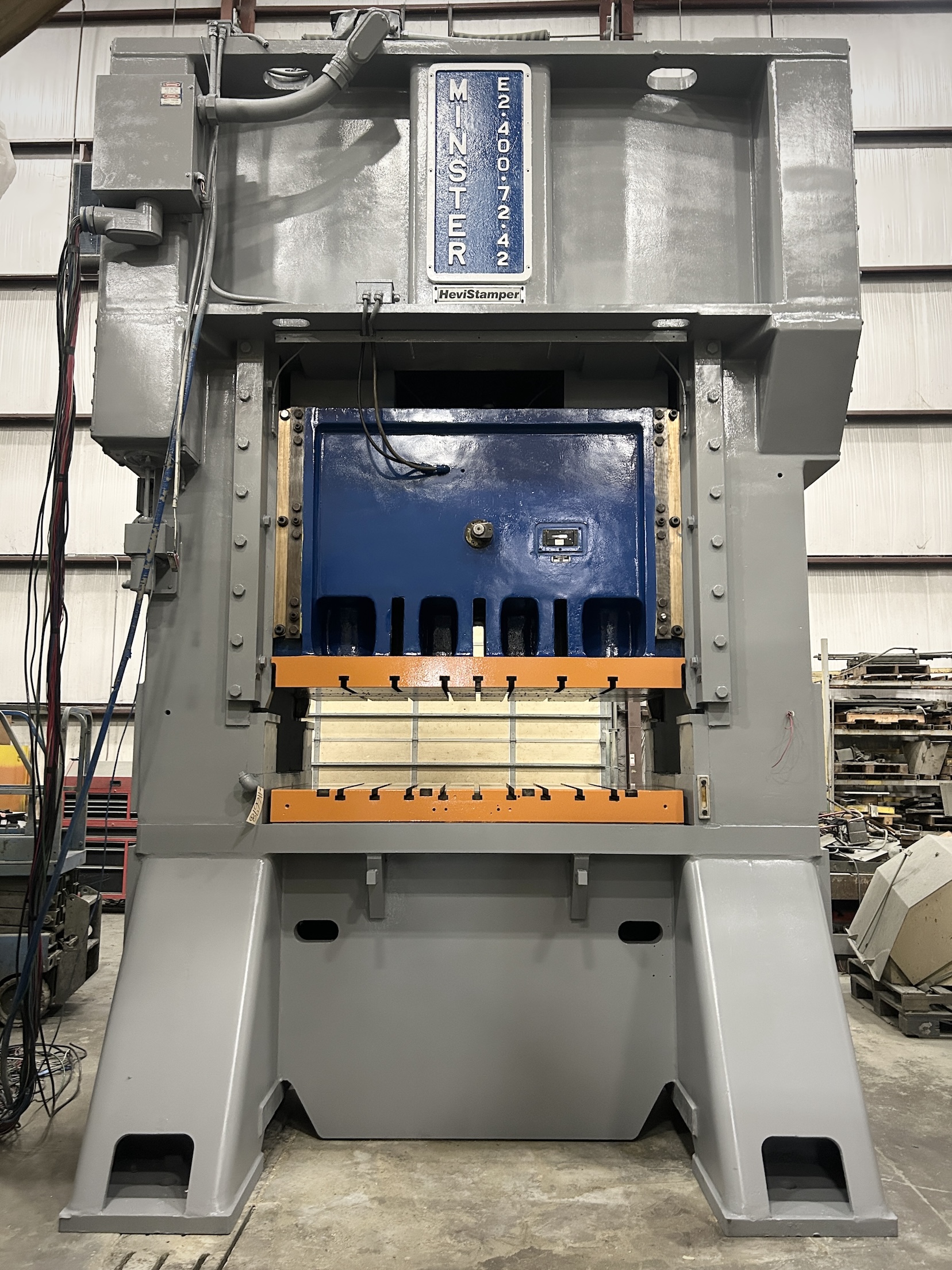

Model: Minster E2-400-72-42 Press
Condition: In Process
Location: Columbia, TN Warehouse
Year: 1986
Machine #: 6678
Buy Now: $

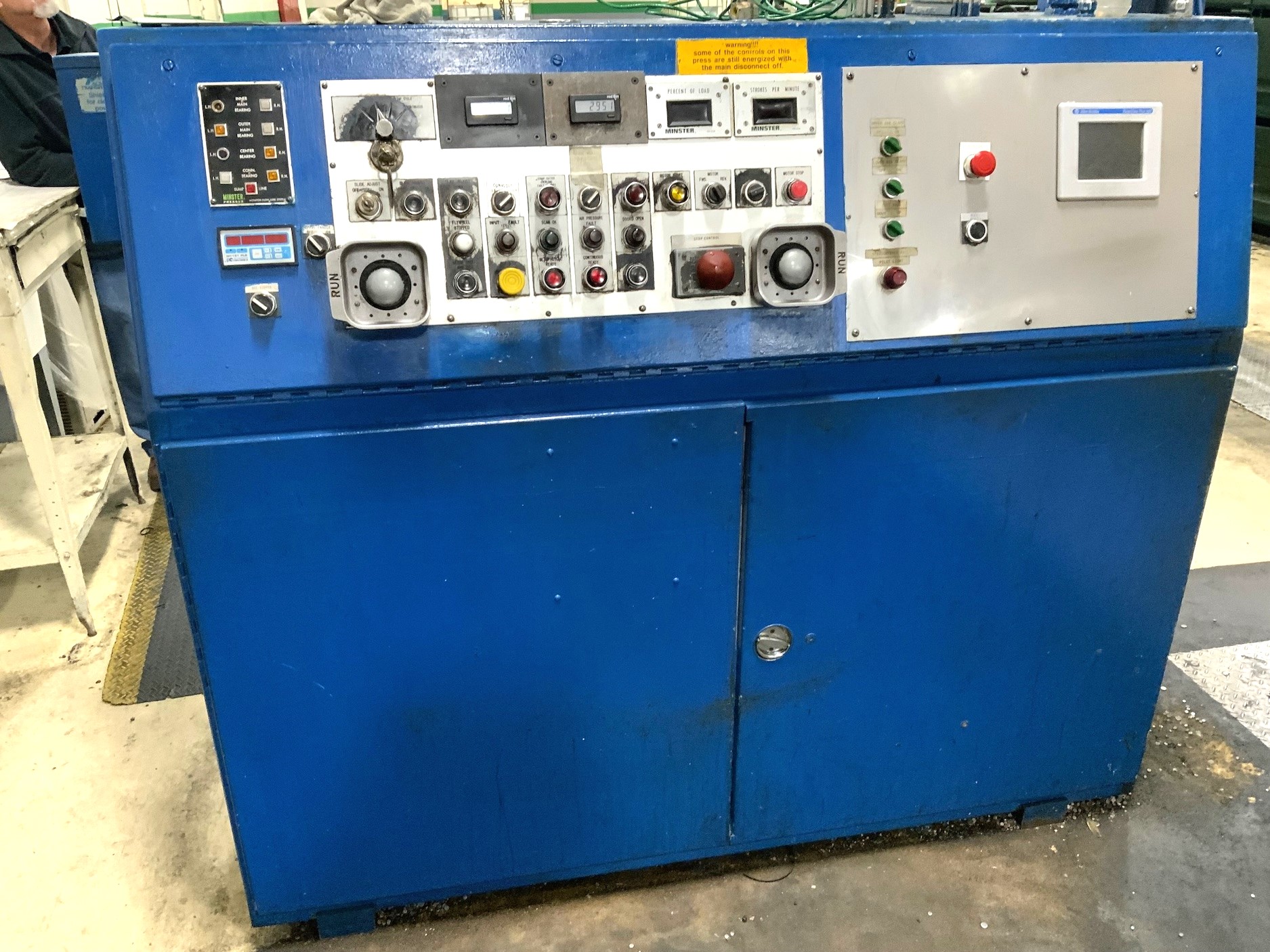

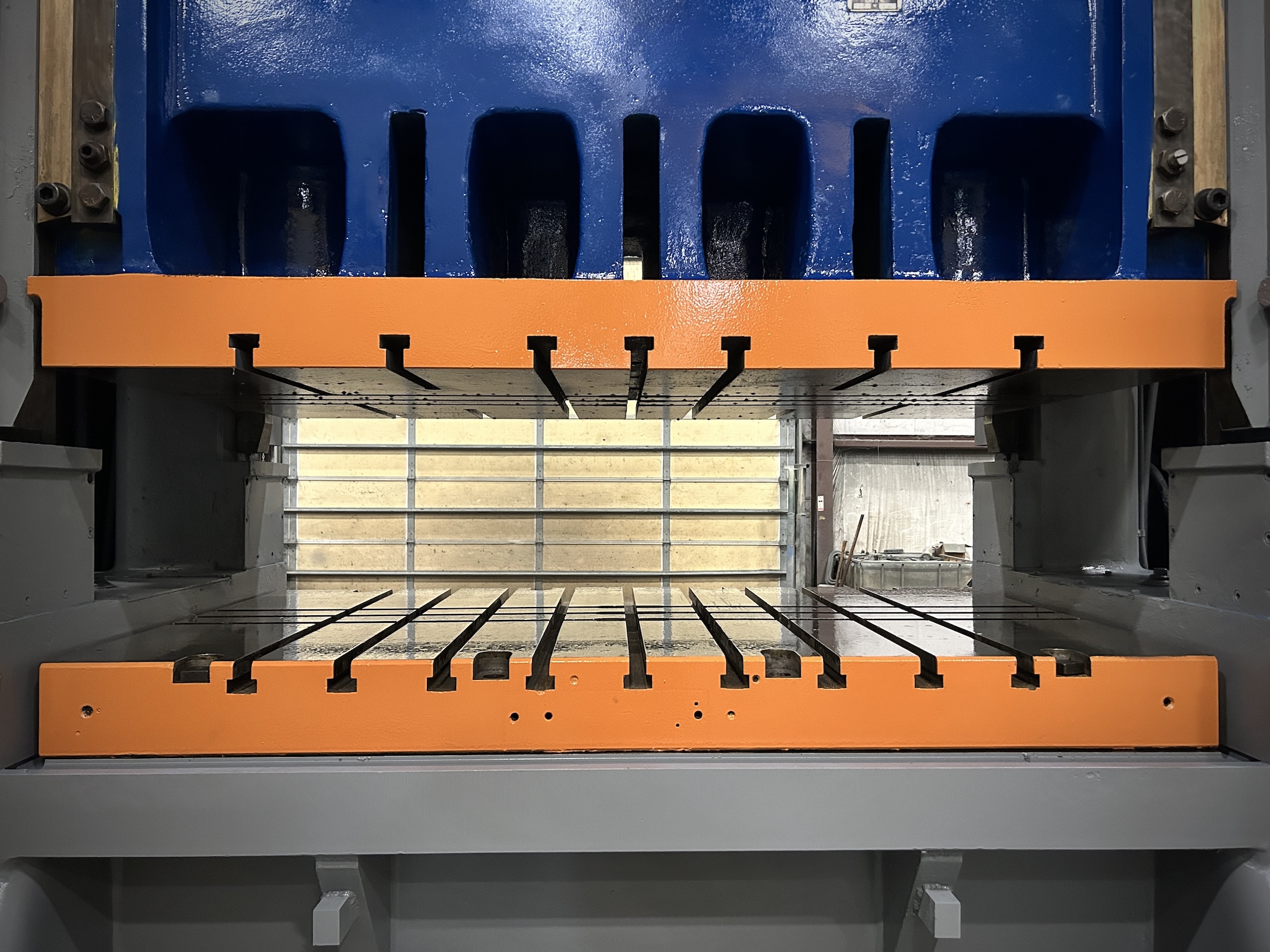

| CAPACITY | 400 TONS | STROKE | 6″ | SHUT HEIGHT TO BED | 26″ SDAU | SPEED | 0 – 120 SPM (VARIABLE) | RAM ADJUSTMENT | 6″ (MOTORIZED) | BED AREA | 72″ X 42″ (RL X FB) | SLIDE AREA | 74″ X 42″ (RL X FB) T-SLOTTED – wrist pins/saddles addressed as required. | WINDOW SIZE | 26″ WIDE X 20″ HIGH | BOLSTER PLATE SIZE | 72″X 42″ (RL X FB) X 6″ THICK T-SLOTTED BOTH DIRECTIONS | DISTANCE BETWEEN GIBS | 74″ | FLOOR TO BED HEIGHT | 55″ | AIR CLUTCH | MINSTER AIR CLUTCH & BRAKE ASSEMBLY – new linings and other parts as required | PRESS CONTROLS | cieco 1100r6 (resolver based) included. upgrade to Cieco automator ii – add $ 15 k. | main motor | 75 hp, 1755 rpm, 460v-3-60 eddy-current drive. include reconditioning motor & new drive board | APPROX. DIMENSIONS | 162″ X 96″ (RL X FB) X 204″ HIGH – 13’6″ X 8′ (RL X FB) X 17′ HIGH | APPROX. WEIGHT | 104,000 LBS | other additions: | frame line-bored, crankshaft checked for cracks and straightness. new main bearings | Equipped With | AIR COUNTERBALANCEs – new seals & bushings aUTO OIL LUBRICATION SYSTEM – new motor & pump ram – squared & gibbs machined back flat clutch & brake – all perishables replaced new pneumatic system – piping & flr’s replaced bolster plate machined flat as required mains & strap bushings either new or within tolerance. add: foot pads. 6 month major parts warranty clean and paint per customer requirement | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
