Description
Straight Side Press • Used 600 Ton Press for Sale
- Machine #
- 8056
- Condition
- Very Good
- Location
- Columbia, TN Warehouse
- Year
- Year Unknown
- Model

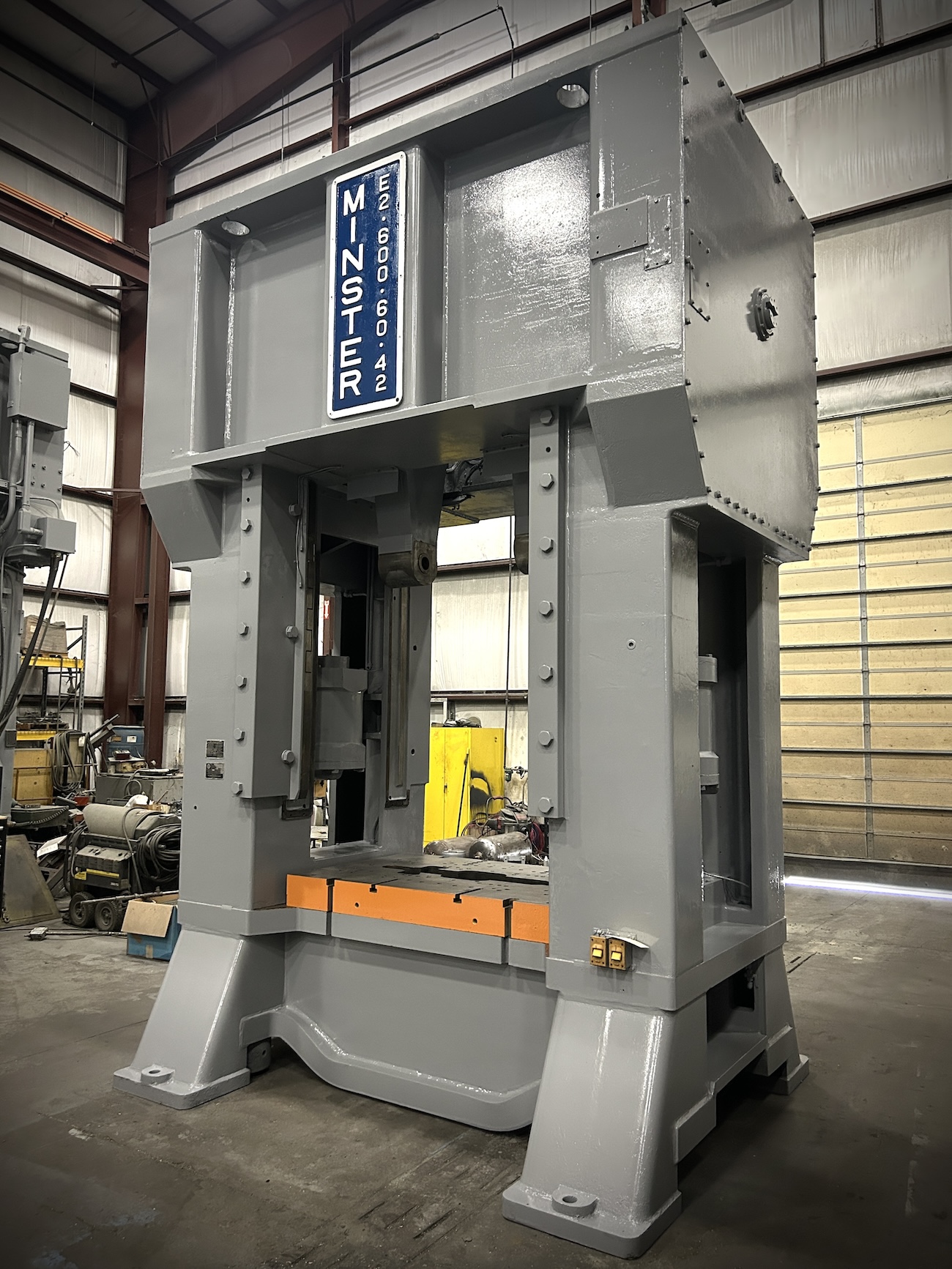

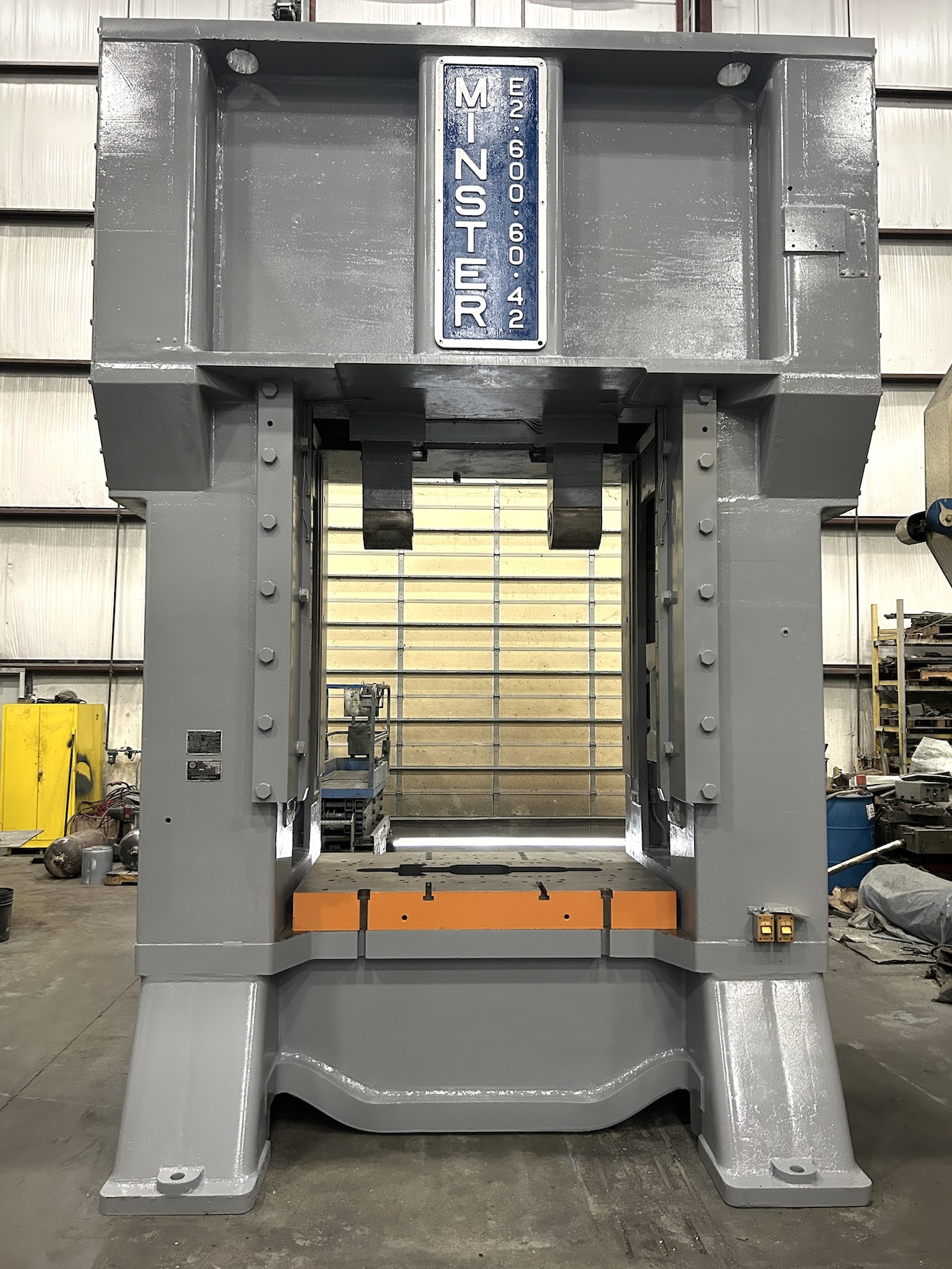

- Minster E2-600-60-42
Buy Now: $
| CAPACITY | 600 ton |
|---|---|
| STROKE | 4" |
| MAX SHUT HEIGHT TO BED | 34" sdau |
| BED AREA | 60" x 42" (rl x fb) |
| SPEED | 25 spm |
| SLIDE ADJUSTMENT | 12" motorized |
| SLIDE AREA | 60" rl x 42" fb |

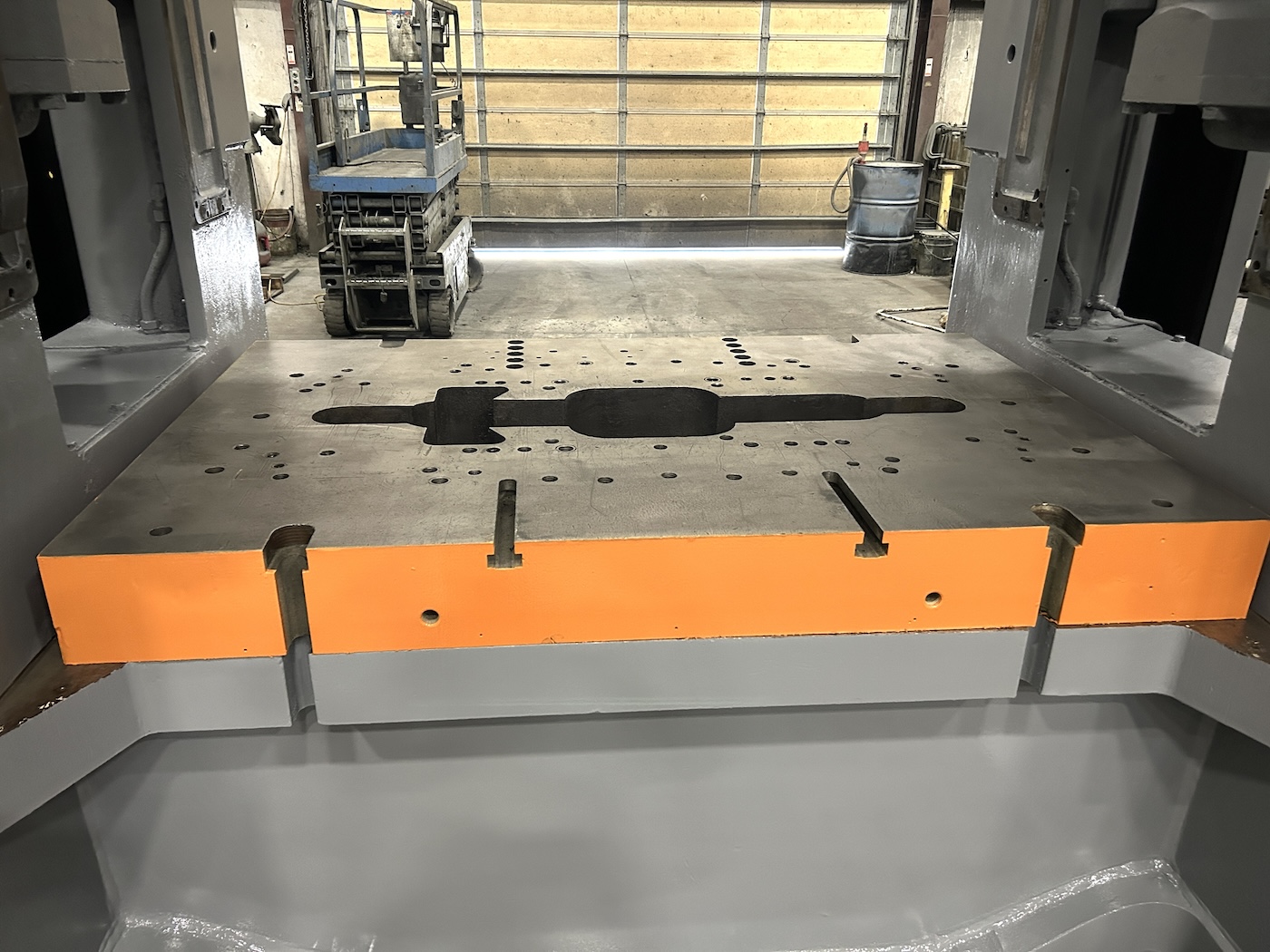

| BOLSTER PLATE | 6.5" h x 60" rl x 42" fb |
| DISTANCE BETWEEN UPRIGHTS | 60" |
| DISTANCE FLOOR TO BED | 36" |
| WINDOW SIZE | 25" W |
| CLUTCH | minster air clutch / brake combination |
| ELECTRICS | 50 hp 1150 rpm 480v-3-60 motor & new cieco press control for reconditioned price |
| APPROX DIMENSIONS | 238" h x 109" rl x 87" fb |
| APPROX WEIGHT | 120,000 lbs |
| Equipped With | TIE ROD FRAME, GEARED, TWIN END DRIVE, HEAVY DUTY UPRIGHTS, EIGHT POINT GIBBING FOR PRECISION SLIDE GUIDING, HEAVY SLIDE & CONNECTIONS, DUAL AIR COUNTERBALANCES, FLOOR STANDING |
| Note | __ |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
