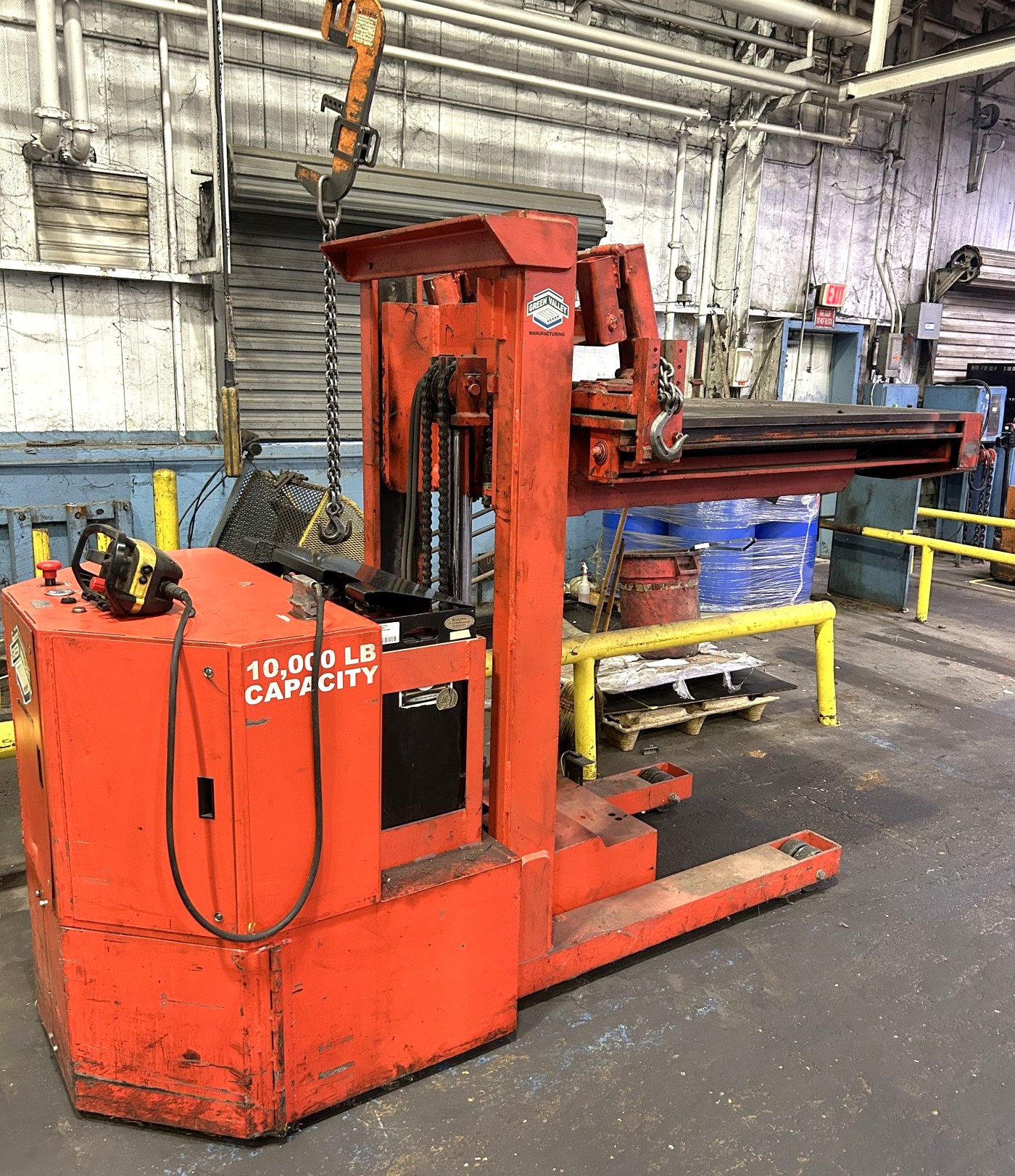

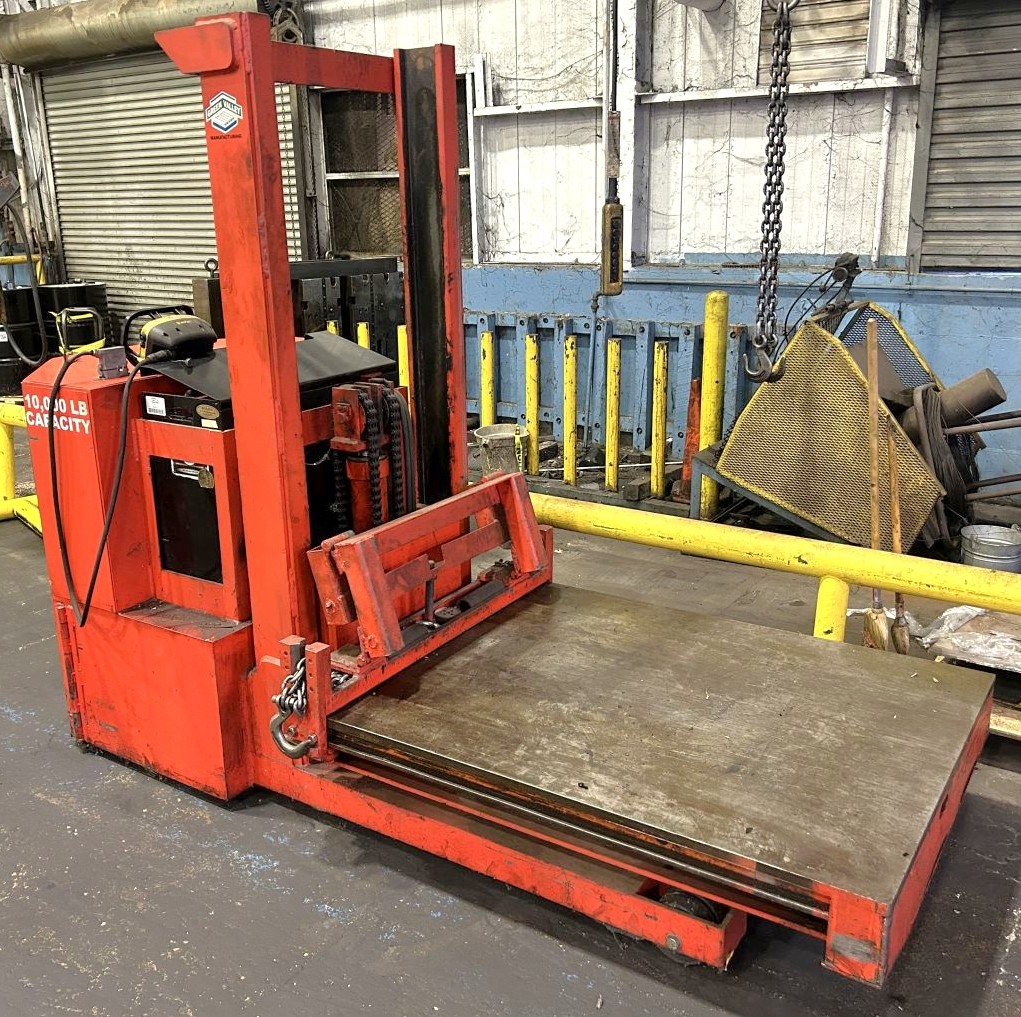

10,000 lb Green Valley Electric Die Cart

94

10,000
Max. Capacity
60
Table Size
64
Raised Height

1
Used Power Die Car Machine
Die Handeling Equipment for Sale
Used Electric Die Cart
Model 184315
Year: 1
60X44 TABLE SIZE, 64" RAISED HEIGHT, 16.8" LOWERED HEIGHT, 47.3" STROKE

Machine #8182
**On Location**
Starting Price: $
Machine #8182
Machine #: 8182 Categories: , Manufacturer:

Description

Used Electric Die Cart for Sale

Model: 184315
Condition: As-Is Under Power
Location: **On Location**
Year:
Machine #: 8182
Buy Now: $





max capacity10,000 lbs.
table size60" x 44"
raised height64"
lowered height16.75"
stroke47.25"
vehicle driveinternal traction drive infinitely variable up to approx. 120 fpm with deck lowered
load wheelsnon-marking wheels, rigid at transfer end, non-marking wheel on steerable drive
transfer controlslift & push/pull momentary pushbuttons on pendant w/5' cable
lift systemmast driven by hydraulic cylinder
lift speed1 - 2" per second raise & lower
power24 vdc via 185 amp-hr deep cycle battery set located for changing without tools. battery set provides 4 hours of run time
battery chargerexternal kodiak 208-240/480v-3-60 charger included
approx lowered dimensions72" x 43" x 54" (h x w x l)
approx weight5,000 lbs
Note__
Equipped Withrebuilt in 2018
LocationThis Used Power Die Car Machine is located in our **On Location**
