Description

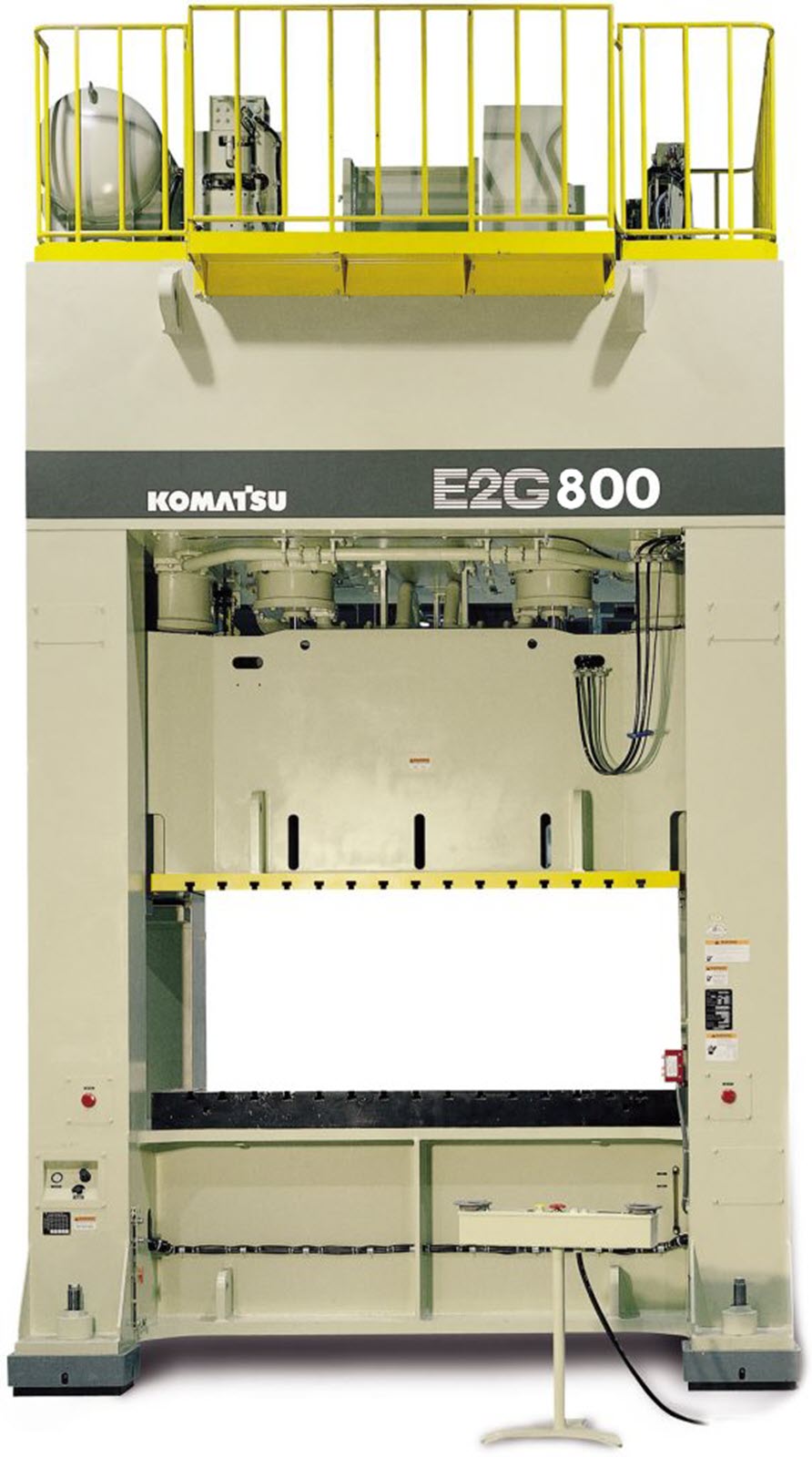

New Straight Side Press • New 880 Ton Press for Sale
- Machine #
- 7037
- Condition
- New
- Location
- Press Sales Catalog Either In Transit or Made to Order
- Year
- 2026
- Model
- Komatsu E2G800A
Buy Now: $
| CAPACITY | 880 US TONS @ .51" rating point |
|---|---|
| STROKE | 19.7" |
| max die height | 43.1" sdau over BOLSTER |
| BED AREA | 144" X 61" (RL X FB) |
| bolster Plate | 144" X 61" (RL X FB) (t-slotted) |
| SLIDE AREA | 144" X 61" (RL X FB) (t-slotted) |
| SLIDE ADJUSTMENT | 13.7" motorized |
| SPEED | 15 - 30 SPM |
| WINDOW SIZE | 78.7" WIDE |
| CLUTCH | MULTIPLE DISC HYDRAULIC CLUTCH AND BRAKE |
| ELECTRIC MOTOR, DRIVE & GEARING | CENTER DRIVE DESIGN WITH HELICAL GEARS & SPLINED CONNECTIONS |
| PRESS CONTROLS | KOMATSU SIT IV - SYSTEM INTEGRATED TERMINAL CONTROLLER |
| APPROX. DIMENSIONS | 250" X 171" (RL X FB) X 421" HIGH (WITH 96.5" PIT REQUIREMENT) |
| APPROX. WEIGHT | __ |
| Equipped With | HYDRAULIC OVERLOAD PROTECTOR, SLIDE ADJUSTMENT WITH HYDRAULIC SLIDE LOCK AND TRAVEL PROTECTION DIGITALLY DISPLAYED, DUAL PLUNGER GUIDE SYSTEM, tie rod frame construction, DUAL AIR COUNTERBALANCES |
| Note | CAPACITY RATING POINT AT .510" |
| Location | This New Press is Located in Our Press Sales Catalog Either In Transit or Made to Order |
