Description

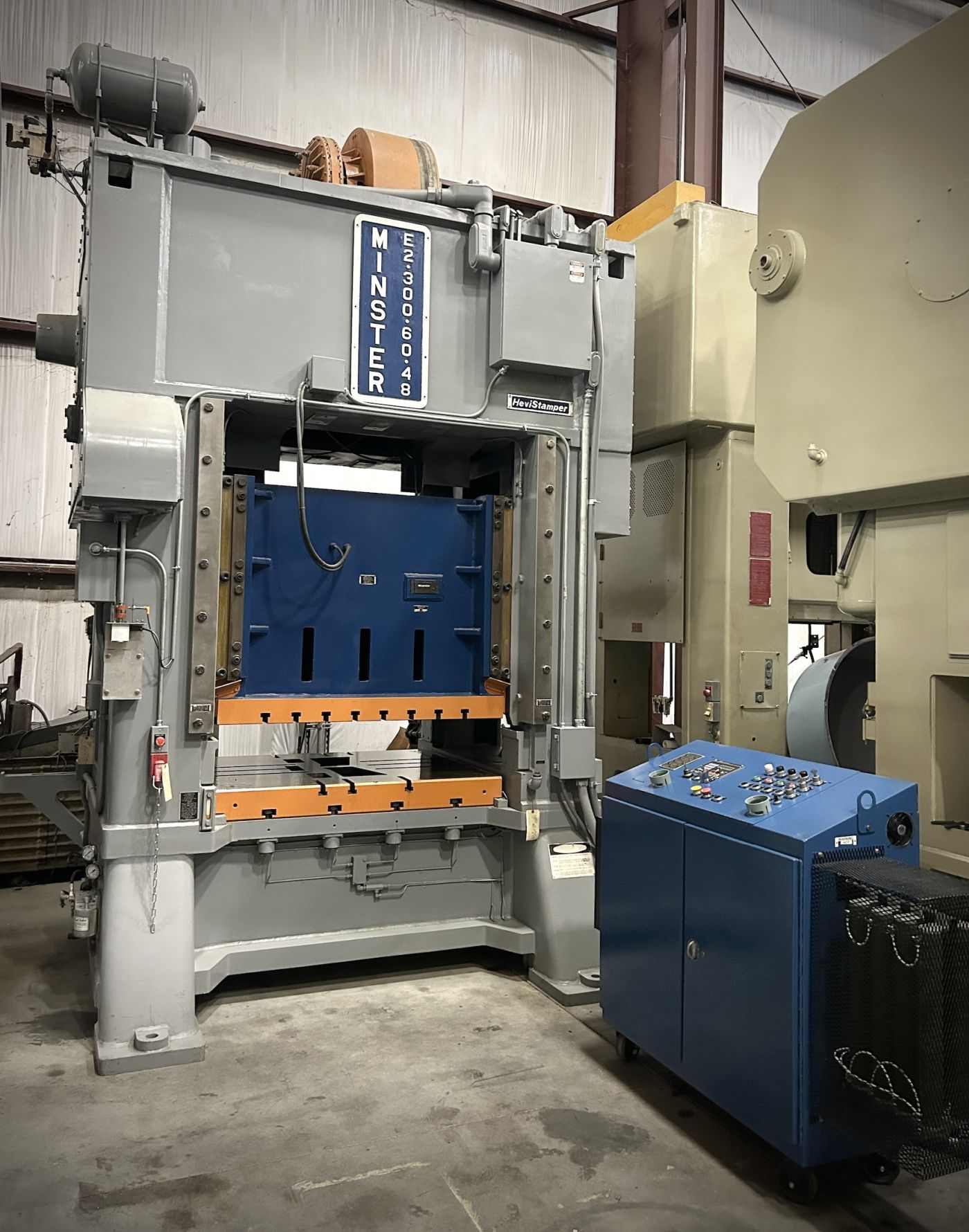

Straight Side Press • Used 300 Ton Press for Sale
- Machine #
- 6170
- Condition
- Very Good
- Location
- Columbia, TN Warehouse
- Year
- 1982
- Model
- Minster E2-300-60-48
Buy Now: $
| CAPACITY | 300 TON |
|---|---|
| STROKE | 4" |
| SHUT HEIGHT TO BED | 24" (SDAU) |
| BED AREA | 60" X 48" (rl x FB) |
| SPEED | 40 - 80 SPM (VARIABLE) |
| slide adjustment | 4" (MOTORIZED) |
| slide area | 60" X 48" (RL X FB) T-SLOTTED |
| BOLSTER PLATE | 60" X 48" (RL X FB) X 6" THICK T-SLOTTED |
| DIST UPRIGHTS / FLOOR TO BED | 62" / 38" |
| WINDOW SIZE | 38" WIDE X 12" HIGH |
| CLUTCH | MINSTER AIR CLUTCH / BRAKE COMBINATION |
| PRESS CONTROLS | NEW CIECO PPC1000R CONTROL CONSOLE |
| ELECTRIC MOTOR | NEW 50 HP 240/480V-3-60 MOTOR & 480v vfd w/resistor bank |
| APPROX DIMENSIONS | 108" X 96" (RL X FB) X 16' HIGH |
| APPROX WEIGHT | 87,500 LBS |
| Equipped With | lubrication pump & monitoring system, dual air counterbalanced ram, floor standing, tie rod frame, single back geared, twin gear drive |
| Note | __ |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
