Description

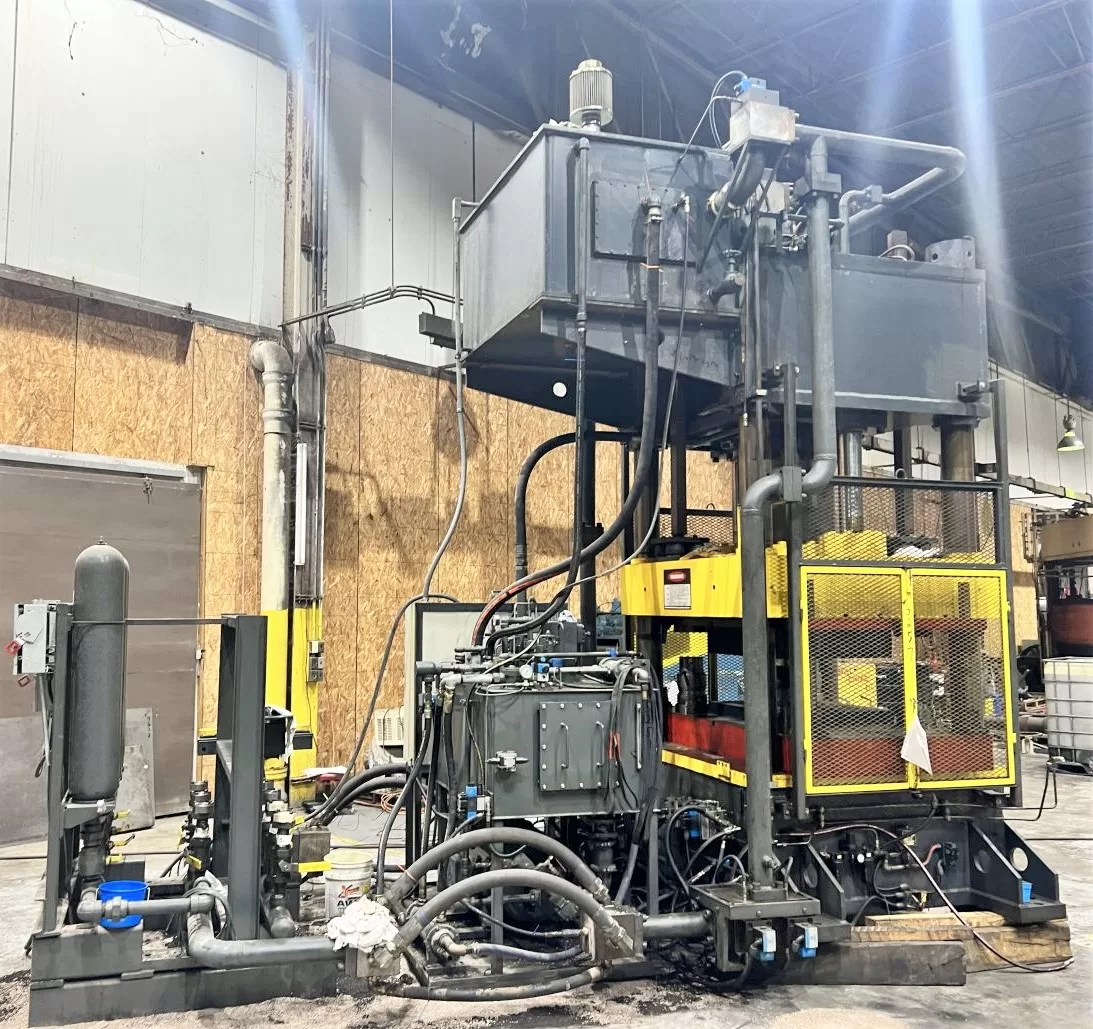

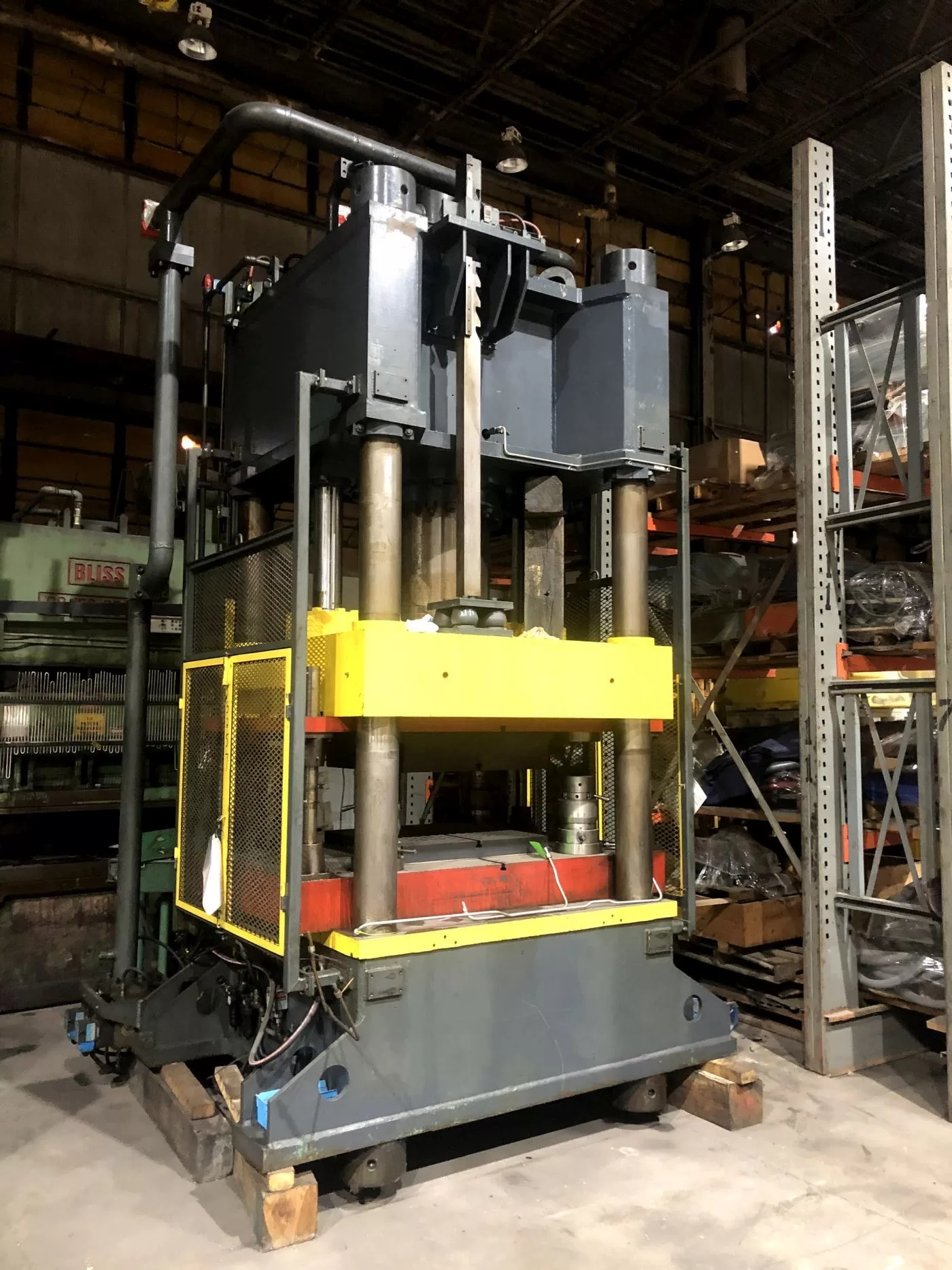

4-Post Used Hydraulic Press • Used 650 Ton Press for Sale
- Machine #
- 5257
- Condition
- Very Good
- Location
- Jackson, MI Falahee Building
- Year
- 1985
- Model
- Williams White & Company Custom
Buy Now: $
| max. capacity | 650 ton @ 3000 psi - pressing | 74 ton @ 3000 psi - stripping |
|---|---|
| max. stroke | 26" |
| Max. daylight to bed | 52" |
| overall bed & ram area | 66" x 66" (RL X FB) |
| distance between post | 48" x 48" (RL X FB) |
| usable bed area | 48" x 66" (RL X FB) |
| speed | TBD |
| bolster size | 80" X 48" (RL X FB) X 8" THICK |
| cylinder sizes | 21-1/2" dia.bore - main cylinder (2) 8" dia. bore - return cylinders |
| post size | 7" dia. |
| FLOOR TO BED HEIGHT | 42" |
| ELECTRICAL | 50 hp 230/460-3-60 motor |
| hydrauics - floor mounted | vickers double vane pump #3520v25a5-11-ab-20-282, 25/5 gpm, 430 gal. crown mounted tank |
| CONTROLS | koyo "direct 205" plc CONTROLLER, touchscreen control |
| overall dimensions | 96" X 66" (RL X FB) X 192" HIGH |
| approx. weight | APPROX. 62,400 lbs. |
| Equipped With | with floor standing base ejector cylinders in base with safety latches on ram |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
