110 Ton Bliss Press • Used Bliss #110 Press

110

110
Ton
42″
Bed R-L
10″
Stroke
Speed: 80 SPM
New in 1989

1

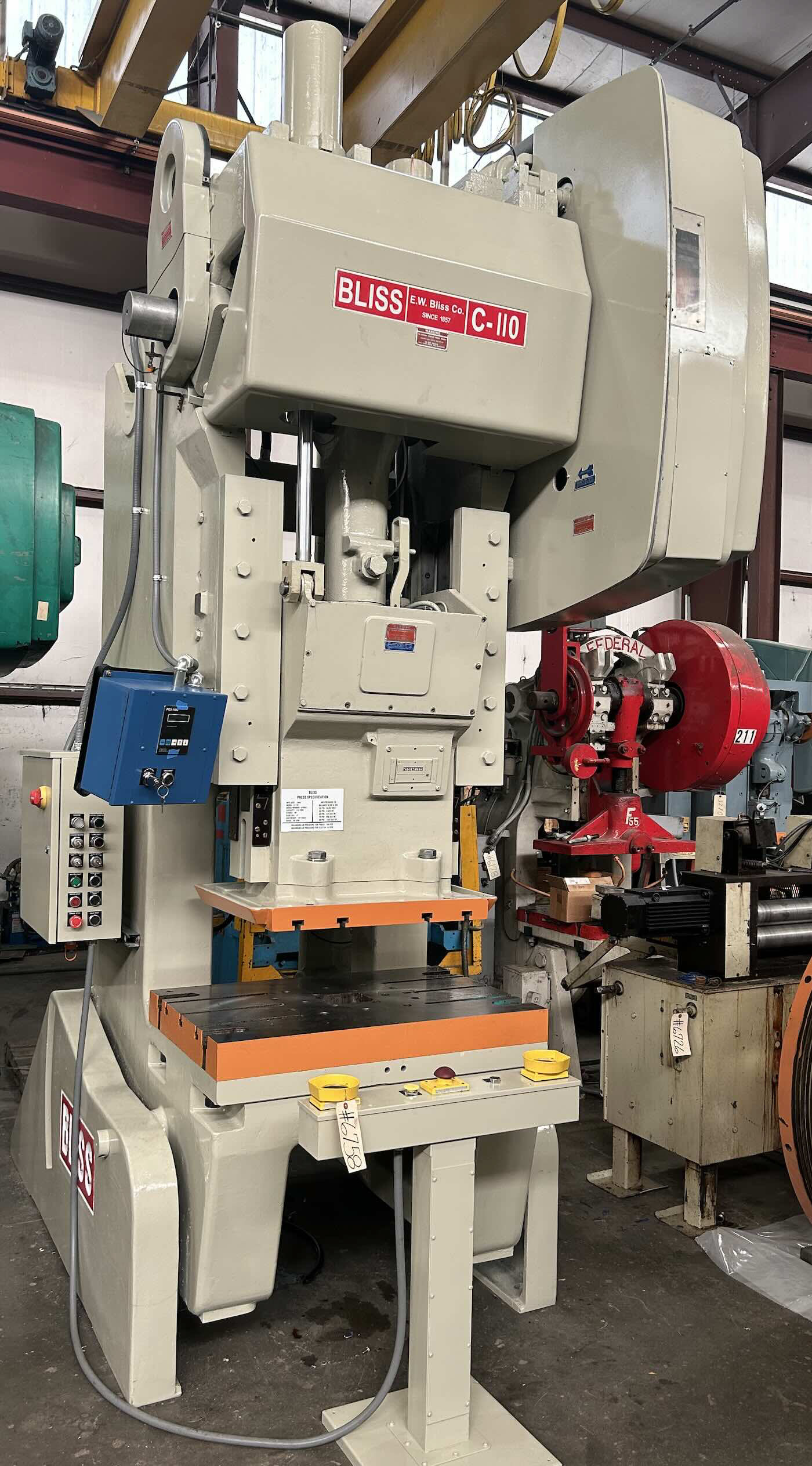

110 Ton Used Press – High Speed Press
Model: Bliss #110
10″ Stroke, 16″ Shut Height, 42″ x 27″ Bed Area, 80 SPM, 4″ Ram Adjustment

Stamping Presses for Sale
Used Bliss Mechanical Press
Machine #6758
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

High Speed Press for Sale

Manufacturer: Bliss
Model: Bliss C-110 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1989
Machine #: 6758
Buy Now: $





capacity 110 ton
stroke 10″
max shut height to bed 16″ sdau
bed area 42″ RL X 27″ FB
speed 80 SPM
slide adjustment 4″ motorized
slide area 28″ RL X 21″ FB (FLANGED & t-slotted)
bolster plate 4″ H 42″ RL X 27″ FB (t-slotted)
distance between uprights 24″
distance floor to bed 36″
clutch BLISS AIR CLUTCH / BRAKE COMBINATION – new clutch seals & clutch bushings
electrics new techtop 10 HP 1150 RPM 208-240/480V-3-60 MOTOR & NEW CIECO 1100R6 PRESS CONTROL
approx dimensions 148″ h x 78″ rl x 96″ fb
approx weight 30,000 lbs

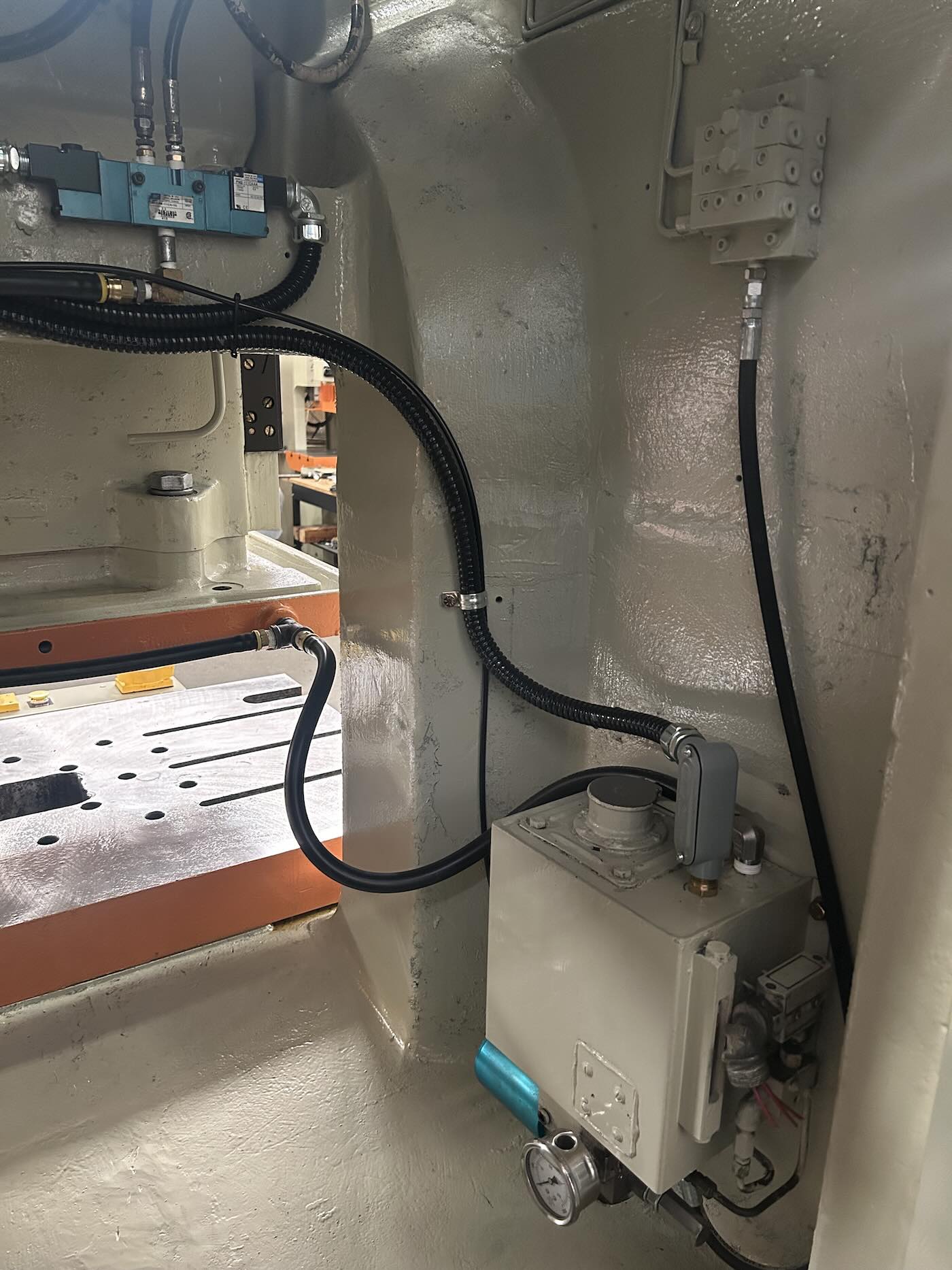

Equipped With FLOOR STANDING, CAST IRON FRAME, INCLINABLE, DUAL AIR COUNTERBALANCES, LUBE PUMP, NEW CLUTCH SEALS & BUSHINGS, REBUILT AIR COUNTERBALANCES, NEW AIR SYSTEM
Note __
Location This used press is located in our Columbia, TN Warehouse
