45 Ton Bliss Used Press for Sale • Bliss C-45 Press

45

45
Ton
29.5″
Bed R-L
1.5″
Stroke

New in 1

1

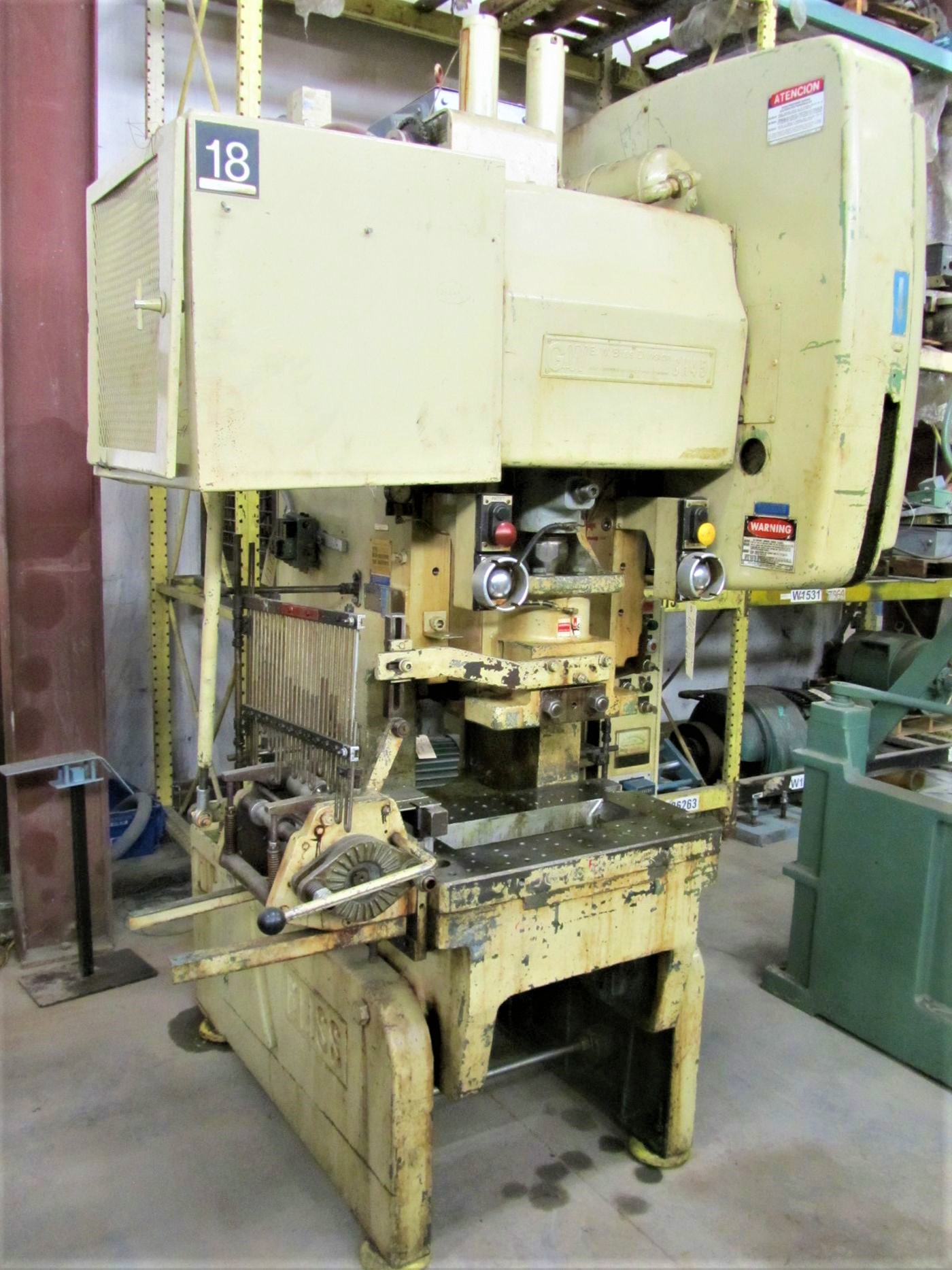

OBI Used Press
Model: Bliss C-45
1.5″ Stroke, 12 Shut Height, 29.5″ x 18″ Bed, 150-450 SPM, with 6″ W Single Roll Feed, 1979, PRICE CUT

High Speed Presses for Sale
Used Bliss Punch Press (Mechanical)
Machine #4297
(Columbia, TN Warehouse)
Sale Price: $

Machine Specifications

OBI Used Press for Sale

Manufacturer: Bliss
Bliss Model: CH-45
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1979
Machine #: 4297
Buy Now: $




CAPACITY 45 TON
STROKE 1-1/2″
SHUT HEIGHT TO BED 12″ (SDAU)
BED AREA 29-1/2″ RL X 18″ FB
SPEED 150-450 SPM (VARIABLE)
RAM ADJUSTMENT 3″
RAM AREA 15″ RL X 10-1/2″ FB (FLANGED)
BOLSTER SIZE 2-1/2″ X 29-1/2″ RL X 18″ FB(SOLID)
DIST UPRIGHTS / FLOOR TO BED 14″ / 33″
CLUTCH AIR CLUTCH & BRAKE
ELECTRICS 7-1/2 HP, 1800 RPM, 230/460/3/60V STERLING VARIABLE SPEED DRIVE
APPROX DIMENSIONS 8’6″ H X 6′ RL X 6′ FB
APPROX WEIGHT 8,500 LBS
Equipped With CAST STEEL FRAME CONSTRUCTION BIJUR AUTOMATIC OIL LUBRICATION SYSTEM AIR COUNTERBALANCED RAM 6″ WIDE SINGLE ROLL FEED (RACK & PINION) FLOOR STANDING BASE
Note __
Location This used press is located in our Columbia, TN Warehouse
